Spherical Roller Thrust Bearings

Spherical roller thrust bearing is one kind of axial roller bearings. Because of their construction design, these roller bearings can carry axial loads acting in one direction and simultaneously acting radial loads.

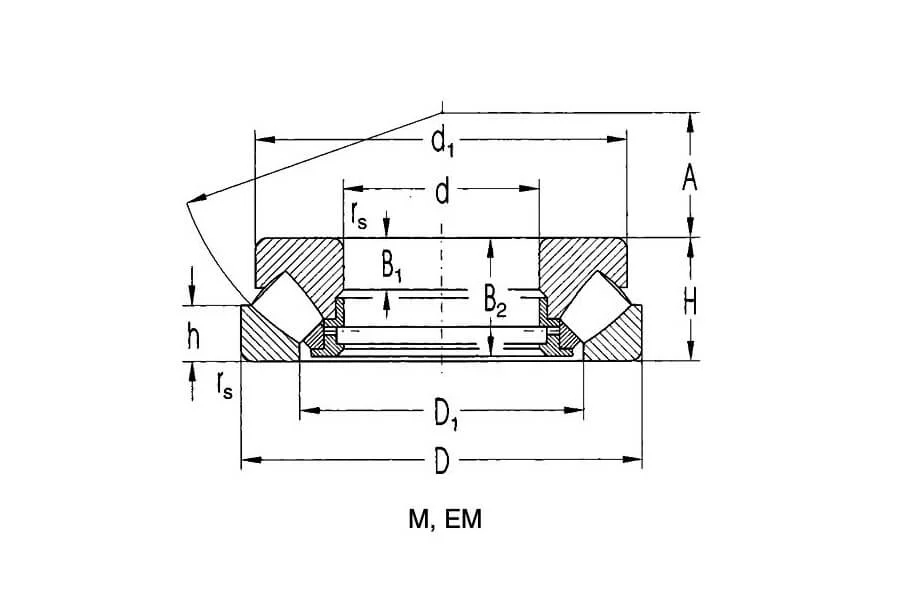

Specifications of Spherical Roller Thrust Bearings

Part Number	d [mm]	D [mm]	H [mm]	Cr [kN]	Cor [kN]	Grease [r/min]	Oil [r/min]	Mass [kg]
29412E	60	130	42	390	915	2800	5000	2.6
29413E	65	140	45	455	1080	2600	4800	3.2
29414E	70	150	48	520	1250	2400	4300	3.9
29415E	75	160	51	600	1430	2400	4000	4.7
29416E	80	170	54	670	1630	2200	3800	5.6
29317E	85	150	39	380	1060	2400	4000	2.75
29417E	85	180	58	735	1800	2000	3600	6.75
29318E	90	155	39	400	1080	2400	4000	2.85
29418E	90	190	60	815	2000	1900	3400	7.75
29320E	100	170	42	465	1290	2200	3600	3.65
29420E	100	210	67	980	2500	1700	3000	10.5
29322E	110	190	48	610	1730	1900	3200	5.3
29422E	110	230	73	1180	3000	1600	2800	13.5
29324E	120	210	54	765	2120	1700	2800	7.35
29424E	120	250	78	1370	3450	1500	2600	17.5
29326E	130	225	58	865	2500	1600	2600	9
29426E	130	270	85	1560	4050	1300	2400	22
29328E	140	240	60	980	2850	1500	2600	10.5
29428E	140	280	85	1630	4300	1300	2400	23
29330E	150	250	60	1000	2850	1500	2400	11
29430E	150	300	90	1860	5100	1200	2200	28
29332E	160	270	67	1180	3450	1300	2200	14.5
29432E	160	320	95	2080	5600	1100	2000	32
29334E	170	280	67	1200	3550	1300	2200	15
29434E	170	340	103	2360	6550	1100	1900	44.5
29236E	180	250	42	495	2040	1600	2600	5.8
29336E	180	300	73	1430	4300	1200	2000	19.5
29436E	180	360	109	2600	7350	1000	1800	52.5
29338E	190	320	78	1630	4750	1100	1900	23.5
29438E	190	380	115	2850	8000	950	1700	60.5
29240E	200	280	48	656	2650	1400	2200	9.3
29340E	200	340	85	1860	5500	1000	1700	28.5
29440E	200	400	122	3200	9000	850	1600	72
29244E	220	300	48	690	3000	1300	2200	10
29344E	220	360	85	2000	6300	1000	1700	31
29444E	220	420	122	3350	9650	850	1500	75
29248	240	340	60	799	3450	1100	1800	16.5
29348E	240	380	85	2040	6550	1000	1600	35.5
29448E	240	440	122	3400	10200	850	1500	80
29252	260	360	60	817	3650	1100	1700	18.5
29352E	260	420	95	2550	8300	850	1400	49
29452E	260	480	132	4050	12900	750	1300	105
29256	280	380	60	863	4000	1000	1700	19.5
29356E	280	440	95	2550	8650	850	1400	53
29456E	280	520	145	4900	15300	670	1200	135
29360E	300	480	109	3100	10600	750	1200	75
29260	300	420	73	1070	4800	900	1400	30.5
29460E	300	540	145	5000	16600	670	1200	140
29264	320	440	73	1110	5100	850	1400	33
29364E	320	500	109	3550	11200	750	1200	78
29464E	320	580	155	5700	19000	600	1100	175
29268	340	460	73	1130	5400	850	1300	33.5
29368	340	540	122	2710	11000	600	1100	105
29468E	340	620	170	6700	22400	560	1000	220
29272	360	500	85	1460	6800	750	1200	52
29372	360	560	122	2760	11600	600	1100	110
29472EM	360	640	170	6200	21200	560	950	230
29276	380	520	85	1580	7650	700	1100	53
29376	380	600	132	3340	14000	530	1000	140
29476EM	380	670	175	6800	24000	530	900	260
29280	400	540	85	1610	8000	700	1100	55.5
29380	400	620	132	3450	14600	530	950	150
29480EM	400	710	185	7650	26500	480	850	310
29284	420	580	95	1990	9800	630	1000	75.5
29384	420	650	140	3740	16000	500	850	170
29484EM	420	730	185	7800	27500	480	750	325
29288	440	600	95	2070	10400	630	950	78
29388EM	440	680	145	5200	19300	530	800	180
29488EM	440	780	206	9000	32000	430	750	410
29292	460	620	95	2070	10600	600	950	81
29392	460	710	150	4310	19000	450	800	215
29492EM	460	800	206	9300	33500	430	750	425
29296	480	650	103	2350	11800	560	900	98
29396	480	730	150	4370	19600	450	800	220
29496EM	480	850	224	9550	39000	340	670	550
292/500	500	670	103	2390	12500	560	900	100
293/500	500	750	150	4490	20400	430	800	235
294/500EM	500	870	224	9370	40000	340	670	560
292/530EM	530	710	109	3110	15300	530	850	115
293/530	530	800	160	5230	23600	400	750	270
294/530EM	530	920	236	10500	44000	320	630	650
292/560	560	750	115	2990	16000	480	800	140
294/560EM	560	980	250	12000	51000	300	560	810
292/600EM	600	800	122	3740	18600	450	700	170
294/600EM	600	1030	258	13100	56000	280	530	845
292/630EM	630	850	132	4770	23600	400	670	210
293/630EM	630	950	190	8450	38000	320	600	485
294/630EM	630	1090	280	14400	62000	260	500	1040
292/670	670	900	140	4200	22800	380	630	255
294/670EM	670	1150	290	15400	68000	240	450	1210
293/710EM	710	1060	212	9950	45500	280	500	610
294/710EF	710	1220	308	17600	76500	220	430	1500
292/750EM	750	1000	150	6100	31000	340	560	325
293/750	750	1120	224	9370	45000	260	480	770
294/750EF	750	1280	315	18700	85000	200	400	1650
292/800EM	800	1060	155	6560	34500	320	530	380
293/800	800	1180	230	9950	49000	240	450	865
294/800EF	800	1360	335	20200	93000	190	360	2030
292/850EM	850	1120	160	6730	36000	300	500	425
294/850EF	850	1440	354	23900	108000	170	340	2390
292/900EM	900	1180	170	7820	42500	280	450	475
294/900EF	900	1520	372	26700	122000	160	300	2650
292/950EM	950	1250	180	8280	15500	260	430	600
294/950EF	950	1600	390	28200	132000	140	280	3070
294/1000EF	1000	1670	402	31100	140000	130	260	3390
292/1060EF	1060	1400	206	10500	58500	220	360	860
294/1060EF	1060	1770	426	33400	156000	120	240	4280
292/1180EF	1180	1520	206	10900	64000	220	340	950
293/1250EF	1250	1800	330	24800	129000	130	240	2770
293/1600EF	1600	2280	408	36800	200000	90	160	5380
