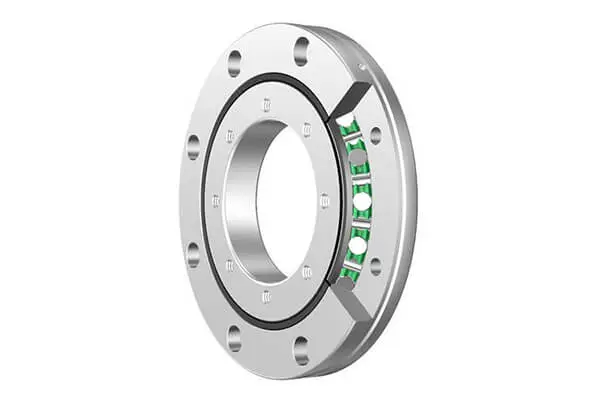

Cross Roller Ring - RU, XU, XSU Series

Features of RU XU XSU Cross Roller Bearings

RU, XU, XSU series cross roller ring are machined with the mounting holes, so, they do not request the mounting flanges and housings. Besides, unlike the other series, their inner ring and outer ring are both integral and equipped with washers, therefore, the mounting process minimally affects their performance. All these features ensure the stable rotation accuracy and torque. So, the cross roller ring type is suitable for industrial applications of both inner ring rotation and outer ring rotation.

Specifications of RU, XU, XSU Series Cross Roller Bearings

Part Number	d [mm]	D [mm]	dp [mm]	B B1 [mm]	d1 [mm]	r [mm]	ds [mm]	Dh [mm]	Cr [kN]	Cor [kN]	Mass [kg]	PCD1	Mounting Holes	PCD2	Mounting Holes
RU42	20	70	41.5	12	3.1	0.6	37	47	7.35	8.35	0.29	28	6-M3 through	57	6-⌀3.4 through, ⌀6.5 counter bore depth 3.3
RU66	35	95	66	15	3.1	0.6	59	74	17.5	22.3	0.62	45	8-M4 through	83	8-⌀4.5 through, ⌀8 counter bore depth 4.4
RU85	55	120	85	15	3.1	0.6	79	93	20.3	29.5	1	65	8-M5 through	105	8-⌀5.5 through, ⌀9.5 counter bore depth 5.4
RU124(G)	80	165	124	22	3.1	1	114	134	33.1	50.9	2.6	97	10-⌀5.5 through, ⌀9.5 counter bore depth 5.4	148	10-⌀5.5 through, ⌀9.5 counter bore depth 5.4
RU124X	80	165	124	22	3.1	1	114	134	33.1	50.9	2.6	97	10-M5 through	148	10-⌀5.5 through, ⌀9.5 counter bore depth 5.5
RU148(G)	90	210	147.5	25	3.1	1.5	133	162	49.1	76.8	4.9	112	12-⌀9 through, ⌀14 counter bore depth 8.6	187	12-⌀9 through, ⌀14 counter bore depth 8.6
RU148X	90	210	147.5	25	3.1	1.5	133	162	49.1	76.8	4.9	112	12-M8 through	187	12-⌀9 through, ⌀14 counter bore depth 8.7
RU178(G)	115	240	178	28	3.1	1.5	161	195	80.3	135	6.8	139	12-⌀9 through, ⌀14 counter bore depth 8.6	217	12-⌀9 through, ⌀14 counter bore depth 8.6
RU178X	115	240	178	28	3.1	1.5	161	195	80.3	135	6.8	139	12-M8 through	217	12-⌀9 through, ⌀14 counter bore depth 8.7
RU228(G)	160	295	227.5	35	6	2	208	246	104	173	11.4	184	12-⌀11 through, ⌀17.5 counter bore depth 10.8	270	12-⌀11 through, ⌀17.5 counter bore depth 10.8
RU228X	160	295	227.5	35	6	2	208	246	104	173	11.4	184	12-M10 through	270	12-⌀11 through, ⌀17.5 counter bore depth 10.9
RU297(G)	210	380	297.3	40	6	2.5	272	320	156	281	21.3	240	16-⌀14 through, ⌀20 counter bore depth 13	350	16-⌀14 through, ⌀20 counter bore depth 13
RU297X	210	380	297.3	40	6	2.5	272	320	156	281	21.3	240	16-M12 through	350	16-⌀14 through, ⌀20 counter bore depth 14
RU445(G)	350	540	445.4	45	6	2.5	417	473	222	473	35.4	385	24-⌀14 through, ⌀20 counter bore depth 13	505	24-⌀14 through, ⌀20 counter bore depth 13
RU445X	350	540	445.4	45	6	2.5	417	473	222	473	35.4	385	24-M12 through	505	24-⌀14 through, ⌀20 counter bore depth 14

Part Number	d [mm]	D [mm]	B [mm]	na [mm]	r [mm]	Ca [kN]	Coa [kN]	Cr [kN]	Cor [kN]	Mass [kg]
XSU080168	130	205	25.4	12	1.1	66	240	42	96	3.3
XSU080188	150	225	25.4	16	1.1	71	275	46	110	3.7
XSU080218	180	225	25.4	20	1.1	77	315	49	127	4.3
XSU080258	220	295	25.4	24	1.5	84	375	54	151	5.1
XSU080318	280	355	25.4	28	1.5	93	465	59	185	6.3
XSU080398	360	435	25.4	36	2	106	590	68	236	7.8
XSU140414	344	484	56	24	2	229	520	146	250	28
XSU140544	474	614	56	32	2.5	270	680	170	330	38
XSU140644	574	714	56	36	2.5	290	800	185	395	44
XSU140744	674	814	56	40	3	315	930	200	455	52
XSU140844	744	914	56	40	3	340	1050	215	510	60
XSU140944	874	1014	56	44	3	360	1170	227	580	67

Part Number	d [mm]	D [mm]	dp [mm]	H [mm]	La [mm]	na [mm]	Li [mm]	ni [mm]	Ca [kN]	Coa [kN]	Cr [kN]	Cor [kN]	Mass [kg]
XU050077	40	112	77	22	97	6-φ6.6	56	6-M8	22.4	29	14.3	14.2	1.4
XU060094	57	140	94	26	120	6-φ9	70	6-M8	32.5	37.5	20.7	18.4	2.4
XU060111	76.2	145.79	111	15.87	133.1	8-φ6.9	88.9	8-φ6.9	36	44.5	22.8	21.5	1.2
XU080120	69	170	120	30	148	6-φ9	90	6-M8	56	53	35.5	26	4
XU080149	101.6	196.85	149.6	22.22	177.8	16-φ6.9	115.8	16-φ6.9	63	66	40	32.5	3.6
XU120179	124.5	234	179	35	214	12-φ11	144.5	12-φ11	118	179	75	88	7
XU120222	140	300	222	36	270	12-M16	170	12-φ18	133	275	85	131	12
XU160260	191	329	260	46	305	20-φ14	215	20-φ14	212	350	135	173	16
XU080264	215.9	311	264	25.4	295.3	12-φ8.7	231.8	12-φ8.7	85	117	54	57	6.9
XU160405	336	474	405	46	450	30-φ14	360	30-φ14	270	550	172	270	25
XU080430	380	480	430	26	462	20-φ9	398	20-M10	110	280	70	138	12
XU300515	384	646	515	86	598	18-φ26	432	18-φ26	720	1370	455	670	115
