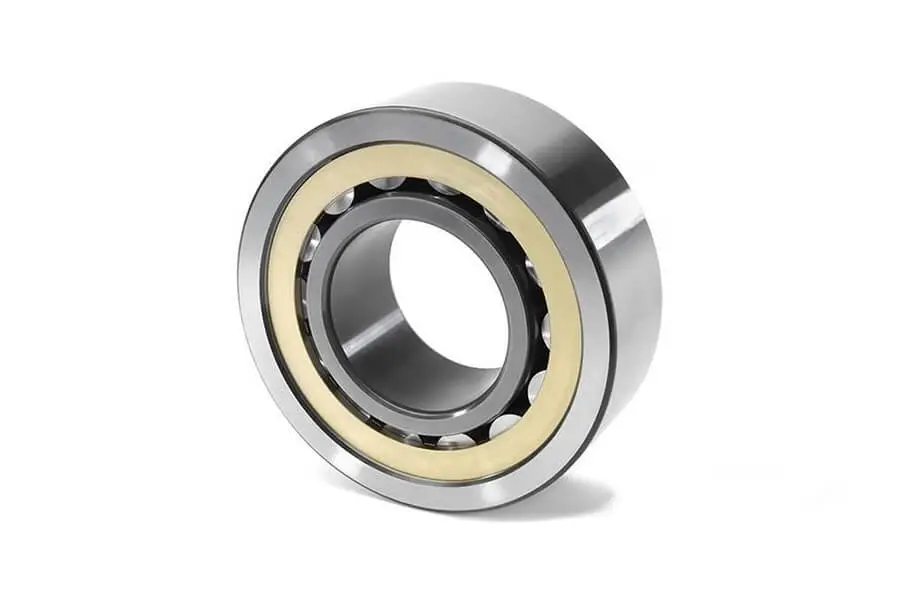

Single Row Cylindrical Roller Bearings

Single row cylindrical roller bearing has a wide range of sizes and designs, as well as many variants. These bearings come with four most common designs – N, NJ, NUP and NU types. Besides, the cage has different designs and material, the inner ring and outer ring are with or without flanges.

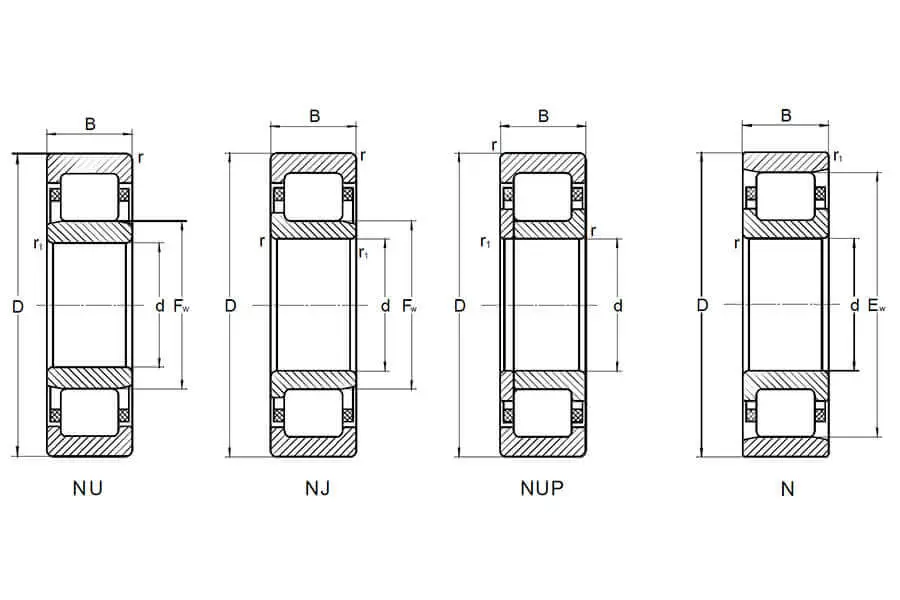

Specifications of Single Row Cylindrical Roller Bearings

Product Table of Single Row Roller Bearings

Designation	Cage Alternative	d [mm]	D [mm]	B [mm]	Cr [kN]	Cor [kN]	Grease [r/min]	Oil [r/min]	Mass [kg]
NU202EP	–	15	35	11	12.5	10.2	22000	26000	0.047
NJ202EP	–	15	35	11	12.5	10.2	22000	26000	0.049
NU203EP	M	17	40	12	17.2	14.3	19000	22000	0.068
NJ203EP	M	17	40	12	17.2	14.3	19000	22000	0.07
NUP203EP	M	17	40	12	17.2	14.3	19000	22000	0.073
N203EP	–	17	40	12	17.2	14.3	19000	22000	0.066
NU2203EP	–	17	40	16	23.8	21.6	19000	22000	0.092
NJ2203EP	–	17	40	16	23.8	21.6	19000	22000	0.095
NUP2203EP	–	17	40	16	23.8	21.6	19000	22000	0.097
NU303EP	–	17	47	14	24.6	20.4	15000	20000	0.12
NJ303EP	–	17	47	14	24.6	20.4	15000	20000	0.12
N303EP	–	17	47	14	24.6	20.4	15000	20000	0.12
NU204EP	M	20	47	14	25.1	25.2	16000	19000	0.11
NJ204EP	M	20	47	14	25.1	25.2	16000	19000	0.11
NUP204EP	M	20	47	14	25.1	25.2	16000	19000	0.12
N204EP	–	20	47	14	25.1	25.2	16000	19000	0.11
NU2204EP	–	20	47	18	29.7	27.5	16000	19000	0.14
NJ2204EP	–	20	47	18	29.7	27.5	16000	19000	0.14
NU304EP	–	20	52	15	35.5	26	15000	18000	0.17
NJ304EP	–	20	52	15	35.5	26	15000	18000	0.17
NUP304EP	–	20	52	15	35.5	26	15000	18000	0.16
N304EP	–	20	52	15	35.5	26	15000	18000	0.15
NU2304EP	–	20	52	21	47.5	38	14000	18000	0.21
NJ2304EP	–	20	52	21	47.5	38	14000	18000	0.22
NUP2304EP	–	20	52	21	47.5	38	14000	18000	0.22
NU1005	–	25	47	12	14.2	13.2	18000	18000	0.84
NU205EP	J, M	25	52	15	28.6	27	14000	16000	0.14
NJ205EP	J, M	25	52	15	28.6	27	14000	16000	0.15
NUP205EP	M	25	52	15	28.6	27	14000	16000	0.14
N205EP	–	25	52	15	28.6	27	14000	16000	0.13
NU2205EP	M	25	52	18	34.1	34	14000	16000	0.17
NJ2205EP	M	25	52	18	34.1	34	14000	16000	0.18
NUP2205EP	M	25	52	18	34.1	34	14000	16000	0.17
NU305EP	J, M	25	62	17	46.5	36.5	12000	15000	0.28
NJ305EP	J, M	25	62	17	46.5	36.5	12000	15000	0.29
NUP305EP	J, M	25	62	17	46.5	36.5	12000	15000	0.25
N305EP	–	25	62	17	46.5	36.5	12000	15000	0.24
NU2305EP	J, M	25	62	24	64	55	12000	15000	0.38
NJ2305EP	M	25	62	24	64	55	12000	15000	0.39
NUP2305EP	M	25	62	24	64	55	12000	15000	0.38
NU1006	–	30	55	13	17.9	17.3	14000	15000	0.12
NU206EP	J, M	30	62	16	44	36.5	13000	14000	0.23
NJ206EP	J, M	30	62	16	44	36.5	13000	14000	0.24
NUP206EP	M	30	62	16	44	36.5	13000	14000	0.22
N206EP	–	30	62	16	44	36.5	13000	14000	0.2
NU2206EP	J, M	30	62	20	55	49	13000	14000	0.26
NJ2206EP	J, M	30	62	20	55	49	13000	14000	0.27
NUP2206EP	M	30	62	20	55	49	13000	14000	0.27
NU306EP	J, M	30	72	19	58.5	48	11000	12000	0.4
NJ306EP	J, M	30	72	19	58.5	48	11000	12000	0.41
NUP306EP	J, M	30	72	19	58.5	48	11000	12000	0.38
N306EP	–	30	72	19	58.5	48	11000	12000	0.36
NU2306EP	M	30	72	27	83	75	11000	12000	0.53
NJ2306EP	M	30	72	27	83	75	11000	12000	0.54
NUP2306EP	M	30	72	27	83	75	11000	12000	0.55
NU406	–	30	90	23	60.5	53	9000	11000	0.75
NJ406	–	30	90	23	60.5	53	9000	11000	0.77
NU1007EP	–	35	62	14	35.8	38	12000	13000	0.16
NU207EP	J, M	35	72	17	56	48	11000	12000	0.33
NJ207EP	J, M	35	72	17	56	48	11000	12000	0.33
NUP207EP	J, M	35	72	17	56	48	11000	12000	0.31
N207EP	–	35	72	17	56	48	11000	12000	0.3
NU2207EP	J, M	35	72	23	69.5	63	11000	12000	0.4
NJ2207EP	J, M	35	72	23	69.5	63	11000	12000	0.41
NUP2207EP	M	35	72	23	69.5	63	11000	12000	0.42
NU307EP	J, M	35	80	21	75	63	9500	11000	0.54
NJ307EP	J, M	35	80	21	75	63	9500	11000	0.55
NUP307EP	J, M	35	80	21	75	63	9500	11000	0.51
N307EP	–	35	80	21	75	63	9500	11000	0.48
NU2307EP	J	35	80	31	106	98	9500	11000	0.72
NJ2307EP	–	35	80	31	106	98	9500	11000	0.73
NUP2307EP	–	35	80	31	106	98	9500	11000	0.75
NU407	–	35	100	25	76.5	69.5	8000	9500	1
NJ407	–	35	100	25	76.5	69.5	8000	9500	1.05
NU1008M	–	40	68	15	25.1	26	11000	18000	0.22
NU208EP	J, M	40	80	18	62	53	9500	11000	0.42
NJ208EP	J, M	40	80	18	62	53	9500	11000	0.43
NUP208EP	J, M	40	80	18	62	53	9500	11000	0.4
N208EP	–	40	80	18	62	53	9500	11000	0.37
NU2208EP	J, M	40	80	23	81.5	75	9500	11000	0.54
NJ2208EP	J, M	40	80	23	81.5	75	9500	11000	0.55
NUP2208EP	J, M	40	80	23	81.5	75	9500	11000	0.56
NU308EP	J, M	40	90	23	93	78	8000	9500	0.73
NJ308EP	J, M	40	90	23	93	78	8000	9500	0.75
NUP308EP	M	40	90	23	93	78	8000	9500	0.68
N308EP	–	40	90	23	93	78	8000	9500	0.64
NU2308EP	J, M	40	90	33	129	120	8000	9500	0.94
NJ2308EP	J, M	40	90	33	129	120	8000	9500	0.96
NUP2308EP	M	40	90	33	129	120	8000	9500	0.98
NU408	–	40	110	27	96.8	90	7000	8500	1.4
NJ408	–	40	110	27	96.8	90	7000	8500	1.35
NU1009EP	–	45	75	16	44.6	52	9500	11000	0.26
NU209EP	J, M	45	85	19	69.5	64	9000	9500	0.48
NJ209EP	J, M	45	85	19	69.5	64	9000	9500	0.49
NUP209EP	J, M	45	85	19	69.5	64	9000	9500	0.45
N209EP	–	45	85	19	69.5	64	9000	9500	0.43
NU2209EP	J	45	85	23	85	81.5	9000	9500	0.52
NJ2209EP	J	45	85	23	85	81.5	9000	9500	0.54
NUP2209EP	–	45	85	23	85	81.5	9000	9500	0.55
NU309EP	J, M	45	100	25	112	100	7500	8500	1
NJ309EP	J, M	45	100	25	112	100	7500	8500	1.05
NUP309EP	J, M	45	100	25	112	100	7500	8500	0.95
N309EP	–	45	100	25	112	100	7500	8500	0.88
NU2309EP	M	45	100	36	160	153	7500	8500	1.3
NJ2309EP	M	45	100	36	160	153	7500	8500	1.35
NUP2309EP	M	45	100	36	160	153	7500	8500	1.35
NU409	–	45	120	29	106	102	6700	7500	1.78
NJ409	–	45	120	29	106	102	6700	7500	1.7
NU1010EP	–	50	80	16	46.8	56	9000	9500	0.27
NU210EP	J, M	50	90	20	73.5	69.5	8500	9000	0.49
NJ210EP	J, M	50	90	20	73.5	69.5	8500	9000	0.5
NUP210EP	J, M	50	90	20	73.5	69.5	8500	9000	0.51
N210EP	–	50	90	20	73.5	69.5	8500	9000	0.48
NU2210EP	J, M	50	90	23	90	88	8500	9000	0.56
NJ2210EP	J, M	50	90	23	90	88	8500	9000	0.59
NUP2210EP	J, M	50	90	23	90	88	8500	9000	0.59
NU310EP	J, M	50	110	27	127	112	6700	8000	1.15
NJ310EP	J, M	50	110	27	127	112	6700	8000	1.15
NUP310EP	J, M	50	110	27	127	112	6700	8000	1.2
N310EP	M	50	110	27	127	112	6700	8000	1.15
NU2310EP	M	50	110	40	186	186	6700	8000	2
NJ2310EP	M	50	110	40	186	186	6700	8000	1.75
NUP2310EP	M	50	110	40	186	186	6700	8000	1.8
NU410	–	50	130	31	130	127	6000	7000	2
NJ410	–	50	130	31	130	127	6000	7000	2.05
NU1011EP	–	55	90	18	57.2	69.5	8000	8500	0.4
NU211EP	J, M	55	100	21	96.5	95	7500	8000	0.67
NJ211EP	J, M	55	100	21	96.5	95	7500	8000	0.67
NUP211EP	J, M	55	100	21	96.5	95	7500	8000	0.69
N211EP	M	55	100	21	96.5	95	7500	8000	0.66
NU2211EP	J, M	55	100	25	114	118	7500	8000	0.79
NJ2211EP	J, M	55	100	25	114	118	7500	8000	0.81
NUP2211EP	J, M	55	100	25	114	118	7500	8000	0.82
NU311EP	J, M	55	120	29	156	143	6000	7000	1.45
NJ311EP	J, M	55	120	29	156	143	6000	7000	1.5
NUP311EP	J, M	55	120	29	156	143	6000	7000	1.55
N311EP	M	55	120	29	156	143	6000	7000	1.45
NU2311EP	M	55	120	43	232	232	6000	7000	2.25
NJ2311EP	M	55	120	43	232	232	6000	7000	2.3
NUP2311EP	M	55	120	43	232	232	6000	7000	2.35
NU411	–	55	140	33	142	140	5600	6300	2.5
NJ411	–	55	140	33	142	140	5600	6300	2.55
NU1012M	–	60	95	18	37.4	44	8000	11000	0.48
NU212EP	J, M	60	110	22	108	102	6700	7500	0.81
NJ212EP	J, M	60	110	22	108	102	6700	7500	0.83
NUP212EP	J, M	60	110	22	108	102	6700	7500	0.86
N212EP	M	60	110	22	108	102	6700	7500	0.81
NU2212EP	J, M	60	110	28	146	153	6700	7500	1.1
NJ2212EP	J, M	60	110	28	146	153	6700	7500	1.15
NUP2212EP	J, M	60	110	28	146	153	6700	7500	1.15
NU312EP	J, M	60	130	31	173	160	5600	6700	1.8
NJ312EP	J, M	60	130	31	173	160	5600	6700	1.9
NUP312EP	J, M	60	130	31	173	160	5600	6700	1.95
N312EP	M	60	130	31	173	160	5600	6700	1.8
NU2312EP	M	60	130	46	260	265	5600	6700	2.75
NJ2312EP	M	60	130	46	260	265	5600	6700	2.8
NUP2312EP	M	60	130	46	260	265	5600	6700	2.85
NU412	–	60	150	35	168	173	5000	6000	3
NJ412	–	60	150	35	168	173	5000	6000	3.1
NU1013EP	–	65	100	18	62.7	81.5	7000	7500	0.45
NU213EP	J, M	65	120	23	122	118	6300	6700	1.05
NJ213EP	J, M	65	120	23	122	118	6300	6700	1.07
NUP213EP	J, M	65	120	23	122	118	6300	6700	1.1
N213EP	–	65	120	23	122	118	6300	6700	1.05
NU2213EP	J	65	120	31	170	180	6300	6700	1.4
NJ2213EP	J	65	120	31	170	180	6300	6700	1.45
NUP2213EP	–	65	120	31	170	180	6300	6700	1.5
NU313EP	J, M	65	140	33	212	196	5300	5600	2.28
NJ313EP	J, M	65	140	33	212	196	5300	5600	2.3
NUP313EP	J, M	65	140	33	212	196	5300	5600	2.35
N313EP	M	65	140	33	212	196	5300	5600	2.25
NU2313EP	M	65	140	48	285	290	5300	5600	3.3
NJ2313EP	M	65	140	48	285	290	5300	5600	3.35
NUP2313EP	M	65	140	48	285	290	5300	5600	3.45
NU413	–	65	160	37	183	190	4800	5600	3.6
NJ413	–	65	160	37	183	190	4800	5600	3.65
NU1014EP	–	70	110	20	76.5	93	6300	7000	0.62
NU214EP	J, M	70	125	24	137	137	6000	6300	1.15
NJ214EP	J, M	70	125	24	137	137	6000	6300	1.15
NUP214EP	M	70	125	24	137	137	6000	6300	1.2
N214EP	–	70	125	24	137	137	6000	6300	1.15
NU2214EP	J, M	70	125	31	180	193	6000	6300	1.55
NJ2214EP	M	70	125	31	180	193	6000	6300	1.55
NUP2214EP	M	70	125	31	180	193	6000	6300	1.55
NU314EP	J, M	70	150	35	236	228	4800	5600	2.75
NJ314EP	J, M	70	150	35	236	228	4800	5600	2.8
NUP314EP	M	70	150	35	236	228	4800	5600	2.85
N314EP	M	70	150	35	236	228	4800	5600	2.75
NU2314EP	M	70	150	51	315	325	4800	5600	4
NJ2314EP	M	70	150	51	315	325	4800	5600	4.05
NUP2314EP	M	70	150	51	315	325	4800	5600	4.15
NU414	–	70	180	42	229	240	4300	5000	5.25
NJ414	–	70	180	42	229	240	4300	5000	5.35
NU1015M	–	75	115	20	58.3	71	6700	10000	0.74
NU215EP	J, M	75	130	25	150	156	5600	6000	1.25
NJ215EP	J, M	75	130	25	150	156	5600	6000	1.3
NUP215EP	M	75	130	25	150	156	5600	6000	1.3
N215EP	–	75	130	25	150	156	5600	6000	1.25
NU2215EP	J, M	75	130	31	186	208	5600	6000	1.6
NJ2215EP	J, M	75	130	31	186	208	5600	6000	1.6
NUP2215EP	J, M	75	130	31	186	208	5600	6000	1.65
NU315EP	J, M	75	160	37	280	265	4500	5300	3.3
NJ315EP	J, M	75	160	37	280	265	4500	5300	3.35
NUP315EP	M	75	160	37	280	265	4500	5300	3.45
N315EP	M	75	160	37	280	265	4500	5300	3.3
NU2315EP	J, M	75	160	55	380	400	4500	5300	4.9
NJ2315EP	M	75	160	55	380	400	4500	5300	5
NUP2315EP	M	75	160	55	380	400	4500	5300	5.1
NU415	–	75	190	45	264	280	4000	4800	6.75
NJ415	–	75	190	45	264	280	4000	4800	6.9
NU1016	–	80	125	22	66	81.5	6300	6300	1
NJ1016EM	–	80	125	22	99	127	5600	9500	1.1
NU216EP	J, M	80	140	26	160	166	5300	5600	1.5
NJ216EP	J, M	80	140	26	160	166	5300	5600	1.6
NUP216EP	M	80	140	26	160	166	5300	5600	1.65
N216EP	–	80	140	26	160	166	5300	5600	1.5
NU2216EP	J, M	80	140	33	212	245	5300	5600	2
NJ2216EP	J, M	80	140	33	212	245	5300	5600	2.05
NUP2216EP	M	80	140	33	212	245	5300	5600	2.1
NU316EP	J, M	80	170	39	300	290	4300	5000	3.95
NJ316EP	J, M	80	170	39	300	290	4300	5000	4
NUP316EP	M	80	170	39	300	290	4300	5000	4.1
N316EP	M	80	170	39	300	290	4300	5000	3.9
NU2316EP	M	80	170	58	415	440	4300	5000	5.95
NJ2316EP	M	80	170	58	415	440	4300	5000	6
NUP2316EP	M	80	170	58	415	440	4300	5000	6
NU416	–	80	200	48	303	320	3800	4500	7.3
NJ416	–	80	200	48	303	320	3800	4500	8.05
NU1017M	–	85	130	22	68.2	86.5	6000	9000	1.05
NU217EP	J, M	85	150	28	190	200	4800	5300	1.9
NJ217EP	J, M	85	150	28	190	200	4800	5300	1.95
NUP217EP	J, M	85	150	28	190	200	4800	5300	2
N217EP	M	85	150	28	190	200	4800	5300	1.9
NU2217EP	J, M	85	150	36	250	280	4800	5300	2.45
NJ2217EP	J, M	85	150	36	250	280	4800	5300	2.55
NUP2217EP	M	85	150	36	250	280	4800	5300	2.65
NU317EP	J, M	85	180	41	340	335	4000	4800	4.7
NJ317EP	J, M	85	180	41	340	335	4000	4800	4.8
NUP317EP	J, M	85	180	41	340	335	4000	4800	4.9
N317EP	M	85	180	41	340	335	4000	4800	4.7
NU2317EP	J, M	85	180	60	455	490	4000	4800	6.85
NJ2317EP	M	85	180	60	455	490	4000	4800	7
NUP2317EP	M	85	180	60	455	490	4000	4800	7
NU417	–	85	210	52	319	335	3600	4300	9.7
NJ417	–	85	210	52	319	335	3800	4300	8.9
NU1018M	–	90	140	24	80.9	104	5600	8500	1.35
NU218EP	J, M	90	160	30	208	220	4500	5000	2.35
NJ218EP	J, M	90	160	30	208	220	4500	5000	2.4
NUP218EP	M	90	160	30	208	220	4500	5000	2.45
N218EP	M	90	160	30	208	220	4500	5000	2.35
NU2218EP	J, M	90	160	40	280	315	4500	5000	3.15
NJ2218EP	M	90	160	40	280	315	4500	5000	3.2
NUP2218EP	–	90	160	40	280	315	4500	5000	3.3
NU318EP	J, M	90	190	43	365	360	3800	4500	5.45
NJ318EP	J, M	90	190	43	365	360	3800	4500	5.55
NUP318EJ	M	90	190	43	365	360	3800	4500	5.65
N318EP	M	90	190	43	365	360	3800	4500	5.4
NU2318EP	J, M	90	190	64	500	540	3800	4500	8
NJ2318EP	J, M	90	190	64	500	540	3800	4500	8.15
NUP2318EP	M	90	190	64	500	540	3800	4500	8.3
NU418	–	90	225	54	380	415	3400	4000	1.15
NU1019M	–	95	145	24	84.2	110	5300	8000	1.4
NU219EP	J, M	95	170	32	255	265	4300	4800	2.85
NJ219EP	J, M	95	170	32	255	265	4300	4800	2.9
NUP219EP	M	95	170	32	255	265	4300	4800	3
N219EP	–	95	170	32	255	265	4300	4800	2.85
NU2219EP	J, M	95	170	43	325	375	4300	4800	3.85
NJ2219EP	J, M	95	170	43	325	375	4300	4800	3.95
NUP2219EP	–	95	170	43	325	375	4300	4800	4
NU319EP	J, M	95	200	45	390	390	3600	4300	6.25
NJ319EP	J, M	95	200	45	390	390	3600	4300	6.45
NUP319EP	M	95	200	45	390	390	3600	4300	6.25
N319EP	M	95	200	45	390	390	3600	4300	6.25
NU2319EP	J, M	95	200	67	530	585	3600	4300	9.65
NJ2319EP	J, M	95	200	67	530	585	3600	4300	9.85
NUP2319EP	J, M	95	200	67	530	585	3600	4300	9.75
NU419M	–	95	240	55	413	455	3200	3600	1.35
NU1020M	M	100	150	24	85.8	114	5000	7500	1.45
NU220EP	J, M	100	180	34	285	305	4000	4500	3.45
NJ220EP	J, M	100	180	34	285	305	4000	4500	3.5
NUP220EP	M	100	180	34	285	305	4000	4500	3.6
N220EP	–	100	180	34	285	305	4000	4500	3.45
NU2220EP	J, M	100	180	46	380	450	4000	4500	4.75
NJ2220EP	J, M	100	180	46	380	450	4000	4500	4.8
NUP2220EP	M	100	180	46	380	450	4000	4500	4.9
NU320EP	J, M	100	215	47	450	440	3200	3800	7.85
NJ320EP	J, M	100	215	47	450	440	3200	3800	7.65
NUP320EJ	M	100	215	47	450	440	3200	3800	7.8
N320EP	M	100	215	47	450	440	3200	3800	7.55
NU2320EP	J, M	100	215	73	670	735	3200	3800	1.2
NJ2320EP	J, M	100	215	73	670	735	3200	3800	1.22
NUP2320EP	J, M	100	215	73	670	735	3200	3800	1.25
NU420M	–	100	250	58	429	475	3000	3600	1.4
NU1021M	M	105	160	26	101	137	4800	7500	1.85
NU221EP	J, M	105	190	36	300	315	3800	4300	4
NJ221EP	M	105	190	36	300	315	3800	4300	4.1
NUP221EP	M	105	190	36	300	315	3800	4300	4.2
N221EP	–	105	190	36	300	315	3800	4300	3.95
NU321EP	J, M	105	225	49	500	500	3200	3800	8.75
NJ321EJ	M	105	225	49	500	500	3200	3800	9
N321EP	–	105	225	49	500	500	3200	3800	8.65
NU421M	–	105	260	60	501	570	2800	3400	19
NU1022M	M	110	170	28	128	166	4500	7000	2.3
NU222EP	J, M	110	200	38	335	365	3600	4000	4.8
NJ222EP	J, M	110	200	38	335	365	3600	4000	4.9
NUP222EP	M	110	200	38	335	365	3600	4000	5
N222EP	M	110	200	38	335	365	3600	4000	4.8
NU2222EP	J, M	110	200	53	440	520	3600	4000	6.7
NJ2222EP	J, M	110	200	53	440	520	3600	4000	6.85
NUP2222EP	M	110	200	53	440	520	3600	4000	7
NU322EP	J, M	110	240	50	530	540	3000	3400	10.8
NJ322EP	J, M	110	240	50	530	540	3000	3400	11.1
NUP322EP	J, M	110	240	50	530	540	3000	3400	11.2
N322EP	M	110	240	50	530	540	3000	3400	10.5
NU2322EP	M	110	240	80	780	900	3000	3400	17
NJ2322EP	M	110	240	80	780	900	3000	3400	18.9
NUP2322EP	M	110	240	80	780	900	3000	3400	18.9
NU422	–	110	280	65	532	585	2600	3200	20
NJ422	–	110	280	65	532	585	2600	3200	20.3
NU1024M	–	120	180	28	134	183	4000	6300	2.45
NU224EP	J, M	120	215	40	390	430	3400	3600	5.75
NJ224EP	J, M	120	215	40	390	430	3400	3600	5.85
NUP224EJ	M	120	215	40	390	430	3400	3600	6
N224EP	M	120	215	40	390	430	3400	3600	5.75
NU2224EP	J, M	120	215	58	520	630	3400	3600	8.3
NJ2224EP	J, M	120	215	58	520	630	3400	3600	8.5
NUP2224EP	M	120	215	58	520	630	3400	3600	9
NU324EP	J, M	120	260	55	610	620	2800	3200	13.3
NJ324EP	J, M	120	260	55	610	620	2800	3200	13.5
NUP324EP	M	120	260	55	610	620	2800	3200	13.7
N324EP	M	120	260	55	610	620	2800	3200	13.2
NU2324EM	–	120	260	86	915	1040	2800	3200	24
NJ2324EM	–	120	260	86	915	1040	2800	3200	24.3
NUP2324EM	–	120	260	86	915	1040	2800	3200	24.3
NU424	–	120	310	72	644	735	2400	2800	28
NU1026M	–	130	200	33	165	224	3800	5600	3.8
NU226EP	J, M	130	230	40	415	455	3200	3400	6.45
NJ226EP	J, M	130	230	40	415	455	3200	3400	6.6
NUP226EP	J, M	130	230	40	415	455	3200	3400	6.75
N226EP	–	130	230	40	415	455	3200	3400	6.3
NU2226EP	M	130	230	64	610	735	3200	3400	10.5
NJ2226EP	M	130	230	64	610	735	3200	3400	12.2
NUP2226EP	M	130	230	64	610	735	3200	3400	12.2
NU326EP	J, M	130	280	58	720	750	2400	3000	16.5
NJ326EP	J, M	130	280	58	720	750	2400	3000	18.4
NUP326EP	M	130	280	58	720	750	2400	3000	19.6
N326EP	M	130	280	58	720	750	2400	3000	18.5
NU2326EM	–	130	280	93	1060	1250	2400	3000	30
NJ2326EM	–	130	280	93	1060	1250	2400	3000	30.5
NUP2326EM	–	130	280	93	1060	1250	2400	3000	31
NU1028M	–	140	210	33	172	245	3600	5300	4.05
NU228EM	J	140	250	42	450	510	2800	3200	8.5
NJ228EM	J	140	250	42	450	510	2800	3200	8.75
NUP228EM	–	140	250	42	450	510	2800	3200	8.9
NU2228EM	–	140	250	68	655	830	2800	4800	15
NJ2228EM	–	140	250	68	655	830	2800	4800	15.3
NUP2228EM	–	140	250	68	655	830	2800	4800	15.6
NU328EM	J	140	300	62	780	830	2400	2800	22.7
NJ328EM	J	140	300	62	780	830	2400	2800	23
NUP328EM	–	140	300	62	780	830	2400	2800	23.5
NU2328EM	–	140	300	102	1200	1430	2400	3600	37
NJ2328EM	–	140	300	102	1200	1430	2400	3600	37.5
NUP2328EM	–	140	300	102	1200	1430	2400	3600	38
NU1030M	–	150	225	35	194	275	3200	5000	4.85
NU230EM	J	150	270	45	510	600	2600	2800	11.8
NJ230EM	J	150	270	45	510	600	2600	2800	12
NUP230EM	–	150	270	45	510	600	2600	2800	12.2
NU2230EM	–	150	270	73	735	930	2600	2800	20
NJ2230EM	–	150	270	73	735	930	2600	2800	20.3
NU330EM	–	150	320	65	900	965	2200	2600	27.5
NJ330EM	–	150	320	65	900	965	2200	2600	28
NU2330EM	–	150	320	108	1370	1630	2200	3400	45.5
NJ2330EM	–	150	320	108	1370	1630	2200	3400	46
NUP2330EM	–	150	320	108	1370	1630	2200	3400	46.5
NU1032M	–	160	240	38	229	325	3000	4800	5.95
NU232EM	–	160	290	48	585	680	2400	2600	14.5
NJ232EM	–	160	290	48	585	680	2400	2600	15
NUP232EM	–	160	290	48	585	680	2400	2600	15.5
N232EM	–	160	290	48	585	680	2400	2600	15.5
NU2232EM	–	160	290	80	930	1200	2400	3600	24
NJ2232EM	–	160	290	80	930	1200	2400	3600	24.5
NU332EM	–	160	340	68	1000	1080	2000	2400	33
NJ332EM	–	160	340	68	1000	1080	2000	2400	33.5
NU2332EM	–	160	340	114	1250	1730	1800	2800	53
NJ2332EM	–	160	340	114	1250	1730	1800	2800	53.5
NU1034M	–	170	260	42	275	400	2800	4300	8.15
NU234EM	–	170	310	52	695	815	2200	2400	19
NJ234EM	–	170	310	52	695	815	2200	2400	19.5
NUP234EM	–	170	310	52	695	815	2200	2400	20
NU2234EM	–	170	310	86	1060	1340	2200	3200	30
NU334EM	–	170	360	72	952	1180	1700	2200	37.5
N334EM	–	170	360	72	952	1180	1700	2200	38.5
NU2334EM	–	170	360	120	1450	2040	1700	3000	62
NJ2334EM	–	170	360	120	1450	2040	1700	3000	63
NU1036M	–	180	280	46	336	475	2600	4000	10.5
NU236EM	–	180	320	52	720	850	2200	3200	19.5
NJ236EM	–	180	320	52	720	850	2200	3200	20.2
NUP236EM	–	180	320	52	720	850	2200	3200	21
NU2236EM	–	180	320	86	1100	1430	2200	3200	31.5
NJ2236EM	–	180	320	86	1100	1430	2200	3200	32
NU336EM	–	180	380	75	1020	1290	1600	2200	44
NU2336EM	–	180	380	126	1610	2240	1600	2800	71.5
NU1038M	–	190	290	46	347	500	2600	3800	11
NU238EM	–	190	340	55	800	965	2000	3000	24
NJ238EM	–	190	340	55	800	965	2000	3000	24.5
NUP238EM	–	190	340	55	800	965	2000	3000	25
NU2238EM	–	190	340	92	1220	1600	2000	3000	39
NU338EM	–	190	400	78	1140	1500	1500	2000	50
NU2338EM	–	190	400	132	1830	2550	1500	2600	82.5
NU1040M	–	200	310	51	380	570	2400	3000	14.5
NU240EM	–	200	360	58	850	1020	1900	2800	28.5
NJ240EM	–	200	360	58	850	1020	1900	2800	29
NUP240EM	–	200	360	58	850	1020	1900	2800	29.5
NU2240EM	–	200	360	98	1370	1800	1900	2800	46
NU340EM	–	200	420	80	1230	1630	1400	2400	56
NU2340EM	–	200	420	138	1980	2800	1400	2400	97
NJ2340EM	–	200	420	138	1980	2800	1400	2400	98
NU1044M	–	220	340	56	495	735	2200	2800	19
NU244EM	–	220	400	65	1060	1290	1600	2400	38.5
NJ244EM	–	220	400	65	1060	1290	1600	2400	39
NUP244EM	–	220	400	65	1060	1290	1600	2400	39.5
NU2244EM	–	220	400	108	1570	2280	1600	2400	62.5
NU344M	–	220	460	88	1210	1630	1500	1700	72.5
NJ344M	–	220	460	88	1210	1630	1500	1700	73.5
NU2344EM	–	220	460	145	2380	3450	1300	2200	120
NU1048M	–	240	360	56	523	800	2000	2600	20
NU248M	–	240	440	72	952	1370	1600	2200	51.5
NJ248M	–	240	440	72	952	1370	1600	2200	52.5
NUP248M	–	240	440	72	952	1370	1600	2200	53.5
NU2248M	–	240	440	120	1450	2360	1500	2200	84
NJ2248M	–	240	440	120	1450	2360	1500	2200	85
NU348M	–	240	500	95	1450	2000	1300	1600	94.5
NJ348M	–	240	500	95	1450	2000	1300	2000	98.5
NU2348EM	–	240	500	155	2600	3650	1200	2000	155
NU1052M	–	260	400	65	627	965	1800	2400	29.5
NU252M	–	260	480	80	1170	1700	1400	2000	68.5
NJ252M	–	260	480	80	1170	1700	1400	2000	70
NUP252M	–	260	480	80	1170	1700	1400	2000	72
NU2252M	–	260	480	130	1790	3000	1300	2000	110
NJ2252M	–	260	480	130	1790	3000	1300	2000	112
NU352EM	–	260	540	102	1940	2700	1100	1800	125
NU1056M	–	280	420	65	660	1060	1700	2200	32.5
NU256M	–	280	500	80	1140	1700	1400	1900	71.5
NJ256M	–	280	500	80	1140	1700	1400	1900	73
NU2256EM	–	280	500	130	2200	3250	1200	1900	115
NU2356M	–	280	580	175	2700	4300	1000	1700	230
NU1060M	–	300	460	74	858	1370	1500	2000	46.5
NJ1060M	–	300	460	74	858	1370	1500	2000	47
NU260M	–	300	540	85	1420	2120	1300	1800	89.5
NU2260M	–	300	540	140	2090	3450	1200	1800	145
NU1064M	–	320	480	74	880	1430	1400	1900	48.5
NJ1064M	–	320	480	74	880	1430	1400	1900	49
NU264M	–	320	580	92	1610	2450	1200	1600	115
NU2264EM	–	320	580	150	3190	5000	1000	1600	180
NU1068M	–	340	520	82	1080	1760	1300	1700	65
NJ1068M	–	340	520	82	1080	1760	1300	1700	68
NU2268M	–	340	620	165	2640	4500	1000	1500	220
NU1072M	–	360	540	82	1100	1830	1300	1600	67.5
NU2272M	–	360	650	170	2920	4900	950	1400	250
NU1076M	–	380	560	82	1140	1930	1200	1600	71
NJ1076M	–	380	560	82	1140	1930	1200	1600	73
NU2276EM	–	380	680	175	3140	5500	900	1600	275
NU1080M	–	400	600	90	1380	2320	1100	1500	92.5
NU1084M	–	420	620	90	1420	2450	1100	1400	96
NU1088M	–	440	650	94	1510	2650	1000	1300	105
NU1092M	–	460	680	100	1650	2850	950	1200	115
NU1292M	–	460	830	165	4180	6800	750	1100	415
NU2292M	–	460	830	212	5120	8650	700	1100	530
NU1096M	–	480	700	100	1680	3000	900	1200	130
NU10/500M	–	500	720	100	1720	3100	900	1100	135
NU12/500M	–	500	920	185	5280	8500	670	950	585
NU10/530M	–	530	780	112	2290	4050	800	1000	190
NU20/530EM	–	530	780	145	3740	7350	670	1000	255
NU10/560M	–	560	820	115	2330	4250	750	1000	210
NU20/560EM	–	560	820	150	3800	7650	630	1000	290
NU12/560M	–	560	1030	206	7210	11200	560	800	805
NU10/600M	–	600	870	118	2750	5100	700	900	245
NU20/600EM	–	600	870	155	4180	8000	600	900	325
NU2/600EM	–	600	1090	155	5610	9800	480	850	710
NU10/630M	–	630	920	128	3410	6200	630	1000	285
NU20/630EM	–	630	920	170	4730	9500	560	850	400
NU12/630EM	–	630	1150	230	8580	13700	450	700	1100
NU10/670EM	–	670	980	136	3740	6800	530	800	350
NU20/670EM	–	670	980	180	5390	11000	500	800	480
NU10/710M	–	710	1030	140	4680	8500	500	750	415
NU20/710EM	–	710	1030	185	5940	12000	480	700	540
NU10/750M	–	750	1090	150	4730	8800	430	670	490
NU20/750EM	–	750	1090	195	7040	14600	430	670	635
NU20/800EM	–	800	1150	200	7040	14600	400	630	715

Single Row Cylindrical Roller Bearings

Specifications of Single Row Cylindrical Roller Bearings

Product Table of Single Row Roller Bearings

The Preferred Supplier Of Heavy Duty Bearings In The Industry

REQUEST A QUOTE
