Double Row Full Complement Cylindrical Roller Bearings

Axis has been supplying double row full complement cylindrical roller bearings for 12 years, all the products are manufactured with the highest quality standards which are certified by ISO9001. Axis cylindrical roller bearings are provided in a full range of sizes and designs.

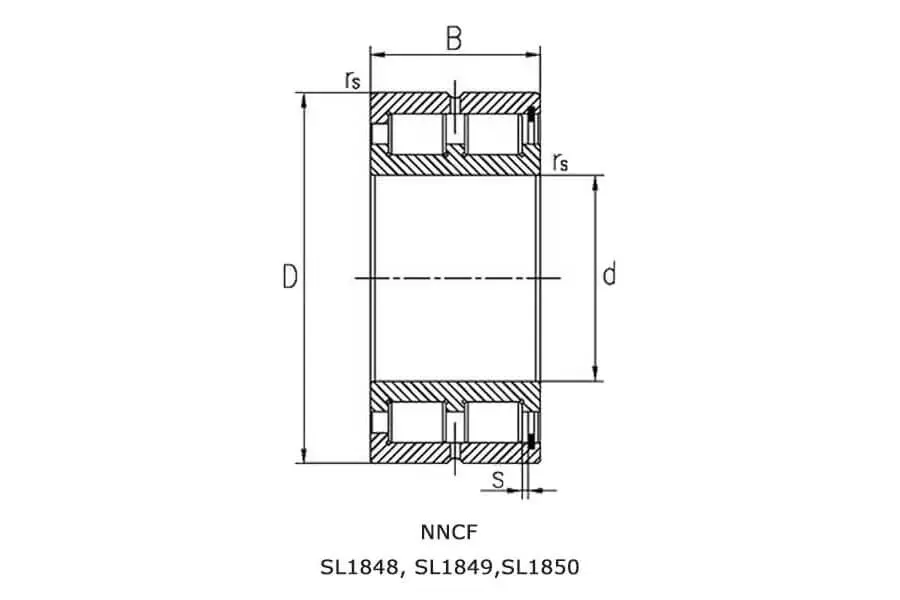

Specifications of Double Row Full Complement Cylindrical Roller Bearings

Product Table of Double Row Full Complement Cylindrical Bearings

Part Number	Interchange	d [mm]	D [mm]	B [mm]	Mass [kg]
SL185004	NNCF5004CV	20	42	30	0.2
SL045004PP	NNF5004ADB-2LSV	20	42	30	0.2
SL185005	NNCF5005CV	25	47	30	0.23
SL045005PP	NNF5005ADB-2LSV	25	47	30	0.24
SL185006	NNCF5006CV	30	55	34	0.35
SL045006PP	NNF5006ADB-2LSV	30	55	34	0.37
SL185007	NNCF5007CV	35	62	36	0.46
SL045007PP	NNF5007ADB-2LSV	35	62	36	0.48
SL185008	NNCF5008CV	40	68	38	0.56
SL045008PP	NNF5008ADB-2LSV	40	68	38	0.56
SL185009	NNCF5009CV	45	75	40	0.71
SL045009PP	NNF5009ADB-2LSV	45	75	40	0.7
SL185010	NNCF5010CV	50	80	40	0.76
SL045010PP	NNF5010ADB-2LSV	50	80	40	0.76
SL185011	NNCF5011CV	55	90	46	1.15
SL045011PP	NNF5011ADB-2LSV	55	90	46	1.2
SL184912	NNCF4912CV	60	85	25	0.48
SL014912	NNC4912CV	60	85	25	0.49
SL024912	NNCL4912CV	60	85	25	0.47
SL185012	NNCF5012CV	60	95	46	1.25
SL045012PP	NNF5012ADB-2LSV	60	95	46	1.25
SL185013	NNCF5013CV	65	100	46	1.3
SL045013PP	NNF5013ADB-2LSV	65	100	46	1.35
SL184914	NNCF4914CV	70	100	30	0.77
SL014914	NNC4914CV	70	100	30	0.78
SL024914	NNCL4914CV	70	100	30	0.75
SL185014	NNCF5014CV	70	110	54	1.85
SL045014PP	NNF5014ADB-2LSV	70	110	54	1.85
SL185015	NNCF5015CV	75	115	54	1.95
SL045015PP	NNF5015ADB-2LSV	75	115	54	1.95
SL184916	NNCF4916CV	80	110	30	0.87
SL014916	NNC4916CV	80	110	30	0.88
SL024916	NNCL4916CV	80	110	30	0.85
SL185016	NNCF5016CV	80	125	60	2.6
SL045016PP	NNF5016ADA-2LSV	80	125	60	2.7
SL185017	NNCF5017CV	85	130	60	2.7
SL045017PP	NNF5017ADA-2LSV	85	130	60	2.85
SL184918	NNCF4918CV	90	125	35	1.35
SL014918	NNC4918CV	90	125	35	1.35
SL184918	NNCL4918CV	90	125	35	1.3
SL185018	NNCF5018CV	90	140	67	3.6
SL045018PP	NNF5018ADA-2LSV	90	140	67	3.7
SL045019PP	NNF5019ADA-2LSV	95	145	67	3.9
SL184920	NNCF4920CV	100	140	40	1.95
SL014920	NNC4920CV	100	140	40	1.95
SL024920	NNCL4920CV	100	140	40	1.9
SL185020	NNCF5020CV	100	150	67	3.95
SL045020PP	NNF5020ADA-2LSV	100	150	67	3.95
SL184922	NNCF4922CV	110	150	40	2.1
SL014922	NNC4922CV	110	150	40	2.15
SL024922	NNCL4922CV	110	150	40	2.1
SL185022	NNCF5022CV	110	170	80	6.3
SL045022PP	NNF5022ADA-2LSV	110	170	80	6.45
SL184924	NNCF4924CV	120	165	45	2.9
SL014924	NNC4924CV	120	165	45	2.95
SL024924	NNCL4924CV	120	165	45	2.85
SL185024	NNCF5024CV	120	180	80	6.75
SL045024PP	NNF5024ADA-2LSV	120	180	80	6.9
SL184926	NNCF4926CV	130	180	50	3.9
SL014926	NNC4926CV	130	180	50	3.95
SL024926	NNCL4926CV	130	180	50	3.8
SL04130PP	319426DA-2LS	130	190	80	7.5
SL185026	NNCF5026CV	130	200	95	10
SL045026PP	NNF5026ADA-2LSV	130	200	95	10.5
SL184928	NNCF4928CV	140	190	50	4.15
SL014928	NNC4928CV	140	190	50	4.2
SL024928	NNCL4928CV	140	190	50	4.1
SL04140PP	319428DA-2LS	140	200	80	8
SL185028	NNCF5028CV	140	210	95	11
SL045028PP	NNF5028ADA-2LSV	140	210	95	11
SL184830	NNCF4830CV	150	190	40	2.8
SL014830	NNC4830CV	150	190	40	2.9
SL024830	NNCL4830CV	150	190	40	2.7
SL184930	NNCF4930CV	150	210	60	6.55
SL014930	NNC4930CV	150	210	60	6.65
SL024930	NNCL4930CV	150	210	60	6.45
SL04150PP	319430DA-2LS	150	210	80	8.4
SL185030	NNCF5030CV	150	225	100	13.5
SL045030PP	NNF5030ADA-2LSV	150	225	100	13.5
SL184832	NNCF4832CV	160	200	40	3
SL014832	NNC4832CV	160	200	40	3.1
SL024832	NNCL4832CV	160	200	40	2.9
SL184932	NNCF4932CV	160	220	60	6.9
SL014932	NNC4932CV	160	220	60	7
SL024932	NNCL4932CV	160	220	60	6.8
SL04160PP	319432DA-2LS	160	220	80	8.8
SL185032	NNCF5032CV	160	240	109	16
SL045032PP	NNF5032ADA-2LSV	160	240	109	16.5
SL184834	NNCF4834CV	170	215	45	4
SL014834	NNC4834CV	170	215	45	4.1
SL024834	NNCL4834CV	170	215	45	3.9
SL184934	NNCF4934CV	170	230	60	7.2
SL014934	NNC4934CV	170	230	60	7.35
SL024934	NNCL4934CV	170	230	60	7.1
SL04170PP	319434DA-2LS	170	230	80	9.3
SL185034	NNCF5034CV	170	260	122	23
SL045034PP	NNF5034ADA-2LSV	170	260	122	22.5
SL184836	NNCF4836CV	180	225	45	4.2
SL014836	NNC4836CV	180	225	45	4.3
SL024836	NNCL4836CV	180	225	45	4.1
SL04180PP	319436DA-2LS	180	240	80	9.8
SL184936	NNCF4936CV	180	250	69	10.5
SL014936	NNC4936CV	180	250	69	11
SL024936	NNCL4936CV	180	250	69	10.5
SL185036	NNCF5036CV	180	280	136	30.5
SL045036PP	NNF5036ADA-2LSV	180	280	136	30
SL014838	NNC4838CV	190	240	50	5.65
SL024838	NNCL4838CV	190	240	50	5.3
SL184938	NNCF4938CV	190	260	69	11
SL014938	NNC4938CV	190	260	69	11
SL024938	NNCL4938CV	190	260	69	11
SL04190PP	319438DA-2LS	190	260	80	12.5
SL185038	NNCF5038CV	190	290	136	31.5
SL045038PP	NNF5038ADA-2LSV	190	290	136	31.5
SL184840	NNCF4840CV	200	250	50	5.8
SL014840	NNC4840CV	200	250	50	5.9
SL024840	NNCL4840CV	200	250	50	5.7
SL04200PP	319440DA-2LS	200	270	80	13
SL184940	NNCF4940CV	200	280	80	15.5
SL014940	NNC4940CV	200	280	80	16
SL024940	NNCL4940CV	200	280	80	15.5
SL185040	NNCF5040CV	200	310	150	41
SL045040PP	NNF5040ADA-2LSV	200	310	150	42
SL184844	NNCF4844CV	220	270	50	6.3
SL014844	NNC4844CV	220	270	50	6.4
SL024844	NNCL4844CV	220	270	50	6.2
SL184944	NNCF4944CV	220	300	80	17
SL014944	NNC4944CV	220	300	80	17
SL024944	NNCL4944CV	220	300	80	17
SL04220PP	319444DA-2LS	220	300	95	18.9
SL185044	NNCF5044CV	220	340	160	52.5
SL045044PP	NNF5044ADA-2LSV	220	340	160	53.5
SL184848	NNCF4848CV	240	300	60	9.9
SL014848	NNC4848CV	240	300	60	10
SL024848	NNCL4848CV	240	300	60	9.8
SL184948	NNCF4948CV	240	320	80	18.5
SL014948	NNC4948CV	240	320	80	18.5
SL024948	NNCL4948CV	240	320	80	18
SL04240PP	319448DA-2LS	240	320	95	20.1
SL185048	NNCF5048CV	240	360	160	56
SL045048PP	NNF5048ADA-2LSV	240	360	160	57.5
SL184852	NNCF4852CV	260	320	60	11
SL014852	NNC4852CV	260	320	60	11
SL024852	NNCL4852CV	260	320	60	10.5
SL184952	NNCF4952CV	260	320	100	31.5
SL014952	NNC4952CV	260	320	100	32
SL024952	NNCL4952CV	260	320	100	31
SL04260PP	319452DA-2LS	260	340	95	22.5
SL185052	NNCF5052CV	260	400	190	85.5
SL045052PP	NNF5052ADB-2LSV	260	400	190	86.2
SL184856	NNCF4856CV	280	350	69	16
SL014856	NNC4856CV	280	350	69	16
SL024856	NNCL4856CV	280	350	69	15.5
SL184956	NNCF4956CV	280	380	100	34
SL014956	NNC4956CV	280	380	100	34
SL024956	NNCL4956CV	280	380	100	33
SL185056	NNCF5056CV	280	420	190	90.5
SL045056PP	NNF5056ADA-2LS	280	420	190	91
SL184860	NNCF4860CV	300	380	80	22.5
SL014860	NNC4860CV	300	380	80	23
SL024860	NNCL4860CV	300	380	80	22
SL04300PP	–	300	380	95	25.5
SL184960	NNCF4960CV	300	420	118	52.5
SL014960	NNC4960CV	300	420	118	53
SL024960	NNCL4960CV	300	420	118	52
SL185060	NNCF5060CV	300	460	218	130
SL184864	NNCF4864CV	320	400	80	23.5
SL014864	NNC4864CV	320	400	80	24
SL024864	NNCL4864CV	320	400	80	23
SL184964	NNCF4964CV	320	440	118	55.5
SL014964	NNC4964CV	320	440	118	56
SL024964	NNCL4964CV	320	440	118	55
SL185064	NNCF5064CV	320	480	218	135
SL184868	NNCF4868CV	340	420	80	25
SL014868	NNC4868CV	340	420	80	25.5
SL024868	NNCL4868CV	340	420	80	25.5
SL184968	NNCF4968CV	340	460	118	58.5
SL014968	NNC4968CV	340	460	118	59
SL024968	NNCL4968CV	340	460	118	58
SL185068	NNCF5068CV	340	520	243	185
SL184872	NNCF4872CV	360	440	80	26.5
SL014872	NNC4872CV	360	440	80	27
SL024872	NNCL4872CV	360	440	80	26
SL184972	NNCF4972CV	360	480	118	61.5
SL014972	NNC4972CV	360	480	118	62
SL024972	NNCL4972CV	360	480	118	61
SL185072	NNCF5072CV	360	540	243	195
SL184876	NNCF4876CV	380	480	100	45
SL014876	NNC4876CV	380	480	100	45.5
SL024876	NNCL4876CV	380	480	100	45.5
SL184976	NNCF4976CV	380	520	140	91.5
SL014976	NNC4976CV	380	520	140	92.5
SL024976	NNCL4976CV	380	520	140	90.5
SL185076	NNCF5076CV	380	560	243	200
SL184880	NNCF4880CV	400	500	100	46
SL014880	NNC4880CV	400	500	100	46.5
SL024880	NNCL4880CV	400	500	100	46
SL184980	NNCF4980CV	400	540	140	95.5
SL014980	NNC4980CV	400	540	140	96.5
SL024980	NNCL4980CV	400	540	140	94.5
SL185080	NNCF5080CV	400	600	272	270

Double Row Full Complement Cylindrical Roller Bearings

Specifications of Double Row Full Complement Cylindrical Roller Bearings

Product Table of Double Row Full Complement Cylindrical Bearings
