Insert bearing with set screws is the most common type and very cost-effective. These products have an extended inner ring that is equipped with two hexagon socket set screws on one side. As a result, users could lock the bearings onto the shaft by tightening the set screws. Besides, mounted in a cast iron housing, the bearing forms a mounted bearing unit. In order to withstand diverse application conditions, insert bearing could be made of different material, such as chrome steel, stainless steel, ceramic and plastic. Axis supplies them in the full range of designs and material.
| Designation | d (mm/in) | D (mm/in) | B (mm/in) | C (mm/in) | S (mm/in) | S1 (mm/in) | G (mm/in) | ds (mm/in) | F (mm/in) | Dynamic Load (kN) | Statistic Load (kN) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UC201 | 12 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | M6x1 | 3.7 | 12.8 | 6.6 | 0.2 |
| UC201-8 | 1/2 | 1.8504 | 1.2205 | 0.6693 | 0.500 | 0.720 | 0.189 | 1/4-28UNF | 0.146 | 12.8 | 6.6 | 0.19 |
| UC202 | 15 | 1.8504 | 1.2205 | 0.6693 | 0.500 | 0.720 | 0.189 | 1/4-28UNF | 0.146 | 12.8 | 6.6 | 0.19 |
| UC202-9 | 9/16 | 1.8504 | 1.2205 | 0.6693 | 0.500 | 0.720 | 0.189 | 1/4-28UNF | 0.146 | 12.8 | 6.6 | 0.19 |
| UC202-10 | 5/8 | 1.8504 | 1.2205 | 0.6693 | 0.500 | 0.720 | 0.189 | 1/4-28UNF | 0.146 | 12.8 | 6.6 | 0.19 |
| UC203 | 17 | 1.8504 | 1.2205 | 0.6693 | 0.500 | 0.720 | 0.189 | 1/4-28UNF | 0.146 | 12.8 | 6.6 | 0.18 |
| UC203-11 | 11/16 | 1.8504 | 1.2205 | 0.6693 | 0.500 | 0.720 | 0.189 | 1/4-28UNF | 0.146 | 12.8 | 6.6 | 0.17 |
| UC204 | 20 | 47 | 31 | 17 | 12.7 | 18.3 | 4.8 | M6x1 | 3.7 | 12.8 | 6.6 | 0.16 |
| UC204-12 | 3/4 | 1.8504 | 1.2205 | 0.6693 | 0.500 | 0.720 | 0.189 | 1/4-28UNF | 0.146 | 12.8 | 6.6 | 0.16 |
| UC205 | 25 | 52 | 34.1 | 17 | 14.3 | 19.8 | 5 | M6x1 | 3.9 | 14 | 7.85 | 0.19 |
| UC205-13 | 13/16 | 2.0472 | 1.3425 | 0.6693 | 0.563 | 0.780 | 0.197 | 1/4-28UNF | 0.154 | 14 | 7.85 | 0.23 |
| UC205-14 | 7/8 | 2.0472 | 1.3425 | 0.6693 | 0.563 | 0.780 | 0.197 | 1/4-28UNF | 0.154 | 14 | 7.85 | 0.22 |
| UC205-15 | 15/16 | 2.0472 | 1.3425 | 0.6693 | 0.563 | 0.780 | 0.197 | 1/4-28UNF | 0.154 | 14 | 7.85 | 0.2 |
| UC205-16 | 1 | 2.0472 | 1.3425 | 0.6693 | 0.563 | 0.780 | 0.197 | 1/4-28UNF | 0.154 | 14 | 7.85 | 0.19 |
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | M6x1 | 5 | 19.45 | 11.25 | 0.3 |
| UC206-17 | 1-1/16 | 2.4409 | 1.5000 | 0.7480 | 0.626 | 0.874 | 0.197 | 1/4-28UNF | 0.197 | 19.45 | 11.25 | 0.31 |
| UC206-18 | 1-1/8 | 2.4409 | 1.5000 | 0.7480 | 0.626 | 0.874 | 0.197 | 1/4-28UNF | 0.197 | 19.45 | 11.25 | 0.32 |
| UC206-19 | 1-3/16 | 2.4409 | 1.5000 | 0.7480 | 0.626 | 0.874 | 0.197 | 1/4-28UNF | 0.197 | 19.45 | 11.25 | 0.3 |
| UC206-20 | 1-1/4 | 2.4409 | 1.5000 | 0.7480 | 0.626 | 0.874 | 0.197 | 1/4-28UNF | 0.197 | 19.45 | 11.25 | 0.29 |
| UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | M8x1 | 5.7 | 25.7 | 15.2 | 0.45 |
| UC207-20 | 1-1/4 | 2.8346 | 1.6890 | 0.7874 | 0.689 | 1.000 | 0.276 | 5/16-24UNF | 0.224 | 25.7 | 15.2 | 0.51 |
| UC207-21 | 1-5/16 | 2.8346 | 1.6890 | 0.7874 | 0.689 | 1.000 | 0.276 | 5/16-24UNF | 0.224 | 25.7 | 15.2 | 0.48 |
| UC207-22 | 1/3/8 | 2.8346 | 1.6890 | 0.7874 | 0.689 | 1.000 | 0.276 | 5/16-24UNF | 0.224 | 25.7 | 15.2 | 0.45 |
| UC207-23 | 1-7/16 | 2.8346 | 1.6890 | 0.7874 | 0.689 | 1.000 | 0.276 | 5/16-24UNF | 0.224 | 25.7 | 15.2 | 0.42 |
| UC208 | 40 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | M8x1 | 6.2 | 29.5 | 18.1 | 0.6 |
| UC208-24 | 1-1/2 | 3.1496 | 1.9370 | 0.8268 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.244 | 29.5 | 18.1 | 0.64 |
| UC208-25 | 1-9/16 | 3.1496 | 1.9370 | 0.8268 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.244 | 29.5 | 18.1 | 0.61 |
| UC209 | 45 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | M8x1 | 6.4 | 32.7 | 20.9 | 0.65 |
| UC209-26 | 1-5/8 | 3.3465 | 1.9370 | 0.8661 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.252 | 32.7 | 20.9 | 0.75 |
| UC209-27 | 1-11/16 | 3.3465 | 1.9370 | 0.8661 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.252 | 32.7 | 20.9 | 0.71 |
| UC209-28 | 1-3/4 | 3.3465 | 1.9370 | 0.8661 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.252 | 32.7 | 20.9 | 0.67 |
| UC210 | 50 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | M10x1 | 6.5 | 35 | 23.2 | 0.75 |
| UC210-29 | 1-13/16 | 3.5433 | 2.0315 | 0.9449 | 0.748 | 1.283 | 0.394 | 3/8-24UNF | 0.256 | 35 | 23.2 | 0.87 |
| UC210-30 | 1-7/8 | 3.5433 | 2.0315 | 0.9449 | 0.748 | 1.283 | 0.394 | 3/8-24UNF | 0.256 | 35 | 23.2 | 0.82 |
| UC210-31 | 1-15/16 | 3.5433 | 2.0315 | 0.9449 | 0.748 | 1.283 | 0.394 | 3/8-24UNF | 0.256 | 35 | 23.2 | 0.77 |
| UC210-32 | 2 | 3.5433 | 2.0315 | 0.9449 | 0.748 | 1.283 | 0.394 | 3/8-24UNF | 0.256 | 35 | 23.2 | 0.73 |
| UC211 | 55 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | M10x1 | 7 | 43.3 | 29.2 | 0.99 |
| UC211-32 | 2 | 3.9370 | 2.1890 | 0.9843 | 0.874 | 1.315 | 0.394 | 3/8-24UNF | 0.276 | 43.3 | 29.2 | 1.14 |
| UC211-33 | 2-1/16 | 3.9370 | 2.1890 | 0.9843 | 0.874 | 1.315 | 0.394 | 3/8-24UNF | 0.276 | 43.3 | 29.2 | 1.08 |
| UC211-34 | 2-1/8 | 3.9370 | 2.1890 | 0.9843 | 0.874 | 1.315 | 0.394 | 3/8-24UNF | 0.276 | 43.3 | 29.2 | 1.07 |
| UC211-35 | 2-3/16 | 3.9370 | 2.1890 | 0.9843 | 0.874 | 1.315 | 0.394 | 3/8-24UNF | 0.276 | 43.3 | 29.2 | 0.967 |
| UC212 | 60 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | M10x1 | 7.6 | 47.7 | 32.8 | 1.391 |
| UC212-36 | 2-1/4 | 4.3307 | 2.5630 | 1.0630 | 1.000 | 1.563 | 0.394 | 3/8-24UNF | 0.299 | 47.7 | 32.8 | 1.52 |
| UC212-37 | 2-5/16 | 4.3307 | 2.5630 | 1.0630 | 1.000 | 1.563 | 0.394 | 3/8-24UNF | 0.299 | 47.7 | 32.8 | 1.44 |
| UC212-38 | 2-3/8 | 4.3307 | 2.5630 | 1.0630 | 1.000 | 1.563 | 0.394 | 3/8-24UNF | 0.299 | 47.7 | 32.8 | 1.37 |
| UC212-39 | 2-7/16 | 4.3307 | 2.5630 | 1.0630 | 1.000 | 1.563 | 0.394 | 3/8-24UNF | 0.299 | 47.7 | 32.8 | 1.3 |
| UC213 | 65 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | M10x1 | 8.5 | 57.2 | 40 | 1.7 |
| UC213-40 | 2-1/2 | 4.7244 | 2.5630 | 1.1024 | 1.000 | 1.563 | 0.394 | 3/8-24UNF | 0.335 | 57.2 | 40 | 1.79 |
| UC213-41 | 2-9/16 | 4.7244 | 2.5630 | 1.1024 | 1.000 | 1.563 | 0.394 | 3/8-24UNF | 0.335 | 57.2 | 40 | 1.7 |
| UC214 | 70 | 125 | 74.6 | 29 | 30.2 | 44.4 | 12 | M12x1.5 | 8.9 | 62.1 | 44.8 | 1.94 |
| UC214-42 | 2-5/8 | 4.9213 | 2.9370 | 1.1417 | 1.189 | 1.748 | 0.472 | 7/16-20UNF | 0.350 | 62.1 | 44.8 | 2.15 |
| UC214-43 | 2-11/16 | 4.9213 | 2.9370 | 1.1417 | 1.189 | 1.748 | 0.472 | 7/16-20UNF | 0.350 | 62.1 | 44.8 | 2.05 |
| UC214-44 | 2-3/4 | 4.9213 | 2.9370 | 1.1417 | 1.189 | 1.748 | 0.472 | 7/16-20UNF | 0.350 | 62.1 | 44.8 | 1.95 |
| UC215 | 75 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | M12x1.5 | 9.2 | 66.2 | 49.3 | 2.16 |
| UC215-45 | 2-13/16 | 5.1181 | 3.0630 | 1.1811 | 1.311 | 1.752 | 0.472 | 7/16-20UNF | 0.362 | 66.2 | 49.3 | 2.16 |
| UC215-46 | 2-7/8 | 5.1181 | 3.0630 | 1.1811 | 1.311 | 1.752 | 0.472 | 7/16-20UNF | 0.362 | 66.2 | 49.3 | 2.41 |
| UC215-47 | 2-15/16 | 5.1181 | 3.0630 | 1.1811 | 1.311 | 1.752 | 0.472 | 7/16-20UNF | 0.362 | 66.2 | 49.3 | 2.3 |
| UC215-48 | 3 | 5.1181 | 3.0630 | 1.1811 | 1.311 | 1.752 | 0.472 | 7/16-20UNF | 0.362 | 66.2 | 49.3 | 2.1 |
| UC216 | 80 | 140 | 82.6 | 32 | 33.3 | 49.3 | 12 | M12x1.5 | 9.5 | 72.6 | 53.3 | 2.65 |
| UC216-49 | 3-1/16 | 5.5118 | 3.2520 | 1.2598 | 1.311 | 1.9409 | 0.472 | 7/16-20UNF | 0.374 | 72.6 | 53.3 | 2.83 |
| UC216-50 | 3-1/8 | 5.5118 | 3.2520 | 1.2598 | 1.311 | 1.9409 | 0.472 | 7/16-20UNF | 0.374 | 72.6 | 53.3 | 2.7 |
| UC216-51 | 3-3/16 | 5.5118 | 3.2520 | 1.2598 | 1.311 | 1.9409 | 0.472 | 7/16-20UNF | 0.374 | 72.6 | 53.3 | 2.57 |
| UC217 | 85 | 150 | 85.7 | 34 | 34.1 | 51.6 | 12 | M12x1.5 | 10.2 | 83.3 | 63.7 | 3.29 |
| UC217-52 | 3-1/4 | 5.9055 | 3.3740 | 1.3386 | 1.341 | 2.031 | 0.472 | 7/16-20UNF | 0.402 | 83.3 | 63.7 | 3.41 |
| UC217-53 | 3-5/16 | 5.9055 | 3.3740 | 1.3386 | 1.341 | 2.031 | 0.472 | 7/16-20UNF | 0.402 | 83.3 | 63.7 | 3.37 |
| UC217-55 | 3-7/16 | 5.9055 | 3.3740 | 1.3386 | 1.341 | 2.031 | 0.472 | 7/16-20UNF | 0.402 | 83.3 | 63.7 | 3.08 |
| UC218 | 90 | 160 | 96 | 36 | 39.7 | 56.3 | 12 | M12x1.5 | 11.2 | 96 | 71.1 | 4.04 |
| UC218-56 | 3-1/2 | 6.2992 | 3.7795 | 1.4173 | 1.563 | 2.217 | 0.472 | 1/2-20UNF | 0.441 | 96 | 71.1 | 4.15 |
| UC220 | 100 | 180 | 108 | 40 | 42 | 66 | 16 | M14x1.5 | 13.1 | 122 | 92.8 | 4.56 |
| UC220-64 | 4 | 7.0866 | 4.2519 | 1.5748 | 1.653 | 2.598 | 0.629 | 9/16-18UNF | 0.515 | 122 | 92.8 | 4.35 |
| Designation | d (mm/in) | D (mm/in) | B (mm/in) | C (mm/in) | S (mm/in) | S1 (mm/in) | G (mm/in) | ds (mm/in) | F (mm/in) | Dynamic Load (kN) | Statistic Load (kN) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UC305 | 25 | 62 | 38 | 20 | 15 | 23 | 6 | M6x1 | 5.4 | 22.4 | 11.5 | 0.33 |
| UC305-13 | 13/16 | 2.4409 | 1.4961 | 0.7874 | 0.591 | 0.906 | 0.236 | 1/4-28UNF | 0.213 | 22.4 | 11.5 | 0.38 |
| UC305-14 | 7/8 | 2.4409 | 1.4961 | 0.7874 | 0.591 | 0.906 | 0.236 | 1/4-28UNF | 0.213 | 22.4 | 11.5 | 0.36 |
| UC305-15 | 15/16 | 2.4409 | 1.4961 | 0.7874 | 0.591 | 0.906 | 0.236 | 1/4-28UNF | 0.213 | 22.4 | 11.5 | 0.34 |
| UC305-16 | 1 | 2.4409 | 1.4961 | 0.7874 | 0.591 | 0.906 | 0.236 | 1/4-28UNF | 0.213 | 22.4 | 11.5 | 0.33 |
| UC306 | 30 | 72 | 43 | 23 | 17 | 26 | 6 | M6x1 | 5.7 | 26.5 | 14.9 | 0.536 |
| UC306-17 | 1-1/16 | 2.8346 | 1.6929 | 0.9055 | 0.669 | 1.024 | 0.236 | 1/4-28UNF | 0.225 | 26.5 | 14.9 | 0.59 |
| UC306-18 | 1-1/8 | 2.8346 | 1.6929 | 0.9055 | 0.669 | 1.024 | 0.236 | 1/4-28UNF | 0.225 | 26.5 | 14.9 | 0.56 |
| UC306-19 | 1-3/16 | 2.8346 | 1.6929 | 0.9055 | 0.669 | 1.024 | 0.236 | 1/4-28UNF | 0.225 | 26.5 | 14.9 | 0.54 |
| UC307 | 35 | 80 | 48 | 25 | 19 | 29 | 8 | M8x1 | 6.2 | 33.3 | 19.1 | 0.694 |
| UC307-20 | 1-1/4 | 3.1496 | 1.8898 | 0.9843 | 0.748 | 1.142 | 0.315 | 5/16-24UNF | 0.224 | 33.3 | 19.1 | 0.75 |
| UC307-21 | 1-5/16 | 3.1496 | 1.8898 | 0.9843 | 0.748 | 1.142 | 0.315 | 5/16-24UNF | 0.224 | 33.3 | 19.1 | 0.72 |
| UC307-22 | 1-3/8 | 3.1496 | 1.8898 | 0.9843 | 0.748 | 1.142 | 0.315 | 5/16-24UNF | 0.224 | 33.3 | 19.1 | 0.69 |
| UC307-23 | 1-7/16 | 3.1496 | 1.8898 | 0.9843 | 0.748 | 1.142 | 0.315 | 5/16-24UNF | 0.224 | 33.3 | 19.1 | 0.66 |
| UC308 | 40 | 90 | 52 | 27 | 19 | 33 | 10 | M10x1 | 7 | 40.6 | 23.7 | 0.954 |
| UC308-24 | 1-1/2 | 3.5433 | 2.0472 | 1.0630 | 0.748 | 1.299 | 0.394 | 3/8-24UNF | 0.276 | 40.6 | 23.7 | 1 |
| UC308-25 | 1-9/16 | 3.5433 | 2.0472 | 1.0630 | 0.748 | 1.299 | 0.394 | 3/8-24UNF | 0.276 | 40.6 | 23.7 | 0.96 |
| UC309 | 45 | 100 | 57 | 30 | 22 | 35 | 10 | M10x1 | 7.8 | 48.6 | 28.9 | 1.285 |
| UC309-26 | 1-5/8 | 3.9370 | 2.2441 | 1.1811 | 0.866 | 1.378 | 0.394 | 3/8-24UNF | 0.307 | 48.6 | 28.9 | 1.38 |
| UC309-27 | 1-11/16 | 3.9370 | 2.2441 | 1.1811 | 0.866 | 1.378 | 0.394 | 3/8-24UNF | 0.307 | 48.6 | 28.9 | 1.34 |
| UC309-28 | 1-3/4 | 3.9370 | 2.2441 | 1.1811 | 0.866 | 1.378 | 0.394 | 3/8-24UNF | 0.307 | 48.6 | 28.9 | 1.29 |
| UC310 | 50 | 110 | 61 | 32 | 22 | 39 | 12 | M12x1.5 | 8.5 | 62 | 38 | 1.637 |
| UC310-29 | 1-13/16 | 4.3307 | 2.4016 | 1.2598 | 0.866 | 1.535 | 0.472 | 1/2-20UNF | 0.335 | 62 | 38 | 1.98 |
| UC310-30 | 1-7/8 | 4.3307 | 2.4016 | 1.2598 | 0.866 | 1.535 | 0.472 | 1/2-20UNF | 0.335 | 62 | 38 | 1.73 |
| UC310-31 | 1-15/16 | 4.3307 | 2.4016 | 1.2598 | 0.866 | 1.535 | 0.472 | 1/2-20UNF | 0.335 | 62 | 38 | 1.67 |
| UC311 | 55 | 120 | 66 | 34 | 25 | 41 | 12 | M12x1.5 | 9.2 | 71.6 | 44.6 | 2.07 |
| UC311-32 | 2 | 4.7244 | 2.5984 | 1.3386 | 0.984 | 1.614 | 0.472 | 1/2-20UNF | 0.362 | 71.6 | 44.6 | 2.25 |
| UC311-33 | 2-1/16 | 4.7244 | 2.5984 | 1.3386 | 0.984 | 1.614 | 0.472 | 1/2-20UNF | 0.362 | 71.6 | 44.6 | 2.18 |
| UC311-34 | 2-1/8 | 4.7244 | 2.5984 | 1.3386 | 0.984 | 1.614 | 0.472 | 1/2-20UNF | 0.362 | 71.6 | 44.6 | 2.12 |
| UC311-35 | 2-3/16 | 4.7244 | 2.5984 | 1.3386 | 0.984 | 1.614 | 0.472 | 1/2-20UNF | 0.362 | 71.6 | 44.6 | 2.04 |
| UC312 | 60 | 130 | 71 | 36 | 26 | 45 | 12 | M12x1.5 | 9.8 | 81.6 | 51.8 | 2.6 |
| UC312-36 | 2-1/4 | 5.1181 | 2.7953 | 1.4173 | 1.0236 | 1.772 | 0.472 | 1/2-20UNF | 0.386 | 81.6 | 51.8 | 2.75 |
| UC312-37 | 2-5/16 | 5.1181 | 2.7953 | 1.4173 | 1.0236 | 1.772 | 0.472 | 1/2-20UNF | 0.386 | 81.6 | 51.8 | 2.67 |
| UC312-38 | 2-3/8 | 5.1181 | 2.7953 | 1.4173 | 1.0236 | 1.772 | 0.472 | 1/2-20UNF | 0.386 | 81.6 | 51.8 | 2.58 |
| UC312-39 | 2-7/16 | 5.1181 | 2.7953 | 1.4173 | 1.0236 | 1.772 | 0.472 | 1/2-20UNF | 0.386 | 81.6 | 51.8 | 2.5 |
| UC313 | 65 | 140 | 75 | 38 | 30 | 45 | 12 | M12x1.5 | 10.5 | 93.7 | 60.4 | 3.174 |
| UC313-40 | 2-1/2 | 5.5118 | 2.9528 | 1.4961 | 1.181 | 1.772 | 0.472 | 1/2-20UNF | 0.413 | 93.7 | 60.4 | 3.26 |
| UC313-41 | 2-9/16 | 5.5118 | 2.9528 | 1.4961 | 1.181 | 1.772 | 0.472 | 1/2-20UNF | 0.413 | 93.7 | 60.4 | 3.16 |
| UC314 | 70 | 150 | 78 | 40 | 33 | 45 | 12 | M12x1.5 | 11.1 | 103.6 | 67.1 | 3.79 |
| UC314-42 | 2-5/8 | 5.9055 | 3.0708 | 1.5748 | 1.299 | 1.772 | 0.472 | 1/2-20UNF | 0.437 | 103.6 | 67.1 | 4.01 |
| UC314-43 | 2-11/16 | 5.9055 | 3.0708 | 1.5748 | 1.299 | 1.772 | 0.472 | 1/2-20UNF | 0.437 | 103.6 | 67.1 | 3.9 |
| UC314-44 | 2-3/4 | 5.9055 | 3.0708 | 1.5748 | 1.299 | 1.772 | 0.472 | 1/2-20UNF | 0.437 | 103.6 | 67.1 | 3.8 |
| UC315 | 75 | 160 | 82 | 42 | 32 | 50 | 14 | M14x1.5 | 11.8 | 112.8 | 75.7 | 4.52 |
| UC315-45 | 2-13/16 | 6.2992 | 3.2283 | 1.6535 | 1.260 | 1.969 | 0.551 | 9/16-18UNF | 0.465 | 112.8 | 75.7 | 4.79 |
| UC315-46 | 2-7/8 | 6.2992 | 3.2283 | 1.6535 | 1.260 | 1.969 | 0.551 | 9/16-18UNF | 0.465 | 112.8 | 75.7 | 4.65 |
| UC315-47 | 2-15/16 | 6.2992 | 3.2283 | 1.6535 | 1.260 | 1.969 | 0.551 | 9/16-18UNF | 0.465 | 112.8 | 75.7 | 4.56 |
| UC315-48 | 3 | 6.2992 | 3.2283 | 1.6535 | 1.260 | 1.969 | 0.551 | 9/16-18UNF | 0.465 | 112.8 | 75.7 | 4.43 |
| UC316 | 80 | 170 | 86 | 44 | 34 | 52 | 14 | M14x1.5 | 12.5 | 123.5 | 88.2 | 5.32 |
| UC316-49 | 3-1/16 | 6.6929 | 3.3858 | 1.7323 | 1.339 | 2.047 | 0.551 | 9/16-18UNF | 0.492 | 123.5 | 88.2 | 5.49 |
| UC316-50 | 3-1/8 | 6.6929 | 3.3858 | 1.7323 | 1.339 | 2.047 | 0.551 | 9/16-18UNF | 0.492 | 123.5 | 88.2 | 5.35 |
| UC316-51 | 3-3/16 | 6.6929 | 3.3858 | 1.7323 | 1.339 | 2.047 | 0.551 | 9/16-18UNF | 0.492 | 123.5 | 88.2 | 5.26 |
| UC317 | 85 | 180 | 96 | 46 | 40 | 56 | 16 | M16x1.5 | 13.1 | 133 | 97.5 | 6.48 |
| UC317-52 | 3-1/4 | 7.0866 | 3.7795 | 1.8110 | 1.575 | 2.205 | 0.630 | 5/8-18UNF | 0.516 | 133 | 97.5 | 6.7 |
| UC317-53 | 3-5/16 | 7.0866 | 3.7795 | 1.8110 | 1.575 | 2.205 | 0.630 | 5/8-18UNF | 0.516 | 133 | 97.5 | 6.67 |
| UC317-55 | 3-7/16 | 7.0866 | 3.7795 | 1.8110 | 1.575 | 2.205 | 0.630 | 5/8-18UNF | 0.516 | 133 | 97.5 | 6.45 |
| UC318 | 90 | 190 | 96 | 48 | 40 | 56 | 16 | M16x1.5 | 13.8 | 144.7 | 110.6 | 7.33 |
| UC318-55 | 3-7/16 | 7.4803 | 3.7795 | 1.8898 | 1.576 | 2.205 | 0.630 | 5/8-18UNF | 0.543 | 144.7 | 110.6 | 7.62 |
| UC318-56 | 3-1/2 | 7.4803 | 3.7795 | 1.8898 | 1.576 | 2.205 | 0.630 | 5/8-18UNF | 0.543 | 144.7 | 110.6 | 7.44 |
| UC319 | 95 | 200 | 103 | 50 | 41 | 62 | 16 | M16x1.5 | 14.7 | 155.6 | 122 | 8.81 |
| UC319-58 | 3-5/8 | 7.8740 | 4.0551 | 1.9685 | 1.614 | 2.441 | 0.630 | 5/8-18UNF | 0.579 | 155.6 | 122 | 9.14 |
| UC319-59 | 3-11/16 | 7.8740 | 4.0551 | 1.9685 | 1.614 | 2.441 | 0.630 | 5/8-18UNF | 0.579 | 155.6 | 122 | 8.96 |
| UC317-60 | 3-3/4 | 7.8740 | 4.0551 | 1.9685 | 1.614 | 2.441 | 0.630 | 5/8-18UNF | 0.579 | 155.6 | 122 | 8.77 |
| UC320 | 100 | 215 | 108 | 54 | 42 | 66 | 18 | M18x1.5 | 15.7 | 173 | 141 | 10.71 |
| UC320-64 | 4 | 8.4646 | 4.2520 | 2.1260 | 1.6535 | 2.5984 | 0.7087 | M18x1.5 | 0.618 | 173 | 141 | 10.51 |
| UC322 | 110 | 240 | 117 | 60 | 46 | 71 | 18 | M18x1.5 | 17.7 | 205 | 179 | 14.55 |
| UC324 | 120 | 260 | 126 | 64 | 51 | 75 | 18 | M18x1.5 | 19 | 227 | 207 | 18.47 |
| UC326 | 130 | 280 | 135 | 68 | 54 | 81 | 20 | M20x1.5 | 20 | 253 | 241 | 22.98 |
| UC328 | 140 | 300 | 145 | 72 | 59 | 86 | 20 | M20x1.5 | 22 | 274 | 272 | 27.98 |

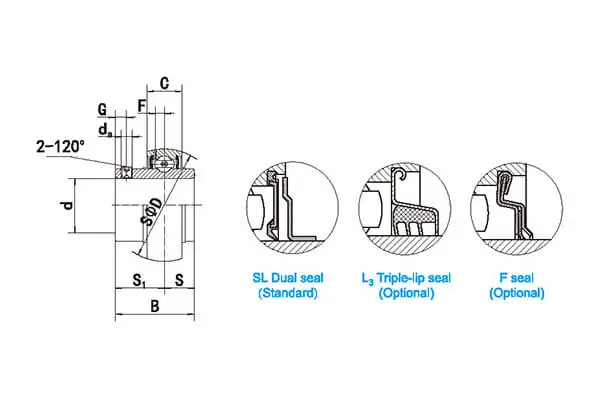

| Designation | d (mm/in) | D (mm/in) | B (mm/in) | C (mm/in) | S (mm/in) | S1 (mm/in) | G (mm/in) | ds (mm/in) | F (mm/in) | Dynamic Load (kN) | Statistic Load (kN) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCX05 | 25 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5 | M6x1 | 5 | 19.45 | 11.25 | 0.36 |
| UCX05-13 | 13/16 | 2.4409 | 1.5000 | 0.7480 | 0.626 | 0.874 | 0.197 | 1/4-28UNF | 0.197 | 19.45 | 11.25 | 0.36 |
| UCX05-14 | 7/8 | 2.4409 | 1.5000 | 0.7480 | 0.626 | 0.874 | 0.197 | 1/4-28UNF | 0.197 | 19.45 | 11.25 | 0.36 |
| UCX05-15 | 15/16 | 2.4409 | 1.5000 | 0.7480 | 0.626 | 0.874 | 0.197 | 1/4-28UNF | 0.197 | 19.45 | 11.25 | 0.36 |
| UCX05-16 | 1 | 2.4409 | 1.5000 | 0.7480 | 0.626 | 0.874 | 0.197 | 1/4-28UNF | 0.197 | 19.45 | 11.25 | 0.36 |
| UCX06 | 30 | 72 | 42.9 | 20 | 17.5 | 25.4 | 7 | M8x1 | 5.7 | 25.7 | 15.2 | 0.53 |
| UCX06-17 | 1-1/16 | 2.8346 | 1.6890 | 0.7874 | 0.689 | 1.000 | 0.276 | 5/16-24UNF | 0.224 | 25.7 | 15.2 | 0.53 |
| UCX06-18 | 1-1/8 | 2.8346 | 1.6890 | 0.7874 | 0.689 | 1.000 | 0.276 | 5/16-24UNF | 0.224 | 25.7 | 15.2 | 0.53 |
| UCX06-19 | 1-3/16 | 2.8346 | 1.6890 | 0.7874 | 0.689 | 1.000 | 0.276 | 5/16-24UNF | 0.224 | 25.7 | 15.2 | 0.53 |
| UCX07 | 35 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | M8x1 | 6.2 | 29.5 | 18.1 | 0.7 |
| UCX07-21 | 1-5/16 | 3.1496 | 1.9370 | 0.8268 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.244 | 29.5 | 18.1 | 0.7 |
| UCX07-22 | 1-3/8 | 3.1496 | 1.9370 | 0.8268 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.244 | 29.5 | 18.1 | 0.7 |
| UCX07-23 | 1-7/16 | 3.1496 | 1.9370 | 0.8268 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.244 | 29.5 | 18.1 | 0.7 |
| UCX08 | 40 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | M8x1 | 6.4 | 32.7 | 20.9 | 0.77 |
| UCX08-24 | 1-1/2 | 3.3465 | 1.9370 | 0.8661 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.252 | 32.7 | 20.9 | 0.77 |
| UCX08-25 | 1-9/16 | 3.3465 | 1.9370 | 0.8661 | 0.748 | 1.189 | 0.315 | 5/16-24UNF | 0.252 | 32.7 | 20.9 | 0.77 |
| UCX09 | 45 | 90 | 51.6 | 24 | 19 | 32.6 | 10 | M10x1 | 6.5 | 35 | 23.2 | 0.88 |
| UCX09-26 | 1-5/8 | 3.5433 | 2.0315 | 0.9449 | 0.748 | 1.283 | 0.394 | 3/8-24UNF | 0.256 | 35 | 23.2 | 0.88 |
| UCX09-27 | 1-11/16 | 3.5433 | 2.0315 | 0.9449 | 0.748 | 1.283 | 0.394 | 3/8-24UNF | 0.256 | 35 | 23.2 | 0.88 |
| UCX09-28 | 1-3/4 | 3.5433 | 2.0315 | 0.9449 | 0.748 | 1.283 | 0.394 | 3/8-24UNF | 0.256 | 35 | 23.2 | 0.88 |
| UCX10 | 50 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | M10x1 | 7 | 43.3 | 29.2 | 1.15 |
| UCX10-30 | 1-7/8 | 3.9370 | 2.1890 | 0.9843 | 0.874 | 1.315 | 0.394 | 3/8-24UNF | 0.276 | 43.3 | 29.2 | 1.15 |
| UCX10-31 | 1-15/16 | 3.9370 | 2.1890 | 0.9843 | 0.874 | 1.315 | 0.394 | 3/8-24UNF | 0.276 | 43.3 | 29.2 | 1.15 |
| UCX11 | 55 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | M10x1 | 7.6 | 47.7 | 32.8 | 1.55 |
| UCX11-33 | 2-1/16 | 4.3307 | 2.5630 | 1.0630 | 1.000 | 1.563 | 0.394 | 3/8-24UNF | 0.299 | 47.7 | 32.8 | 1.55 |
| UCX11-34 | 2-1/8 | 4.3307 | 2.5630 | 1.0630 | 1.000 | 1.563 | 0.394 | 3/8-24UNF | 0.299 | 47.7 | 32.8 | 1.55 |
| UCX11-35 | 2-3/16 | 4.3307 | 2.5630 | 1.0630 | 1.000 | 1.563 | 0.394 | 3/8-24UNF | 0.299 | 47.7 | 32.8 | 1.55 |
| UCX12 | 60 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | M10x1 | 8.5 | 57.2 | 40 | 1.93 |
| UCX12-38 | 2-3/8 | 4.7244 | 2.5630 | 1.1024 | 1.000 | 1.563 | 0.394 | 3/8-24UNF | 0.335 | 57.2 | 40 | 1.93 |
| UCX12-39 | 2-7/16 | 4.7244 | 2.5630 | 1.1024 | 1.000 | 1.563 | 0.394 | 3/8-24UNF | 0.335 | 57.2 | 40 | 1.93 |
| UCX13 | 65 | 125 | 74.6 | 29 | 30.2 | 44.4 | 12 | M12x1.5 | 8.9 | 62.1 | 44.8 | 2.08 |
| UCX13-40 | 2-1/2 | 4.9213 | 2.9370 | 1.1417 | 1.189 | 1.748 | 0.472 | 1/2-20UNF | 0.35 | 62.1 | 44.8 | 2.08 |
| UCX13-41 | 2-9/16 | 4.9213 | 2.9370 | 1.1417 | 1.189 | 1.748 | 0.472 | 1/2-20UNF | 0.35 | 62.1 | 44.8 | 2.08 |
| UCX14 | 70 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | M12x1.5 | 9.2 | 66.2 | 49.3 | 2.44 |
| UCX14-42 | 2-5/8 | 5.1181 | 3.0630 | 1.1811 | 1.311 | 1.752 | 0.472 | 1/2-20UNF | 0.362 | 66.2 | 49.3 | 2.44 |
| UCX14-43 | 2-11/16 | 5.1181 | 3.0630 | 1.1811 | 1.311 | 1.752 | 0.472 | 1/2-20UNF | 0.362 | 66.2 | 49.3 | 2.44 |
| UCX14-44 | 2-3/4 | 5.1181 | 3.0630 | 1.1811 | 1.311 | 1.752 | 0.472 | 1/2-20UNF | 0.362 | 66.2 | 49.3 | 2.44 |
| UCX15 | 75 | 140 | 82.6 | 32 | 33.3 | 49.3 | 12 | M12x1.5 | 9.5 | 72.6 | 53.3 | 2.9 |
| UCX15-45 | 2-13/16 | 5.5118 | 3.2520 | 1.2598 | 1.311 | 1.9409 | 0.472 | 1/2-20UNF | 0.374 | 72.6 | 53.3 | 2.9 |
| UCX15-46 | 2-7/8 | 5.5118 | 3.2520 | 1.2598 | 1.311 | 1.9409 | 0.472 | 1/2-20UNF | 0.374 | 72.6 | 53.3 | 2.9 |
| UCX15-47 | 2-15/16 | 5.5118 | 3.2520 | 1.2598 | 1.311 | 1.9409 | 0.472 | 1/2-20UNF | 0.374 | 72.6 | 53.3 | 2.9 |
| UCX15-48 | 3 | 5.5118 | 3.2520 | 1.2598 | 1.311 | 1.9409 | 0.472 | 1/2-20UNF | 0.374 | 72.6 | 53.3 | 2.9 |
| UCX16 | 80 | 150 | 85.7 | 34 | 34.1 | 51.6 | 12 | M12x1.5 | 10.2 | 83.3 | 63.7 | 3.9 |
| UCX16-49 | 3-1/16 | 5.9055 | 3.3740 | 1.3386 | 1.343 | 2.031 | 0.472 | 1/2-20UNF | 0.402 | 83.3 | 63.7 | 3.9 |
| UCX16-50 | 3-1/8 | 5.9055 | 3.3740 | 1.3386 | 1.343 | 2.031 | 0.472 | 1/2-20UNF | 0.402 | 83.3 | 63.7 | 3.9 |
| UCX16-51 | 3-3/16 | 5.9055 | 3.3740 | 1.3386 | 1.343 | 2.031 | 0.472 | 1/2-20UNF | 0.402 | 83.3 | 63.7 | 3.9 |
| UCX17 | 85 | 160 | 96 | 36 | 39.7 | 56.3 | 12 | M12x1.5 | 11.2 | 96 | 71.1 | 4.7 |
| UCX17-53 | 3-5/16 | 6.2992 | 3.7795 | 1.4173 | 1.5630 | 2.217 | 0.472 | 1/2-20UNF | 0.441 | 96 | 71.1 | 4.7 |
| UCX17-55 | 3-7/16 | 6.2992 | 3.7795 | 1.4173 | 1.5630 | 2.217 | 0.472 | 1/2-20UNF | 0.441 | 96 | 71.1 | 4.7 |
| UCX18 | 90 | 170 | 104 | 39 | 42.9 | 61.1 | 16 | M14x1.5 | 12.5 | 109 | 82 | 5.66 |
| UCX18-56 | 3-1/2 | 6.6929 | 4.0945 | 1.5354 | 1.689 | 2.406 | 0.630 | 9/16-18UNF | 0.492 | 109 | 82 | 5.66 |
| UCX20 | 100 | 190 | 117.5 | 43 | 49.2 | 68.3 | 18 | M16x1.5 | 13.7 | 133 | 105 | 8.56 |
| UCX20-64 | 3-1/2 | 7.4803 | 4.626 | 1.6929 | 1.937 | 2.689 | 0.709 | 5/8-18UNF | 0.539 | 133 | 105 | 8.56 |
| Designation | d (mm/in) | D (mm/in) | B (mm/in) | C (mm/in) | S (mm/in) | S1 (mm/in) | ds (mm/in) | F (mm/in) | G (mm/in) | Dynamic Load (kN) | Statistic Load (kN) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SB201 | 12 | 40 | 22 | 12 | 6 | 16 | M5X0.8 | 3.4 | 4.5 | 9.6 | 4.6 | 0.1 |
| SB201-8 | 1/2 | 1.5748 | 0.8661 | 0.4724 | 0.236 | 0.63 | 10-32UNF | 0.134 | 0.177 | 9.6 | 4.6 | 0.1 |
| SB202 | 15 | 40 | 22 | 12 | 6 | 16 | M5X0.8 | 3.4 | 4.5 | 9.6 | 4.6 | 0.1 |
| SB202-9 | 9/16 | 1.5748 | 0.8661 | 0.4724 | 0.236 | 0.63 | 10-32UNF | 0.134 | 0.177 | 9.6 | 4.6 | 0.1 |
| SB202-10 | 5/8 | 1.5748 | 0.8661 | 0.4724 | 0.236 | 0.63 | 10-32UNF | 0.134 | 0.177 | 9.6 | 4.6 | 0.1 |
| SB203 | 17 | 40 | 22 | 12 | 6 | 16 | M5X0.8 | 3.4 | 4.5 | 9.6 | 4.6 | 0.09 |
| SB203-11 | 11/16 | 1.5748 | 0.8661 | 0.4724 | 0.236 | 0.63 | 10-32UNF | 0.134 | 0.177 | 9.6 | 4.6 | 0.09 |
| SB204 | 20 | 47 | 25 | 14 | 7 | 18 | M6X1 | 4.2 | 4.5 | 12.8 | 6.6 | 0.13 |
| SB204-12 | 3/4 | 1.8504 | 0.9843 | 0.5512 | 0.276 | 0.709 | 1/4-28UNF | 0.165 | 0.177 | 12.8 | 6.6 | 0.14 |
| SB205 | 25 | 52 | 27 | 15 | 7.5 | 19.5 | M6X1 | 4.3 | 5.5 | 14 | 7.85 | 0.16 |
| SB205-13 | 13/16 | 2.0472 | 1.063 | 0.5906 | 0.295 | 0.768 | 1/4-28UNF | 0.169 | 0.217 | 14 | 7.85 | 0.19 |
| SB205-14 | 7/8 | 2.0472 | 1.063 | 0.5906 | 0.295 | 0.768 | 1/4-28UNF | 0.169 | 0.217 | 14 | 7.85 | 0.18 |
| SB205-15 | 15/16 | 2.0472 | 1.063 | 0.5906 | 0.295 | 0.768 | 1/4-28UNF | 0.169 | 0.217 | 14 | 7.85 | 0.17 |
| SB205-16 | 1 | 2.0472 | 1.063 | 0.5906 | 0.295 | 0.768 | 1/4-28UNF | 0.169 | 0.217 | 14 | 7.85 | 0.16 |
| SB206 | 30 | 62 | 30 | 16 | 8 | 22 | M6X1 | 5 | 6 | 19.45 | 11.25 | 0.25 |
| SB206-17 | 1-1/16 | 2.4409 | 1.1811 | 0.6299 | 0.315 | 0.866 | 1/4-28UNF | 0.197 | 0.236 | 19.45 | 11.25 | 0.28 |
| SB206-18 | 1-1/8 | 2.4409 | 1.1811 | 0.6299 | 0.315 | 0.866 | 1/4-28UNF | 0.197 | 0.236 | 19.45 | 11.25 | 0.26 |
| SB206-19 | 1-3/16 | 2.4409 | 1.1811 | 0.6299 | 0.315 | 0.866 | 1/4-28UNF | 0.197 | 0.236 | 19.45 | 11.25 | 0.25 |
| SB206-20 | 1-1/4 | 2.4409 | 1.1811 | 0.6299 | 0.315 | 0.866 | 1/4-28UNF | 0.197 | 0.236 | 19.45 | 11.25 | 0.24 |
| SB207 | 35 | 72 | 32 | 17 | 8.5 | 23.5 | M8X1 | 5.6 | 6.5 | 25.7 | 15.2 | 0.36 |
| SB207-20 | 1-1/4 | 2.8346 | 1.2598 | 0.6693 | 0.335 | 0.925 | 5/16-24UNF | 0.22 | 0.256 | 25.7 | 15.2 | 0.41 |
| SB207-21 | 1-5/16 | 2.8346 | 1.2598 | 0.6693 | 0.335 | 0.925 | 5/16-24UNF | 0.22 | 0.256 | 25.7 | 15.2 | 0.39 |
| SB207-22 | 1-3/8 | 2.8346 | 1.2598 | 0.6693 | 0.335 | 0.925 | 5/16-24UNF | 0.22 | 0.256 | 25.7 | 15.2 | 0.36 |
| SB207-23 | 1-7/16 | 2.8346 | 1.2598 | 0.6693 | 0.335 | 0.925 | 5/16-24UNF | 0.22 | 0.256 | 25.7 | 15.2 | 0.35 |
| SB208 | 40 | 80 | 34 | 18 | 9 | 25 | M8X1 | 5.9 | 7 | 29.5 | 18.1 | 0.45 |
| SB208-24 | 1-1/2 | 3.1496 | 1.3386 | 0.7087 | 0.354 | 0.984 | 5/16-24UNF | 0.232 | 0.276 | 29.5 | 18.1 | 0.43 |
| SB208-24 | 1-9/16 | 3.1496 | 1.3386 | 0.7087 | 0.354 | 0.984 | 5/16-24UNF | 0.232 | 0.276 | 29.5 | 18.1 | 0.45 |
| SB209 | 45 | 85 | 41.2 | 19 | 10.2 | 31 | M8X1 | 6.1 | 8.2 | 32.7 | 20.9 | 0.54 |
| SB209-26 | 1-5/8 | 3.3465 | 1.622 | 0.748 | 0.402 | 1.22 | 5/16-24UNF | 0.24 | 0.323 | 32.7 | 20.9 | 0.54 |
| SB209-27 | 1-11/16 | 3.3465 | 1.622 | 0.748 | 0.402 | 1.22 | 5/16-24UNF | 0.24 | 0.323 | 32.7 | 20.9 | 0.54 |
| SB209-28 | 1-3/4 | 3.3465 | 1.622 | 0.748 | 0.402 | 1.22 | 5/16-24UNF | 0.24 | 0.323 | 32.7 | 20.9 | 0.54 |
| SB210 | 50 | 90 | 43.5 | 20 | 10.9 | 32.6 | M10X1 | 6.5 | 9.2 | 35 | 23.2 | 0.62 |
| SB210-29 | 1-13/16 | 3.5433 | 1.7126 | 0.7874 | 0.429 | 1.283 | 3/8-24UNF | 0.256 | 0.362 | 35 | 23.2 | 0.62 |
| SB210-30 | 1-7/8 | 3.5433 | 1.7126 | 0.7874 | 0.429 | 1.283 | 3/8-24UNF | 0.256 | 0.362 | 35 | 23.2 | 0.62 |
| SB210-31 | 1-15/16 | 3.5433 | 1.7126 | 0.7874 | 0.429 | 1.283 | 3/8-24UNF | 0.256 | 0.362 | 35 | 23.2 | 0.62 |
| SB210-32 | 2 | 3.5433 | 1.7126 | 0.7874 | 0.429 | 1.283 | 3/8-24UNF | 0.256 | 0.362 | 35 | 23.2 | 0.62 |
| SB211 | 55 | 100 | 45.3 | 21 | 11.8 | 33.5 | M10X1 | 7 | 9.8 | 43.3 | 29.2 | 0.81 |
| SB211-32 | 2 | 3.937 | 1.7835 | 0.8268 | 0.465 | 1.319 | 3/8-24UNF | 0.276 | 0.386 | 43.3 | 29.2 | 0.81 |
| SB211-33 | 2-1/16 | 3.937 | 1.7835 | 0.8268 | 0.465 | 1.319 | 3/8-24UNF | 0.276 | 0.386 | 43.3 | 29.2 | 0.81 |
| SB211-34 | 2-1/8 | 3.937 | 1.7835 | 0.8268 | 0.465 | 1.319 | 3/8-24UNF | 0.276 | 0.386 | 43.3 | 29.2 | 0.81 |
| SB211-35 | 2-3/16 | 3.937 | 1.7835 | 0.8268 | 0.465 | 1.319 | 3/8-24UNF | 0.276 | 0.386 | 43.3 | 29.2 | 0.81 |
| SB212 | 60 | 110 | 53.7 | 22 | 14.9 | 38.8 | M10X1 | 7.4 | 9.8 | 47.7 | 32.8 | 1.14 |
| SB212-36 | 2-1/4 | 4.3307 | 2.1142 | 0.8661 | 0.587 | 1.528 | 3/8-24UNF | 0.291 | 0.386 | 47.7 | 32.8 | 1.14 |
| SB212-37 | 2-5/16 | 4.3307 | 2.1142 | 0.8661 | 0.587 | 1.528 | 3/8-24UNF | 0.291 | 0.386 | 47.7 | 32.8 | 1.14 |
| SB212-38 | 2-3/8 | 4.3307 | 2.1142 | 0.8661 | 0.587 | 1.528 | 3/8-24UNF | 0.291 | 0.386 | 47.7 | 32.8 | 1.14 |
| SB212-39 | 2-7/16 | 4.3307 | 2.1142 | 0.8661 | 0.587 | 1.528 | 3/8-24UNF | 0.291 | 0.386 | 47.7 | 32.8 | 1.14 |
| Designation | d (mm/in) | D (mm/in) | B (mm/in) | C (mm/in) | S (mm/in) | S1 (mm/in) | T (mm/in) | F (mm/in) | J (mm/in) | P (mm/in) | G (mm/in) | ds (mm/in) | Dynamic Load (kN) | Statistic Load (kN) | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SER201 | 12 | 47 | 31 | 15.9 | 10.3 | 20.7 | 1.12 | 3.8 | 2.46 | 52.7 | 4.8 | M6x1 | 12.8 | 6.6 | 0.22 |
| SER201-8 | 1/2 | 1.8504 | 1.2205 | 0.6260 | 0.406 | 0.815 | 0.044 | 0.150 | 0.097 | 2.075 | 0.189 | 1/4-28UNF | 12.8 | 6.6 | 0.22 |
| SER202 | 15 | 1.8504 | 1.2205 | 0.6260 | 0.406 | 0.815 | 0.044 | 0.150 | 0.097 | 2.075 | 0.189 | 1/4-28UNF | 12.8 | 6.6 | 0.22 |
| SER202-10 | 5/8 | 1.8504 | 1.2205 | 0.6260 | 0.406 | 0.815 | 0.044 | 0.150 | 0.097 | 2.075 | 0.189 | 1/4-28UNF | 12.8 | 6.6 | 0.22 |
| SER203 | 17 | 1.8504 | 1.2205 | 0.6260 | 0.406 | 0.815 | 0.044 | 0.150 | 0.097 | 2.075 | 0.189 | 1/4-28UNF | 12.8 | 6.6 | 0.22 |
| SER204 | 20 | 47 | 31 | 15.9 | 10.3 | 20.7 | 1.12 | 3.8 | 2.46 | 52.7 | 4.8 | M6x1 | 12.8 | 6.6 | 0.17 |
| SER204-12 | 3/4 | 1.8504 | 1.2205 | 0.6260 | 0.406 | 0.815 | 0.044 | 0.150 | 0.097 | 2.075 | 0.189 | 1/4-28UNF | 12.8 | 6.6 | 0.17 |
| SER205 | 25 | 52 | 34.9 | 19 | 13.1 | 21.8 | 1.12 | 5.0 | 2.46 | 57.9 | 4.8 | M6x1 | 14 | 7.85 | 0.21 |
| SER205-13 | 13/16 | 2.0472 | 1.3740 | 0.7480 | 0.516 | 0.858 | 0.044 | 0.197 | 0.097 | 2.280 | 0.197 | 1/4-28UNF | 14 | 7.85 | 0.21 |
| SER205-14 | 7/8 | 2.0472 | 1.3740 | 0.7480 | 0.516 | 0.858 | 0.044 | 0.197 | 0.097 | 2.280 | 0.197 | 1/4-28UNF | 14 | 7.85 | 0.21 |
| SER205-15 | 15/16 | 2.0472 | 1.3740 | 0.7480 | 0.516 | 0.858 | 0.044 | 0.197 | 0.097 | 2.280 | 0.197 | 1/4-28UNF | 14 | 7.85 | 0.21 |
| SER205-16 | 1 | 2.0472 | 1.3740 | 0.7480 | 0.516 | 0.858 | 0.044 | 0.197 | 0.097 | 2.280 | 0.197 | 1/4-28UNF | 14 | 7.85 | 0.21 |
| SER206 | 30 | 62 | 38.1 | 22.2 | 15.9 | 22.2 | 1.7 | 5.6 | 3.28 | 67.7 | 5 | M6x1 | 19.45 | 11.25 | 0.33 |
| SER206-17 | 1-1/16 | 2.4409 | 1.5000 | 0.8740 | 0.626 | 0.874 | 0.067 | 0.220 | 0.129 | 2.665 | 0.197 | 1/4-28UNF | 19.45 | 11.25 | 0.33 |
| SER206-18 | 1-1/8 | 2.4409 | 1.5000 | 0.8740 | 0.626 | 0.874 | 0.067 | 0.220 | 0.129 | 2.665 | 0.197 | 1/4-28UNF | 19.45 | 11.25 | 0.33 |
| SER206-19 | 1-3/16 | 2.4409 | 1.5000 | 0.8740 | 0.626 | 0.874 | 0.067 | 0.220 | 0.129 | 2.665 | 0.197 | 1/4-28UNF | 19.45 | 11.25 | 0.33 |
| SER206-20 | 1-1/4 | 2.4409 | 1.5000 | 0.8740 | 0.626 | 0.874 | 0.067 | 0.220 | 0.129 | 2.665 | 0.197 | 1/4-28UNF | 19.45 | 11.25 | 0.33 |
| SER207 | 35 | 72 | 42.9 | 23.8 | 17.5 | 25.4 | 1.7 | 5.6 | 3.28 | 78.6 | 7 | M8x1 | 25.7 | 15.2 | 0.5 |
| SER207-20 | 1-1/4 | 2.8346 | 1.6890 | 0.9370 | 0.689 | 1.000 | 0.067 | 0.220 | 0.129 | 3.094 | 0.276 | 5/16-24UNF | 25.7 | 15.2 | 0.5 |
| SER207-21 | 1-5/16 | 2.8346 | 1.6890 | 0.9370 | 0.689 | 1.000 | 0.067 | 0.220 | 0.129 | 3.094 | 0.276 | 5/16-24UNF | 25.7 | 15.2 | 0.5 |
| SER207-22 | 1-3/8 | 2.8346 | 1.6890 | 0.9370 | 0.689 | 1.000 | 0.067 | 0.220 | 0.129 | 3.094 | 0.276 | 5/16-24UNF | 25.7 | 15.2 | 0.5 |
| SER207-23 | 1-7/16 | 2.8346 | 1.6890 | 0.9370 | 0.689 | 1.000 | 0.067 | 0.220 | 0.129 | 3.094 | 0.276 | 5/16-24UNF | 25.7 | 15.2 | 0.5 |
| SER208 | 40 | 80 | 49.2 | 27.8 | 19 | 30.2 | 1.7 | 6.4 | 3.28 | 86.6 | 8 | M8x1 | 29.5 | 18.1 | 0.7 |
| SER208-24 | 1-1/2 | 3.1496 | 1.9370 | 1.0945 | 0.748 | 1.189 | 0.067 | 0.252 | 0.129 | 3.409 | 0.315 | 5/16-24UNF | 29.5 | 18.1 | 0.7 |
| SER208-25 | 1-9/16 | 3.1496 | 1.9370 | 1.0945 | 0.748 | 1.189 | 0.067 | 0.252 | 0.129 | 3.409 | 0.315 | 5/16-24UNF | 29.5 | 18.1 | 0.7 |
| SER209 | 45 | 85 | 49.2 | 27.8 | 19 | 30.2 | 1.7 | 6.4 | 3.28 | 91.6 | 8 | M8x1 | 32.7 | 20.9 | 0.72 |
| SER209-26 | 1-5/8 | 3.3465 | 1.9370 | 1.0945 | 0.748 | 1.189 | 0.067 | 0.252 | 0.129 | 3.606 | 0.315 | 5/16-24UNF | 32.7 | 20.9 | 0.72 |
| SER209-27 | 1-11/16 | 3.3465 | 1.9370 | 1.0945 | 0.748 | 1.189 | 0.067 | 0.252 | 0.129 | 3.606 | 0.315 | 5/16-24UNF | 32.7 | 20.9 | 0.72 |
| SER209-28 | 1-3/4 | 3.3465 | 1.9370 | 1.0945 | 0.748 | 1.189 | 0.067 | 0.252 | 0.129 | 3.606 | 0.315 | 5/16-24UNF | 32.7 | 20.9 | 0.72 |
| SER210 | 50 | 90 | 51.6 | 28.6 | 19 | 32.6 | 2.46 | 7.5 | 3.28 | 96.5 | 10 | M10x1 | 35 | 23.2 | 0.83 |
| SER210-29 | 1-13/16 | 3.5433 | 2.0315 | 1.1260 | 0.748 | 1.283 | 0.097 | 0.295 | 0.129 | 3.799 | 0.394 | 3/8-24UNF | 35 | 23.2 | 0.83 |
| SER210-30 | 1-7/8 | 3.5433 | 2.0315 | 1.1260 | 0.748 | 1.283 | 0.097 | 0.295 | 0.129 | 3.799 | 0.394 | 3/8-24UNF | 35 | 23.2 | 0.83 |
| SER210-31 | 1-15/16 | 3.5433 | 2.0315 | 1.1260 | 0.748 | 1.283 | 0.097 | 0.295 | 0.129 | 3.799 | 0.394 | 3/8-24UNF | 35 | 23.2 | 0.83 |
| SER210-32 | 2 | 3.5433 | 2.0315 | 1.1260 | 0.748 | 1.283 | 0.097 | 0.295 | 0.129 | 3.799 | 0.394 | 3/8-24UNF | 35 | 23.2 | 0.83 |
| SER211 | 55 | 100 | 55.6 | 30.2 | 22.2 | 33.4 | 2.46 | 7.5 | 3.28 | 106.5 | 10 | M10x1 | 43.3 | 29.2 | 1.1 |
| SER211-32 | 2 | 3.9370 | 2.1890 | 1.1890 | 0.874 | 1.315 | 0.097 | 0.295 | 0.129 | 4.193 | 0.394 | 3/8-24UNF | 43.3 | 29.2 | 1.1 |
| SER211-33 | 2-1/16 | 3.9370 | 2.1890 | 1.1890 | 0.874 | 1.315 | 0.097 | 0.295 | 0.129 | 4.193 | 0.394 | 3/8-24UNF | 43.3 | 29.2 | 1.1 |
| SER211-34 | 2-1/8 | 3.9370 | 2.1890 | 1.1890 | 0.874 | 1.315 | 0.097 | 0.295 | 0.129 | 4.193 | 0.394 | 3/8-24UNF | 43.3 | 29.2 | 1.1 |
| SER211-35 | 2-3/16 | 3.9370 | 2.1890 | 1.1890 | 0.874 | 1.315 | 0.097 | 0.295 | 0.129 | 4.193 | 0.394 | 3/8-24UNF | 43.3 | 29.2 | 1.1 |
| SER212 | 60 | 110 | 65.1 | 31.8 | 25.4 | 39.7 | 2.46 | 7.5 | 3.28 | 116.6 | 10 | M10x1 | 47.7 | 32.8 | 1.53 |
| SER212-36 | 2-1/4 | 4.3307 | 2.5630 | 1.2520 | 1.000 | 1.563 | 0.097 | 0.295 | 0.129 | 4.591 | 0.394 | 3/8-24UNF | 47.7 | 32.8 | 1.53 |
| SER212-37 | 2-5/16 | 4.3307 | 2.5630 | 1.2520 | 1.000 | 1.563 | 0.097 | 0.295 | 0.129 | 4.591 | 0.394 | 3/8-24UNF | 47.7 | 32.8 | 1.53 |
| SER212-38 | 2-3/8 | 4.3307 | 2.5630 | 1.2520 | 1.000 | 1.563 | 0.097 | 0.295 | 0.129 | 4.591 | 0.394 | 3/8-24UNF | 47.7 | 32.8 | 1.53 |
| SER212-39 | 2-7/16 | 4.3307 | 2.5630 | 1.2520 | 1.000 | 1.563 | 0.097 | 0.295 | 0.129 | 4.591 | 0.394 | 3/8-24UNF | 47.7 | 32.8 | 1.53 |
Commited to provide premium industrial bearings for heavy industries.
Your inquiry will be replied within 8 hours!
