Pillow Block Ball Bearing Units

Pillow block bearing housing units have a wide range of designs to accommodate various industrial applications. Besides, their housings commonly come with cast iron, stainless steel, pressed steel and plastic material, while the insert bearings are usually with chrome steel, stainless steel, plastic and ceramic. Therefore, these designs enable these bearing units to withstand different application conditions, for instance, moisture, corrosion, high / low temperature. Furthermore, the pillow block bearing housing units are designed with diverse locking methods, including set screw locking, eccentric collar locking, concentric collar locking and adapter sleeve locking. Axis supplies these products in full range of designs and materials, with lubrication holes in both 90° and 45°.

Specifications of Pillow Block Ball Bearing Units

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s1 (mm/in)	s2 (mm/in)	g (mm/in)	w (mm/in)	t (mm/in)	B (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Housng No.	Mass (kg)
UCP201	12	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC201	P201	0.65
UCP201-8	1/2	1-3/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1-3/4	1.2205	0.500	3/8	UC201-8	P201	0.64
UCP202	15	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC202	P202	0.64
UCP202-9	9/16	1-3/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1-3/4	1.2205	0.500	3/8	UC202-9	P202	0.64
UCP202-10	5/8	1-3/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1-3/4	1.2205	0.500	3/8	UC202-10	P202	0.64
UCP203	17	30.2	127	95	38	13	19	14	62	44.5	31	12.7	M10	UC203	P203	0.63
UCP203-11	11/16	1-3/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-7/16	1-3/4	1.2205	0.500	3/8	UC203-11	P203	0.62
UCP204	20	33.3	127	95	38	13	19	14	65	44.5	31	12.7	M10	UC204	P204	0.64
UCP204-12	3/4	1-5/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-9/16	1-3/4	1.2205	0.500	3/8	UC204-12	P204	0.64
UCP205	25	36.5	140	105	38	13	19	15	71	48	34.1	14.3	M10	UC205	P205	0.76
UCP305	25	45	175	132	45	17	20	15	85	-	38	15	M14	UC305	P305	1.27
UCP205-13	13/16	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1-57/64	1.3425	0.563	3/8	UC205-13	P205	0.8
UCP305-13	13/16	1-49/64	6-7/8	5-3/16	1-25/32	43/64	25/32	19/32	3-11/32	-	1.4961	0.591	1/2	UC305-13	P305	1.32
UCP205-14	7/8	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1-57/64	1.3425	0.563	3/8	UC205-14	P205	0.79
UCP305-14	7/8	1-49/64	6-7/8	5-3/16	1-25/32	43/64	25/32	19/32	3-11/32	-	1.4961	0.591	1/2	UC305-14	P305	1.3
UCP205-15	15/16	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1-57/64	1.3425	0.563	3/8	UC205-15	P205	0.77
UCP305-15	15/16	1-49/64	6-7/8	5-3/16	1-25/32	43/64	25/32	19/32	3-11/32	-	1.4961	0.591	1/2	UC305-15	P305	1.28
UCP205-16	1	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1-57/64	1.3425	0.563	3/8	UC205-16	P205	0.76
UCP305-16	1	1-49/64	6-7/8	5-3/16	1-25/32	43/64	25/32	19/32	3-11/32	-	1.4961	0.591	1/2	UC305-16	P305	1.27
UCP206	30	42.9	160	121	44	17	20	17	84	53	38.1	15.9	M14	UC206	P206	1.2
UCP306	30	50	180	140	50	17	20	18	95	-	43	17	M14	UC306	P306	1.73
UCP206-17	1-1/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	2-5/64	1.5000	0.626	1/2	UC206-17	P206	1.21
UCP306-17	1-1/16	1-31/32	7-3/32	5-1/2	1-31/32	43/64	25/32	23/32	3-3/4	-	1.6929	0.669	1/2	UC306-17	P306	1.79
UCP206-18	1-1/8	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	2-5/64	1.5000	0.626	1/2	UC206-18	P206	1.22
UCP306-18	1-1/8	1-31/32	7-3/32	5-1/2	1-31/32	43/64	25/32	23/32	3-3/4	-	1.6929	0.669	1/2	UC306-18	P306	1.76
UCP206-19	1-3/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	2-5/64	1.5000	0.626	1/2	UC206-19	P206	1.2
UCP306-19	1-3/16	1-31/32	7-3/32	5-1/2	1-31/32	43/64	25/32	23/32	3-3/4	-	1.6929	0.669	1/2	UC306-19	P306	1.74
UCP206-20	1-1/4	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	2-5/64	1.5000	0.626	1/2	UC206-20	P206	1.19
UCP207	35	47.6	167	127	48	17	20	18	93	59.5	42.9	17.5	M14	UC207	P207	1.46
UCP307	35	56	210	160	56	17	25	20	106	-	48	19	M14	UC307	P307	2.38
UCP207-20	1-1/4	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2-11/32	1.6890	0.689	1/2	UC207-20	P207	1.53
UCP307-20	1-1/4	2-13/64	8-9/32	6-5/16	2-13/64	43/64	31/32	25/32	4-3/16	-	1.8898	0.748	1/2	UC307-20	P307	2.44
UCP207-21	1-5/16	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2-11/32	1.6890	0.689	1/2	UC207-21	P207	1.5
UCP307-21	1-5/16	2-13/64	8-9/32	6-5/16	2-13/64	43/64	31/32	25/32	4-3/16	-	1.8898	0.748	1/2	UC307-21	P307	2.41
UCP207-22	1-3/8	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2-11/32	1.6890	0.689	1/2	UC207-22	P207	1.47
UCP307-22	1-3/8	2-13/64	8-9/32	6-5/16	2-13/64	43/64	31/32	25/32	4-3/16	-	1.8898	0.748	1/2	UC307-22	P307	2.38
UCP207-23	1-7/16	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2-11/32	1.6890	0.689	1/2	UC207-23	P207	1.44
UCP307-23	1-7/16	2-13/64	8-9/32	6-5/16	2-13/64	43/64	31/32	25/32	4-3/16	-	1.8898	0.748	1/2	UC307-23	P307	2.35
UCP208	40	49.2	184	137	54	17	20	18	100	69	49.2	19	M14	UC208	P208	1.86
UCP308	40	60	220	170	60	17	27	22	116	-	52	19	M14	UC308	P308	3.08
UCP208-24	1-1/2	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2-23/32	1.9370	0.748	1/2	UC208-24	P208	1.9
UCP308-24	1-1/2	2-23/64	8-21/32	6-11/16	2-3/8	43/64	1-1/16	7/8	4-9/16	-	2.0472	0.748	1/2	UC308-24	P308	3.12
UCP208-25	1-9/16	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2-23/32	1.9370	0.748	1/2	UC208-25	P208	1.87
UCP308-25	1-9/16	2-23/64	8-21/32	6-11/16	2-3/8	43/64	1-1/16	7/8	4-9/16	-	2.0472	0.748	1/2	UC308-25	P308	3.08
UCP209	45	54	190	146	54	17	20	20	106	69	49.2	19	M14	UC209	P209	2.06
UCP309	45	67	245	190	67	20	30	24	129	-	57	22	M16	UC309	P309	4.17
UCP209-26	1-5/8	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2-23/32	1.9370	0.748	1/2	UC209-26	P209	2.16
UCP309-26	1-5/8	2-41/64	9-21/32	7-15/32	2-5/8	25/32	1-3/16	15/16	5-3/32	-	2.2441	0.866	5/8	UC309-26	P309	4.27
UCP209-27	1-11/16	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2-23/32	1.9370	0.748	1/2	UC209-27	P209	2.12
UCP309-27	1-11/16	2-41/64	9-21/32	7-15/32	2-5/8	25/32	1-3/16	15/16	5-3/32	-	2.2441	0.866	5/8	UC309-27	P309	4.23
UCP209-28	1-3/4	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2-23/32	1.9370	0.748	1/2	UC209-28	P209	2.08
UCP309-28	1-3/4	2-41/64	9-21/32	7-15/32	2-5/8	25/32	1-3/16	15/16	5-3/32	-	2.2441	0.866	5/8	UC309-28	P309	4.18
UCP210	50	57.2	206	159	60	20	23	21	113	74.5	51.6	19	M16	UC210	P210	2.61
UCP310	50	75	275	212	75	20	35	27	143	-	61	22	M16	UC310	P310	5.69
UCP210-29	1-13/16	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.0315	0.748	5/8	UC210-29	P210	2.73
UCP310-29	1-13/16	2-61/64	10-13/16	8-11/32	2-15/16	25/32	1-3/8	1-1/16	5-5/8	-	2.4016	0.866	5/8	UC310-29	P310	6.03
UCP210-30	1-7/8	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.0315	0.748	5/8	UC210-30	P210	2.68
UCP310-30	1-7/8	2-61/64	10-13/16	8-11/32	2-15/16	25/32	1-3/8	1-1/16	5-5/8	-	2.4016	0.866	5/8	UC310-30	P310	5.78
UCP210-31	1-15/16	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.0315	0.748	5/8	UC210-31	P210	2.63
UCP310-31	1-15/16	2-61/64	10-13/16	8-11/32	2-15/16	25/32	1-3/8	1-1/16	5-5/8	-	2.4016	0.866	5/8	UC310-31	P310	5.72
UCP210-32	2	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.0315	0.748	5/8	UC210-32	P210	2.59
UCP211	55	63.5	219	171	60	20	23	23	125	76	55.6	22.2	M16	UC211	P211	3.23
UCP311	55	80	310	236	80	20	38	30	154	-	66	25	M16	UC311	P311	7.24
UCP211-32	2	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.1890	0.874	5/8	UC211-32	P211	3.38
UCP311-32	2	3-5/32	12-7/32	9-9/32	3-5/32	25/32	1-1/2	1-3/16	6-1/16	-	2.5984	0.984	5/8	UC311-32	P311	7.42
UCP211-33	2-1/16	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.1890	0.874	5/8	UC211-33	P211	3.32
UCP311-33	2-1/16	3-5/32	12-7/32	9-9/32	3-5/32	25/32	1-1/2	1-3/16	6-1/16	-	2.5984	0.984	5/8	UC311-33	P311	7.35
UCP211-34	2-1/8	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.1890	0.874	5/8	UC211-34	P211	3.28
UCP311-34	2-1/8	3-5/32	12-7/32	9-9/32	3-5/32	25/32	1-1/2	1-3/16	6-1/16	-	2.5984	0.984	5/8	UC311-34	P311	7.29
UCP211-35	2-3/16	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.1890	0.874	5/8	UC211-35	P211	3.21
UCP311-35	2-3/16	3-5/32	12-7/32	9-9/32	3-5/32	25/32	1-1/2	1-3/16	6-1/16	-	2.5984	0.984	5/8	UC311-35	P311	7.21
UCP212	60	69.8	241	184	70	20	23	25	138	89	65.1	25.4	M16	UC212	P212	4.4
UCP312	60	85	330	250	85	25	38	32	165	-	71	26	M20	UC312	P312	8.88
UCP212-36	2-1/4	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3-1/2	2.5630	1.000	5/8	UC212-36	P212	4.57
UCP312-36	2-1/4	3-11/32	13	9-27/32	3-11/32	31/32	1-1/2	1-1/4	6-1/2	-	2.7953	1.024	3/4	UC312-36	P312	9.03
UCP212-37	2-5/16	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3-1/2	2.5630	1.000	5/8	UC212-37	P212	4.49
UCP312-37	2-5/16	3-11/32	13	9-27/32	3-11/32	31/32	1-1/2	1-1/4	6-1/2	-	2.7953	1.024	3/4	UC312-37	P312	8.95
UCP212-38	2-3/8	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3-1/2	2.5630	1.000	5/8	UC212-38	P212	4.42
UCP312-38	2-3/8	3-11/32	13	9-27/32	3-11/32	31/32	1-1/2	1-1/4	6-1/2	-	2.7953	1.024	3/4	UC312-38	P312	8.86
UCP212-39	2-7/16	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3-1/2	2.5630	1.000	5/8	UC212-39	P212	4.35
UCP312-39	2-7/16	3-11/32	13	9-27/32	3-11/32	31/32	1-1/2	1-1/4	6-1/2	-	2.7953	1.024	3/4	UC312-39	P312	8.78
UCP213	65	76.2	265	203	70	25	28	27	150	89	65.1	25.4	M20	UC213	P213	5.35
UCP313	65	90	340	260	90	25	38	33	176	-	75	30	M20	UC313	P313	10.51
UCP213-40	2-1/2	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	5-29/32	3-1/2	2.5630	1.000	3/4	UC213-40	P213	5.44
UCP313-40	2-1/2	3-35/64	13-3/8	10-1/4	3-17/32	31/32	1-1/2	1-5/16	6-15/16	-	2.9528	1.181	3/4	UC313-40	P313	10.59
UCP213-41	2-9/16	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	5-29/32	3-1/2	2.5630	1.000	3/4	UC213-41	P213	5.35
UCP313-41	2-9/16	3-35/64	13-3/8	10-1/4	3-17/32	31/32	1-1/2	1-5/16	6-15/16	-	2.9528	1.181	3/4	UC313-41	P313	10.49
UCP214	70	79.4	266	210	72	25	28	27	156	98	74.6	30.2	M20	UC214	P214	5.86
UCP314	70	95	360	280	90	27	40	35	187	-	78	33	M22	UC314	P314	12.04
UCP214-42	2-5/8	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-9/64	3-55/64	2.9370	1.189	3/4	UC214-42	P214	6.07
UCP314-42	2-5/8	3-47/64	14-3/16	11-1/32	3-17/32	1-1/16	1-9/16	1-3/8	7-3/8	-	3.0708	1.299	7/8	UC314-42	P314	12.26
UCP214-43	2-11/16	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-9/64	3-55/64	2.9370	1.189	3/4	UC214-43	P214	5.97
UCP314-43	2-11/16	3-47/64	14-3/16	11-1/32	3-17/32	1-1/16	1-9/16	1-3/8	7-3/8	-	3.0708	1.299	7/8	UC314-43	P314	12.15
UCP214-44	2-3/4	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-9/64	3-55/64	2.9370	1.189	3/4	UC214-44	P214	5.87
UCP314-44	2-3/4	3-47/64	14-3/16	11-1/32	3-17/32	1-1/16	1-9/16	1-3/8	7-3/8	-	3.0708	1.299	7/8	UC314-44	P314	12.05
UCP215	75	82.6	275	217	74	25	28	28	162	99	77.8	33.3	M20	UC215	P215	6.45
UCP315	75	100	380	290	100	27	40	35	198	-	82	32	M22	UC315	P315	14.51
UCP215-45	2-13/16	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	3.0630	1.311	3/4	UC215-45	P215	6.45
UCP315-45	2-13/16	3-15/16	14-31/32	11-13/32	3-15/16	1-1/16	1-9/16	1-3/8	7-25/32	-	3.2283	1.26	7/8	UC315-45	P315	14.78
UCP215-46	2-7/8	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	3.0630	1.311	3/4	UC215-46	P215	6.7
UCP315-46	2-7/8	3-15/16	14-31/32	11-13/32	3-15/16	1-1/16	1-9/16	1-3/8	7-25/32	-	3.2283	1.26	7/8	UC315-46	P315	14.64
UCP215-47	2-15/16	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	3.0630	1.311	3/4	UC215-47	P215	6.59
UCP315-47	2-15/16	3-15/16	14-31/32	11-13/32	3-15/16	1-1/16	1-9/16	1-3/8	7-25/32	-	3.2283	1.26	7/8	UC315-47	P315	14.55
UCP215-48	3	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	3.0630	1.311	3/4	UC215-48	P215	6.39
UCP315-48	3	3-15/16	14-31/32	11-13/32	3-15/16	1-1/16	1-9/16	1-3/8	7-25/32	-	3.2283	1.26	7/8	UC315-48	P315	14.42
UCP216	80	88.9	292	232	78	25	28	30	174	109	82.6	33.3	M20	UC216	P216	7.86
UCP316	80	106	400	300	110	27	40	40	210	-	86	34	M22	UC316	P316	17.59
UCP216-49	3-1/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	4-19/64	3.2520	1.311	3/4	UC216-49	P216	8.04
UCP316-49	3-1/16	4-11/64	15-3/4	11-13/16	4-11/32	1-1/16	1-9/16	1-9/16	8-9/32	-	3.3858	1.339	7/8	UC316-49	P316	17.76
UCP216-50	3-1/8	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	4-19/64	3.2520	1.311	3/4	UC216-50	P216	7.91
UCP316-50	3-1/8	4-11/64	15-3/4	11-13/16	4-11/32	1-1/16	1-9/16	1-9/16	8-9/32	-	3.3858	1.339	7/8	UC316-50	P316	17.62
UCP216-51	3-3/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	4-19/64	3.2520	1.311	3/4	UC216-51	P216	7.78
UCP316-51	3-3/16	4-11/64	15-3/4	11-13/16	4-11/32	1-1/16	1-9/16	1-9/16	8-9/32	-	3.3858	1.339	7/8	UC316-51	P316	17.53
UCP217	85	95.2	310	247	83	25	28	32	185	113.2	85.7	34.1	M20	UC217	P217	9.56
UCP317	85	112	420	320	110	33	45	40	220	-	96	40	M27	UC317	P317	19.36
UCP217-52	3-1/4	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	4-29/64	3.3740	1.343	3/4	UC217-52	P217	9.68
UCP317-52	3-1/4	4-13/32	16-17/32	12-19/32	4-11/32	1-5/16	1-25/32	1-9/16	8-21/32	-	3.7795	1.575	1	UC317-52	P317	19.58
UCP217-53	3-5/16	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	4-29/64	3.3740	1.343	3/4	UC217-53	P217	9.64
UCP317-53	3-5/16	4-13/32	16-17/32	12-19/32	4-11/32	1-5/16	1-25/32	1-9/16	8-21/32	-	3.7795	1.575	1	UC317-53	P317	19.55
UCP217-55	3-7/16	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	4-29/64	3.3740	1.343	3/4	UC217-55	P217	9.35
UCP317-55	3-7/16	4-13/32	16-17/32	12-19/32	4-11/32	1-5/16	1-25/32	1-9/16	8-21/32	-	3.7795	1.575	1	UC317-55	P317	19.33
UCP218	90	101.6	327	262	88	27	30	33	198	123	96	39.7	M22	UC218	P218	11.59
UCP318	90	118	430	330	110	33	45	45	235	-	96	40	M27	UC318	P318	22.47
UCP318-55	3-7/16	4-41/64	16-15/16	13	4-11/32	1-5/16	1-25/32	1-25/32	9-1/4	-	3.7795	1.575	1	UC318-56	P318	22.76
UCP218-56	3-1/2	4	12-7/8	10-5/16	3-15/32	1-1/16	1-3/16	1-19/64	7-51/64	4-27/32	3.7795	1.563	7/8	UC218-56	P218	11.7
UCP318-56	3-1/2	4-41/64	16-15/16	13	4-11/32	1-5/16	1-25/32	1-25/32	9-1/4	-	3.7795	1.575	1	UC318-56	P318	22.58
UCP319	95	125	470	360	120	36	50	45	250	-	103	41	M30	UC319	P319	27.84
UCP319-58	3-5/8	4-59/64	18-1/2	14-3/16	4-23/32	1-13/32	1-31/32	1-25/32	9-27/32	-	4.0551	1.614	1-1/8	UC319-58	P319	28.17
UCP319-59	3-11/16	4-59/64	18-1/2	14-3/16	4-23/32	1-13/32	1-31/32	1-25/32	9-27/32	-	4.0551	1.614	1-1/8	UC319-59	P319	27.99
UCP319-60	3-3/4	4-59/64	18-1/2	14-3/16	4-23/32	1-13/32	1-31/32	1-25/32	9-27/32	-	4.0551	1.614	1-1/8	UC319-60	P319	27.8
UCP220	100	115	380	308	95	30	36	40	225	-	108	42	M24	UC220	P220	16
UCP320	100	140	490	380	120	36	50	50	275	-	108	42	M30	UC320	P320	33.76
UCP220-64	4	4-17/32	14-61/64	12-1/8	3-47/64	1-3/16	1-27/64	1-37/64	8-55/64	-	4.2519	1.6535	15/16	UC220-64	P220	16
UCP320-64	4	5-33/64	19-9/32	14-31/32	4-23/32	1-13/32	1-31/32	1-31/32	10-53/64	-	4.252	1.6536	1-1/8	UC320-64	P320	33.56
UCP322	110	150	520	400	140	40	55	55	300	-	117	46	M33	UC322	P322	45.25
UCP324	120	160	570	450	140	40	55	65	320	-	126	51	M33	UC324	P324	54.97
UCP326	130	180	600	480	140	40	55	75	355	-	135	54	M33	UC326	P326	71.48
UCP328	140	200	620	500	140	40	55	75	390	-	145	59	M33	UC328	P328	87.4

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	i (mm/in)	g (mm/in)	I (mm/in)	s (mm/in)	z (mm/in)	B (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)
UCPX05	25	44.4	159	119	51	17	20	18	85	38.1	15.9	M14	UCX05	PX05	1.33
UCPX05-13	13/16	1-3/4	6-1/4	4-11/16	2	43/64	25/32	23/32	3-11/32	1.5000	0.626	1/2	UCX05-13	PX05	1.33
UCPX05-14	7/8	1-3/4	6-1/4	4-11/16	2	43/64	25/32	23/32	3-11/32	1.5000	0.626	1/2	UCX05-14	PX05	1.33
UCPX05-15	15/16	1-3/4	6-1/4	4-11/16	2	43/64	25/32	23/32	3-11/32	1.5000	0.626	1/2	UCX05-15	PX05	1.33
UCPX05-16	1	1-3/4	6-1/4	4-11/16	2	43/64	25/32	23/32	3-11/32	1.5000	0.626	1/2	UCX05-16	PX05	1.33
UCPX06	30	47.6	175	127	57	17	20	20	93	42.9	17.5	M14	UCX06	PX06	1.71
UCPX06-17	1-1/16	1-7/8	6-7/8	5	2-1/4	43/64	25/32	25/32	3-21/32	1.6890	0.689	1/2	UCX06-17	PX06	1.71
UCPX06-18	1-1/8	1-7/8	6-7/8	5	2-1/4	43/64	25/32	25/32	3-21/32	1.6890	0.689	1/2	UCX06-18	PX06	1.71
UCPX06-19	1-3/16	1-7/8	6-7/8	5	2-1/4	43/64	25/32	25/32	3-21/32	1.6890	0.689	1/2	UCX06-19	PX06	1.71
UCPX06-20	1-1/4	1-7/8	6-7/8	5	2-1/4	43/64	25/32	25/32	3-21/32	1.6890	0.689	1/2	UCX06-20	PX06	1.71
UCPX07	35	54	203	144	57	17	20	21	105	49.2	19	M14	UCX07	PX07	2.3
UCPX07-21	1-5/16	2-1/8	8	5-21/32	2-1/4	43/64	25/32	13/16	4-1/8	1.9370	0.748	1/2	UCX07-21	PX07	2.3
UCPX07-22	1-3/8	2-1/8	8	5-21/32	2-1/4	43/64	25/32	13/16	4-1/8	1.9370	0.748	1/2	UCX07-22	PX07	2.3
UCPX07-23	1-7/16	2-1/8	8	5-21/32	2-1/4	43/64	25/32	13/16	4-1/8	1.9370	0.748	1/2	UCX07-23	PX07	2.3
UCPX08	40	58.7	222	156	67	20	23	26	111	49.2	19	M16	UCX08	PX08	2.84
UCPX08-24	1-1/2	2-5/16	8-3/4	6-5/32	2-5/8	25/32	29/32	1-1/32	4-3/8	1.9370	0.748	5/8	UCX08-24	PX08	2.84
UCPX08-25	1-9/16	2-5/16	8-3/4	6-5/32	2-5/8	25/32	29/32	1-1/32	4-3/8	1.9370	0.748	5/8	UCX08-25	PX08	2.84
UCPX09	45	58.7	222	156	67	20	23	26	116	51.6	19	M16	UCX09	PX09	3.2
UCPX09-26	1-5/8	2-5/16	8-3/4	6-5/32	2-5/8	25/32	29/32	1-1/32	4-9/16	2.0315	0.748	5/8	UCX09-26	PX09	3.2
UCPX09-27	1-11/16	2-5/16	8-3/4	6-5/32	2-5/8	25/32	29/32	1-1/32	4-9/16	2.0315	0.748	5/8	UCX09-27	PX09	3.2
UCPX09-28	1-3/4	2-5/16	8-3/4	6-5/32	2-5/8	25/32	29/32	1-1/32	4-9/16	2.0315	0.748	5/8	UCX09-28	PX09	3.2
UCPX09-29	1-13/16	2-5/16	8-3/4	6-5/32	2-5/8	25/32	29/32	1-1/32	4-9/16	2.0315	0.748	5/8	UCX09-29	PX09	3.2
UCPX10	50	63.5	241	171	73	20	23	27	126	55.6	22.2	M16	UCX10	PX10	4.07
UCPX10-30	1-7/8	2-1/2	9-1/2	6-47/64	2-7/8	25/32	29/32	1-1/16	4-31/32	2.1890	0.874	5/8	UCX10-30	PX10	4.07
UCPX10-31	1-15/16	2-1/2	9-1/2	6-47/64	2-7/8	25/32	29/32	1-1/16	4-31/32	2.1890	0.874	5/8	UCX10-31	PX10	4.07
UCPX10-32	2	2-1/2	9-1/2	6-47/64	2-7/8	25/32	29/32	1-1/16	4-31/32	2.1890	0.874	5/8	UCX10-32	PX10	4.07
UCPX11	55	69.8	260	184	79	25	28	30	137	65.1	25.4	M20	UCX11	PX11	5.18
UCPX11-33	2-1/16	2-3/4	10-1/4	7-1/4	3-1/8	31/32	1-3/32	1-3/16	5-13/32	2.5630	1.000	3/4	UCX11-33	PX11	5.18
UCPX11-34	2-1/8	2-3/4	10-1/4	7-1/4	3-1/8	31/32	1-3/32	1-3/16	5-13/32	2.5630	1.000	3/4	UCX11-34	PX11	5.18
UCPX11-35	2-3/16	2-3/4	10-1/4	7-1/4	3-1/8	31/32	1-3/32	1-3/16	5-13/32	2.5630	1.000	3/4	UCX11-35	PX11	5.18
UCPX11-36	2-1/4	2-3/4	10-1/4	7-1/4	3-1/8	31/32	1-3/32	1-3/16	5-13/32	2.5630	1.000	3/4	UCX11-36	PX11	5.18
UCPX11-37	2-5/16	2-3/4	10-1/4	7-1/4	3-1/8	31/32	1-3/32	1-3/16	5-13/32	2.5630	1.000	3/4	UCX11-37	PX11	5.18
UCPX12	60	76.2	286	203	83	25	28	33	151	65.1	25.4	M20	UCX12	PX12	6.67
UCPX12-38	2-3/8	3	11-1/4	8	3-9/32	31/32	1-3/32	1-5/16	5-15/16	2.5630	1.000	3/4	UCX12-38	PX12	6.67
UCPX12-39	2-7/16	3	11-1/4	8	3-9/32	31/32	1-3/32	1-5/16	5-15/16	2.5630	1.000	3/4	UCX12-39	PX12	6.67
UCPX13	65	76.2	286	203	83	25	28	33	154	74.6	30.2	M20	UCX13	PX13	6.92
UCPX13-40	2-1/2	3	11-1/4	8	3-9/32	63/64	1-3/32	1-5/16	6-1/16	2.9370	1.189	3/4	UCX13-40	PX13	6.92
UCPX13-41	2-9/16	3	11-1/4	8	3-9/32	63/64	1-3/32	1-5/16	6-1/16	2.9370	1.189	3/4	UCX13-41	PX13	6.92
UCPX14	70	88.9	330	229	89	27	30	35	170	77.8	33.3	M22	UCX14	PX14	8.64
UCPX14-42	2-5/8	3-1/2	13	9-1/32	3-1/2	1-1/16	1-3/16	1-3/8	6-11/16	3.0630	1.311	7/8	UCX14-42	PX14	8.64
UCPX14-43	2-11/16	3-1/2	13	9-1/32	3-1/2	1-1/16	1-3/16	1-3/8	6-11/16	3.0630	1.311	7/8	UCX14-43	PX14	8.64
UCPX14-44	2-3/4	3-1/2	13	9-1/32	3-1/2	1-1/16	1-3/16	1-3/8	6-11/16	3.0630	1.311	7/8	UCX14-44	PX14	8.64
UCPX15	75	88.9	330	229	89	27	30	35	175	82.6	33.3	M22	UCX15	PX15	9.4
UCPX15-45	2-13/16	3-1/2	13	9-1/32	3-1/2	1-1/16	1-3/16	1-3/8	6-7/8	3.2520	1.311	7/8	UCX15-45	PX15	9.4
UCPX15-46	2-7/8	3-1/2	13	9-1/32	3-1/2	1-1/16	1-3/16	1-3/8	6-7/8	3.2520	1.311	7/8	UCX15-46	PX15	9.4
UCPX15-47	2-15/16	3-1/2	13	9-1/32	3-1/2	1-1/16	1-3/16	1-3/8	6-7/8	3.2520	1.311	7/8	UCX15-47	PX15	9.4
UCPX15-48	3	3-1/2	13	9-1/32	3-1/2	1-1/16	1-3/16	1-3/8	6-7/8	3.2520	1.311	7/8	UCX15-48	PX15	9.4
UCPX16	80	101.6	381	283	102	27	30	40	194	85.7	34.1	M22	UCX16	PX16	13.44
UCPX16-49	3-1/16	4	15	11-5/32	4-1/32	1-1/16	1-3/16	1-9/16	7-5/8	3.3740	1.343	7/8	UCX16-49	PX16	13.44
UCPX16-50	3-1/8	4	15	11-5/32	4-1/32	1-1/16	1-3/16	1-9/16	7-5/8	3.3740	1.343	7/8	UCX16-50	PX16	13.44
UCPX16-51	3-3/16	4	15	11-5/32	4-1/32	1-1/16	1-3/16	1-9/16	7-5/8	3.3740	1.343	7/8	UCX16-51	PX16	13.44
UCPX16-52	3-1/4	4	15	11-5/32	4-1/32	1-1/16	1-3/16	1-9/16	7-5/8	3.3740	1.343	7/8	UCX16-52	PX16	13.44
UCPX17	85	101.6	381	283	102	27	30	40	200	96	39.7	M22	UCX17	PX17	14.57
UCPX17-53	3-5/16	4	15	11-5/32	4-1/32	1-1/16	1-3/16	1-9/16	7-7/8	3.7795	1.563	7/8	UCX17-53	PX17	14.57
UCPX17-55	3-7/16	4	15	11-5/32	4-1/32	1-1/16	1-3/16	1-9/16	7-7/8	3.7795	1.563	7/8	UCX17-55	PX17	14.57
UCPX18	90	101.6	381	283	111	27	30	40	206	104	42.9	M22	UCX18	PX18	16.47
UCPX18-56	3-1/2	4	15	11-5/32	4-3/8	1-1/16	1-3/16	1-37/64	8-7/64	4.0945	1.6890	7/8	UCX18-56	PX18	16.47
UCPX20	100	127	432	337	121	33	36	45	244	117.5	49.2	M27	UCX20	PX20	24.91
UCPX20-64	4	5	17	13-9/32	4-3/4	1-5/16	1-27/64	1-25/32	9-39/64	4.6260	1.9370	1	UCX20-64	PX20	24.91

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s1 (mm/in)	s2 (mm/in)	g (mm/in)	w (mm/in)	B (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)
UCPK204	20	31.75	127	98	38	11	14	14	63	31	12.7	M10	UC204	PK204	0.68
UCPK204-12	3/4	1-1/4	5	3-55/64	1-1/2	7/16	9/16	9/16	2-31/64	1.2205	0.500	3/8	UC204-12	PK204	0.68
UCPK205	25	33.34	140	105	38	11	14	15	68	34.1	14.3	M10	UC205	PK205	0.82
UCPK205-13	13/16	1-5/16	5-33/64	4-9/64	1-1/2	7/16	9/16	19/32	2-43/64	1.3425	0.563	3/8	UC205-13	PK205	0.86
UCPK205-14	7/8	1-5/16	5-33/64	4-9/64	1-1/2	7/16	9/16	19/32	2-43/64	1.3425	0.563	3/8	UC205-14	PK205	0.85
UCPK205-15	15/16	1-5/16	5-33/64	4-9/64	1-1/2	7/16	9/16	19/32	2-43/64	1.3425	0.563	3/8	UC205-15	PK205	0.83
UCPK205-16	1	1-5/16	5-33/64	4-9/64	1-1/2	7/16	9/16	19/32	2-43/64	1.3425	0.563	3/8	UC205-16	PK205	0.82
UCPK206	30	39.69	160	121	44	14	19	17	80	38.1	15.9	M12	UC206	PK206	1.24
UCPK206-17	1-1/16	1-9/16	6-19/64	4-49/64	1-47/64	9/16	3/4	43/64	3-5/32	1.5000	0.626	7/16	UC206-17	PK206	1.25
UCPK206-18	1-1/8	1-9/16	6-19/64	4-49/64	1-47/64	9/16	3/4	43/64	3-5/32	1.5000	0.626	7/16	UC206-18	PK206	1.26
UCPK206-19	1-3/16	1-9/16	6-19/64	4-49/64	1-47/64	9/16	3/4	43/64	3-5/32	1.5000	0.626	7/16	UC206-19	PK206	1.24
UCPK206-20	1-1/4	1-9/16	6-19/64	4-49/64	1-47/64	9/16	3/4	43/64	3-5/32	1.5000	0.626	7/16	UC206-20	PK206	1.23
UCPK207	35	46.04	167	127	48	14	19	18	91	42.9	17.5	M12	UC207	PK207	1.6
UCPK207-20	1-1/4	1-13/16	6-37/64	5	1-57/64	9/16	3/4	45/64	3-37/64	1.6890	0.689	7/16	UC207-20	PK207	1.66
UCPK207-21	1-5/16	1-13/16	6-37/64	5	1-57/64	9/16	3/4	45/64	3-37/64	1.6890	0.689	7/16	UC207-21	PK207	1.63
UCPK207-22	1-3/8	1-13/16	6-37/64	5	1-57/64	9/16	3/4	45/64	3-37/64	1.6890	0.689	7/16	UC207-22	PK207	1.6
UCPK207-23	1-7/16	1-13/16	6-37/64	5	1-57/64	9/16	3/4	45/64	3-37/64	1.6890	0.689	7/16	UC207-23	PK207	1.57
UCPK208	40	49.2	181	140	52	14	19	18	100	49.2	19	M12	UC208	PK208	2.04
UCPK208-24	1-1/2	1-15/16	7-1/8	5-33/64	2-3/64	9/16	3/4	45/64	3-15/16	1.9370	0.748	7/16	UC208-24	PK208	2.08
UCPK208-25	1-9/16	1-15/16	7-1/8	5-33/64	2-3/64	9/16	3/4	45/64	3-15/16	1.9370	0.748	7/16	UC208-25	PK208	2.05
UCPK209	45	52.39	189	146	54	14	19	20	104	49.2	19	M12	UC209	PK209	2.25
UCPK209-26	1-5/8	2-1/16	7-7/16	5-3/4	2-1/8	9/16	3/4	25/32	4-3/32	1.9370	0.748	7/16	UC209-26	PK209	2.35
UCPK209-27	1-11/16	2-1/16	7-7/16	5-3/4	2-1/8	9/16	3/4	25/32	4-3/32	1.9370	0.748	7/16	UC209-27	PK209	2.31
UCPK209-28	1-3/4	2-1/16	7-7/16	5-3/4	2-1/8	9/16	3/4	25/32	4-3/32	1.9370	0.748	7/16	UC209-28	PK209	2.27
UCPK210	50	55.56	203	159	57	14	19	21	112	51.6	19	M12	UC210	PK210	2.82
UCPK210-29	1-13/16	2-3/16	8	6-17/64	2-1/4	9/16	3/4	53/64	4-13/32	2.0315	0.748	7/16	UC210-29	PK210	2.94
UCPK210-30	1-7/8	2-3/16	8	6-17/64	2-1/4	9/16	3/4	53/64	4-13/32	2.0315	0.748	7/16	UC210-30	PK210	2.89
UCPK210-31	1-15/16	2-3/16	8	6-17/64	2-1/4	9/16	3/4	53/64	4-13/32	2.0315	0.748	7/16	UC210-31	PK210	2.84
UCPK210-32	2	2-3/16	8	6-17/64	2-1/4	9/16	3/4	53/64	4-13/32	2.0315	0.748	7/16	UC210-32	PK210	2.8
UCPK211	55	61.9	232	181	60	18	24	23	124	55.6	22.2	M14	UC211	PK211	3.61
UCPK211-32	2	2-1/4	9-9/64	7-1/8	2-23/64	45/64	15/16	29/32	4-7/8	2.1890	0.874	1/2	UC211-32	PK211	3.76
UCPK211-33	2-1/16	2-1/4	9-9/64	7-1/8	2-23/64	45/64	15/16	29/32	4-7/8	2.1890	0.874	1/2	UC211-33	PK211	3.7
UCPK211-34	2-1/8	2-1/4	9-9/64	7-1/8	2-23/64	45/64	15/16	29/32	4-7/8	2.1890	0.874	1/2	UC211-34	PK211	3.66
UCPK211-35	2-3/16	2-1/4	9-9/64	7-1/8	2-23/64	45/64	15/16	29/32	4-7/8	2.1890	0.874	1/2	UC211-35	PK211	3.59
UCPK212	60	68.3	241	191	64	18	24	25	136	65.1	25.4	M14	UC212	PK212	4.71
UCPK212-36	2-1/4	2-11/16	9-31/64	7-33/64	2-33/64	45/64	15/16	63/64	5-23/64	2.5630	1.000	1/2	UC212-36	PK212	4.84
UCPK212-37	2-5/16	2-11/16	9-31/64	7-33/64	2-33/64	45/64	15/16	63/64	5-23/64	2.5630	1.000	1/2	UC212-37	PK212	4.76
UCPK212-38	2-3/8	2-11/16	9-31/64	7-33/64	2-33/64	45/64	15/16	63/64	5-23/64	2.5630	1.000	1/2	UC212-38	PK212	4.69
UCPK212-39	2-7/16	2-11/16	9-31/64	7-33/64	2-33/64	45/64	15/16	63/64	5-23/64	2.5630	1.000	1/2	UC212-39	PK212	4.62
UCPK213	65	68.26	248	194	70	18	29	27	141	65.1	25.4	M14	UC213	PK213	5.24
UCPK213-40	2-1/2	2-11/16	9-49/64	7-41/64	2-3/4	45/64	1-9/64	1-1/16	5-9/16	2.5630	1.000	1/2	UC213-40	PK213	5.33
UCPK213-41	2-9/16	2-11/16	9-49/64	7-41/64	2-3/4	45/64	1-9/64	1-1/16	5-9/16	2.5630	1.000	1/2	UC213-41	PK213	5.24

Designation	Interchange	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s1 (mm/in)	s2 (mm/in)	g (mm/in)	w (mm/in)	B1 (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Interchange	Housing No.	Mass (kg)
HCP204	NAP204	20	33.3	127	95	38	13	19	14	65	43.7	17.1	M10	HC204	NA204	P204	0.7
HCP204-12	NAP204-12	3/4	1-5/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-9/16	1.720	0.673	3/8	HC204-12	NA204-12	P204	0.7
HCP205	NAP205	25	36.5	140	105	38	13	19	15	71	44.4	17.5	M10	HC205	NA205	P205	0.81
HCP205-13	NAP205-13	13/16	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1.748	0.689	3/8	HC205-13	NA205-13	P205	0.86
HCP205-14	NAP205-14	7/8	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1.748	0.689	3/8	HC205-14	NA205-14	P205	0.85
HCP205-15	NAP205-15	15/16	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1.748	0.689	3/8	HC205-15	NA205-15	P205	0.83
HCP205-16	NAP205-16	1	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1.748	0.689	3/8	HC205-16	NA205-16	P205	0.81
HCP206	NAP206	30	42.9	160	121	44	17	20	17	84	48.4	18.3	M14	HC206	NA206	P206	1.27
HCP206-17	NAP206-17	1-1/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	1.906	0.720	1/2	HC206-17	NA206-17	P206	1.32
HCP206-18	NAP206-18	1-1/8	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	1.906	0.720	1/2	HC206-18	NA206-18	P206	1.29
HCP206-19	NAP206-19	1-3/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	1.906	0.720	1/2	HC206-19	NA206-19	P206	1.27
HCP206-20	NAP206-20	1-1/4	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	1.906	0.720	1/2	HC206-20	NA206-20	P206	1.24
HCP207	NAP207	35	47.6	167	127	48	17	20	18	93	51.1	18.8	M14	HC207	NA207	P207	1.6
HCP207-20	NAP207-20	1-1/4	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2.012	0.740	1/2	HC207-20	NA207-20	P207	1.67
HCP207-21	NAP207-21	1-5/16	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2.012	0.740	1/2	HC207-21	NA207-21	P207	1.63
HCP207-22	NAP207-22	1-3/8	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2.012	0.740	1/2	HC207-22	NA207-22	P207	1.6
HCP207-23	NAP207-23	1-7/16	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2.012	0.740	1/2	HC207-23	NA207-23	P207	1.58
HCP208	NAP208	40	49.2	184	137	54	17	20	18	100	56.3	21.4	M14	HC208	NA208	P208	1.99
HCP208-24	NAP208-24	1-1/2	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2.217	0.843	1/2	HC208-24	NA208-24	P208	2.04
HCP208-25	NAP208-25	1-9/16	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2.217	0.843	1/2	HC208-25	NA208-25	P208	2
HCP209	NAP209	45	54	190	146	54	17	20	20	106	56.3	21.4	M14	HC209	NA209	P209	2.19
HCP209-26	NAP209-26	1-5/8	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2.217	0.843	1/2	HC209-26	NA209-26	P209	2.3
HCP209-27	NAP209-27	1-11/16	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2.217	0.843	1/2	HC209-27	NA209-27	P209	2.25
HCP209-28	NAP209-28	1-3/4	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2.217	0.843	1/2	HC209-28	NA209-28	P209	2.21
HCP210	NAP210	50	57.2	206	159	60	20	23	21	113	62.7	24.6	M16	HC210	NA210	P210	2.8
HCP210-29	NAP210-29	1-13/16	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2.469	0.969	5/8	HC210-29	NA210-29	P210	2.95
HCP210-30	NAP210-30	1-7/8	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2.469	0.969	5/8	HC210-30	NA210-30	P210	2.89
HCP210-31	NAP210-31	1-15/16	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2.469	0.969	5/8	HC210-31	NA210-31	P210	2.83
HCP210-32	NAP210-32	2	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2.469	0.969	5/8	HC210-32	NA210-32	P210	2.77
HCP211	NAP211	55	63.5	219	171	60	20	23	23	125	71.4	27.8	M16	HC211	NA211	P211	3.5
HCP211-32	NAP211-32	2	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	2.811	1.094	5/8	HC211-32	NA211-32	P211	3.8
HCP211-33	NAP211-33	2-1/16	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	2.811	1.094	5/8	HC211-33	NA211-33	P211	3.62
HCP211-34	NAP211-34	2-1/8	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	2.811	1.094	5/8	HC211-34	NA211-34	P211	3.55
HCP211-35	NAP211-35	2-3/16	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	2.811	1.094	5/8	HC211-35	NA211-35	P211	3.47
HCP212	NAP212	60	69.8	241	184	70	20	23	25	138	77.8	31	M16	HC212	NA212	P212	4.76
HCP212-36	NAP212-36	2-1/4	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3.063	1.22	5/8	HC212-36	NA212-36	P212	4.78
HCP212-37	NAP212-37	2-5/16	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3.063	1.22	5/8	HC212-37	NA212-37	P212	4.83
HCP212-38	NAP212-38	2-3/8	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3.063	1.22	5/8	HC212-38	NA212-38	P212	4.76
HCP212-39	NAP212-39	2-7/16	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3.063	1.22	5/8	HC212-39	NA212-39	P212	4.75
HCP213	NAP213	65	76.2	265	203	70	25	28	27	150	85.7	34.1	M20	HC213	NA213	P213	5.89
HCP213-40	NAP213-40	2-1/2	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	5-29/32	3.374	1.343	3/4	HC213-40	NA213-40	P213	6
HCP213-41	NAP213-41	2-9/16	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	5-29/32	3.374	1.343	3/4	HC213-41	NA213-41	P213	5.88
HCP214	NAP214	70	79.4	266	210	72	25	28	27	156	85.7	34.1	M20	HC214	NA214	P214	6.27
HCP214-42	NAP214-42	2-5/8	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-9/64	3.374	1.343	3/4	HC214-42	NA214-42	P214	6.21
HCP214-43	NAP214-43	2-11/16	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-9/64	3.374	1.343	3/4	HC214-43	NA214-43	P214	6.4
HCP214-44	NAP214-44	2-3/4	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-9/64	3.374	1.343	3/4	HC214-44	NA214-44	P214	6.28
HCP215	NAP215	75	82.6	275	217	74	25	28	28	162	92.1	37.3	M20	HC215	NA215	P215	6.93
HCP215-45	NAP215-45	2-13/16	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3.626	1.469	3/4	HC215-45	NA215-45	P215	7.23
HCP215-46	NAP215-46	2-7/8	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3.626	1.469	3/4	HC215-46	NA215-46	P215	7.1
HCP215-47	NAP215-47	2-15/16	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3.626	1.469	3/4	HC215-47	NA215-47	P215	6.97
HCP215-48	NAP215-48	3	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3.626	1.469	3/4	HC215-48	NA215-48	P215	6.83
HCP216	NAP216	80	88.9	292	232	78	25	28	30	174	95.2	37.3	M20	HC216	NA216	P216	8.54
HCP216-49	NAP216-49	3-1/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	3.748	1.469	3/4	HC216-49	NA216-49	P216	8.74
HCP216-50	NAP216-50	3-1/8	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	3.748	1.469	3/4	HC216-50	NA216-50	P216	8.6
HCP216-51	NAP216-51	3-3/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	3.748	1.469	3/4	HC216-51	NA216-51	P216	8.45
HCP217	NAP217	85	95.2	310	247	83	25	28	32	185	73.8	23.4	M20	HC217	NA217	P217	9.81
HCP217-52	NAP217-52	3-1/4	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	2.906	0.921	3/4	HC217-52	NA217-52	P217	10
HCP217-53	NAP217-53	3-5/16	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	2.906	0.921	3/4	HC217-53	NA217-53	P217	9.88
HCP217-55	NAP217-55	3-7/16	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	2.906	0.921	3/4	HC217-55	NA217-55	P217	9.63
HCP218	NAP218	90	101.6	327	262	88	27	30	33	198	72.6	24.5	M22	HC218	NA218	P218	11.41
HCP218-56	NAP218-56	3-1/2	4	12-7/8	10-5/16	3-15/32	1-1/16	1-3/16	1-19/64	7-51/64	2.858	0.965	7/8	HC218-56	NA218-56	P218	11.5

Designation	Interchange	d (mm/in)	d1 (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s1 (mm/in)	s2 (mm/in)	g (mm/in)	w (mm/in)	B1 (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Interchange	Housing No.	Mass (kg)
NCP204	UEP204	20	44.5	33.3	127	95	38	13	19	14	65	33.4	12.7	M10	NC204	UE204	P204	0.79
NCP204-12	UEP204-12	3/4	1-3/4	1-5/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-9/16	1.315	0.500	3/8	NC204-12	UE204-12	P204	0.79
NCP205	UEP205	25	49.2	36.5	140	105	38	13	19	15	71	36.5	14.3	M10	NC205	UE205	P205	0.97
NCP205-14	UEP205-14	7/8	1-15/16	1-7/16	5-1/2	4-1/8	1/1/2	1/2	3/4	19/32	2-25/32	1.437	0.563	3/8	NC205-14	UE205-14	P205	0.97
NCP205-15	UEP205-15	15/16	1-15/16	1-7/16	5-1/2	4-1/8	1/1/2	1/2	3/4	19/32	2-25/32	1.437	0.563	3/8	NC205-15	UE205-15	P205	0.97
NCP205-16	UEP205-16	1	1-15/16	1-7/16	5-1/2	4-1/8	1/1/2	1/2	3/4	19/32	2-25/32	1.437	0.563	3/8	NC205-16	UE205-16	P205	0.97
NCP206	UEP206	30	55.6	42.9	160	121	44	17	20	17	84	39.7	15.9	M14	NC206	UE206	P206	1.4
NCP206-18	UEP206-18	1-1/8	2-3/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	1.563	0.626	1/2	NC206-18	UE206-18	P206	1.4
NCP206-19	UEP206-19	1-3/16	2-3/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	1.563	0.626	1/2	NC206-19	UE206-19	P206	1.4
NCP206-20	UEP206-20	1-1/4	2-3/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	1.563	0.626	1/2	NC206-20	UE206-20	P206	1.4
NCP207	UEP207	35	65.1	47.6	167	127	48	17	20	18	93	44.5	17.5	M14	NC207	UE207	P207	1.81
NCP207-20	UEP207-20	1-1/4	2-7/16	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	1.752	0.740	1/2	NC207-20	UE207-20	P207	1.81
NCP207-22	UEP207-22	1-3/8	2-9/16	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	1.752	0.740	1/2	NC207-22	UE207-22	P207	1.81
NCP207-23	UEP207-23	1-7/16	2-9/16	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	1.752	0.740	1/2	NC207-23	UE207-23	P207	1.81
NCP208	UEP208	40	68.3	49.2	184	137	54	17	20	18	100	50.8	19	M14	NC208	UE208	P208	2.26
NCP208-24	UEP208-24	1-1/2	2-11/16	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2	0.748	1/2	NC208-24	UE208-24	P208	2.26
NCP209	UEP209	45	74.6	54	190	146	54	17	20	20	106	50.8	19	M14	NC209	UE209	P209	2.51
NCP209-26	UEP209-26	1-5/8	2-13/16	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2	0.748	1/2	NC209-26	UE209-26	P209	2.51
NCP209-27	UEP209-27	1-11/16	2-15/16	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2	0.748	1/2	NC209-27	UE209-27	P209	2.51
NCP209-28	UEP209-28	1-3/4	2-15/16	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2	0.748	1/2	NC209-28	UE209-28	P209	2.51
NCP210	UEP210	50	85.7	57.2	206	159	60	20	23	21	113	53.1	19	M16	NC210	UE210	P210	3.26
NCP210-31	UEP210-31	1-15/16	3-3/8	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	2-29/64	2.091	0.748	5/8	NC210-31	UE210-31	P210	3.26
NCP210-32	UEP210-32	2	3-3/8	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	2-29/64	2.091	0.748	5/8	NC210-32	UE210-32	P210	3.26
NCP211	UEP211	55	92.1	63.5	219	171	60	20	23	23	125	57.1	22.2	M16	NC211	UE211	P211	3.74
NCP211-32	UEP211-32	2	3-1/2	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	2.248	0.874	5/8	NC211-32	UE211-32	P211	3.74
NCP211-35	UEP211-35	2-3/16	3-5/8	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	2.248	0.874	5/8	NC211-35	UE211-35	P211	3.74
NCP212	UEP212	60	104.8	69.8	241	184	70	20	23	25	138	66.7	25.4	M16	NC212	UE212	P212	5.25
NCP212-36	UEP212-36	2-1/4	4-1/16	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	2.626	1.000	5/8	NC212-36	UE212-36	P212	5.25
NCP212-39	UEP212-39	2-7/16	4-1/8	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	2.626	1.000	5/8	NC212-39	UE212-39	P212	5.25

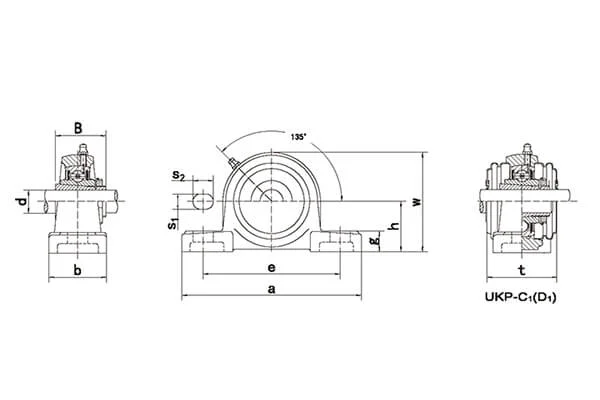

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s1 (mm/in)	s2 (mm/in)	g (mm/in)	w (mm/in)	t (mm/in)	B1 (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)
UKP205 + H2305	20	36.5	140	105	38	13	19	15	71	48	35	M10	UK205 + H2305	P205	0.81
UKP305 + H2305	20	45	175	132	45	17	20	15	85	-	35	M14	UK305 + H2305	P305	1.3
UKP205 + HE2305	3/4	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1-57/64	1.378	3/8	UK205 + HE2305	P205	0.81
UKP305 + HE2305	3/4	1-49/64	6-7/8	5-3/16	1-3/4	43/64	25/32	19/32	3-11/32	-	1.378	1/2	UK305 + HE2305	P305	1.3
UKP206 + H2306	25	42.9	160	121	44	17	20	17	84	53	38	M14	UK206 + H2306	P206	1.26
UKP306 + H2306	25	50	180	140	50	17	20	18	95	-	38	M14	UK306 + H2306	P306	1.8
UKP206 + HS2306	7/8	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	43/64	3-5/16	2-5/64	1.496	1/2	UK206 + HS2306	P206	1.26
UKP306 + HS2306	7/8	1-31/32	7-3/32	5-1/2	1-31/32	43/64	25/32	23/32	3-3/4	-	1.496	1/2	UK306 + HS2306	P306	1.8
UKP206 + HE2306	1	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	43/64	3-5/16	2-5/64	1.496	1/2	UK206 + HE2306	P206	1.26
UKP306 + HE2306	1	1-31/32	7-3/32	5-1/2	1-31/32	43/64	25/32	23/32	3-3/4	-	1.496	1/2	UK306 + HE2306	P306	1.8
UKP207 + H2307	30	47.6	167	127	48	17	20	18	93	59.5	43	M14	UK207 + H2307	P207	1.53
UKP307 + H2307	30	56	210	160	56	17	25	20	106	-	43	M14	UK307 + H2307	P307	2.4
UKP207 + HS2307	1-1/8	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2-11/32	1.693	1/2	UK207 + HS2307	P207	1.53
UKP307 + HS2307	1-1/8	2-13/64	8-9/32	6-5/16	2-7/32	43/64	63/64	25/32	4-3/16	-	1.693	1/2	UK307 + HS2307	P307	2.4
UKP208 + H2308	35	49.2	184	137	54	17	20	18	100	69	46	M14	UK208 + H2308	P208	1.93
UKP308 + H2308	35	60	220	170	60	17	27	22	116	-	46	M16	UK308 + H2308	P308	3.1
UKP208 + HE2308	1-1/4	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2-23/32	1.811	1/2	UK208 + HE2308	P208	1.93
UKP308 + HE2308	1-1/4	2-23/64	8-21/32	6-11/16	2-3/8	43/64	1-1/16	7/8	4-9/16	-	1.811	5/8	UK308 + HE2308	P308	3.1
UKP208 + HS2308	1-3/8	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2-23/32	1.811	1/2	UK208 + HS2308	P208	1.93
UKP308 + HS2308	1-3/8	2-23/64	8-21/32	6-11/16	2-3/8	43/64	1-1/16	7/8	4-9/16	-	1.811	5/8	UK308 + HS2308	P308	3.1
UKP209 + H2309	40	54	190	146	54	17	20	20	106	69	50	M14	UK209 + H2309	P209	2.18
UKP309 + H2309	40	67	245	190	67	20	30	24	129	-	50	M16	UK309 + H2309	P309	4.2
UKP209 + HA2309	1-7/16	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2-23/32	1.969	1/2	UK209 + HA2309	P209	2.18
UKP309 + HA2309	1-7/16	2-41/64	9-21/32	7-15/32	2-5/8	25/32	1-3/16	15/16	5-3/32	-	1.969	5/8	UK309 + HA2309	P309	4.2
UKP209 + HE2309	1-1/2	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2-23/32	1.969	1/2	UK209 + HE2309	P209	2.18
UKP309 + HE2309	1-1/2	2-41/64	9-21/32	7-15/32	2-5/8	25/32	1-3/16	15/16	5-3/32	-	1.969	5/8	UK309 + HE2309	P309	4.2
UKP209 + HS2309	1-5/8	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2-23/32	1.969	1/2	UK209 + HS2309	P209	2.18
UKP309 + HS2309	1-5/8	2-41/64	9-21/32	7-15/32	2-5/8	25/32	1-3/16	15/16	5-3/32	-	1.969	5/8	UK309 + HS2309	P309	4.2
UKP210 + H2310	45	57.2	206	159	60	20	23	21	113	74.5	55	M16	UK210 + H2310	P210	2.78
UKP310 + H2310	45	75	275	212	75	20	35	27	143	-	55	M16	UK310 + H2310	P310	5.8
UKP210 + HS2310	1-5/8	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.165	5/8	UK210 + HS2310	P210	2.78
UKP310 + HS2310	1-5/8	2-61/64	10-13/16	8-11/32	2-15/16	25/32	1-3/8	1-1/16	5-5/8	-	2.165	5/8	UK310 + HS2310	P310	5.8
UKP210 + HA2310	1-11/16	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.165	5/8	UK210 + HA2310	P210	2.78
UKP310 + HA2310	1-11/16	2-61/64	10-13/16	8-11/32	2-15/16	25/32	1-3/8	1-1/16	5-5/8	-	2.165	5/8	UK310 + HA2310	P310	5.8
UKP210 + HE2310	1-3/4	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.165	5/8	UK210 + HE2310	P210	2.78
UKP310 + HE2310	1-3/4	2-61/64	10-13/16	8-11/32	2-15/16	25/32	1-3/8	1-1/16	5-5/8	-	2.165	5/8	UK310 + HE2310	P310	5.8
UKP211 + H2311	50	63.5	219	171	60	20	23	23	125	76	59	M16	UK211 + H2311	P211	3.39
UKP311 + H2311	50	80	310	236	80	20	38	30	154	-	59	M16	UK311 + H2311	P311	7.3
UKP211 + HS2311	1-7/8	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.323	5/8	UK211 + HS2311	P211	3.39
UKP311 + HS2311	1-7/8	3-5/32	12-7/32	9-9/32	3-5/32	25/32	1-1/2	1-3/16	6-1/16	-	2.323	5/8	UK311 + HS2311	P311	7.3
UKP211 + HA2311	1-15/16	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.323	5/8	UK211 + HA2311	P211	3.39
UKP311 + HA2311	1-15/16	3-5/32	12-7/32	9-9/32	3-5/32	25/32	1-1/2	1-3/16	6-1/16	-	2.323	5/8	UK311 + HA2311	P311	7.3
UKP211 + HE2311	2	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.323	5/8	UK211 + HE2311	P211	3.39
UKP311 + HE2311	2	3-5/32	12-7/32	9-9/32	3-5/32	25/32	1-1/2	1-3/16	6-1/16	-	2.323	5/8	UK311 + HE2311	P311	7.3
UKP212 + H2312	55	69.8	241	184	70	20	23	25	138	89	62	M16	UK212 + H2312	P212	4.52
UKP312 + H2312	55	85	330	250	85	25	38	32	165	-	62	M20	UK312 + H2312	P312	9.2
UKP212 + HS2312	2-1/8	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3-1/2	2.441	5/8	UK212 + HS2312	P212	4.52
UKP212 + HS2312	2-1/8	3-11/32	13	9-27/32	3-11/32	63/64	1-1/2	1-1/4	6-1/2	-	2.441	3/4	UK312 + HS2312	P312	9.2
UKP213 + H2313	60	76.2	265	203	70	25	28	27	150	89	65	M20	UK213 + H2313	P213	5.47
UKP313 + H2313	60	90	340	260	90	25	38	33	176	-	65	M20	UK313 + H2313	P313	10.4
UKP213 + HA2313	2-3/16	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	5-29/32	3-1/2	2.559	3/4	UK213 + HA2313	P213	5.47
UKP313 + HA2313	2-3/16	3-35/64	13-3/8	10-1/4	3-17/32	63/64	1-1/2	1-5/16	6-15/16	-	2.559	3/4	UK313 + HA2313	P313	10.4
UKP213 + HE2313	2-1/4	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	5-29/32	3-1/2	2.559	3/4	UK213 + HE2313	P213	5.47
UKP313 + HE2313	2-1/4	3-35/64	13-3/8	10-1/4	3-17/32	63/64	1-1/2	1-5/16	6-15/16	-	2.559	3/4	UK313 + HE2313	P313	10.4
UKP213 + HS2313	2-3/8	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	5-29/32	3-1/2	2.559	3/4	UK213 + HS2313	P213	5.47
UKP313 + HS2313	2-3/8	3-35/64	13-3/8	10-1/4	3-17/32	63/64	1-1/2	1-5/16	6-15/16	-	2.559	3/4	UK313 + HS2313	P313	10.4
UKP215 + H2315	65	82.6	275	217	74	25	28	28	162	99	73	M20	UK215 + H2315	P215	6.84
UKP315 + H2315	65	100	380	290	100	27	40	35	198	-	73	M22	UK315 + H2315	P315	14.7
UKP215 + HA2315	2-7/16	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	2.874	3/4	UK215 + HA2315	P215	6.84
UKP215 + HE2315	2-1/2	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	2.874	3/4	UK215 + HE2315	P215	6.84
UKP315 + HE2315	2-7/16	3-15/16	14-31/32	11-13/32	3-15/16	1-1/16	1-9/16	1-3/8	7-25/32	-	2.874	7/8	UK315 + HE2315	P315	14.7
UKP315 + HS2315	2-1/2	3-15/16	14-31/32	11-13/32	3-15/16	1-1/16	1-9/16	1-3/8	7-25/32	-	2.874	7/8	UK315 + HS2315	P315	14.7
UKP216 + H2316	70	88.9	292	232	78	25	28	30	174	109	78	M20	UK216 + H2316	P216	8.29
UKP316 + H2316	70	106	400	300	110	27	40	40	210	-	78	M22	UK316 + H2316	P316	17.8
UKP216 + HA2316	2-11/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	4-19/64	3.071	3/4	UK216 + HA2316	P216	8.29
UKP316 + HA2316	2-11/16	4-11/64	15-3/4	11-13/16	4-11/32	1-1/16	1-9/16	1-9/16	8-9/32	-	3.071	7/8	UK316 + HA2316	P316	17.8
UKP216 + HE2316	2-3/4	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	4-19/64	3.071	3/4	UK216 + HE2316	P216	8.29
UKP316 + HE2316	2-3/4	4-11/64	15-3/4	11-13/16	4-11/32	1-1/16	1-9/16	1-9/16	8-9/32	-	3.071	7/8	UK316 + HE2316	P316	17.8
UKP217 + H2317	75	95.2	310	247	83	25	28	32	185	113.2	82	M20	UK217 + H2317	P217	9.97
UKP317 + H2317	75	112	420	320	110	33	45	40	220	-	82	M27	UK317 + H2317	P317	19.6
UKP217 + HA2317	2-15/16	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	4-29/64	3.228	3/4	UK217 + HA2317	P217	9.97
UKP317 + HA2317	2-15/16	4-11/64	16-17/32	12-19/32	4-11/32	1-5/16	1-25/32	1-9/16	8-21/32	-	3.228	1	UK317 + HA2317	P317	19.6
UKP217 + HE2317	3	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	4-29/64	3.228	3/4	UK217 + HE2317	P217	9.97
UKP317 + HS2317	3	4-11/64	16-17/32	12-19/32	4-11/32	1-5/16	1-25/32	1-9/16	8-21/32	-	3.228	1	UK317 + HS2317	P317	19.6
UKP218 + H2318	80	101.6	327	262	88	27	30	33	198	123	86	M22	UK218 + H2318	P218	11.89
UKP318 + H2318	80	118	430	330	110	33	45	45	235	-	86	M27	UK318 + H2318	P318	22.8
UKP218 + HA2318	3-3/16	4	12-7/8	10-5/16	3-15/32	1-1/16	1-3/16	1-19/64	7-51/64	4-27/32	3.386	7/8	UK218 + HA2318	P218	11.89
UKP318 + HA2318	3-3/16	4-41/64	16-15/16	13	4-11/32	1-5/16	1-25/32	1-25/32	9-1/4	-	3.386	1	UK318 + HA2318	P318	22.8
UKP319 + H2319	85	125	470	360	120	36	50	45	250	-	90	M30	UK319 + H2319	P319	28.3
UKP319 + HA2319	3-5/16	4-59/64	18-1/2	14-3/16	4-23/32	1-13/32	1-31/32	1-25/32	9-27/32	-	3.543	1-1/8	UK319 + HA2319	P319	28.3
UKP320 + H2320	90	140	490	380	120	36	50	50	275	-	97	M30	UK320 + H2320	P320	33.9
UKP320 + HA2320	3-7/16	5-33/64	19-9/32	14-31/32	4-23/32	1-13/32	1-31/32	1-31/32	10-53/64	-	3.814	1-1/8	UK320 + HA2320	P320	33.9
UKP322 + H2322	100	150	520	400	140	40	55	55	300	-	105	M33	UK322 + H2322	P322	45.6
UKP322 + HA2322	3-15/16	5-29/32	20-15/32	15-3/4	5-1/2	1-9/16	2-5/32	2-5/32	11-13/16	-	4.134	1-1/4	UK322 + HA2322	P322	45.6
UKP324 + H2324	110	160	570	450	140	40	55	65	320	-	112	M33	UK324 + H2324	P324	55.8
UKP324 + HA2324	4-3/16	6-19/64	22-7/16	17-23/32	5-1/2	1-9/16	2-5/32	1-21/32	12-19/32	-	4.410	1-1/4	UK324 + HA2324	P324	55.8
UKP326 + H2326	115	180	600	480	140	40	55	75	355	-	121	M33	UK326 + H2326	P326	71.8
UKP326 + HA2326	4-7/16	7-3/32	23-5/8	18-29/32	5-1/2	1-9/16	2-5/32	2-61/64	13-31/32	-	4.764	1-1/4	UK326 + HA2326	P326	71.8
UKP328 + H2328	125	200	620	500	140	40	55	75	390	-	131	M33	UK328 + H2328	P328	89
UKP328 + HA2328	4-15/16	7-7/8	24-13/32	19-11/16	5-1/2	1-9/16	2-5/32	2-61/64	15-32/64	-	5.158	1-1/4	UK328 + HA2328	P328	89

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s1 (mm/in)	s2 (mm/in)	g (mm/in)	w (mm/in)	B1 (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)
UKPX05+H2305	20	44.4	159	119	51	17	20	18	85	35	M14	UKX05+H2305	PX05	1.33
UKPX05+HE2305	3/4	1-3/4	6-1/4	4-11/16	2	43/64	25/32	23/32	3-11/32	1.378	1/2	UKX05+HE2305	PX05	1.33
UKPX06+H2306	25	47.6	175	127	57	17	20	20	93	38	M14	UKX06+H2306	PX06	1.75
UKPX06+HS2306	7/8	1-7/8	6-7/8	5	2-1/4	43/64	25/32	25/32	3-21/32	1.496	1/2	UKX06+HS2306	PX06	1.75
UKPX06+HE2306	1	1-7/8	6-7/8	5	2-1/4	43/64	25/32	25/32	3-21/32	1.496	1/2	UKX06+HE2306	PX06	1.75
UKPX07+H2307	30	54	203	144	57	17	20	21	105	43	M14	UKX07+H2307	PX07	2.33
UKPX07+HS2307	1-1/8	2-1/8	8	5-21/32	2-1/4	43/64	25/32	13/16	4-1/8	1.693	1/2	UKX07+HS2307	PX07	2.33
UKPX08+H2308	35	58.7	222	156	67	20	23	26	111	46	M16	UKX08+H2308	PX08	2.89
UKPX08+HE2308	1-1/4	2-5/16	8-3/4	6-5/32	2-5/8	25/32	29/32	1-1/32	4-3/8	1.811	5/8	UKX08+HE2308	PX08	2.89
UKPX08+HS2308	1-3/8	2-5/16	8-3/4	6-5/32	2-5/8	25/32	29/32	1-1/32	4-3/8	1.811	5/8	UKX08+HS2308	PX08	2.89
UKPX09+H2309	40	58.7	222	156	67	20	23	26	116	50	M16	UKX09+H2309	PX09	3.25
UKPX09+HA2309	1-7/16	2-5/16	8-3/4	6-5/32	2-5/8	25/32	29/32	1-1/32	4-9/16	1.969	5/8	UKX09+HA2309	PX09	3.25
UKPX09+HE2309	1-1/2	2-5/16	8-3/4	6-5/32	2-5/8	25/32	29/32	1-1/32	4-9/16	1.969	5/8	UKX09+HE2309	PX09	3.25
UKPX09+HS2309	1-5/8	2-5/16	8-3/4	6-5/32	2-5/8	25/32	29/32	1-1/32	4-9/16	1.969	5/8	UKX09+HS2309	PX09	3.25
UKPX10+H2310	45	63.5	241	171	73	20	23	27	126	55	M16	UKX10+H2310	PX10	4.22
UKPX10+HS2310	1-5/8	2-1/2	9-1/2	6-47/64	2-7/8	25/32	29/32	1-1/16	4-31/32	2.165	5/8	UKX10+HS2310	PX10	4.22
UKPX10+HA2310	1-11/16	2-1/2	9-1/2	6-47/64	2-7/8	25/32	29/32	1-1/16	4-31/32	2.165	5/8	UKX10+HA2310	PX10	4.22
UKPX10+HE2310	1-3/4	2-1/2	9-1/2	6-47/64	2-7/8	25/32	29/32	1-1/16	4-31/32	2.165	5/8	UKX10+HE2310	PX10	4.22
UKPX11+H2311	50	69.8	260	184	79	25	28	30	137	59	M20	UKX11+H2311	PX11	5.24
UKPX11+HS2311	1-7/8	2-3/4	10-1/4	7-1/4	3-1/8	31/32	1-3/32	1-3/16	5-13/32	2.323	3/4	UKX11+HS2311	PX11	5.24
UKPX11+HA2311	1-15/16	2-3/4	10-1/4	7-1/4	3-1/8	31/32	1-3/32	1-3/16	5-13/32	2.323	3/4	UKX11+HA2311	PX11	5.24
UKPX11+HE2311	2	2-3/4	10-1/4	7-1/4	3-1/8	31/32	1-3/32	1-3/16	5-13/32	2.323	3/4	UKX11+HE2311	PX11	5.24
UKPX12+H2312	55	76.2	286	203	83	25	28	33	151	62	M20	UKX12+H2312	PX12	6.51
UKPX12+HS2312	2-1/8	3	11-1/4	8	3-9/32	63/64	1-3/32	1-5/16	5-15/16	2.441	3/4	UKX12+HS2312	PX12	6.51
UKPX13+H2313	60	76.2	286	203	83	25	28	33	154	65	M20	UKX13+H2313	PX13	6.93
UKPX13+HA2313	2-3/16	3	11-1/4	8	3-9/32	63/64	1-3/32	1-5/16	6-1/16	2.559	3/4	UKX13+HA2313	PX13	6.93
UKPX13+HE2313	2-1/4	3	11-1/4	8	3-9/32	63/64	1-3/32	1-5/16	6-1/16	2.559	3/4	UKX13+HE2313	PX13	6.93
UKPX13+HS2313	2-3/8	3	11-1/4	8	3-9/32	63/64	1-3/32	1-5/16	6-1/16	2.559	3/4	UKX13+HS2313	PX13	6.93
UKPX15+H2315	65	88.9	330	229	89	27	30	35	175	73	M22	UKX15+H2315	PX15	9.4
UKPX15+HA2315	2-7/16	3-1/2	13	9-1/32	3-1/2	1-1/16	1-3/16	1-3/8	6-7/8	2.874	7/8	UKX15+HA2315	PX15	9.4
UKPX15+HS2315	2-1/2	3-1/2	13	9-1/32	3-1/2	1-1/16	1-3/16	1-3/8	6-7/8	2.874	7/8	UKX15+HS2315	PX15	9.4
UKPX16+H2316	70	101.6	381	283	102	27	30	40	194	78	M22	UKX16+H2316	PX16	13.32
UKPX16+HA2316	2-11/16	4	15	11-5/32	4-1/32	1-1/16	1-3/16	1-9/16	7-5/8	3.071	7/8	UKX16+HA2316	PX16	13.32
UKPX16+HS2316	2-3/4	4	15	11-5/32	4-1/32	1-1/16	1-3/16	1-9/16	7-5/8	3.071	7/8	UKX16+HS2316	PX16	13.32
UKPX17+H2317	75	101.6	381	283	102	27	30	40	200	82	M22	UKX17+H2317	PX17	14.55
UKPX17+HA2317	2-15/16	4	15	11-5/32	4-1/32	1-1/16	1-3/16	1-9/16	7-7/8	3.228	7/8	UKX17+HA2317	PX17	14.55
UKPX17+HE2317	3	4	15	11-5/32	4-1/32	1-1/16	1-3/16	1-9/16	7-7/8	3.228	7/8	UKX17+HE2317	PX17	14.55
UKPX18+H2318	80	101.6	381	283	111	27	30	40	206	86	M22	UKX18+H2318	PX18	16.26
UKPX18+HA2318	3-3/16	4	15	11-5/32	4-3/8	1-1/16	1-3/16	1-9/16	8-1/8	3.386	7/8	UKX18+HA2318	PX18	16.26
UKPX20+H2320	90	127	432	337	121	33	36	45	244	97	M27	UKX20+H2320	PX20	23.86
UKPX20+HA2320	3-1/2	5	17	13-9/32	4-3/4	1-5/16	1-13/32	1-25/32	9-5/8	3.819	1	UKX20+HA2320	PX20	23.86

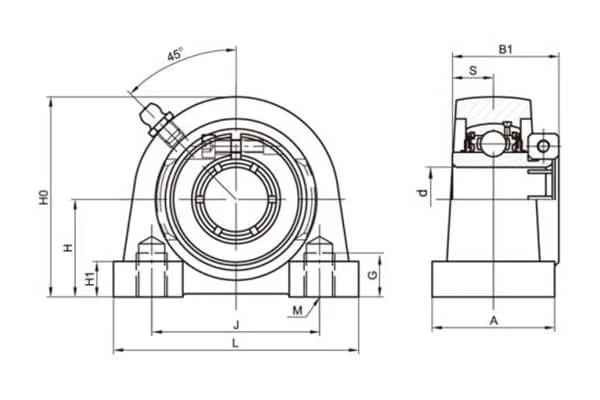

Designation	d (mm/in)	H (mm)	L (mm)	J (mm)	A (mm)	N (mm)	N1 (mm)	H1 (mm)	Ho (mm)	B1 (mm)	s (mm)	Bolt Size (mm)	Bearing No.	Housing No.	Mass (kg)
SALP201	12	30.2	114	87	25	11	16	12	57	28.6	6.5	M10	SA201	LP201	0.4
SBLP201	12	30.2	114	87	25	11	16	12	57	22	6.5	M10	SB201	LP201	0.4
SALP201-8	1/2	30.2	114	87	25	11	16	12	57	28.6	6.5	M10	SA201-8	LP201	0.4
SBLP201-8	1/2	30.2	114	87	25	11	16	12	57	22	6.5	M10	SB201-8	LP201	0.4
SALP202	15	30.2	114	87	25	11	16	12	57	28.6	6.5	M10	SA202	LP202	0.4
SBLP202	15	30.2	114	87	25	11	16	12	57	22	6.5	M10	SB202	LP202	0.4
SALP202-9	9/16	30.2	114	87	25	11	16	12	57	28.6	6.5	M10	SA202-9	LP202	0.4
SBLP202-9	9/16	30.2	114	87	25	11	16	12	57	22	6.5	M10	SB202-9	LP202	0.4
SALP202-10	5/8	30.2	114	87	25	11	16	12	57	28.6	6.5	M10	SA202-10	LP202	0.4
SBLP202-10	5/8	30.2	114	87	25	11	16	12	57	22	6.5	M10	SB202-10	LP202	0.4
SALP203	17	30.2	114	87	25	11	16	12	57	28.6	6.5	M10	SA203	LP203	0.4
SBLP203	17	30.2	114	87	25	11	16	12	57	22	6.5	M10	SB203	LP203	0.4
SALP203-11	11/16	30.2	114	87	25	11	16	12	57	28.6	6.5	M10	SA203-11	LP203	0.4
SBLP203-11	11/16	30.2	114	87	25	11	16	12	57	22	6.5	M10	SB203-11	LP203	0.4
SALP204	20	33.3	125	97	27	11.5	16	14	63.8	30.9	7.5	M10	SA204	LP204	0.52
SBLP204	20	33.3	125	97	27	11.5	16	14	63.8	25	7.5	M10	SB204	LP204	0.52
SALP204-12	3/4	33.3	125	97	27	11.5	16	14	63.8	30.9	7.5	M10	SA204-12	LP204	0.52
SBLP204-12	3/4	33.3	125	97	27	11.5	16	14	63.8	25	7.5	M10	SB204-12	LP204	0.52
SALP205	25	36.5	130	100	29	11.5	16	15	69.5	30.9	7.5	M10	SA205	LP205	0.61
SBLP205	25	36.5	130	100	29	11.5	16	15	69.5	27	7.5	M10	SB205	LP205	0.61
SALP205-14	7/8	36.5	130	100	29	11.5	16	15	69.5	30.9	7.5	M10	SA205-14	LP205	0.61
SBLP205-14	7/8	36.5	130	100	29	11.5	16	15	69.5	27	7.5	M10	SB205-14	LP205	0.61
SALP205-15	15/16	36.5	130	100	29	11.5	16	15	69.5	30.9	7.5	M10	SA205-15	LP205	0.61
SBLP205-15	15/16	36.5	130	100	29	11.5	16	15	69.5	27	7.5	M10	SB205-15	LP205	0.61
SALP205-16	1	36.5	130	100	29	11.5	16	15	69.5	30.9	7.5	M10	SA205-16	LP205	0.61
SBLP205-16	1	36.5	130	100	29	11.5	16	15	69.5	27	7.5	M10	SB205-16	LP205	0.61
SALP206	30	42.9	156	121	33	14	21	16	82	35.7	9	M12	SA206	LP206	0.73
SBLP206	30	42.9	156	121	33	14	21	16	82	30	9	M12	SB206	LP206	0.73
SALP206-17	1-1/16	42.9	156	121	33	14	21	16	82	35.7	9	M12	SA206-17	LP206	0.73
SBLP206-17	1-1/16	42.9	156	121	33	14	21	16	82	30	9	M12	SB206-17	LP206	0.73
SALP206-18	1-1/8	42.9	156	121	33	14	21	16	82	35.7	9	M12	SA206-18	LP206	0.73
SBLP206-18	1-1/8	42.9	156	121	33	14	21	16	82	30	9	M12	SB206-18	LP206	0.73
SALP206-19	1-3/16	42.9	156	121	33	14	21	16	82	35.7	9	M12	SA206-19	LP206	0.73
SBLP206-19	1-3/16	42.9	156	121	33	14	21	16	82	30	9	M12	SB206-19	LP206	0.73
SALP206-20	1-1/4	42.9	156	121	33	14	21	16	82	35.7	9	M12	SA206-20	LP206	0.73
SBLP206-20	1-1/4	42.9	156	121	33	14	21	16	82	30	9	M12	SB206-20	LP206	0.73
SALP207	35	47.6	165	127	35	14	21	16	93	38.9	9.5	M12	SA207	LP207	1.0
SBLP207	35	47.6	165	127	35	14	21	16	93	32	9.5	M12	SB207	LP207	1.0
SALP207-20	1-1/4	47.6	165	127	35	14	21	16	93	38.9	9.5	M12	SA207-20	LP207	1.0
SBLP207-20	1-1/4	47.6	165	127	35	14	21	16	93	32	9.5	M12	SB207-20	LP207	1.0
SALP207-21	1-5/16	47.6	165	127	35	14	21	16	93	38.9	9.5	M12	SA207-21	LP207	1.0
SBLP207-21	1-5/16	47.6	165	127	35	14	21	16	93	32	9.5	M12	SB207-21	LP207	1.0
SALP207-22	1-3/8	47.6	165	127	35	14	21	16	93	38.9	9.5	M12	SA207-22	LP207	1.0
SBLP207-22	1-3/8	47.6	165	127	35	14	21	16	93	32	9.5	M12	SB207-22	LP207	1.0
SALP207-23	1-7/16	47.6	165	127	35	14	21	16	93	38.9	9.5	M12	SA207-23	LP207	1.0
SBLP207-23	1-7/16	47.6	165	127	35	14	21	16	93	32	9.5	M12	SB207-23	LP207	1.0

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s1 (mm/in)	s2 (mm/in)	g (mm/in)	w (mm/in)	B (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)
UCAK204	20	31.75	133	98	41	13	16	14	64	31	12.7	M10	UC204	AK204	0.74
UCAK204-12	3/4	1-1/4	5-15/64	3-55/64	1-5/8	1/2	5/8	9/16	2-33/64	1.2205	0.500	3/8	UC204-12	AK204	0.74
UCAK205	25	33.34	140	105	44	13	16	16	68	34.1	14.3	M10	UC205	AK205	0.88
UCAK205-13	13/16	1-5/16	5-33/64	4-9/64	1-47/64	1/2	5/8	5/8	2-43/64	1.3425	0.563	3/8	UC205-13	AK205	0.92
UCAK205-14	7/8	1-5/16	5-33/64	4-9/64	1-47/64	1/2	5/8	5/8	2-43/64	1.3425	0.563	3/8	UC205-14	AK205	0.91
UCAK205-15	15/16	1-5/16	5-33/64	4-9/64	1-47/64	1/2	5/8	5/8	2-43/64	1.3425	0.563	3/8	UC205-15	AK205	0.89
UCAK205-16	1	1-5/16	5-33/64	4-9/64	1-47/64	1/2	5/8	5/8	2-43/64	1.3425	0.563	3/8	UC205-16	AK205	0.88
UCAK206	30	39.69	160	121	48	15	19	17	80	38.1	15.9	M12	UC206	AK206	1.27
UCAK206-17	1-1/16	1-9/16	6-19/64	4-49/64	1-57/64	19/32	3/4	43/64	3-5/32	1.5000	0.626	7/16	UC206-17	AK206	1.28
UCAK206-18	1-1/8	1-9/16	6-19/64	4-49/64	1-57/64	19/32	3/4	43/64	3-5/32	1.5000	0.626	7/16	UC206-18	AK206	1.29
UCAK206-19	1-3/16	1-9/16	6-19/64	4-49/64	1-57/64	19/32	3/4	43/64	3-5/32	1.5000	0.626	7/16	UC206-19	AK206	1.27
UCAK206-20	1-1/4	1-9/16	6-19/64	4-49/64	1-57/64	19/32	3/4	43/64	3-5/32	1.5000	0.626	7/16	UC206-20	AK206	1.26
UCAK207	35	46.04	167	127	48	15	19	19	92	42.9	17.5	M12	UC207	AK207	1.6
UCAK207-20	1-1/4	1-13/16	6-37/64	5	1-57/64	19/32	3/4	3/4	3-5/8	1.6890	0.689	7/16	UC207-20	AK207	1.66
UCAK207-21	1-5/16	1-13/16	6-37/64	5	1-57/64	19/32	3/4	3/4	3-5/8	1.6890	0.689	7/16	UC207-21	AK207	1.63
UCAK207-22	1-3/8	1-13/16	6-37/64	5	1-57/64	19/32	3/4	3/4	3-5/8	1.6890	0.689	7/16	UC207-22	AK207	1.6
UCAK207-23	1-7/16	1-13/16	6-37/64	5	1-57/64	19/32	3/4	3/4	3-5/8	1.6890	0.689	7/16	UC207-23	AK207	1.57
UCAK208	40	49.2	181	140	54	15	19	19	100	49.2	19	M12	UC208	AK208	2.09
UCAK208-24	1-1/2	1-15/16	7-1/8	5-33/64	2-1/8	19/32	3/4	3/4	3-15/16	1.9370	0.748	7/16	UC208-24	AK208	2.13
UCAK208-25	1-9/16	1-15/16	7-1/8	5-33/64	2-1/8	19/32	3/4	3/4	3-15/16	1.9370	0.748	7/16	UC208-25	AK208	2.1
UCAK209	45	52.39	190	146	54	15	19	21	106	49.2	19	M12	UC209	AK209	2.34
UCAK209-26	1-5/8	2-1/16	7-15/32	5-3/4	2-1/8	19/32	3/4	53/64	4-11/64	1.9370	0.748	7/16	UC209-26	AK209	2.44
UCAK209-27	1-11/16	2-1/16	7-15/32	5-3/4	2-1/8	19/32	3/4	53/64	4-11/64	1.9370	0.748	7/16	UC209-27	AK209	2.4
UCAK209-28	1-3/4	2-1/16	7-15/32	5-3/4	2-1/8	19/32	3/4	53/64	4-11/64	1.9370	0.748	7/16	UC209-28	AK209	2.36
UCAK210	50	55.56	203	159	57	15	19	22	113	51.6	19	M12	UC210	AK210	2.85
UCAK210-29	1-13/16	2-3/16	8	6-17/64	2-1/4	19/32	3/4	7/8	4-29/64	2.0315	0.748	7/16	UC210-29	AK210	2.97
UCAK210-30	1-7/8	2-3/16	8	6-17/64	2-1/4	19/32	3/4	7/8	4-29/64	2.0315	0.748	7/16	UC210-30	AK210	2.92
UCAK210-31	1-15/16	2-3/16	8	6-17/64	2-1/4	19/32	3/4	7/8	4-29/64	2.0315	0.748	7/16	UC210-31	AK210	2.87
UCAK210-32	2	2-3/16	8	6-17/64	2-1/4	19/32	3/4	7/8	4-29/64	2.0315	0.748	7/16	UC210-32	AK210	2.83
UCAK211	55	61.9	232	181	60	19	24	25	125	55.6	22.2	M16	UC211	AK211	3.7
UCAK211-32	2	2-1/4	9-9/64	7-1/8	2-23/64	3/4	15/16	63/64	4-59/64	2.1890	0.874	5/8	UC211-32	AK211	3.85
UCAK211-33	2-1/16	2-1/4	9-9/64	7-1/8	2-23/64	3/4	15/16	63/64	4-59/64	2.1890	0.874	5/8	UC211-33	AK211	3.79
UCAK211-34	2-1/8	2-1/4	9-9/64	7-1/8	2-23/64	3/4	15/16	63/64	4-59/64	2.1890	0.874	5/8	UC211-34	AK211	3.75
UCAK211-35	2-3/16	2-1/4	9-9/64	7-1/8	2-23/64	3/4	15/16	63/64	4-59/64	2.1890	0.874	5/8	UC211-35	AK211	3.68
UCAK212	60	68.3	241	190	64	19	24	29	137	65.1	25.4	M16	UC212	AK212	4.7
UCAK212-36	2-1/4	2-11/16	9-31/64	7-31/64	2-33/64	3/4	15/16	1-9/64	5-25/64	2.5630	1.000	5/8	UC212-36	AK212	4.83
UCAK212-37	2-5/16	2-11/16	9-31/64	7-31/64	2-33/64	3/4	15/16	1-9/64	5-25/64	2.5630	1.000	5/8	UC212-37	AK212	4.75
UCAK212-38	2-3/8	2-11/16	9-31/64	7-31/64	2-33/64	3/4	15/16	1-9/64	5-25/64	2.5630	1.000	5/8	UC212-38	AK212	4.68
UCAK212-39	2-7/16	2-11/16	9-31/64	7-31/64	2-33/64	3/4	15/16	1-9/64	5-25/64	2.5630	1.000	5/8	UC212-39	AK212	4.61

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s1 (mm/in)	s2 (mm/in)	g (mm/in)	w (mm/in)	t (mm/in)	B (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)

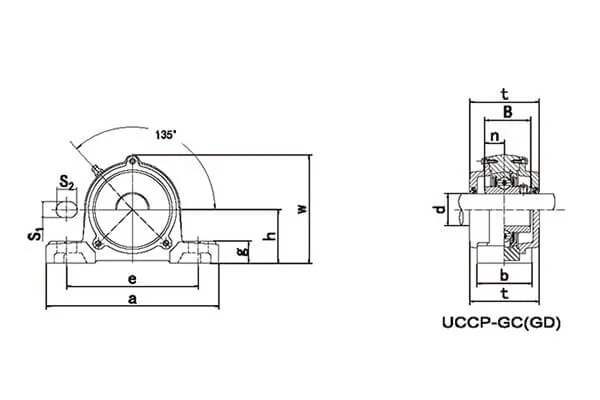

UCCP204	20	33.3	127	95	38	13	19	14	69	62	31	12.7	M10	UC204	CP204	0.82
UCCP204-12	3/4	1-5/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-23/32	2-7/16	1.2205	0.500	3/8	UC204-12	CP204	0.82
UCCP205	25	36.5	140	105	38	13	19	15	76	70	34.1	14.3	M10	UC205	CP205	1.11
UCCP205-13	13/16	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-63/64	2-3/4	1.3425	0.563	3/8	UC205-13	CP205	1.15
UCCP205-14	7/8	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-63/64	2-3/4	1.3425	0.563	3/8	UC205-14	CP205	1.14
UCCP205-15	15/16	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-63/64	2-3/4	1.3425	0.563	3/8	UC205-15	CP205	1.12
UCCP205-16	1	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-63/64	2-3/4	1.3425	0.563	3/8	UC205-16	CP205	1.11
UCCP206	30	42.9	160	121	44	17	20	17	87	74	38.1	15.9	M14	UC206	CP206	1.64
UCCP206-17	1-1/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-27/64	2-29/32	1.5000	0.626	1/2	UC206-17	CP206	1.65
UCCP206-18	1-1/8	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-27/64	2-29/32	1.5000	0.626	1/2	UC206-18	CP206	1.66
UCCP206-19	1-3/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-27/64	2-29/32	1.5000	0.626	1/2	UC206-19	CP206	1.64
UCCP206-20	1-1/4	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-27/64	2-29/32	1.5000	0.626	1/2	UC206-20	CP206	1.63
UCCP207	35	47.6	167	127	48	17	20	18	97	80	42.9	17.5	M14	UC207	CP207	2.09
UCCP207-20	1-1/4	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-13/16	3-5/32	1.6890	0.689	1/2	UC207-20	CP207	2.15
UCCP207-21	1-5/16	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-13/16	3-5/32	1.6890	0.689	1/2	UC207-21	CP207	2.12
UCCP207-22	1-3/8	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-13/16	3-5/32	1.6890	0.689	1/2	UC207-22	CP207	2.09
UCCP207-23	1-7/16	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-13/16	3-5/32	1.6890	0.689	1/2	UC207-23	CP207	2.06
UCCP208	40	49.2	184	137	54	17	20	18	104	90	49.2	19	M14	UC208	CP208	2.61
UCCP208-24	1-1/2	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	4-3/32	3-35/64	1.9370	0.748	1/2	UC208-24	CP208	2.65
UCCP208-25	1-9/16	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	4-3/32	3-35/64	1.9370	0.748	1/2	UC208-25	CP208	2.62
UCCP209	45	54	190	146	54	17	20	20	114	90	49.2	19	M14	UC209	CP209	2.8
UCCP209-26	1-5/8	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-31/64	3-35/64	1.9370	0.748	1/2	UC209-26	CP209	2.9
UCCP209-27	1-11/16	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-31/64	3-35/64	1.9370	0.748	1/2	UC209-27	CP209	2.86
UCCP209-28	1-3/4	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-31/64	3-35/64	1.9370	0.748	1/2	UC209-28	CP209	2.82
UCCP210	50	57.2	206	159	60	20	23	21	120	98	51.6	19	M16	UC210	CP210	3.26
UCCP210-29	1-13/16	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-23/32	3-55/64	2.0315	0.748	5/8	UC210-29	CP210	3.38
UCCP210-30	1-7/8	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-23/32	3-55/64	2.0315	0.748	5/8	UC210-30	CP210	3.33
UCCP210-31	1-15/16	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-23/32	3-55/64	2.0315	0.748	5/8	UC210-31	CP210	3.28
UCCP210-32	2	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-23/32	3-55/64	2.0315	0.748	5/8	UC210-32	CP210	3.24
UCCP211	55	63.5	219	171	60	20	23	23	133	100	55.6	22.2	M16	UC211	CP211	4.27
UCCP211-32	2	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	5-15/64	3-15/16	2.1890	0.874	5/8	UC211-32	CP211	4.42
UCCP211-33	2-1/16	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	5-15/64	3-15/16	2.1890	0.874	5/8	UC211-33	CP211	4.36
UCCP211-34	2-1/8	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	5-15/64	3-15/16	2.1890	0.874	5/8	UC211-34	CP211	4.31
UCCP211-35	2-3/16	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	5-15/64	3-15/16	2.1890	0.874	5/8	UC211-35	CP211	4.25
UCCP212	60	69.8	241	184	70	20	23	25	145	114	65.1	25.4	M16	UC212	CP212	5.77
UCCP212-36	2-1/4	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-45/64	4-31/64	2.5630	1.000	5/8	UC212-36	CP212	5.9
UCCP212-37	2-5/16	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-45/64	4-31/64	2.5630	1.000	5/8	UC212-37	CP212	5.82
UCCP212-38	2-3/8	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-45/64	4-31/64	2.5630	1.000	5/8	UC212-38	CP212	5.75
UCCP212-39	2-7/16	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-45/64	4-31/64	2.5630	1.000	5/8	UC212-39	CP212	5.68
UCCP213	65	76.2	265	203	70	25	28	27	156	118	65.1	25.4	M20	UC213	CP213	6.98
UCCP213-40	2-1/2	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	6-9/64	4-41/64	2.5630	1.000	3/4	UC213-40	CP213	7.07
UCCP213-41	2-9/16	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	6-9/64	4-41/64	2.5630	1.000	3/4	UC213-41	CP213	6.98
UCCP214	70	79.4	266	210	72	25	28	27	162	134	74.6	30.2	M20	UC214	CP214	7.6
UCCP214-42	2-5/8	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-3/8	5-9/32	2.9370	1.189	3/4	UC214-42	CP214	7.81
UCCP214-43	2-11/16	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-3/8	5-9/32	2.9370	1.189	3/4	UC214-43	CP214	7.71
UCCP214-44	2-3/4	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-3/8	5-9/32	2.9370	1.189	3/4	UC214-44	CP214	7.61
UCCP215	75	82.6	275	217	74	25	28	28	167	136	77.8	33.3	M20	UC215	CP215	8.31
UCCP215-45	2-13/16	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-37/64	5-23/64	3.0630	1.311	3/4	UC215-45	CP215	8.56
UCCP215-46	2-7/8	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-37/64	5-23/64	3.0630	1.311	3/4	UC215-46	CP215	8.44
UCCP215-47	2-15/16	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-37/64	5-23/64	3.0630	1.311	3/4	UC215-47	CP215	8.33
UCCP215-48	3	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-37/64	5-23/64	3.0630	1.311	3/4	UC215-48	CP215	8.21
UCCP216	80	88.9	292	232	78	25	28	30	188	146	82.6	33.3	M20	UC216	CP216	10.7
UCCP216-49	3-1/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	7-13/32	5-3/4	3.2520	1.311	3/4	UC216-49	CP216	10.88
UCCP216-50	3-1/8	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	7-13/32	5-3/4	3.2520	1.311	3/4	UC216-50	CP216	10.75
UCCP216-51	3-3/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	7-13/32	5-3/4	3.2520	1.311	3/4	UC216-51	CP216	10.62
UCCP217	85	95.2	310	247	83	25	28	32	199	150	85.7	34.1	M20	UC217	CP217	13.86
UCCP217-52	3-1/4	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-53/64	5-29/32	3.3740	1.343	3/4	UC217-52	CP217	14.08
UCCP217-53	3-5/16	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-53/64	5-29/32	3.3740	1.343	3/4	UC217-53	CP217	13.94
UCCP217-55	3-7/16	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-53/64	5-29/32	3.3740	1.343	3/4	UC217-55	CP217	13.65
UCCP218	90	101.6	327	262	88	27	30	33	211	164	96	39.7	M22	UC218	CP218	16.06
UCCP218-56	3-1/2	4	12-7/8	10-5/16	3-15/32	1-1/16	1-3/16	1-19/64	8-5/16	6-29/64	3.7795	1.5630	7/8	UC218-56	CP218	16.17

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s1 (mm/in)	s2 (mm/in)	g (mm/in)	w (mm/in)	t (mm/in)	B (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)
UCPE201	12	33.3	127	95	38	13	19	14	65	44.5	31	12.7	M10	UC201	PE201	0.78
UCPE201-8	1/2	1-5/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-9/16	1-3/4	1.2205	0.500	3/8	UC201-8	PE201	0.78
UCPE202	15	33.3	127	95	38	13	19	14	65	44.5	31	12.7	M10	UC202	PE202	0.77
UCPE202-9	9/16	1-5/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-9/16	1-3/4	1.2205	0.500	3/8	UC202-9	PE202	0.77
UCPE202-10	5/8	1-5/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-9/16	1-3/4	1.2205	0.500	3/8	UC202-10	PE202	0.77
UCPE203	17	33.3	127	95	38	13	19	14	65	44.5	31	12.7	M10	UC203	PE203	0.76
UCPE203-11	11/16	1-5/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-9/16	1-3/4	1.2205	0.500	3/8	UC203-11	PE203	0.75
UCPE204	20	33.3	127	95	38	13	19	14	65	44.5	31	12.7	M10	UC204	PE204	0.74
UCPE204-12	3/4	1-5/16	5	3-3/4	1-1/2	1/2	3/4	9/16	2-9/16	1-3/4	1.2205	0.500	3/8	UC204-12	PE204	0.74
UCPE205	25	36.5	140	105	38	13	19	15	71	48	34.1	14.3	M10	UC205	PE205	0.89
UCPE205-13	13/16	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1-57/64	1.3425	0.563	3/8	UC205-13	PE205	0.93
UCPE205-14	7/8	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1-57/64	1.3425	0.563	3/8	UC205-14	PE205	0.92
UCPE205-15	15/16	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1-57/64	1.3425	0.563	3/8	UC205-15	PE205	0.9
UCPE205-16	1	1-7/16	5-1/2	4-1/8	1-1/2	1/2	3/4	19/32	2-25/32	1-57/64	1.3425	0.563	3/8	UC205-16	PE205	0.89
UCPE206	30	42.9	160	121	44	17	20	17	84	53	38.1	15.9	M14	UC206	PE206	1.37
UCPE206-17	1-1/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	2-5/64	1.5000	0.626	1/2	UC206-17	PE206	1.38
UCPE206-18	1-1/8	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	2-5/64	1.5000	0.626	1/2	UC206-18	PE206	1.39
UCPE206-19	1-3/16	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	2-5/64	1.5000	0.626	1/2	UC206-19	PE206	1.37
UCPE206-20	1-1/4	1-11/16	6-19/64	4-3/4	1-47/64	43/64	25/32	21/32	3-5/16	2-5/64	1.5000	0.626	1/2	UC206-20	PE206	1.36
UCPE207	35	47.6	167	127	48	17	20	18	93	59.5	42.9	17.5	M14	UC207	PE207	1.72
UCPE207-20	1-1/4	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2-11/32	1.6890	0.689	1/2	UC207-20	PE207	1.78
UCPE207-21	1-5/16	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2-11/32	1.6890	0.689	1/2	UC207-21	PE207	1.75
UCPE207-22	1-3/8	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2-11/32	1.6890	0.689	1/2	UC207-22	PE207	1.72
UCPE207-23	1-7/16	1-7/8	6-9/16	5	1-7/8	43/64	25/32	45/64	3-21/32	2-11/32	1.6890	0.689	1/2	UC207-23	PE207	1.69
UCPE208	40	49.2	184	137	54	17	20	18	100	69	49.2	19	M14	UC208	PE208	2.2
UCPE208-24	1-1/2	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2-23/32	1.9370	0.748	1/2	UC208-24	PE208	2.24
UCPE208-25	1-9/16	1-15/16	7-1/4	5-13/32	2-1/8	43/64	25/32	45/64	3-15/16	2-23/32	1.9370	0.748	1/2	UC208-25	PE208	2.21
UCPE209	45	54	190	146	54	17	20	20	106	69	49.2	19	M14	UC209	PE209	2.44
UCPE209-26	1-5/8	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2-23/32	1.9370	0.748	1/2	UC209-26	PE209	2.54
UCPE209-27	1-11/16	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2-23/32	1.9370	0.748	1/2	UC209-27	PE209	2.5
UCPE209-28	1-3/4	2-1/8	7-15/32	5-3/4	2-1/8	43/64	25/32	25/32	4-11/64	2-23/32	1.9370	0.748	1/2	UC209-28	PE209	2.46
UCPE210	50	57.2	206	159	60	20	23	21	113	74.5	51.6	19	M16	UC210	PE210	3.05
UCPE210-29	1-13/16	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.0315	0.748	5/8	UC210-29	PE210	3.17
UCPE210-30	1-7/8	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.0315	0.748	5/8	UC210-30	PE210	3.12
UCPE210-31	1-15/16	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.0315	0.748	5/8	UC210-31	PE210	3.07
UCPE210-32	2	2-1/4	8-1/8	6-1/4	2-3/8	25/32	29/32	53/64	4-29/64	2-15/16	2.0315	0.748	5/8	UC210-32	PE210	3.03
UCPE211	55	63.5	219	171	60	20	23	23	125	76	55.6	22.2	M16	UC211	PE211	3.73
UCPE211-32	2	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.1890	0.874	5/8	UC211-32	PE211	3.88
UCPE211-33	2-1/16	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.1890	0.874	5/8	UC211-33	PE211	3.82
UCPE211-34	2-1/8	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.1890	0.874	5/8	UC211-34	PE211	3.78
UCPE211-35	2-3/16	2-1/2	8-5/8	6-47/64	2-3/8	25/32	29/32	29/32	4-59/64	3	2.1890	0.874	5/8	UC211-35	PE211	3.71
UCPE212	60	69.8	241	184	70	20	23	25	138	89	65.1	25.4	M16	UC212	PE212	5.25
UCPE212-36	2-1/4	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3-1/2	2.5630	1.000	5/8	UC212-36	PE212	5.38
UCPE212-37	2-5/16	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3-1/2	2.5630	1.000	5/8	UC212-37	PE212	5.3
UCPE212-38	2-3/8	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3-1/2	2.5630	1.000	5/8	UC212-38	PE212	5.23
UCPE212-39	2-7/16	2-3/4	9-1/2	7-1/4	2-3/4	25/32	29/32	63/64	5-7/16	3-1/2	2.5630	1.000	5/8	UC212-39	PE212	5.16
UCPE213	65	76.2	265	203	70	25	28	27	150	89	65.1	25.4	M20	UC213	PE213	6.22
UCPE213-40	2-1/2	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	5-29/32	3-1/2	2.5630	1.000	3/4	UC213-40	PE213	6.31
UCPE213-41	2-9/16	3	10-7/16	8	2-3/4	63/64	1-3/32	1-1/16	5-29/32	3-1/2	2.5630	1.000	3/4	UC213-41	PE213	6.22
UCPE214	70	79.4	266	210	72	25	28	27	156	98	74.6	30.2	M20	UC214	PE214	6.83
UCPE214-42	2-5/8	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-9/64	3-55/64	2.9370	1.189	3/4	UC214-42	PE214	7.04
UCPE214-43	2-11/16	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-9/64	3-55/64	2.9370	1.189	3/4	UC214-43	PE214	6.94
UCPE214-44	2-3/4	3-1/8	10-15/32	8-17/64	2-27/32	63/64	1-3/32	1-1/16	6-9/64	3-55/64	2.9370	1.189	3/4	UC214-44	PE214	6.84
UCPE215	75	82.6	275	217	74	25	28	28	162	99	77.8	33.3	M20	UC215	PE215	7.56
UCPE215-45	2-13/16	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	3.0630	1.311	3/4	UC215-45	PE215	7.56
UCPE215-46	2-7/8	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	3.0630	1.311	3/4	UC215-46	PE215	7.81
UCPE215-47	2-15/16	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	3.0630	1.311	3/4	UC215-47	PE215	7.7
UCPE215-48	3	3-1/4	10-53/64	8-35/64	2-29/32	63/64	1-3/32	1-3/32	6-3/8	3-57/64	3.0630	1.311	3/4	UC215-48	PE215	7.5
UCPE216	80	88.9	292	232	78	25	28	30	174	109	82.6	33.3	M20	UC216	PE216	9.22
UCPE216-49	3-1/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	4-19/64	3.2520	1.311	3/4	UC216-49	PE216	9.4
UCPE216-50	3-1/8	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	4-19/64	3.2520	1.311	3/4	UC216-50	PE216	9.27
UCPE216-51	3-3/16	3-1/2	11-1/2	9-1/8	3-1/16	63/64	1-3/32	1-3/16	6-27/32	4-19/64	3.2520	1.311	3/4	UC216-51	PE216	9.14
UCPE217	85	95.2	310	247	83	25	28	32	185	113.2	85.7	34.1	M20	UC217	PE217	11.23
UCPE217-52	3-1/4	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	4-29/64	3.3740	1.343	3/4	UC217-52	PE217	11.35
UCPE217-53	3-5/16	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	4-29/64	3.3740	1.343	3/4	UC217-53	PE217	11.31
UCPE217-55	3-7/16	3-3/4	12-13/64	9-23/32	3-17/64	63/64	1-3/32	1-1/4	7-9/32	4-29/64	3.3740	1.343	3/4	UC217-55	PE217	11.02
UCPE218	90	101.6	327	262	88	27	30	33	198	123	96	39.7	M22	UC218	PE218	13.61
UCPE218-56	3-1/2	4	12-7/8	10-5/16	3-15/32	1-1/16	1-3/16	1-19/64	7-51/64	4-27/32	3.7795	1.5630	7/8	UC218-56	PE218	13.72

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	S1 (mm/in)	S2 (mm/in)	g (mm/in)	w (mm/in)	B (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)
UCPH201	12	70	127	95	40	13	19	15	101	31	12.7	M10	UC201	PH201	0.84
UCPH201-8	1/2	2-3/4	5	3-3/4	1-9/16	1/2	3/4	19/32	3-63/64	1.2205	0.500	3/8	UC201-8	PH201	0.83
UCPH202	15	70	127	95	40	13	19	15	101	31	12.7	M10	UC202	PH202	0.83
UCPH202-9	9/16	2-3/4	5	3-3/4	1-9/16	1/2	3/4	19/32	3-63/64	1.2205	0.500	3/8	UC202-9	PH202	0.83
UCPH202-10	5/8	2-3/4	5	3-3/4	1-9/16	1/2	3/4	19/32	3-63/64	1.2205	0.500	3/8	UC202-10	PH202	0.83
UCPH203	17	70	127	95	40	13	19	15	101	31	12.7	M10	UC203	PH203	0.82
UCPH203-11	11/16	2-3/4	5	3-3/4	1-9/16	1/2	3/4	19/32	3-63/64	1.2205	0.500	3/8	UC203-11	PH203	0.81
UCPH204	20	70	127	95	40	13	19	15	101	31	12.7	M10	UC204	PH204	0.8
UCPH204-12	3/4	2-3/4	5	3-3/4	1-9/16	1/2	3/4	19/32	3-63/64	1.2205	0.500	3/8	UC204-12	PH204	0.8
UCPH205	25	80	140	105	50	13	19	16	114	34.1	14.3	M10	UC205	PH205	1.04
UCPH205-13	13/16	3-5/32	5-1/2	4-1/8	1-31/32	1/2	3/4	5/8	4-31/64	1.3425	0.563	3/8	UC205-13	PH205	1.08
UCPH205-14	7/8	3-5/32	5-1/2	4-1/8	1-31/32	1/2	3/4	5/8	4-31/64	1.3425	0.563	3/8	UC205-14	PH205	1.07
UCPH205-15	15/16	3-5/32	5-1/2	4-1/8	1-31/32	1/2	3/4	5/8	4-31/64	1.3425	0.563	3/8	UC205-15	PH205	1.05
UCPH205-16	1	3-5/32	5-1/2	4-1/8	1-31/32	1/2	3/4	5/8	4-31/64	1.3425	0.563	3/8	UC205-16	PH205	1.04
UCPH206	30	90	161	121	50	17	21	17	130	38.1	15.9	M14	UC206	PH206	1.45
UCPH206-17	1-1/16	3-35/64	6-11/32	4-3/4	1-31/32	43/64	53/64	43/64	5-1/8	1.5000	0.626	1/2	UC206-17	PH206	1.46
UCPH206-18	1-1/8	3-35/64	6-11/32	4-3/4	1-31/32	43/64	53/64	43/64	5-1/8	1.5000	0.626	1/2	UC206-18	PH206	1.47
UCPH206-19	1-3/16	3-35/64	6-11/32	4-3/4	1-31/32	43/64	53/64	43/64	5-1/8	1.5000	0.626	1/2	UC206-19	PH206	1.45
UCPH206-20	1-1/4	3-35/64	6-11/32	4-3/4	1-31/32	43/64	53/64	43/64	5-1/8	1.5000	0.626	1/2	UC206-20	PH206	1.44
UCPH207	35	95	166	127	60	17	21	18	140	42.9	17.5	M14	UC207	PH207	1.83
UCPH207-20	1-1/4	3-47/64	6-17/32	5	2-23/64	43/64	53/64	45/64	5-33/54	1.6890	0.689	1/2	UC207-20	PH207	1.89
UCPH207-21	1-5/16	3-47/64	6-17/32	5	2-23/64	43/64	53/64	45/64	5-33/54	1.6890	0.689	1/2	UC207-21	PH207	1.86
UCPH207-22	1/3/8	3-47/64	6-17/32	5	2-23/64	43/64	53/64	45/64	5-33/54	1.6890	0.689	1/2	UC207-22	PH207	1.83
UCPH207-23	1-7/16	3-47/64	6-17/32	5	2-23/64	43/64	53/64	45/64	5-33/54	1.6890	0.689	1/2	UC207-23	PH207	1.8
UCPH208	40	100	178	137	70	17	21	19	150	49.2	19	M14	UC208	PH208	2.4
UCPH208-24	1-1/2	3-15/16	7-1/64	5-13/32	2-3/4	43/64	53/64	3/4	5-29/32	1.9370	0.748	1/2	UC208-24	PH208	2.44
UCPH208-25	1-9/16	3-15/16	7-1/64	5-13/32	2-3/4	43/64	53/64	3/4	5-29/32	1.9370	0.748	1/2	UC208-25	PH208	2.41
UCPH209	45	105	189	146	70	17	21	20	158	49.2	19	M14	UC209	PH209	2.67
UCPH209-26	1-5/8	4-9/64	7-7/16	5-3/4	2-3/4	43/64	53/64	25/32	6-7/32	1.9370	0.748	1/2	UC209-26	PH209	2.77
UCPH209-27	1-11/16	4-9/64	7-7/16	5-3/4	2-3/4	43/64	53/64	25/32	6-7/32	1.9370	0.748	1/2	UC209-27	PH209	2.37
UCPH209-28	1-3/4	4-9/64	7-7/16	5-3/4	2-3/4	43/64	53/64	25/32	6-7/32	1.9370	0.748	1/2	UC209-28	PH209	2.69
UCPH210	50	110	205	159	70	20	23	21	165	51.6	19	M16	UC210	PH210	2.97
UCPH210-29	1-13/16	4-21/64	8-5/64	6-1/4	2-3/4	25/32	29/32	53/64	6-1/2	2.0315	0.748	5/8	UC210-29	PH210	3.09
UCPH210-30	1-7/8	4-21/64	8-5/64	6-1/4	2-3/4	25/32	29/32	53/64	6-1/2	2.0315	0.748	5/8	UC210-30	PH210	3.04
UCPH210-31	1-15/16	4-21/64	8-5/64	6-1/4	2-3/4	25/32	29/32	53/64	6-1/2	2.0315	0.748	5/8	UC210-31	PH210	2.99
UCPH210-32	2	4-21/64	8-5/64	6-1/4	2-3/4	25/32	29/32	53/64	6-1/2	2.0315	0.748	5/8	UC210-32	PH210	2.95
UCPH211	55	120	219	171	75	20	23	22	181	55.6	22.2	M16	UC211	PH211	3.82
UCPH211-32	2	4-23/32	8-5/8	6-47/64	2-61/64	25/32	29/32	55/64	7-1/8	2.1890	0.874	5/8	UC211-32	PH211	3.97
UCPH211-33	2-1/16	4-23/32	8-5/8	6-47/64	2-61/64	25/32	29/32	55/64	7-1/8	2.1890	0.874	5/8	UC211-33	PH211	3.87
UCPH211-34	2-1/8	4-23/32	8-5/8	6-47/64	2-61/64	25/32	29/32	55/64	7-1/8	2.1890	0.874	5/8	UC211-34	PH211	3.91
UCPH211-35	2-3/16	4-23/32	8-5/8	6-47/64	2-61/64	25/32	29/32	55/64	7-1/8	2.1890	0.874	5/8	UC211-35	PH211	3.8
UCPH212	60	130	241	184	85	20	23	25	197	65.1	25.4	M16	UC212	PH212	5.01
UCPH212-36	2-1/4	5-1/8	9-1/2	7-1/4	3-11/32	25/32	29/32	63/64	7-3/4	2.5630	1.000	5/8	UC212-36	PH212	5.14
UCPH212-37	2-5/16	5-1/8	9-1/2	7-1/4	3-11/32	25/32	29/32	63/64	7-3/4	2.5630	1.000	5/8	UC212-37	PH212	5.06
UCPH212-38	2-3/8	5-1/8	9-1/2	7-1/4	3-11/32	25/32	29/32	63/64	7-3/4	2.5630	1.000	5/8	UC212-38	PH212	4.99
UCPH212-39	2-7/16	5-1/8	9-1/2	7-1/4	3-11/32	25/32	29/32	63/64	7-3/4	2.5630	1.000	5/8	UC212-39	PH212	4.92
UCPH213	65	140	265	203	95	25	28	27	212	65.1	25.4	M20	UC213	PH213	6.11
UCPH213-40	2-1/2	5-33/64	10-7/16	8	3-3/4	63/64	1-3/32	1-1/16	8-11/32	2.5630	1.000	3/4	UC213-40	PH213	6.2
UCPH213-41	2-9/16	5-33/64	10-7/16	8	3-3/4	63/64	1-3/32	1-1/16	8-11/32	2.5630	1.000	3/4	UC213-41	PH213	6.11
UCPH214	70	150	266	210	105	25	28	28	225	74.6	30.2	M20	UC214	PH214	7.06
UCPH214-42	2-5/8	5-29/32	10-15/32	8-17/64	5-9/64	63/64	1-3/32	1-7/64	8-55/64	2.9370	1.189	3/4	UC214-42	PH214	7.27
UCPH214-43	2-11/16	5-29/32	10-15/32	8-17/64	5-9/64	63/64	1-3/32	1-7/64	8-55/64	2.9370	1.189	3/4	UC214-43	PH214	7.17
UCPH214-44	2-3/4	5-29/32	10-15/32	8-17/64	5-9/64	63/64	1-3/32	1-7/64	8-55/64	2.9370	1.189	3/4	UC214-44	PH214	7.07
UCPH215	75	160	275	217	115	25	28	29	238	77.8	33.3	M20	UC215	PH215	7.98
UCPH215-45	2-13/16	6-19/64	10-53/64	8-35/64	4-17/32	63/64	1-3/32	1-9/64	9-3/8	3.0630	1.311	3/4	UC215-45	PH215	7.98
UCPH215-46	2-7/8	6-19/64	10-53/64	8-35/64	4-17/32	63/64	1-3/32	1-9/64	9-3/8	3.0630	1.311	3/4	UC215-46	PH215	8.23
UCPH215-47	2-15/16	6-19/64	10-53/64	8-35/64	4-17/32	63/64	1-3/32	1-9/64	9-3/8	3.0630	1.311	3/4	UC215-47	PH215	8.12
UCPH215-48	3	6-19/64	10-53/64	8-35/64	4-17/32	63/64	1-3/32	1-9/64	9-3/8	3.0630	1.311	3/4	UC215-48	PH215	7.92
UCPH216	80	170	292	232	125	25	28	30	253	82.6	33.3	M20	UC216	PH216	9.3
UCPH216-49	3-1/16	6-11/16	11-1/2	9-1/8	4-59/64	63/64	1-3/32	1-3/16	9-61/64	3.2520	1.311	3/4	UC216-49	PH216	9.48
UCPH216-50	3-1/8	6-11/16	11-1/2	9-1/8	4-59/64	63/64	1-3/32	1-3/16	9-61/64	3.2520	1.311	3/4	UC216-50	PH216	9.35
UCPH216-51	3-3/16	6-11/16	11-1/2	9-1/8	4-59/64	63/64	1-3/32	1-3/16	9-61/64	3.2520	1.311	3/4	UC216-51	PH216	9.22

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s (mm/in)	g (mm/in)	I (mm/in)	w (mm/in)	b (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)
UCPA201	12	30.2	76	52	40	M10	11	15	62	31	12.7	M10	UC201	PA201	0.63
UCPA201-8	1/2	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC201-8	PA201	0.62
UCPA202	15	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC202	PA202	0.62
UCPA202-9	9/16	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC202-9	PA202	0.62
UCPA202-10	5/8	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC202-10	PA202	0.62
UCPA203	17	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC203	PA203	0.61
UCPA203-11	11/16	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC203-11	PA203	0.6
UCPA204	20	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC204	PA204	0.589
UCPA204-12	3/4	1-3/16	3	2-3/64	1-9/16	M10	7/16	19/32	2-7/16	1.2205	0.500	M10	UC204-12	PA204	0.589
UCPA205	25	36.5	84	56	38	M10	12	15	72	34.1	14.3	M10	UC205	PA205	0.756
UCPA205-13	13/16	1-7/16	3-5/16	2-13/64	1-1/2	M10	15/32	19/32	2-53/64	1.3425	0.563	M10	UC205-13	PA205	0.793
UCPA205-14	7/8	1-7/16	3-5/16	2-13/64	1-1/2	M10	15/32	19/32	2-53/64	1.3425	0.563	M10	UC205-14	PA205	0.783
UCPA205-15	15/16	1-7/16	3-5/16	2-13/64	1-1/2	M10	15/32	19/32	2-53/64	1.3425	0.563	M10	UC205-15	PA205	0.763
UCPA205-16	1	1-7/16	3-5/16	2-13/64	1-1/2	M10	15/32	19/32	2-53/64	1.3425	0.563	M10	UC205-16	PA205	0.753
UCPA206	30	42.9	94	66	50	M14	12	18	84	38.1	15.9	M14	UC206	PA206	1.116
UCPA206-17	1-1/16	1-11/16	3-45/64	2-19/32	1-31/32	M14	15/32	45/64	3-5/16	1.5000	0.626	M14	UC206-17	PA206	1.126
UCPA206-18	1-1/8	1-11/16	3-45/64	2-19/32	1-31/32	M14	15/32	45/64	3-5/16	1.5000	0.626	M14	UC206-18	PA206	1.136
UCPA206-19	1-3/16	1-11/16	3-45/64	2-19/32	1-31/32	M14	15/32	45/64	3-5/16	1.5000	0.626	M14	UC206-19	PA206	1.116
UCPA206-20	1-1/4	1-11/16	3-45/64	2-19/32	1-31/32	M14	15/32	45/64	3-5/16	1.5000	0.626	M14	UC206-20	PA206	1.106
UCPA207	35	47.6	110	80	55	M14	13	20	95	42.9	17.5	M14	UC207	PA207	1.546
UCPA207-20	1-1/4	1-7/8	4-21/64	3-5/32	2-11/64	M14	33/64	25/32	3-47/64	1.6890	0.689	M14	UC207-20	PA207	1.611
UCPA207-21	1-5/16	1-7/8	4-21/64	3-5/32	2-11/64	M14	33/64	25/32	3-47/64	1.6890	0.689	M14	UC207-21	PA207	1.581
UCPA207-22	1-3/8	1-7/8	4-21/64	3-5/32	2-11/64	M14	33/64	25/32	3-47/64	1.6890	0.689	M14	UC207-22	PA207	1.551
UCPA207-23	1-7/16	1-7/8	4-21/64	3-5/32	2-11/64	M14	33/64	25/32	3-47/64	1.6890	0.689	M14	UC207-23	PA207	1.521
UCPA208	40	49.2	116	84	58	M14	13	20	100	49.2	19	M14	UC208	PA208	1.798
UCPA208-24	1-1/2	1-15/16	4-9/16	3-5/16	2-9/32	M14	33/64	25/32	3-15/16	1.9370	0.748	M14	UC208-24	PA208	1.838
UCPA208-25	1-9/16	1-15/16	4-9/16	3-5/16	2-9/32	M14	33/64	25/32	3-15/16	1.9370	0.748	M14	UC208-25	PA208	1.808
UCPA209	45	54.2	120	90	60	M14	13	25	108	49.2	19	M14	UC209	PA209	2.053
UCPA209-26	1-5/8	2-9/64	4-23/32	3-35/64	2-23/64	M14	33/64	63/64	4-1/4	1.9370	0.748	M14	UC209-26	PA209	2.153
UCPA209-27	1-11/16	2-9/64	4-23/32	3-35/64	2-23/64	M14	33/64	63/64	4-1/4	1.9370	0.748	M14	UC209-27	PA209	2.113
UCPA209-28	1-3/4	2-9/64	4-23/32	3-35/64	2-23/64	M14	33/64	63/64	4-1/4	1.9370	0.748	M14	UC209-28	PA209	2.073
UCPA210	50	57.2	130	94	64	M16	14	25	116	51.6	19	M16	UC210	PA210	2.556
UCPA210-29	1-13/16	2-1/4	5-1/8	3-45/64	2-33/64	M16	35/64	63/64	4-9/16	2.0315	0.748	M16	UC210-29	PA210	2.676
UCPA210-30	1-7/8	2-1/4	5-1/8	3-45/64	2-33/64	M16	35/64	63/64	4-9/16	2.0315	0.748	M16	UC210-30	PA210	2.626
UCPA210-31	1-15/16	2-1/4	5-1/8	3-45/64	2-33/64	M16	35/64	63/64	4-9/16	2.0315	0.748	M16	UC210-31	PA210	2.576
UCPA210-32	2	2-1/4	5-1/8	3-45/64	2-33/64	M16	35/64	63/64	4-9/16	2.0315	0.748	M16	UC210-32	PA210	2.536
UCPA211	55	63.5	140	104	66	M16	14	25	125	55.6	22.2	M16	UC211	PA211	3.138
UCPA211-32	2	2-1/2	5-33/64	4-3/32	2-19/32	M16	35/64	63/64	4-59/64	2.1890	0.874	M16	UC211-32	PA211	3.288
UCPA211-33	2-1/16	2-1/2	5-33/64	4-3/32	2-19/32	M16	35/64	63/64	4-59/64	2.1890	0.874	M16	UC211-33	PA211	3.228
UCPA211-34	2-1/8	2-1/2	5-33/64	4-3/32	2-19/32	M16	35/64	63/64	4-59/64	2.1890	0.874	M16	UC211-34	PA211	3.188
UCPA211-35	2-3/16	2-1/2	5-33/64	4-3/32	2-19/32	M16	35/64	63/64	4-59/64	2.1890	0.874	M16	UC211-35	PA211	3.118
UCPA212	60	69.9	150	114	68	M16	15	25	138	65.1	25.4	M16	UC212	PA212	4.12
UCPA212-36	2-1/4	2-3/4	5-29/32	4-31/64	2-43/64	M16	19/32	63/64	5-7/16	2.5630	1.000	M16	UC212-36	PA212	4.25
UCPA212-37	2-5/16	2-3/4	5-29/32	4-31/64	2-43/64	M16	19/32	63/64	5-7/16	2.5630	1.000	M16	UC212-37	PA212	4.17
UCPA212-38	2-3/8	2-3/4	5-29/32	4-31/64	2-43/64	M16	19/32	63/64	5-7/16	2.5630	1.000	M16	UC212-38	PA212	4.1
UCPA212-39	2-7/16	2-3/4	5-29/32	4-31/64	2-43/64	M16	19/32	63/64	5-7/16	2.5630	1.000	M16	UC212-39	PA212	4.03
UCPA213	65	76.2	160	124	70	M16	15	25	150	65.1	25.4	M16	UC213	PA213	4.915
UCPA213-40	2-1/2	3	6-19/64	4-7/8	2-3/4	M16	19/32	63/64	5-29/32	2.5630	1.000	M16	UC213-40	PA213	5.005
UCPA213-41	2-9/16	3	6-19/64	4-7/8	2-3/4	M16	19/32	63/64	5-29/32	2.5630	1.000	M16	UC213-41	PA213	4.91

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s (mm/in)	g (mm/in)	I (mm/in)	w (mm/in)	B (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)
UCPG201	12	33.3	70	49	38	M8	14	14	64	31	12.7	M8	UC201	PG201	0.626
UCPG201-8	1/2	1-5-16	2-3/4	1-59/64	1-1/2	M8	35/64	35/64	2-23/64	1.2205	0.500	M8	UC201-8	PG201	0.616
UCPG202	15	1-5-16	2-3/4	1-59/64	1-1/2	M8	35/64	35/64	2-23/64	1.2205	0.500	M8	UC202	PG202	0.616
UCPG202-9	9/16	1-5-16	2-3/4	1-59/64	1-1/2	M8	35/64	35/64	2-23/64	1.2205	0.500	M8	UC202-9	PG202	0.616
UCPG202-10	5/8	1-5-16	2-3/4	1-59/64	1-1/2	M8	35/64	35/64	2-23/64	1.2205	0.500	M8	UC202-10	PG202	0.616
UCPG203	17	1-5-16	2-3/4	1-59/64	1-1/2	M8	35/64	35/64	2-23/64	1.2205	0.500	M8	UC203	PG203	0.606
UCPG203-11	11/16	1-5-16	2-3/4	1-59/64	1-1/2	M8	35/64	35/64	2-23/64	1.2205	0.500	M8	UC203-11	PG203	0.596
UCPG204	20	1-5-16	2-3/4	1-59/64	1-1/2	M8	35/64	35/64	2-23/64	1.2205	0.500	M8	UC204	PG204	0.585
UCPG204-12	3/4	1-5-16	2-3/4	1-59/64	1-1/2	M8	35/64	35/64	2-23/64	1.2205	0.500	M8	UC204-12	PG204	0.585
UCPG205	25	36.5	75	50	38	M10	15	15	70	34.1	14.3	M10	UC205	PG205	0.693
UCPG205-13	13/16	1-7/16	2-61/64	1-31/32	1-1/2	M10	19/32	19/32	2-3/4	1.3425	0.563	M10	UC205-13	PG205	0.73
UCPG205-14	7/8	1-7/16	2-61/64	1-31/32	1-1/2	M10	19/32	19/32	2-3/4	1.3425	0.563	M10	UC205-14	PG205	0.72
UCPG205-15	15/16	1-7/16	2-61/64	1-31/32	1-1/2	M10	19/32	19/32	2-3/4	1.3425	0.563	M10	UC205-15	PG205	0.7
UCPG205-16	1	1-7/16	2-61/64	1-31/32	1-1/2	M10	19/32	19/32	2-3/4	1.3425	0.563	M10	UC205-16	PG205	0.69
UCPG206	30	42.9	85	60	48	M10	16	17	83	38.1	15.9	M10	UC206	PG206	1.065
UCPG206-17	1-1/16	1-11/16	3-11/32	2-23/64	1-57/64	M10	5/8	43/64	3-17/64	1.5000	0.626	M10	UC206-17	PG206	1.075
UCPG206-18	1-1/8	1-11/16	3-11/32	2-23/64	1-57/64	M10	5/8	43/64	3-17/64	1.5000	0.626	M10	UC206-18	PG206	1.085
UCPG206-19	1-3/16	1-11/16	3-11/32	2-23/64	1-57/64	M10	5/8	43/64	3-17/64	1.5000	0.626	M10	UC206-19	PG206	1.065
UCPG206-20	1-1/4	1-11/16	3-11/32	2-23/64	1-57/64	M10	5/8	43/64	3-17/64	1.5000	0.626	M10	UC206-20	PG206	1.055
UCPG207	35	47.6	100	68	48	M12	19	20	93	42.9	17.5	M12	UC207	PG207	1.425
UCPG207-20	1-1/4	1-7/8	3-15/16	2-43/64	1-57/64	M12	3/4	25/32	3-21/32	1.6890	0.689	M12	UC207-20	PG207	1.49
UCPG207-21	1-5/16	1-7/8	3-15/16	2-43/64	1-57/64	M12	3/4	25/32	3-21/32	1.6890	0.689	M12	UC207-21	PG207	1.46
UCPG207-22	1-3/8	1-7/8	3-15/16	2-43/64	1-57/64	M12	3/4	25/32	3-21/32	1.6890	0.689	M12	UC207-22	PG207	1.43
UCPG207-23	1-7/16	1-7/8	3-15/16	2-43/64	1-57/64	M12	3/4	25/32	3-21/32	1.6890	0.689	M12	UC207-23	PG207	1.4
UCPG208	40	49.2	110	78	54	M12	19	20	98	49.2	19	M12	UC208	PG208	1.769
UCPG208-24	1-1/2	1-15/16	4-21/64	3-5/64	2-1/8	M12	3/4	25/32	3-55/64	1.9370	0.748	M12	UC208-24	PG208	1.809
UCPG208-25	1-9/16	1-15/16	4-21/64	3-5/64	2-1/8	M12	3/4	25/32	3-55/64	1.9370	0.748	M12	UC208-25	PG208	1.779
UCPG209	45	53.9	120	85	54	M12	19	20	106	49.2	19	M12	UC209	PG209	2.088
UCPG209-26	1-5/8	2-1/8	4-23/32	3-11/32	2-1/8	M12	3/4	25/32	4-11/64	1.9370	0.748	M12	UC209-26	PG209	2.188
UCPG209-27	1-11/16	2-1/8	4-23/32	3-11/32	2-1/8	M12	3/4	25/32	4-11/64	1.9370	0.748	M12	UC209-27	PG209	2.148
UCPG209-28	1-3/4	2-1/8	4-23/32	3-11/32	2-1/8	M12	3/4	25/32	4-11/64	1.9370	0.748	M12	UC209-28	PG209	2.108
UCPG210	50	57.2	135	95	60	M16	22	21	114	51.6	19	M16	UC210	PG210	2.78
UCPG210-29	1-13/16	2-1/4	5-5/16	3-47/64	2-23/64	M16	55/64	53/64	4-31/64	2.0315	0.748	M16	UC210-29	PG210	2.9
UCPG210-30	1-7/8	2-1/4	5-5/16	3-47/64	2-23/64	M16	55/64	53/64	4-31/64	2.0315	0.748	M16	UC210-30	PG210	2.85
UCPG210-31	1-15/16	2-1/4	5-5/16	3-47/64	2-23/64	M16	55/64	53/64	4-31/64	2.0315	0.748	M16	UC210-31	PG210	2.8
UCPG210-32	2	2-1/4	5-5/16	3-47/64	2-23/64	M16	55/64	53/64	4-31/64	2.0315	0.748	M16	UC210-32	PG210	2.76

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s (mm/in)	I (mm/in)	g (mm/in)	w (mm/in)	B (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)
UCSPW201	12	30.2	63	47	30	M8	10	11	57	27.4	11.5	M8	UCS201	PW201	0.484
UCSPW201-8	1/2	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS201-8	PW201	0.474
UCSPW202	15	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS202	PW202	0.474
UCSPW202-9	9/16	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS202-9	PW202	0.474
UCSPW202-10	5/8	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS202-10	PW202	0.474
UCSPW203	17	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS203	PW203	0.464
UCSPW203-11	11/16	1-3/16	2-31/64	1-27/32	1-3/16	M8	25/64	7/16	2-1/4	1.0787	0.4528	M8	UCS203-11	PW203	0.454
UCPW204	20	33.3	65	50.8	32	M8	15	14.5	64	31	12.7	M8	UC204	PW204	0.493
UCPW204-12	3/4	1-5/16	2-9/16	2	1-17/64	M8	19/32	37/64	2-33/64	1.2205	0.500	M8	UC204-12	PW204	0.493
UCPW205	25	36.5	70	50.8	36	M10	15	13	70	34.1	14.3	M10	UC205	PW205	0.593
UCPW205-13	13/16	1-7/16	2-3/4	2	1-27/64	M10	19/32	33/64	2-3/4	1.3425	0.563	M10	UC205-13	PW205	0.63
UCPW205-14	7/8	1-7/16	2-3/4	2	1-27/64	M10	19/32	33/64	2-3/4	1.3425	0.563	M10	UC205-14	PW205	0.62
UCPW205-15	15/16	1-7/16	2-3/4	2	1-27/64	M10	19/32	33/64	2-3/4	1.3425	0.563	M10	UC205-15	PW205	0.6
UCPW205-16	1	1-7/16	2-3/4	2	1-27/64	M10	19/32	33/64	2-3/4	1.3425	0.563	M10	UC205-16	PW205	0.59
UCPW206	30	42.9	98	76.2	40	M10	18	16	82	38.1	15.9	M10	UC206	PW206	1.108
UCPW206-17	1-1/16	1-11/16	3-55/64	3	1-37/64	M10	45/64	5/8	3-15/64	1.5000	0.626	M10	UC206-17	PW206	1.118
UCPW206-18	1-1/8	1-11/16	3-55/64	3	1-37/64	M10	45/64	5/8	3-15/64	1.5000	0.626	M10	UC206-18	PW206	1.128
UCPW206-19	1-3/16	1-11/16	3-55/64	3	1-37/64	M10	45/64	5/8	3-15/64	1.5000	0.626	M10	UC206-19	PW206	1.108
UCPW206-20	1-1/4	1-11/16	3-55/64	3	1-37/64	M10	45/64	5/8	3-15/64	1.5000	0.626	M10	UC206-20	PW206	1.098
UCPW207	35	47.6	103	82.6	45	M10	20	19	93	42.9	17.5	M10	UC207	PW207	1.436
UCPW207-20	1-1/4	1-7/8	4-1/16	3-1/4	1-49/64	M10	25/32	3/4	3-21/32	1.6890	0.689	M10	UC207-20	PW207	1.501
UCPW207-21	1-5/16	1-7/8	4-1/16	3-1/4	1-49/64	M10	25/32	3/4	3-21/32	1.6890	0.689	M10	UC207-21	PW207	1.471
UCPW207-22	1-3/8	1-7/8	4-1/16	3-1/4	1-49/64	M10	25/32	3/4	3-21/32	1.6890	0.689	M10	UC207-22	PW207	1.441
UCPW207-23	1-7/16	1-7/8	4-1/16	3-1/4	1-49/64	M10	25/32	3/4	3-21/32	1.6890	0.689	M10	UC207-23	PW207	1.411
UCPW208	40	49.2	116	88.9	48	M12	20	19	99	49.2	19	M12	UC208	PW208	1.761
UCPW208-24	1-1/2	1-15/16	4-9/16	3-1/2	1-57/64	M12	25/32	3/4	3-57/64	1.9370	0.748	M12	UC208-24	PW208	1.801
UCPW208-25	1-9/16	1-15/16	4-9/16	3-1/2	1-57/64	M12	25/32	3/4	3-57/64	1.9370	0.748	M12	UC208-25	PW208	1.771
UCPW209	45	53.9	120	95.3	48	M12	25	19	107	49.2	19	M12	UC209	PW209	1.99
UCPW209-26	1-5/8	2-1/8	4-23/32	3-3/4	1-57/64	M12	63/64	3/4	4-7/32	1.9370	0.748	M12	UC209-26	PW209	2.09
UCPW209-27	1-11/16	2-1/8	4-23/32	3-3/4	1-57/64	M12	63/64	3/4	4-7/32	1.9370	0.748	M12	UC209-27	PW209	2.05
UCPW209-28	1-3/4	2-1/8	4-23/32	3-3/4	1-57/64	M12	63/64	3/4	4-7/32	1.9370	0.748	M12	UC209-28	PW209	2.01
UCPW210	50	57.2	135	101.6	54	M16	25	22	115	51.6	19	M16	UC210	PW210	2.642
UCPW210-29	1-13/16	2-1/4	5-5/16	4	2-1/8	M16	63/64	55/64	4-17/32	2.0315	0.748	M16	UC210-29	PW210	2.762
UCPW210-30	1-7/8	2-1/4	5-5/16	4	2-1/8	M16	63/64	55/64	4-17/32	2.0315	0.748	M16	UC210-30	PW210	2.712
UCPW210-31	1-15/16	2-1/4	5-5/16	4	2-1/8	M16	63/64	55/64	4-17/32	2.0315	0.748	M16	UC210-31	PW210	2.662
UCPW210-32	2	2-1/4	5-5/16	4	2-1/8	M16	63/64	55/64	4-17/32	2.0315	0.748	M16	UC210-32	PW210	2.622

Designation	d (mm/in)	h (mm/in)	a (mm/in)	e (mm/in)	b (mm/in)	s (mm/in)	g (mm/in)	I (mm/in)	w (mm/in)	B (mm/in)	n (mm/in)	Bolt Size (mm/in)	Bearing No.	Housing No.	Mass (kg)
UCTB204	20	33.3	65	50.8	32	3/8-16 UNF	14.5	15	64	31	12.7	3/8-16 UNF	UC204	TB204	0.489
UCTB204-12	3/4	1-5/16	2-9/16	2	1-17/64	3/8-16 UNF	37/64	19/32	2-33/64	1.2205	0.500	3/8-16 UNF	UC204-12	TB204	0.489
UCTB205	25	36.5	70	50.8	36	3/8-16 UNF	13	15	70	34.1	14.3	3/8-16 UNF	UC205	TB205	0.593
UCTB205-13	13/16	1-7/16	2-3/4	2	1-27/64	3/8-16 UNF	33/64	19/32	2-3/4	1.3425	0.563	3/8-16 UNF	UC205-13	TB205	0.63
UCTB205-14	7/8	1-7/16	2-3/4	2	1-27/64	3/8-16 UNF	33/64	19/32	2-3/4	1.3425	0.563	3/8-16 UNF	UC205-14	TB205	0.62
UCTB205-15	15/16	1-7/16	2-3/4	2	1-27/64	3/8-16 UNF	33/64	19/32	2-3/4	1.3425	0.563	3/8-16 UNF	UC205-15	TB205	0.6
UCTB205-16	1	1-7/16	2-3/4	2	1-27/64	3/8-16 UNF	33/64	19/32	2-3/4	1.3425	0.563	3/8-16 UNF	UC205-16	TB205	0.59
UCTB206	30	42.9	98	76.2	40	7/16-14 UNF	16	18	82	38.1	15.9	7/16-14 UNF	UC206	TB206	1.11
UCTB206-17	1-1/16	1-11/16	3-55/64	3	1-37/64	7/16-14 UNF	5/8	45/64	3-15/64	1.5000	0.626	7/16-14 UNF	UC206-17	TB206	1.12
UCTB206-18	1-1/8	1-11/16	3-55/64	3	1-37/64	7/16-14 UNF	5/8	45/64	3-15/64	1.5000	0.626	7/16-14 UNF	UC206-18	TB206	1.13
UCTB206-19	1-3/16	1-11/16	3-55/64	3	1-37/64	7/16-14 UNF	5/8	45/64	3-15/64	1.5000	0.626	7/16-14 UNF	UC206-19	TB206	1.11
UCTB206-20	1-1/4	1-11/16	3-55/64	3	1-37/64	7/16-14 UNF	5/8	45/64	3-15/64	1.5000	0.626	7/16-14 UNF	UC206-20	TB206	1.1
UCTB207	35	47.6	103	82.6	45	1/2-13 UNF	19	20	93	42.9	17.5	1/2-13 UNF	UC207	TB207	1.425
UCTB207-20	1-1/4	1-7/8	4-1/16	3-1/4	1-49/64	1/2-13 UNF	3/4	25/32	3-21/32	1.6890	0.689	1/2-13 UNF	UC207-20	TB207	1.49
UCTB207-21	1-5/16	1-7/8	4-1/16	3-1/4	1-49/64	1/2-13 UNF	3/4	25/32	3-21/32	1.6890	0.689	1/2-13 UNF	UC207-21	TB207	1.46
UCTB207-22	1-3/8	1-7/8	4-1/16	3-1/4	1-49/64	1/2-13 UNF	3/4	25/32	3-21/32	1.6890	0.689	1/2-13 UNF	UC207-22	TB207	1.43
UCTB207-23	1-7/16	1-7/8	4-1/16	3-1/4	1-49/64	1/2-13 UNF	3/4	25/32	3-21/32	1.6890	0.689	1/2-13 UNF	UC207-23	TB207	1.4
UCTB208	40	49.2	116	88.9	48	1/2-13 UNF	19	20	99	49.2	19	1/2-13 UNF	UC208	TB208	1.759
UCTB208-24	1-1/2	1-15/16	4-9/16	3-1/2	1-57/64	1/2-13 UNF	3/4	25/32	3-57/64	1.9370	0.748	1/2-13 UNF	UC208-24	TB208	1.799
UCTB208-25	1-9/16	1-15/16	4-9/16	3-1/2	1-57/64	1/2-13 UNF	3/4	25/32	3-57/64	1.9370	0.748	1/2-13 UNF	UC208-25	TB208	1.769
UCTB209	45	53.9	120	95.3	48	1/2-13 UNF	19	25	107	49.2	19	1/2-13 UNF	UC209	TB209	1.99
UCTB209-26	1-5/8	2-1/8	4-23/32	3-3/4	1-57/64	1/2-13 UNF	3/4	63/64	4-7/32	1.9370	0.748	1/2-13 UNF	UC209-26	TB209	2.09
UCTB209-27	1-11/16	2-1/8	4-23/32	3-3/4	1-57/64	1/2-13 UNF	3/4	63/64	4-7/32	1.9370	0.748	1/2-13 UNF	UC209-27	TB209	2.05
UCTB209-28	1-3/4	2-1/8	4-23/32	3-3/4	1-57/64	1/2-13 UNF	3/4	63/64	4-7/32	1.9370	0.748	1/2-13 UNF	UC209-28	TB209	2.01
UCTB210	50	57.2	135	101.6	54	5/8-11 UNF	22	25	115	51.6	19	5/8-11 UNF	UC210	TB210	2.655
UCTB210-29	1-13/16	2-1/4	5-5/16	4	2-1/8	5/8-11 UNF	55/64	63/64	4-17/32	2.0315	0.748	5/8-11 UNF	UC210-29	TB210	2.775
UCTB210-30	1-7/8	2-1/4	5-5/16	4	2-1/8	5/8-11 UNF	55/64	63/64	4-17/32	2.0315	0.748	5/8-11 UNF	UC210-30	TB210	2.725
UCTB210-31	1-15/16	2-1/4	5-5/16	4	2-1/8	5/8-11 UNF	55/64	63/64	4-17/32	2.0315	0.748	5/8-11 UNF	UC210-31	TB210	2.675
UCTB210-32	2	2-1/4	5-5/16	4	2-1/8	5/8-11 UNF	55/64	63/64	4-17/32	2.0315	0.748	5/8-11 UNF	UC210-32	TB210	2.635

Designation	d (mm/in)	H (mm)	L (mm)	J (mm)	A (mm)	G (mm)	H1 (mm)	Ho (mm)	M (mm)	B1 (mm)	s (mm)	Bolt Size (mm)	Bearing No.	Housing No.	Mass (kg)
UEPA204	20	30.2	76	52	38	13	11	62	M10	33	12.7	M10	UE204	PA204	0.65
UEPA204-12	3/4	30.2	76	52	38	13	11	62	M10	33	12.7	M10	UE204-12	PA204	0.65
UEPA205	25	36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	UE205	PA205	0.85
UEPA205-14	7/8	36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	UE205-14	PA205	0.85
UEPA205-15	15/16	36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	UE205-15	PA205	0.85
UEPA205-16	1	36.5	84	56	38	15	12	72	M10	35.4	14.3	M10	UE205-16	PA205	0.85
UEPA206	30	42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	UE206	PA206	1.3
UEPA206-17	1-1/16	42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	UE206-17	PA206	1.3
UEPA206-18	1-1/8	42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	UE206-18	PA206	1.3
UEPA206-19	1-3/16	42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	UE206-19	PA206	1.3
UEPA206-20	1-1/4	42.9	94	66	48	18	12	84	M14	39.8	15.9	M14	UE206-20	PA206	1.3
UEPA207	35	47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	UE207	PA207	1.7
UEPA207-20	1-1/4	47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	UE207-20	PA207	1.7
UEPA207-21	1-5/16	47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	UE207-21	PA207	1.7
UEPA207-22	1-3/8	47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	UE207-22	PA207	1.7
UEPA207-23	1-7/16	47.6	110	80	48	20	13	95	M14	43.9	17.5	M14	UE207-23	PA207	1.7
UEPA208	40	49.2	116	84	54	20	13	100	M14	50.2	19.0	M14	UE208	PA208	2.12
UEPA208-24	1-1/2	49.2	116	84	54	20	13	100	M14	50.2	19.0	M14	UE208-24	PA208	2.12
UEPA208-25	1-9/16	49.2	116	84	54	20	13	100	M14	50.2	19.0	M14	UE208-25	PA208	2.12
UEPA209	45	54.2	120	90	54	25	13	108	M14	50.2	19.0	M14	UE209	PA209	2.54
UEPA209-26	1-5/8	54.2	120	90	54	25	13	108	M14	50.2	19.0	M14	UE209-26	PA209	2.54
UEPA209-27	1-11/16	54.2	120	90	54	25	13	108	M14	50.2	19.0	M14	UE209-27	PA209	2.54
UEPA209-28	1-3/4	54.2	120	90	54	25	13	108	M14	50.2	19.0	M14	UE209-28	PA209	2.54
UEPA210	50	57.2	130	94	60	25	14	116	M16	52.6	19.0	M16	UE210	PA210	3.25
UEPA210-30	1-7/8	57.2	130	94	60	25	14	116	M16	52.6	19.0	M16	UE210-30	PA210	3.25
UEPA210-31	1-15/16	57.2	130	94	60	25	14	116	M16	52.6	19.0	M16	UE210-31	PA210	3.25
UEPA210-32	2	57.2	130	94	60	25	14	116	M16	52.6	19.0	M16	UE210-32	PA210	3.25
UEPA211	55	63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	UE211	PA211	3.63
UEPA211-32	2	63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	UE211-32	PA211	3.63
UEPA211-34	2-1/8	63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	UE211-34	PA211	3.63
UEPA211-35	2-3/16	63.5	140	104	66	25	14	125	Ml 6	56.6	22.2	M16	UE211-35	PA211	3.63
UEPA212	60	69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	UE212	PA212	4.7
UEPA212-36	2-1/4	69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	UE212-36	PA212	4.7
UEPA212-38	2-3/8	69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	UE212-38	PA212	4.7
UEPA212-39	2-7/16	69.9	150	114	68	25	17	138	M16	66.6	25.4	M16	UE212-39	PA212	4.7

Pillow Block Ball Bearing Units

Specifications of Pillow Block Ball Bearing Units

The Preferred Supplier Of Heavy Duty Bearings In The Industry

REQUEST A QUOTE
