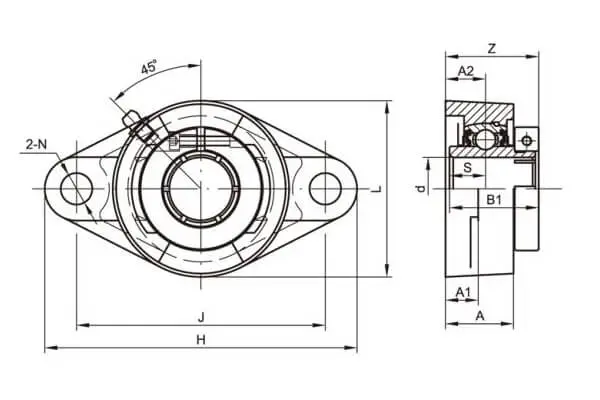

2 – bolt oval flange bearing housing units accommodate various industrial applications due to the wide range of designs. Besides, the bearing housings material commonly come with cast iron, stainless steel, pressed steel and plastic, while the insert bearings are usually made of chrome steel, stainless steel, plastic and ceramic. Therefore, these mounted bearings could withstand different application conditions, for instance, moisture, corrosion, high or low temperature. Furthermore, the 2 – bolt oval flange bearing housing units could be equipped with diverse locking devices, including set screw, eccentric locking collar, concentric locking collar and adapter sleeve. Axis supplies these products in full range of designs and materials.
| Designation | d (mm/in) | a (mm/in) | e (mm/in) | i (mm/in) | g (mm/in) | I (mm/in) | s (mm/in) | b (mm/in) | z (mm/in) | t (mm/in) | B (mm/in) | n (mm/in) | Bolt Size (mm/in) | Bearing No. | Housing No. | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCFL201 | 12 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 33.3 | 37.5 | 31 | 12.7 | M10 | UC201 | FL201 | 0.45 |
| UCFL201-8 | 1/2 | 4-7/16 | 3-35/64 | 19/32 | 7/16 | 1 | 15/32 | 2-3/8 | 1-5/16 | 1-31/64 | 1.2205 | 0.5 | 3/8 | UC201-8 | FL201 | 0.44 |
| UCFL202 | 15 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 33.3 | 37.5 | 31 | 12.7 | M10 | UC202 | FL202 | 0.44 |
| UCFL202-9 | 9/16 | 4-7/16 | 3-35/64 | 19/32 | 7/16 | 1 | 15/32 | 2-3/8 | 1-5/16 | 1-31/64 | 1.2205 | 0.5 | 3/8 | UC202-9 | FL202 | 0.44 |
| UCFL202-10 | 5/8 | 4-7/16 | 3-35/64 | 19/32 | 7/16 | 1 | 15/32 | 2-3/8 | 1-5/16 | 1-31/64 | 1.2205 | 0.5 | 3/8 | UC202-10 | FL202 | 0.44 |
| UCFL203 | 17 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 33.3 | 37.5 | 31 | 12.7 | M10 | UC203 | FL203 | 0.43 |
| UCFL203-11 | 11/16 | 4-7/16 | 3-35/64 | 19/32 | 7/16 | 1 | 15/32 | 2-3/8 | 1-5/16 | 1-31/64 | 1.2205 | 0.5 | 3/8 | UC203-11 | FL203 | 0.42 |
| UCFL204 | 20 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 33.3 | 37.5 | 31 | 12.7 | M10 | UC204 | FL204 | 0.4 |
| UCFL204-12 | 3/4 | 4-7/16 | 3-35/64 | 19/32 | 7/16 | 1 | 15/32 | 2-3/8 | 1-5/16 | 1-31/64 | 1.2205 | 0.5 | 3/8 | UC204-12 | FL204 | 0.4 |
| UCFL205 | 25 | 130 | 99 | 16 | 13 | 27 | 16 | 68 | 35.8 | 40 | 34.1 | 14.3 | M14 | UC205 | FL205 | 0.58 |
| UCFL305 | 25 | 150 | 113 | 16 | 13 | 29 | 19 | 80 | 39 | 38 | 15 | - | M16 | UC305 | FL305 | 0.891 |
| UCFL205-13 | 13/16 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-13/32 | 1-9/16 | 1.3425 | 0.563 | 1/2 | UC205-13 | FL205 | 0.62 |
| UCFL305-13 | 13/16 | 5-29/32 | 4-7/16 | 5/8 | 1/2 | 1-5/32 | 3/4 | 3-5/32 | 1-17/32 | 1.4961 | 0.591 | - | 5/8 | UC305-13 | FL305 | 0.941 |
| UCFL205-14 | 7/8 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-13/32 | 1-9/16 | 1.3425 | 0.563 | 1/2 | UC205-14 | FL205 | 0.61 |
| UCFL305-14 | 7/8 | 5-29/32 | 4-7/16 | 5/8 | 1/2 | 1-5/32 | 3/4 | 3-5/32 | 1-17/32 | 1.4961 | 0.591 | - | 5/8 | UC305-14 | FL305 | 0.921 |
| UCFL205-15 | 15/16 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-13/32 | 1-9/16 | 1.3425 | 0.563 | 1/2 | UC205-15 | FL205 | 0.59 |
| UCFL305-15 | 15/16 | 5-29/32 | 4-7/16 | 5/8 | 1/2 | 1-5/32 | 3/4 | 3-5/32 | 1-17/32 | 1.4961 | 0.591 | - | 5/8 | UC305-15 | FL305 | 0.901 |
| UCFL205-16 | 1 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-13/32 | 1-9/16 | 1.3425 | 0.563 | 1/2 | UC205-16 | FL205 | 0.58 |
| UCFL305-16 | 1 | 5-29/32 | 4-7/16 | 5/8 | 1/2 | 1-5/32 | 3/4 | 3-5/32 | 1-17/32 | 1.4961 | 0.591 | - | 5/8 | UC305-16 | FL305 | 0.891 |
| UCFL206 | 30 | 148 | 117 | 18 | 13 | 31 | 16 | 80 | 40.2 | 44.5 | 38.1 | 15.9 | M14 | UC206 | FL206 | 0.83 |
| UCFL306 | 30 | 180 | 134 | 18 | 15 | 32 | 23 | 90 | 44 | 43 | 17 | - | M20 | UC306 | FL306 | 1.365 |
| UCFL206-17 | 1-1/16 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-19/32 | 1-3/4 | 1.5 | 0.626 | 1/2 | UC206-17 | FL206 | 0.84 |
| UCFL306-17 | 1-1/16 | 7-3/32 | 5-9/32 | 45/64 | 19/32 | 1-1/4 | 29/32 | 3-17/32 | 1-47/64 | 1.6929 | 0.669 | - | 3/4 | UC306-17 | FL306 | 1.419 |
| UCFL206-18 | 1-1/8 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-19/32 | 1-3/4 | 1.5 | 0.626 | 1/2 | UC206-18 | FL206 | 0.85 |
| UCFL306-18 | 1-1/8 | 7-3/32 | 5-9/32 | 45/64 | 19/32 | 1-1/4 | 29/32 | 3-17/32 | 1-47/64 | 1.6929 | 0.669 | - | 3/4 | UC306-18 | FL306 | 1.389 |
| UCFL206-19 | 1-3/16 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-19/32 | 1-3/4 | 1.5 | 0.626 | 1/2 | UC206-19 | FL206 | 0.83 |
| UCFL306-19 | 1-3/16 | 7-3/32 | 5-9/32 | 45/64 | 19/32 | 1-1/4 | 29/32 | 3-17/32 | 1-47/64 | 1.6929 | 0.669 | - | 3/4 | UC306-19 | FL306 | 1.369 |
| UCFL206-20 | 1-1/4 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-19/32 | 1-3/4 | 1.5 | 0.626 | 1/2 | UC206-20 | FL206 | 0.82 |
| UCFL207 | 35 | 161 | 130 | 19 | 14 | 34 | 16 | 90 | 44.4 | 48.5 | 42.9 | 17.5 | M14 | UC207 | FL207 | 1.1 |
| UCFL307 | 35 | 185 | 141 | 20 | 16 | 36 | 23 | 100 | 49 | 48 | 19 | - | M20 | UC307 | FL307 | 1.674 |
| UCFL207-20 | 1-1/4 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 1-3/4 | 1-29/32 | 1.689 | 0.689 | 1/2 | UC207-20 | FL207 | 1.16 |
| UCFL307-20 | 1-1/4 | 7-9/32 | 5-35/64 | 25/32 | 5/8 | 1-13/32 | 29/32 | 3-15/16 | 1-59/64 | 1.8898 | 0.748 | - | 3/4 | UC307-20 | FL307 | 1.73 |
| UCFL207-21 | 1-5/16 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 1-3/4 | 1-29/32 | 1.689 | 0.689 | 1/2 | UC207-21 | FL207 | 1.13 |
| UCFL307-21 | 1-5/16 | 7-9/32 | 5-35/64 | 25/32 | 5/8 | 1-13/32 | 29/32 | 3-15/16 | 1-59/64 | 1.8898 | 0.748 | - | 3/4 | UC307-21 | FL307 | 1.7 |
| UCFL207-22 | 1-3/8 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 1-3/4 | 1-29/32 | 1.689 | 0.689 | 1/2 | UC207-22 | FL207 | 1.1 |
| UCFL307-22 | 1-3/8 | 7-9/32 | 5-35/64 | 25/32 | 5/8 | 1-13/32 | 29/32 | 3-15/16 | 1-59/64 | 1.8898 | 0.748 | - | 3/4 | UC307-22 | FL307 | 1.67 |
| UCFL207-23 | 1-7/16 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 1-3/4 | 1-29/32 | 1.689 | 0.689 | 1/2 | UC207-23 | FL207 | 1.07 |
| UCFL307-23 | 1-7/16 | 7-9/32 | 5-35/64 | 25/32 | 5/8 | 1-13/32 | 29/32 | 3-15/16 | 1-59/64 | 1.8898 | 0.748 | - | 3/4 | UC307-23 | FL307 | 1.64 |
| UCFL208 | 40 | 175 | 144 | 21 | 14 | 36 | 16 | 100 | 51.2 | 55.5 | 49.2 | 19 | M14 | UC208 | FL208 | 1.42 |
| UCFL308 | 40 | 200 | 158 | 23 | 17 | 40 | 23 | 112 | 56 | 52 | 19 | - | M20 | UC308 | FL308 | 2.199 |
| UCFL208-24 | 1-1/2 | 6-7/8 | 5-43/64 | 53/64 | 35/64 | 1-13/32 | 5/8 | 3-15/16 | 2-1/64 | 2-3/16 | 1.937 | 0.748 | 1/2 | UC208-24 | FL208 | 1.46 |
| UCFL308-24 | 1-1/2 | 7-7/8 | 6-7/32 | 29/32 | 21/32 | 1-9/16 | 29/32 | 4-13/32 | 1-13/64 | 2.0472 | 0.748 | - | 3/4 | UC308-24 | FL308 | 2.245 |
| UCFL208-25 | 1-9/16 | 6-7/8 | 5-43/64 | 53/64 | 35/64 | 1-13/32 | 5/8 | 3-15/16 | 2-1/64 | 2-3/16 | 1.937 | 0.748 | 1/2 | UC208-25 | FL208 | 1.43 |
| UCFL308-25 | 1-9/16 | 7-7/8 | 6-7/32 | 29/32 | 21/32 | 1-9/16 | 29/32 | 4-13/32 | 1-13/64 | 2.0472 | 0.748 | - | 3/4 | UC308-25 | FL308 | 2.205 |
| UCFL209 | 45 | 188 | 148 | 22 | 15 | 38 | 19 | 108 | 52.2 | 56.5 | 49.2 | 19 | M16 | UC209 | FL209 | 1.75 |
| UCFL309 | 45 | 230 | 177 | 25 | 18 | 44 | 25 | 125 | 60 | 57 | 22 | - | M22 | UC309 | FL309 | 3.117 |
| UCFL209-26 | 1-5/8 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 2-1/16 | 2-7/32 | 1.937 | 0.748 | 5/8 | UC209-26 | FL209 | 1.85 |
| UCFL309-26 | 1-5/8 | 9-1/16 | 6-31/32 | 63/64 | 23/32 | 1-23/32 | 63/64 | 4-29/32 | 2-23/64 | 2.2441 | 0.866 | - | 7/8 | UC309-26 | FL309 | 3.212 |
| UCFL209-27 | 1-11/16 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 2-1/16 | 2-7/32 | 1.937 | 0.748 | 5/8 | UC209-27 | FL209 | 1.81 |
| UCFL309-27 | 1-11/16 | 9-1/16 | 6-31/32 | 63/64 | 23/32 | 1-23/32 | 63/64 | 4-29/32 | 2-23/64 | 2.2441 | 0.866 | - | 7/8 | UC309-27 | FL309 | 3.172 |
| UCFL209-28 | 1-3/4 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 2-1/16 | 2-7/32 | 1.937 | 0.748 | 5/8 | UC209-28 | FL209 | 1.77 |
| UCFL309-28 | 1-3/4 | 9-1/16 | 6-31/32 | 63/64 | 23/32 | 1-23/32 | 63/64 | 4-29/32 | 2-23/64 | 2.2441 | 0.866 | - | 7/8 | UC309-28 | FL309 | 3.122 |
| UCFL210 | 50 | 197 | 157 | 22 | 15 | 40 | 19 | 115 | 54.6 | 59.5 | 51.6 | 19 | M16 | UC210 | FL210 | 2.02 |
| UCFL310 | 50 | 240 | 187 | 28 | 19 | 48 | 25 | 140 | 67 | 61 | 22 | - | M22 | UC310 | FL310 | 3.993 |
| UCFL210-29 | 1-13/16 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 2-5/32 | 2-11/32 | 2.0315 | 0.748 | 5/8 | UC210-29 | FL210 | 2.14 |
| UCFL310-29 | 1-13/16 | 9-7/16 | 7-23/64 | 1-7/64 | 3/4 | 1-7/8 | 63/64 | 5-1/2 | 2-41/64 | 2.40161 | 0.866 | - | 7/8 | UC310-29 | FL310 | 4.336 |
| UCFL210-30 | 1-7/8 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 2-5/32 | 2-11/32 | 2.0315 | 0.748 | 5/8 | UC210-30 | FL210 | 2.09 |
| UCFL310-30 | 1-7/8 | 9-7/16 | 7-23/64 | 1-7/64 | 3/4 | 1-7/8 | 63/64 | 5-1/2 | 2-41/64 | 2.40161 | 0.866 | - | 7/8 | UC310-30 | FL310 | 4.086 |
| UCFL210-31 | 1-15/16 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 2-5/32 | 2-11/32 | 2.0315 | 0.748 | 5/8 | UC210-31 | FL210 | 2.04 |
| UCFL310-31 | 1-15/16 | 9-7/16 | 7-23/64 | 1-7/64 | 3/4 | 1-7/8 | 63/64 | 5-1/2 | 2-41/64 | 2.40161 | 0.866 | - | 7/8 | UC310-31 | FL310 | 4.026 |
| UCFL210-32 | 2 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 2-5/32 | 2-11/32 | 2.0315 | 0.748 | 5/8 | UC210-32 | FL210 | 2 |
| UCFL211 | 55 | 224 | 184 | 25 | 18 | 43 | 19 | 130 | 58.4 | 63 | 55.6 | 22.2 | M16 | UC211 | FL211 | 2.79 |
| UCFL311 | 55 | 250 | 198 | 30 | 20 | 52 | 25 | 150 | 71 | 66 | 25 | - | M22 | UC311 | FL311 | 4.79 |
| UCFL211-32 | 2 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-5/16 | 2-15/32 | 2.189 | 0.874 | 5/8 | UC211-32 | FL211 | 2.94 |
| UCFL311-32 | 2 | 9-27/32 | 7-51/64 | 1-3/16 | 25/32 | 2-1/16 | 63/64 | 5-29/32 | 2-51/64 | 2.5984 | 0.984 | - | 7/8 | UC311-32 | FL311 | 4.97 |
| UCFL211-33 | 2-1/16 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-5/16 | 2-15/32 | 2.189 | 0.874 | 5/8 | UC211-33 | FL211 | 2.88 |
| UCFL311-33 | 2-1/16 | 9-27/32 | 7-51/64 | 1-3/16 | 25/32 | 2-1/16 | 63/64 | 5-29/32 | 2-51/64 | 2.5984 | 0.984 | - | 7/8 | UC311-33 | FL311 | 4.9 |
| UCFL211-34 | 2-1/8 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-5/16 | 2-15/32 | 2.189 | 0.874 | 5/8 | UC211-34 | FL211 | 2.84 |
| UCFL311-34 | 2-1/8 | 9-27/32 | 7-51/64 | 1-3/16 | 25/32 | 2-1/16 | 63/64 | 5-29/32 | 2-51/64 | 2.5984 | 0.984 | - | 7/8 | UC311-34 | FL311 | 4.84 |
| UCFL211-35 | 2-3/16 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-5/16 | 2-15/32 | 2.189 | 0.874 | 5/8 | UC211-35 | FL211 | 2.77 |
| UCFL311-35 | 2-3/16 | 9-27/32 | 7-51/64 | 1-3/16 | 25/32 | 2-1/16 | 63/64 | 5-29/32 | 2-51/64 | 2.5984 | 0.984 | - | 7/8 | UC311-35 | FL311 | 4.76 |
| UCFL212 | 60 | 250 | 202 | 29 | 18 | 48 | 23 | 140 | 68.7 | 73.5 | 65.1 | 25.4 | M20 | UC212 | FL212 | 3.65 |
| UCFL312 | 60 | 270 | 212 | 33 | 22 | 56 | 31 | 160 | 78 | 71 | 26 | - | M27 | UC312 | FL312 | 5.771 |
| UCFL212-36 | 2-1/4 | 9-27/32 | 7-61/64 | 1-9/64 | 23/32 | 1-7/8 | 29/32 | 5-1/2 | 2-23/32 | 2-57/64 | 2.563 | 1 | 3/4 | UC212-36 | FL212 | 3.78 |
| UCFL312-36 | 2-1/4 | 10-5/8 | 8-11/32 | 1-19/64 | 7/8 | 2-7/32 | 1-7/32 | 6-5/64 | 3-5/64 | 2.7953 | 1.024 | - | 1 | UC312-36 | FL312 | 5.921 |
| UCFL212-37 | 2-5/16 | 9-27/32 | 7-61/64 | 1-9/64 | 23/32 | 1-7/8 | 29/32 | 5-1/2 | 2-23/32 | 2-57/64 | 2.563 | 1 | 3/4 | UC212-37 | FL212 | 3.7 |
| UCFL312-37 | 2-5/16 | 10-5/8 | 8-11/32 | 1-19/64 | 7/8 | 2-7/32 | 1-7/32 | 6-5/64 | 3-5/64 | 2.7953 | 1.024 | - | 1 | UC312-37 | FL312 | 5.841 |
| UCFL212-38 | 2-3/8 | 9-27/32 | 7-61/64 | 1-9/64 | 23/32 | 1-7/8 | 29/32 | 5-1/2 | 2-23/32 | 2-57/64 | 2.563 | 1 | 3/4 | UC212-38 | FL212 | 3.63 |
| UCFL312-38 | 2-3/8 | 10-5/8 | 8-11/32 | 1-19/64 | 7/8 | 2-7/32 | 1-7/32 | 6-5/64 | 3-5/64 | 2.7953 | 1.024 | - | 1 | UC312-38 | FL312 | 5.751 |
| UCFL212-39 | 2-7/16 | 9-27/32 | 7-61/64 | 1-9/64 | 23/32 | 1-7/8 | 29/32 | 5-1/2 | 2-23/32 | 2-57/64 | 2.563 | 1 | 3/4 | UC212-39 | FL212 | 3.56 |
| UCFL312-39 | 2-7/16 | 10-5/8 | 8-11/32 | 1-19/64 | 7/8 | 2-7/32 | 1-7/32 | 6-5/64 | 3-5/64 | 2.7953 | 1.024 | - | 1 | UC312-39 | FL312 | 5.671 |
| UCFL213 | 65 | 258 | 210 | 30 | 22 | 50 | 23 | 155 | 69.7 | 74.5 | 65.1 | 25.4 | M20 | UC213 | FL213 | 4.56 |
| UCFL313 | 65 | 295 | 240 | 33 | 25 | 58 | 31 | 175 | 78 | 75 | 30 | - | M27 | UC313 | FL313 | 7.377 |
| UCFL213-40 | 2-1/2 | 10-5/32 | 8-17/64 | 1-3/16 | 7/8 | 1-31/32 | 29/32 | 6-3/32 | 2-3/4 | 2-15/16 | 2.563 | 1 | 3/4 | UC213-40 | FL213 | 4.65 |
| UCFL313-40 | 2-1/2 | 11-5/8 | 9-29/64 | 1-19/64 | 31/32 | 2-9/32 | 1-7/32 | 6-7/8 | 3-5/64 | 2.9528 | 1.181 | - | 1 | UC313-40 | FL313 | 7.463 |
| UCFL213-41 | 2-9/16 | 10-5/32 | 8-17/64 | 1-3/16 | 7/8 | 1-31/32 | 29/32 | 6-3/32 | 2-3/4 | 2-15/16 | 2.563 | 1 | 3/4 | UC213-41 | FL213 | 4.56 |
| UCFL313-41 | 2-9/16 | 11-5/8 | 9-29/64 | 1-19/64 | 31/32 | 2-9/32 | 1-7/32 | 6-7/8 | 3-5/64 | 2.9528 | 1.181 | - | 1 | UC313-41 | FL313 | 7.363 |
| UCFL214 | 70 | 265 | 216 | 31 | 22 | 54 | 23 | 160 | 75.4 | 81.5 | 74.6 | 30.2 | M20 | UC214 | FL214 | 5.12 |
| UCFL314 | 70 | 315 | 250 | 36 | 28 | 61 | 35 | 185 | 81 | 78 | 33 | - | M30 | UC314 | FL314 | 8.716 |
| UCFL214-42 | 2-5/8 | 10-7/16 | 8-1/2 | 1-7/32 | 7/8 | 2-1/8 | 29/32 | 6-5/16 | 2-31/32 | 3-13/64 | 2.937 | 1.189 | 3/4 | UC214-42 | FL214 | 5.33 |
| UCFL314-42 | 2-5/8 | 12-13/32 | 9-27/32 | 1-27/64 | 1-3/32 | 2-13/32 | 1-3/8 | 7-9/32 | 3-3/16 | 3.0708 | 1.299 | - | 1-1/8 | UC314-42 | FL314 | 8.936 |
| UCFL214-43 | 2-11/16 | 10-7/16 | 8-1/2 | 1-7/32 | 7/8 | 2-1/8 | 29/32 | 6-5/16 | 2-31/32 | 3-13/64 | 2.937 | 1.189 | 3/4 | UC214-43 | FL214 | 5.23 |
| UCFL314-43 | 2-11/16 | 12-13/32 | 9-27/32 | 1-27/64 | 1-3/32 | 2-13/32 | 1-3/8 | 7-9/32 | 3-3/16 | 3.0708 | 1.299 | - | 1-1/8 | UC314-43 | FL314 | 8.826 |
| UCFL214-44 | 2-3/4 | 10-7/16 | 8-1/2 | 1-7/32 | 7/8 | 2-1/8 | 29/32 | 6-5/16 | 2-31/32 | 3-13/64 | 2.937 | 1.189 | 3/4 | UC214-44 | FL214 | 5.13 |
| UCFL314-44 | 2-3/4 | 12-13/32 | 9-27/32 | 1-27/64 | 1-3/32 | 2-13/32 | 1-3/8 | 7-9/32 | 3-3/16 | 3.0708 | 1.299 | - | 1-1/8 | UC314-44 | FL314 | 8.726 |
| UCFL215 | 75 | 275 | 225 | 34 | 22 | 56 | 23 | 165 | 78.5 | 83.5 | 77.8 | 33.3 | M20 | UC215 | FL215 | 5.64 |
| UCFL315 | 75 | 320 | 260 | 39 | 30 | 66 | 35 | 195 | 89 | 82 | 32 | - | M30 | UC315 | FL315 | 10.02 |
| UCFL215-45 | 2-13/16 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 2-7/32 | 29/32 | 6-1/2 | 3-3/32 | 3-9/32 | 3.063 | 1.311 | 3/4 | UC215-45 | FL215 | 5.61 |
| UCFL315-45 | 2-13/16 | 12-19/32 | 10-15/64 | 1-17/32 | 1-3/16 | 2-19/32 | 1-3/8 | 7-11/16 | 3-1/2 | 3.2283 | 1.26 | - | 1-1/8 | UC315-45 | FL315 | 10.29 |
| UCFL215-46 | 2-7/8 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 2-7/32 | 29/32 | 6-1/2 | 3-3/32 | 3-9/32 | 3.063 | 1.311 | 3/4 | UC215-46 | FL215 | 5.86 |
| UCFL315-46 | 2-7/8 | 12-19/32 | 10-15/64 | 1-17/32 | 1-3/16 | 2-19/32 | 1-3/8 | 7-11/16 | 3-1/2 | 3.2283 | 1.26 | - | 1-1/8 | UC315-46 | FL315 | 10.15 |
| UCFL215-47 | 2-15/16 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 2-7/32 | 29/32 | 6-1/2 | 3-3/32 | 3-9/32 | 3.063 | 1.311 | 3/4 | UC215-47 | FL215 | 5.75 |
| UCFL315-47 | 2-15/16 | 12-19/32 | 10-15/64 | 1-17/32 | 1-3/16 | 2-19/32 | 1-3/8 | 7-11/16 | 3-1/2 | 3.2283 | 1.26 | - | 1-1/8 | UC315-47 | FL315 | 10.06 |
| UCFL215-48 | 3 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 2-7/32 | 29/32 | 6-1/2 | 3-3/32 | 3-9/32 | 3.063 | 1.311 | 3/4 | UC215-48 | FL215 | 5.55 |
| UCFL315-48 | 3 | 12-19/32 | 10-15/64 | 1-17/32 | 1-3/16 | 2-19/32 | 1-3/8 | 7-11/16 | 3-1/2 | 3.2283 | 1.26 | - | 1-1/8 | UC315-48 | FL315 | 9.93 |
| UCFL216 | 80 | 290 | 233 | 34 | 22 | 58 | 25 | 180 | 83.3 | 88.5 | 82.6 | 33.3 | M22 | UC216 | FL216 | 6.91 |
| UCFL316 | 80 | 355 | 285 | 38 | 32 | 68 | 38 | 210 | 90 | 86 | 34 | - | M33 | UC316 | FL316 | 12.419 |
| UCFL216-49 | 3-1/16 | 11-13/32 | 9-11/64 | 1-11/32 | 7/8 | 2-9/32 | 63/64 | 7-3/32 | 3-9/32 | 3-31/64 | 3.252 | 1.311 | 7/8 | UC216-49 | FL216 | 7.09 |
| UCFL316-49 | 3-1/16 | 13-31/32 | 11-7/32 | 1-1/2 | 1-1/4 | 2-11/16 | 1-1/2 | 8-9/32 | 3-35/64 | 3.3858 | 1.339 | - | 1-1/4 | UC316-49 | FL316 | 12.589 |
| UCFL216-50 | 3-1/8 | 11-13/32 | 9-11/64 | 1-11/32 | 7/8 | 2-9/32 | 63/64 | 7-3/32 | 3-9/32 | 3-31/64 | 3.252 | 1.311 | 7/8 | UC216-50 | FL216 | 6.96 |
| UCFL316-50 | 3-1/8 | 13-31/32 | 11-7/32 | 1-1/2 | 1-1/4 | 2-11/16 | 1-1/2 | 8-9/32 | 3-35/64 | 3.3858 | 1.339 | - | 1-1/4 | UC316-50 | FL316 | 12.449 |
| UCFL216-51 | 3-3/16 | 11-13/32 | 9-11/64 | 1-11/32 | 7/8 | 2-9/32 | 63/64 | 7-3/32 | 3-9/32 | 3-31/64 | 3.252 | 1.311 | 7/8 | UC216-51 | FL216 | 6.83 |
| UCFL316-51 | 3-3/16 | 13-31/32 | 11-7/32 | 1-1/2 | 1-1/4 | 2-11/16 | 1-1/2 | 8-9/32 | 3-35/64 | 3.3858 | 1.339 | - | 1-1/4 | UC316-51 | FL316 | 12.359 |
| UCFL217 | 85 | 305 | 248 | 36 | 24 | 63 | 25 | 190 | 87.5 | 92.6 | 85.7 | 34.1 | M22 | UC217 | FL217 | 8.27 |
| UCFL317 | 85 | 370 | 300 | 44 | 32 | 74 | 38 | 220 | 100 | 96 | 40 | - | M33 | UC317 | FL317 | 14.338 |
| UCFL217-52 | 3-1/4 | 12 | 9-49/64 | 1-27/64 | 15/16 | 2-15/32 | 63/64 | 7-15/32 | 3-7/16 | 3-41/64 | 3.374 | 1.343 | 7/8 | UC217-52 | FL217 | 8.39 |
| UCFL317-52 | 3-1/4 | 14-9/16 | 11-13/16 | 1-47/64 | 1-1/4 | 2-29/32 | 1-1/2 | 8-21/32 | 3-15/16 | 3.7795 | 1.575 | - | 1-1/4 | UC317-52 | FL317 | 14.558 |
| UCFL217-53 | 3-5/16 | 12 | 9-49/64 | 1-27/64 | 15/16 | 2-15/32 | 63/64 | 7-15/32 | 3-7/16 | 3-41/64 | 3.374 | 1.343 | 7/8 | UC217-53 | FL217 | 8.35 |
| UCFL317-53 | 3-5/16 | 14-9/16 | 11-13/16 | 1-47/64 | 1-1/4 | 2-29/32 | 1-1/2 | 8-21/32 | 3-15/16 | 3.7795 | 1.575 | - | 1-1/4 | UC317-53 | FL317 | 14.528 |
| UCFL217-55 | 3-7/16 | 12 | 9-49/64 | 1-27/64 | 15/16 | 2-15/32 | 63/64 | 7-15/32 | 3-7/16 | 3-41/64 | 3.374 | 1.343 | 7/8 | UC217-55 | FL217 | 8.06 |
| UCFL317-55 | 3-7/16 | 14-9/16 | 11-13/16 | 1-47/64 | 1-1/4 | 2-29/32 | 1-1/2 | 8-21/32 | 3-15/16 | 3.7795 | 1.575 | - | 1-1/4 | UC317-55 | FL317 | 14.308 |
| UCFL218 | 90 | 320 | 265 | 40 | 24 | 68 | 25 | 205 | 96.3 | 101.5 | 96 | 39.7 | M22 | UC218 | FL218 | 10.13 |
| UCFL318 | 90 | 385 | 315 | 44 | 36 | 76 | 38 | 235 | 100 | 96 | 40 | - | M33 | UC318 | FL318 | 16.869 |
| UCFL318-55 | 3-7/16 | 15-5/32 | 12-13/32 | 1-47/64 | 1-13/32 | 3 | 1-1/2 | 9-1/4 | 3-15/16 | 3.7795 | 1.575 | - | 1-1/4 | UC318-55 | FL318 | 17.159 |
| UCFL218-56 | 3-1/2 | 12-19/32 | 10-7/16 | 1-37/64 | 15/16 | 2-11/16 | 63/64 | 8-1/16 | 3-25/32 | 4 | 3.7795 | 1.563 | 7/8 | UC218-56 | FL218 | 10.24 |
| UCFL318-56 | 3-1/2 | 15-5/32 | 12-13/32 | 1-47/64 | 1-13/32 | 3 | 1-1/2 | 9-1/4 | 3-15/16 | 3.7795 | 1.575 | - | 1-1/4 | UC318-56 | FL318 | 16.979 |
| UCFL319 | 95 | 405 | 330 | 59 | 40 | 94 | 41 | 250 | 121 | 103 | 41 | - | M36 | UC319 | FL319 | 21.712 |
| UCFL319-58 | 3-5/8 | 15-15/16 | 12-63/64 | 2-21/64 | 1-9/16 | 3-11/16 | 1-39/64 | 9-27/32 | 4-49/64 | 4.0551 | 1.614 | - | 1-3/8 | UC319-58 | FL319 | 22.042 |
| UCFL319-59 | 3-11/16 | 15-15/16 | 12-63/64 | 2-21/64 | 1-9/16 | 3-11/16 | 1-39/64 | 9-27/32 | 4-49/64 | 4.0551 | 1.614 | - | 1-3/8 | UC319-59 | FL319 | 21.862 |
| UCFL319-60 | 3-3/4 | 15-15/16 | 12-63/64 | 2-21/64 | 1-9/16 | 3-11/16 | 1-39/64 | 9-27/32 | 4-49/64 | 4.0551 | 1.614 | - | 1-3/8 | UC319-60 | FL319 | 21.672 |
| UCFL320 | 100 | 440 | 360 | 59 | 40 | 94 | 44 | 270 | 125 | 108 | 42 | - | M39 | UC320 | FL320 | 25.95 |
| UCFL320-64 | 4 | 17-5/16 | 14-11/64 | 2-21/64 | 1-9/16 | 3-11/16 | 1-47/64 | 10-5/8 | 4-29/32 | 4.2519 | 1.6535 | - | 1-1/2 | UC320-64 | FL320 | 25.75 |
| UCFL322 | 110 | 470 | 390 | 60 | 42 | 96 | 44 | 300 | 131 | 117 | 46 | - | M39 | UC322 | FL322 | 33.05 |
| UCFL324 | 120 | 520 | 430 | 65 | 48 | 110 | 47 | 330 | 140 | 126 | 51 | - | M42 | UC324 | FL324 | 46.47 |
| UCFL326 | 130 | 550 | 460 | 65 | 50 | 115 | 47 | 360 | 146 | 135 | 54 | - | M42 | UC326 | FL326 | 57.38 |
| UCFL328 | 140 | 600 | 500 | 75 | 60 | 125 | 51 | 400 | 161 | 145 | 59 | - | M45 | UC328 | FL328 | 79.08 |
| Designation | d (mm/in) | a (mm/in) | e (mm/in) | i (mm/in) | g (mm/in) | I (mm/in) | s (mm/in) | b (mm/in) | z (mm/in) | B (mm/in) | n (mm/in) | Bolt Size (mm/in) | Bearing No. | Housing No. | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCFLX05 | 25 | 141 | 117 | 18 | 13 | 30 | 12 | 83 | 40.2 | 38.1 | 15.9 | M10 | UCX05 | FLX05 | 0.9 |
| UCFLX05-13 | 13/16 | 5-9/16 | 4-39/64 | 45/64 | 1/2 | 1-3/16 | 15/32 | 3-9/32 | 1-37/64 | 1.5 | 0.626 | 3/8 | UCX05-13 | FLX05 | 0.9 |
| UCFLX05-14 | 7/8 | 5-9/16 | 4-39/64 | 45/64 | 1/2 | 1-3/16 | 15/32 | 3-9/32 | 1-37/64 | 1.5 | 0.626 | 3/8 | UCX05-14 | FLX05 | 0.9 |
| UCFLX05-15 | 15/16 | 5-9/16 | 4-39/64 | 45/64 | 1/2 | 1-3/16 | 15/32 | 3-9/32 | 1-37/64 | 1.5 | 0.626 | 3/8 | UCX05-15 | FLX05 | 0.9 |
| UCFLX05-16 | 1 | 5-9/16 | 4-39/64 | 45/64 | 1/2 | 1-3/16 | 15/32 | 3-9/32 | 1-37/64 | 1.5 | 0.626 | 3/8 | UCX05-16 | FLX05 | 0.9 |
| UCFLX06 | 30 | 156 | 130 | 19 | 15 | 34 | 16 | 95 | 44.4 | 42.9 | 17.5 | M14 | UCX06 | FLX06 | 1.26 |
| UCFLX06-17 | 1-1/16 | 6-5/32 | 5-1/8 | 3/4 | 19/32 | 1-11/32 | 5/8 | 3-3/4 | 1-3/4 | 1.689 | 0.689 | 1/2 | UCX06-17 | FLX06 | 1.26 |
| UCFLX06-18 | 1-1/8 | 6-5/32 | 5-1/8 | 3/4 | 19/32 | 1-11/32 | 5/8 | 3-3/4 | 1-3/4 | 1.689 | 0.689 | 1/2 | UCX06-18 | FLX06 | 1.26 |
| UCFLX06-19 | 1-3/16 | 6-5/32 | 5-1/8 | 3/4 | 19/32 | 1-11/32 | 5/8 | 3-3/4 | 1-3/4 | 1.689 | 0.689 | 1/2 | UCX06-19 | FLX06 | 1.26 |
| UCFLX06-20 | 1-1/4 | 6-5/32 | 5-1/8 | 3/4 | 19/32 | 1-11/32 | 5/8 | 3-3/4 | 1-3/4 | 1.689 | 0.689 | 1/2 | UCX06-20 | FLX06 | 1.26 |
| UCFLX07 | 35 | 171 | 144 | 21 | 16 | 38 | 16 | 105 | 51.2 | 49.2 | 19 | M14 | UCX07 | FLX07 | 1.67 |
| UCFLX07-21 | 1-5/16 | 6-23/32 | 5-43/64 | 53/64 | 5/8 | 1-1/2 | 5/8 | 4-1/8 | 2-1/64 | 1.937 | 0.748 | 1/2 | UCX07-21 | FLX07 | 1.67 |
| UCFLX07-22 | 1-3/8 | 6-23/32 | 5-43/64 | 53/64 | 5/8 | 1-1/2 | 5/8 | 4-1/8 | 2-1/64 | 1.937 | 0.748 | 1/2 | UCX07-22 | FLX07 | 1.67 |
| UCFLX07-23 | 1-7/16 | 6-23/32 | 5-43/64 | 53/64 | 5/8 | 1-1/2 | 5/8 | 4-1/8 | 2-1/64 | 1.937 | 0.748 | 1/2 | UCX07-23 | FLX07 | 1.67 |
| UCFLX08 | 40 | 179 | 148 | 22 | 16 | 40 | 16 | 111 | 52.2 | 49.2 | 19 | M14 | UCX08 | FLX08 | 1.93 |
| UCFLX08-24 | 1-1/2 | 7-1/16 | 5-53/64 | 55/64 | 5/8 | 1-9/16 | 5/8 | 4-3/8 | 2-1/16 | 1.937 | 0.748 | 1/2 | UCX08-24 | FLX08 | 1.93 |
| UCFLX08-25 | 1-9/16 | 7-1/16 | 5-53/64 | 55/64 | 5/8 | 1-9/16 | 5/8 | 4-3/8 | 2-1/16 | 1.937 | 0.748 | 1/2 | UCX08-25 | FLX08 | 1.93 |
| UCFLX09 | 45 | 189 | 157 | 23 | 16 | 40 | 16 | 116 | 55.6 | 51.6 | 19 | M14 | UCX09 | FLX09 | 2.1 |
| UCFLX09-26 | 1-5/8 | 7-7/16 | 6-3/16 | 29/32 | 5/8 | 1-37/64 | 5/8 | 4-9/16 | 2-3/16 | 2.0315 | 0.748 | 1/2 | UCX09-26 | FLX09 | 2.1 |
| UCFLX09-27 | 1-11/16 | 7-7/16 | 6-3/16 | 29/32 | 5/8 | 1-37/64 | 5/8 | 4-9/16 | 2-3/16 | 2.0315 | 0.748 | 1/2 | UCX09-27 | FLX09 | 2.1 |
| UCFLX09-28 | 1-3/4 | 7-7/16 | 6-3/16 | 29/32 | 5/8 | 1-37/64 | 5/8 | 4-9/16 | 2-3/16 | 2.0315 | 0.748 | 1/2 | UCX09-28 | FLX09 | 2.1 |
| UCFLX09-29 | 1-13/16 | 7-7/16 | 6-3/16 | 29/32 | 5/8 | 1-37/64 | 5/8 | 4-9/16 | 2-3/16 | 2.0315 | 0.748 | 1/2 | UCX09-29 | FLX09 | 2.1 |
| UCFLX10 | 50 | 216 | 184 | 26 | 18 | 44 | 19 | 133 | 59.4 | 55.6 | 22.2 | M16 | UCX10 | FLX10 | 2.97 |
| UCFLX10-30 | 1-7/8 | 8-1/2 | 7-1/4 | 1-1/32 | 23/32 | 1-23/32 | 3/4 | 5-1/4 | 2-11/32 | 2.189 | 0.874 | 5/8 | UCX10-30 | FLX10 | 2.97 |
| UCFLX10-31 | 1-15/16 | 8-1/2 | 7-1/4 | 1-1/32 | 23/32 | 1-23/32 | 3/4 | 5-1/4 | 2-11/32 | 2.189 | 0.874 | 5/8 | UCX10-31 | FLX10 | 2.97 |
| UCFLX10-32 | 2 | 8-1/2 | 7-1/4 | 1-1/32 | 23/32 | 1-23/32 | 3/4 | 5-1/4 | 2-11/32 | 2.189 | 0.874 | 5/8 | UCX10-32 | FLX10 | 2.97 |
| Designation | d (mm/in) | a (mm/in) | e (mm/in) | i (mm/in) | g (mm/in) | s (mm/in) | b (mm/in) | t (mm/in) | B (mm/in) | n (mm/in) | Bolt Size (mm/in) | Bearing No. | Housing No. | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCCFL204 | 20 | 113 | 90 | 15 | 11 | 12 | 66 | 46 | 31 | 12.7 | M10 | UC204 | CFL204 | 0.6 |
| UCCFL204-12 | 3/4 | 4-7/16 | 3-35/64 | 19/32 | 7/16 | 15/32 | 2-19/32 | 1-13/16 | 1.2205 | 0.500 | 3/8 | UC204-12 | CFL204 | 0.6 |
| UCCFL205 | 25 | 130 | 99 | 16 | 13 | 16 | 73 | 51 | 34.1 | 14.3 | M14 | UC205 | CFL205 | 0.92 |
| UCCFL205-13 | 13/16 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 5/8 | 2-7/8 | 2-1/64 | 1.3425 | 0.563 | 1/2 | UC205-13 | CFL205 | 0.96 |
| UCCFL205-14 | 7/8 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 5/8 | 2-7/8 | 2-1/64 | 1.3425 | 0.563 | 1/2 | UC205-14 | CFL205 | 0.95 |
| UCCFL205-15 | 15/16 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 5/8 | 2-7/8 | 2-1/64 | 1.3425 | 0.563 | 1/2 | UC205-15 | CFL205 | 0.93 |
| UCCFL205-16 | 1 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 5/8 | 2-7/8 | 2-1/64 | 1.3425 | 0.563 | 1/2 | UC205-16 | CFL205 | 0.92 |
| UCCFL206 | 30 | 148 | 117 | 18 | 13 | 16 | 84 | 55 | 38.1 | 15.9 | M14 | UC206 | CFL206 | 1.23 |
| UCCFL206-17 | 1-1/16 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 5/8 | 3-15/16 | 1-11/64 | 1.5000 | 0.626 | 1/2 | UC206-17 | CFL206 | 1.24 |
| UCCFL206-18 | 1-1/8 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 5/8 | 3-15/16 | 1-11/64 | 1.5000 | 0.626 | 1/2 | UC206-18 | CFL206 | 1.25 |
| UCCFL206-19 | 1-3/16 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 5/8 | 3-15/16 | 1-11/64 | 1.5000 | 0.626 | 1/2 | UC206-19 | CFL206 | 1.23 |
| UCCFL206-20 | 1-1/4 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 5/8 | 3-15/16 | 1-11/64 | 1.5000 | 0.626 | 1/2 | UC206-20 | CFL206 | 1.22 |
| UCCFL207 | 35 | 161 | 130 | 19 | 14 | 16 | 94 | 59 | 42.9 | 17.5 | M14 | UC207 | CFL207 | 1.67 |
| UCCFL207-20 | 1-1/4 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 5/8 | 3-45/64 | 1-21/64 | 1.6890 | 0.689 | 1/2 | UC207-20 | CFL207 | 1.73 |
| UCCFL207-21 | 1-5/16 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 5/8 | 3-45/64 | 1-21/64 | 1.6890 | 0.689 | 1/2 | UC207-21 | CFL207 | 1.7 |
| UCCFL207-22 | 1-3/8 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 5/8 | 3-45/64 | 1-21/64 | 1.6890 | 0.689 | 1/2 | UC207-22 | CFL207 | 1.67 |
| UCCFL207-23 | 1-7/16 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 5/8 | 3-45/64 | 1-21/64 | 1.6890 | 0.689 | 1/2 | UC207-23 | CFL207 | 1.64 |
| UCCFL208 | 40 | 175 | 144 | 21 | 14 | 16 | 104 | 66 | 49.2 | 19 | M14 | UC208 | CFL208 | 2.2 |
| UCCFL208-24 | 1-1/2 | 6-7/8 | 5-43/64 | 53/64 | 35/64 | 5/8 | 3-3/32 | 2-19/32 | 1.9370 | 0.748 | 1/2 | UC208-24 | CFL208 | 2.24 |
| UCCFL208-25 | 1-9/16 | 6-7/8 | 5-43/64 | 53/64 | 35/64 | 5/8 | 3-3/32 | 2-19/32 | 1.9370 | 0.748 | 1/2 | UC208-25 | CFL208 | 2.21 |
| UCCFL209 | 45 | 188 | 148 | 22 | 15 | 19 | 113 | 67 | 49.2 | 19 | M16 | UC209 | CFL209 | 2.6 |
| UCCFL209-26 | 1-5/8 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 3/4 | 4-29/64 | 2-41/64 | 1.9370 | 0.748 | 5/8 | UC209-26 | CFL209 | 2.7 |
| UCCFL209-27 | 1-11/16 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 3/4 | 4-29/64 | 2-41/64 | 1.9370 | 0.748 | 5/8 | UC209-27 | CFL209 | 2.66 |
| UCCFL209-28 | 1-3/4 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 3/4 | 4-29/64 | 2-41/64 | 1.9370 | 0.748 | 5/8 | UC209-28 | CFL209 | 2.62 |
| UCCFL210 | 50 | 197 | 157 | 22 | 15 | 19 | 120 | 71 | 51.6 | 19 | M16 | UC210 | CFL210 | 2.96 |
| UCCFL210-29 | 1-13/16 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 3/4 | 4-23/32 | 2-51/64 | 2.0315 | 0.748 | 5/8 | UC210-29 | CFL210 | 3.08 |
| UCCFL210-30 | 1-7/8 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 3/4 | 4-23/32 | 2-51/64 | 2.0315 | 0.748 | 5/8 | UC210-30 | CFL210 | 3.03 |
| UCCFL210-31 | 1-15/16 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 3/4 | 4-23/32 | 2-51/64 | 2.0315 | 0.748 | 5/8 | UC210-31 | CFL210 | 2.98 |
| UCCFL210-32 | 2 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 3/4 | 4-23/32 | 2-51/64 | 2.0315 | 0.748 | 5/8 | UC210-32 | CFL210 | 2.84 |
| UCCFL211 | 55 | 224 | 184 | 25 | 18 | 19 | 134 | 75 | 55.6 | 22.2 | M16 | UC211 | CFL211 | 4.27 |
| UCCFL211-32 | 2 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 3/4 | 5-9/32 | 2-61/64 | 2.1890 | 0.874 | 5/8 | UC211-32 | CFL211 | 4.42 |
| UCCFL211-33 | 2-1/16 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 3/4 | 5-9/32 | 2-61/64 | 2.1890 | 0.874 | 5/8 | UC211-33 | CFL211 | 4.36 |
| UCCFL211-34 | 2-1/8 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 3/4 | 5-9/32 | 2-61/64 | 2.1890 | 0.874 | 5/8 | UC211-34 | CFL211 | 4.31 |
| UCCFL211-35 | 2-3/16 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 3/4 | 5-9/32 | 2-61/64 | 2.1890 | 0.874 | 5/8 | UC211-35 | CFL211 | 4.25 |
| UCCFL212 | 60 | 250 | 202 | 29 | 18 | 23 | 144 | 86 | 65.1 | 25.4 | M20 | UC212 | CFL212 | 5.27 |
| UCCFL212-36 | 2-1/4 | 9-27/32 | 7-61/64 | 1-9/64 | 23/32 | 29/32 | 5-43/64 | 3-25/64 | 2.5630 | 1 | 3/4 | UC212-36 | CFL212 | 5.4 |
| UCCFL212-37 | 2-5/16 | 9-27/32 | 7-61/64 | 1-9/64 | 23/32 | 29/32 | 5-43/64 | 3-25/64 | 2.5630 | 1 | 3/4 | UC212-37 | CFL212 | 5.32 |
| UCCFL212-38 | 2-3/8 | 9-27/32 | 7-61/64 | 1-9/64 | 23/32 | 29/32 | 5-43/64 | 3-25/64 | 2.5630 | 1 | 3/4 | UC212-38 | CFL212 | 5.25 |
| UCCFL212-39 | 2-7/16 | 9-27/32 | 7-61/64 | 1-9/64 | 23/32 | 29/32 | 5-43/64 | 3-25/64 | 2.5630 | 1 | 3/4 | UC212-39 | CFL212 | 5.18 |
| UCCFL213 | 65 | 258 | 210 | 30 | 22 | 23 | 157 | 89 | 65.1 | 25.4 | M20 | UC213 | CFL213 | 6.68 |
| UCCFL213-40 | 2-1/2 | 10-5/32 | 8-17/64 | 1-3/16 | 7/8 | 29/32 | 6-3/16 | 3-35/64 | 2.5630 | 1 | 3/4 | UC213-40 | CFL213 | 6.77 |
| UCCFL213-41 | 2-9/16 | 10-5/32 | 8-17/64 | 1-3/16 | 7/8 | 29/32 | 6-3/16 | 3-35/64 | 2.5630 | 1 | 3/4 | UC213-41 | CFL213 | 6.68 |
| UCCFL214 | 70 | 265 | 216 | 31 | 22 | 23 | 163 | 98 | 74.6 | 30.2 | M20 | UC214 | CFL214 | 7.5 |
| UCCFL214-42 | 2-5/8 | 10-7/16 | 8-1/2 | 1-7/32 | 7/8 | 29/32 | 6-27/64 | 3-55/64 | 2.9370 | 1.189 | 3/4 | UC214-42 | CFL214 | 7.71 |
| UCCFL214-43 | 2-11/16 | 10-7/16 | 8-1/2 | 1-7/32 | 7/8 | 29/32 | 6-27/64 | 3-55/64 | 2.9370 | 1.189 | 3/4 | UC214-43 | CFL214 | 7.61 |
| UCCFL214-44 | 2-3/4 | 10-7/16 | 8-1/2 | 1-7/32 | 7/8 | 29/32 | 6-27/64 | 3-55/64 | 2.9370 | 1.189 | 3/4 | UC214-44 | CFL214 | 7.51 |
| UCCFL215 | 75 | 275 | 225 | 34 | 22 | 23 | 168 | 102 | 77.8 | 33.3 | M20 | UC215 | CFL215 | 8.01 |
| UCCFL215-45 | 2-13/16 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 29/32 | 6-39/64 | 4-1/64 | 3.630 | 1.311 | 3/4 | UC215-45 | CFL215 | 8.26 |
| UCCFL215-46 | 2-7/8 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 29/32 | 6-39/64 | 4-1/64 | 3.630 | 1.311 | 3/4 | UC215-46 | CFL215 | 8.15 |
| UCCFL215-47 | 2-15/16 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 29/32 | 6-39/64 | 4-1/64 | 3.630 | 1.311 | 3/4 | UC215-47 | CFL215 | 8.04 |
| UCCFL215-48 | 3 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 29/32 | 6-39/64 | 4-1/64 | 3.630 | 1.311 | 3/4 | UC215-48 | CFL215 | 7.92 |
| UCCFL216 | 80 | 290 | 233 | 34 | 22 | 25 | 188 | 107 | 82.6 | 33.3 | M22 | UC216 | CFL216 | 10.4 |
| UCCFL216-49 | 3-1/16 | 11-13/32 | 9-11/64 | 1-11/32 | 7/8 | 63/64 | 7-13/32 | 4-7/32 | 3.2520 | 1.311 | 7/8 | UC216-49 | CFL216 | 10.58 |
| UCCFL216-50 | 3-1/8 | 11-13/32 | 9-11/64 | 1-11/32 | 7/8 | 63/64 | 7-13/32 | 4-7/32 | 3.2520 | 1.311 | 7/8 | UC216-50 | CFL216 | 10.45 |
| UCCFL216-51 | 3-3/16 | 11-13/32 | 9-11/64 | 1-11/32 | 7/8 | 63/64 | 7-13/32 | 4-7/32 | 3.2520 | 1.311 | 7/8 | UC216-51 | CFL216 | 10.32 |
| UCCFL217 | 85 | 305 | 248 | 36 | 24 | 25 | 198 | 111 | 85.7 | 34.1 | M22 | UC217 | CFL217 | 12.76 |
| UCCFL217-52 | 3-1/4 | 12 | 9-49/64 | 1-27/64 | 15/16 | 63/64 | 7-51/64 | 4-3/8 | 3.3740 | 1.343 | 7/8 | UC217-52 | CFL217 | 12.98 |
| UCCFL217-53 | 3-5/16 | 12 | 9-49/64 | 1-27/64 | 15/16 | 63/64 | 7-51/64 | 4-3/8 | 3.3740 | 1.343 | 7/8 | UC217-53 | CFL217 | 12.84 |
| UCCFL217-55 | 3-7/16 | 12 | 9-49/64 | 1-27/64 | 15/16 | 63/64 | 7-51/64 | 4-3/8 | 3.3740 | 1.343 | 7/8 | UC217-55 | CFL217 | 12.55 |
| UCCFL218 | 90 | 320 | 265 | 40 | 24 | 25 | 211 | 122 | 96 | 39.7 | M22 | UC218 | CFL218 | 15.16 |
| UCCFL218-56 | 3-1/2 | 12-19/32 | 10-7/16 | 1-37/64 | 15/16 | 63/64 | 8-5/16 | 4-51/64 | 3.7795 | 1.5630 | 7/8 | UC218-56 | CFL218 | 15.27 |
| Designation | d (mm/in) | a (mm/in) | e (mm/in) | i (mm/in) | g (mm/in) | I (mm/in) | s (mm/in) | b (mm/in) | z (mm/in) | B (mm/in) | n (mm/in) | Bolt Size (mm/in) | Bearing No. | Housing No. | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UCFT204 | 20 | 112 | 89.5 | 19 | 11 | 29 | 10.5 | 60 | 37.3 | 31 | 12.7 | M8 | UC204 | FT204 | 0.447 |
| UCFT204-12 | 3/4 | 4-13/32 | 3-33/64 | 3/4 | 7/16 | 1-9/64 | 27/64 | 2-3/8 | 1-15/32 | 1.2205 | 0.5 | 5/16 | UC204-12 | FT204 | 0.447 |
| UCFT205 | 25 | 124 | 99 | 20 | 13 | 31 | 13 | 70 | 39.8 | 34.1 | 14.6 | M10 | UC205 | FT205 | 0.63 |
| UCFT205-13 | 13/16 | 4-7/8 | 3-57/64 | 25/32 | 1/2 | 1-7/32 | 33/64 | 2-3/4 | 1-13/32 | 1.3425 | 0.563 | 3/8 | UC205-13 | FT205 | 0.667 |
| UCFT205-14 | 7/8 | 4-7/8 | 3-57/64 | 25/32 | 1/2 | 1-7/32 | 33/64 | 2-3/4 | 1-13/32 | 1.3425 | 0.563 | 3/8 | UC205-14 | FT205 | 0.657 |
| UCFT205-15 | 15/16 | 4-7/8 | 3-57/64 | 25/32 | 1/2 | 1-7/32 | 33/64 | 2-3/4 | 1-13/32 | 1.3425 | 0.563 | 3/8 | UC205-15 | FT205 | 0.637 |
| UCFT205-16 | 1 | 4-7/8 | 3-57/64 | 25/32 | 1/2 | 1-7/32 | 33/64 | 2-3/4 | 1-13/32 | 1.3425 | 0.563 | 3/8 | UC205-16 | FT205 | 0.627 |
| UCFT206 | 30 | 141 | 116.5 | 21 | 13 | 34 | 13 | 82 | 43.2 | 38.1 | 15.9 | M10 | UC206 | FT206 | 0.886 |
| UCFT206-17 | 1-1/16 | 5-35/64 | 4-37/64 | 53/64 | 1/2 | 1-11/32 | 33/64 | 3-15/64 | 1-19/32 | 1.5 | 0.626 | 3/8 | UC206-17 | FT206 | 0.896 |
| UCFT206-18 | 1-1/8 | 5-35/64 | 4-37/64 | 53/64 | 1/2 | 1-11/32 | 33/64 | 3-15/64 | 1-19/32 | 1.5 | 0.626 | 3/8 | UC206-18 | FT206 | 0.906 |
| UCFT206-19 | 1-3/16 | 5-35/64 | 4-37/64 | 53/64 | 1/2 | 1-11/32 | 33/64 | 3-15/64 | 1-19/32 | 1.5 | 0.626 | 3/8 | UC206-19 | FT206 | 0.886 |
| UCFT206-20 | 1-1/4 | 5-35/64 | 4-37/64 | 53/64 | 1/2 | 1-11/32 | 33/64 | 3-15/64 | 1-19/32 | 1.5 | 0.626 | 3/8 | UC206-20 | FT206 | 0.876 |
| UCFT207 | 35 | 156 | 130 | 21.5 | 14 | 36.5 | 14 | 95 | 46.9 | 42.9 | 17.5 | M12 | UC207 | FT207 | 1.254 |
| UCFT207-20 | 1-1/4 | 6-9/64 | 5-1/8 | 27/32 | 35/64 | 1-7/16 | 35/64 | 3-47/64 | 1-3/4 | 1.689 | 0.689 | 7/16 | UC207-20 | FT207 | 1.319 |
| UCFT207-21 | 1-5/16 | 6-9/64 | 5-1/8 | 27/32 | 35/64 | 1-7/16 | 35/64 | 3-47/64 | 1-3/4 | 1.689 | 0.689 | 7/16 | UC207-21 | FT207 | 1.289 |
| UCFT207-22 | 1-3/8 | 6-9/64 | 5-1/8 | 27/32 | 35/64 | 1-7/16 | 35/64 | 3-47/64 | 1-3/4 | 1.689 | 0.689 | 7/16 | UC207-22 | FT207 | 1.259 |
| UCFT207-23 | 1-7/16 | 6-9/64 | 5-1/8 | 27/32 | 35/64 | 1-7/16 | 35/64 | 3-47/64 | 1-3/4 | 1.689 | 0.689 | 7/16 | UC207-23 | FT207 | 1.229 |
| UCFT208 | 40 | 171 | 143.5 | 24 | 14 | 39 | 14 | 105 | 54.2 | 49.2 | 19 | M12 | UC208 | FT208 | 1.609 |
| UCFT208-24 | 1-1/2 | 6-47/64 | 5-21/32 | 61/64 | 35/64 | 1-17/32 | 35/64 | 4-9/64 | 2-1/64 | 1.937 | 0.748 | 7/16 | UC208-24 | FT208 | 1.649 |
| UCFT208-25 | 1-9/16 | 6-47/64 | 5-21/32 | 61/64 | 35/64 | 1-17/32 | 35/64 | 4-9/64 | 2-1/64 | 1.937 | 0.748 | 7/16 | UC208-25 | FT208 | 1.619 |
| UCFT209 | 45 | 179 | 148.5 | 24 | 14 | 40 | 16 | 111 | 54.2 | 49.2 | 19 | M14 | UC209 | FT209 | 1.813 |
| UCFT209-26 | 1-5/8 | 7-3/64 | 5-55/64 | 61/64 | 35/64 | 1-37/64 | 5/8 | 4-3/8 | 2-1/16 | 1.937 | 0.748 | 1/2 | UC209-26 | FT209 | 1.913 |
| UCFT209-27 | 1-11/16 | 7-3/64 | 5-55/64 | 61/64 | 35/64 | 1-37/64 | 5/8 | 4-3/8 | 2-1/16 | 1.937 | 0.748 | 1/2 | UC209-27 | FT209 | 1.873 |
| UCFT209-28 | 1-3/4 | 7-3/64 | 5-55/64 | 61/64 | 35/64 | 1-37/64 | 5/8 | 4-3/8 | 2-1/16 | 1.937 | 0.748 | 1/2 | UC209-28 | FT209 | 1.833 |
| UCFT210 | 50 | 189 | 157 | 28.5 | 14 | 47 | 16 | 116 | 61.1 | 51.6 | 19 | M14 | UC210 | FT210 | 2.147 |
| UCFT210-29 | 1-13/16 | 7-7/16 | 6-3/16 | 1-1/8 | 35/64 | 1-27/32 | 5/8 | 4-9/16 | 2-5/32 | 2.0315 | 0.748 | 1/2 | UC210-29 | FT210 | 2.267 |
| UCFT210-30 | 1-7/8 | 7-7/16 | 6-3/16 | 1-1/8 | 35/64 | 1-27/32 | 5/8 | 4-9/16 | 2-5/32 | 2.0315 | 0.748 | 1/2 | UC210-30 | FT210 | 2.217 |
| UCFT210-31 | 1-15/16 | 7-7/16 | 6-3/16 | 1-1/8 | 35/64 | 1-27/32 | 5/8 | 4-9/16 | 2-5/32 | 2.0315 | 0.748 | 1/2 | UC210-31 | FT210 | 2.167 |
| UCFT210-32 | 2 | 7-7/16 | 6-3/16 | 1-1/8 | 35/64 | 1-27/32 | 5/8 | 4-9/16 | 2-5/32 | 2.0315 | 0.748 | 1/2 | UC210-32 | FT210 | 2.127 |
| UCFT211 | 55 | 216 | 184 | 32 | 20 | 50 | 18 | 133 | 65.4 | 55.6 | 22.2 | M16 | UC211 | FT211 | 3.2 |
| UCFT211-32 | 2 | 8-1/2 | 7-1/4 | 1-17/64 | 25/32 | 1-31/32 | 45/64 | 5-15/64 | 2-5/16 | 2.189 | 0.874 | 5/8 | UC211-32 | FT211 | 3.35 |
| UCFT211-33 | 2-1/16 | 8-1/2 | 7-1/4 | 1-17/64 | 25/32 | 1-31/32 | 45/64 | 5-15/64 | 2-5/16 | 2.189 | 0.874 | 5/8 | UC211-33 | FT211 | 3.29 |
| UCFT211-34 | 2-1/8 | 8-1/2 | 7-1/4 | 1-17/64 | 25/32 | 1-31/32 | 45/64 | 5-15/64 | 2-5/16 | 2.189 | 0.874 | 5/8 | UC211-34 | FT211 | 3.25 |
| UCFT211-35 | 2-3/16 | 8-1/2 | 7-1/4 | 1-17/64 | 25/32 | 1-31/32 | 45/64 | 5-15/64 | 2-5/16 | 2.189 | 0.874 | 5/8 | UC211-35 | FT211 | 3.18 |
| UCFT212 | 60 | 235 | 202 | 34 | 21 | 53 | 18 | 138 | 73.7 | 65.1 | 25.4 | M16 | UC212 | FT212 | 3.999 |
| UCFT212-36 | 2-1/4 | 9-1/4 | 7-61/64 | 1-9/64 | 53/64 | 2-3/32 | 23/32 | 5-7/16 | 2-29/32 | 2.563 | 1 | 5/8 | UC212-36 | FT212 | 4.129 |
| UCFT212-37 | 2-5/16 | 9-1/4 | 7-61/64 | 1-9/64 | 53/64 | 2-3/32 | 23/32 | 5-7/16 | 2-29/32 | 2.563 | 1 | 5/8 | UC212-37 | FT212 | 4.049 |
| UCFT212-38 | 2-3/8 | 9-1/4 | 7-61/64 | 1-9/64 | 53/64 | 2-3/32 | 23/32 | 5-7/16 | 2-29/32 | 2.563 | 1 | 5/8 | UC212-38 | FT212 | 3.979 |
| UCFT212-39 | 2-7/16 | 9-1/4 | 7-61/64 | 1-9/64 | 53/64 | 2-3/32 | 23/32 | 5-7/16 | 2-29/32 | 2.563 | 1 | 5/8 | UC212-39 | FT212 | 3.909 |
| UCFT213 | 65 | 248 | 210 | 38 | 22 | 56 | 20.5 | 152 | 77.7 | 65.1 | 25.4 | M18 | UC213 | FT213 | 4.716 |
| UCFT213-40 | 2-1/2 | 9-49/64 | 8-17/64 | 1-1/2 | 55/64 | 2-13/64 | 13/16 | 5-63/64 | 3-1/16 | 2.563 | 1 | 23/32 | UC213-40 | FT213 | 4.806 |
| UCFT213-41 | 2-9/16 | 9-49/64 | 8-17/64 | 1-1/2 | 55/64 | 2-13/64 | 13/16 | 5-63/64 | 3-1/16 | 2.563 | 1 | 23/32 | UC213-41 | FT213 | 4.716 |
| UCFT214 | 70 | 257 | 216 | 38 | 23 | 58 | 23 | 157 | 82.4 | 74.6 | 30.2 | M20 | UC214 | FT214 | 5.268 |
| UCFT214-42 | 2-5/8 | 10-7/16 | 8-1/2 | 1-1/2 | 29/32 | 2-9/32 | 29/32 | 6-3/16 | 3-1/4 | 2.937 | 1.189 | 3/4 | UC214-42 | FT214 | 5.478 |
| UCFT214-43 | 2-11/16 | 10-7/16 | 8-1/2 | 1-1/2 | 29/32 | 2-9/32 | 29/32 | 6-3/16 | 3-1/4 | 2.937 | 1.189 | 3/4 | UC214-43 | FT214 | 5.378 |
| UCFT214-44 | 2-3/4 | 10-7/16 | 8-1/2 | 1-1/2 | 29/32 | 2-9/32 | 29/32 | 6-3/16 | 3-1/4 | 2.937 | 1.189 | 3/4 | UC214-44 | FT214 | 5.278 |
| Designation | d (mm/in) | a (mm/in) | e (mm/in) | i (mm/in) | g (mm/in) | I (mm/in) | s (mm/in) | b (mm/in) | z (mm/in) | t (mm/in) | B1 (mm/in) | Bolt Size (mm/in) | Bearing No. | Housing No. | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UKFL205+H2305 | 20 | 130 | 99 | 16 | 13 | 27 | 16 | 68 | 35.5 | 40 | 35 | M14 | UK205+H2305 | FL205 | 0.63 |
| UKFL205+HE2305 | 3/4 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-25/64 | 1-9/16 | 1.378 | 1/2 | UK205+HE2305 | FL205 | 0.63 |
| UKFL206+H2306 | 25 | 148 | 117 | 18 | 13 | 31 | 16 | 80 | 39 | 44.5 | 38 | M14 | UK206+H2306 | FL206 | 0.89 |
| UKFL206+HS2306 | 7/8 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-17/32 | 1-3/4 | 1.496 | 1/2 | UK206+HS2306 | FL206 | 0.89 |
| UKFL206+HE2306 | 1 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-17/32 | 1-3/4 | 1.496 | 1/2 | UK206+HE2306 | FL206 | 0.89 |
| UKFL207+H2307 | 30 | 161 | 130 | 19 | 14 | 34 | 16 | 90 | 42.5 | 48.5 | 43 | M14 | UK207+H2307 | FL207 | 1.17 |
| UKFL207+HS2307 | 1-1/8 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 1-43/64 | 1-29/32 | 1.693 | 1/2 | UK207+HS2307 | FL207 | 1.17 |
| UKFL208+H2308 | 35 | 175 | 144 | 21 | 14 | 36 | 16 | 100 | 46.5 | 55.5 | 46 | M14 | UK208+H2308 | FL208 | 1.49 |
| UKFL208+HE2308 | 1-1/4 | 6-7/8 | 5-43/64 | 53/64 | 35/64 | 1-13/32 | 5/8 | 3-15/16 | 1-53/64 | 2-3/16 | 1.811 | 1/2 | UK208+HE2308 | FL208 | 1.49 |
| UKFL208+HS2308 | 1-3/8 | 6-7/8 | 5-43/64 | 53/64 | 35/64 | 1-13/32 | 5/8 | 3-15/16 | 1-53/64 | 2-3/16 | 1.811 | 1/2 | UK208+HS2308 | FL208 | 1.49 |
| UKFL209+H2309 | 40 | 188 | 148 | 22 | 15 | 38 | 19 | 108 | 48.5 | 56.5 | 50 | M16 | UK209+H2309 | FL209 | 1.87 |
| UKFL209+HA2309 | 1-7/16 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 1-29/32 | 2-7/32 | 1.969 | 5/8 | UK209+HA2309 | FL209 | 1.87 |
| UKFL209+HE2309 | 1-1/2 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 1-29/32 | 2-7/32 | 1.969 | 5/8 | UK209+HE2309 | FL209 | 1.87 |
| UKFL209+HS2309 | 1-5/8 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 1-29/32 | 2-7/32 | 1.969 | 5/8 | UK209+HS2309 | FL209 | 1.87 |
| UKFL210+H2310 | 45 | 197 | 157 | 22 | 15 | 40 | 19 | 115 | 50 | 59.5 | 55 | M16 | UK210+H2310 | FL210 | 2.19 |
| UKFL210+HS2310 | 1-5/8 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 1-31/32 | 2-11/32 | 2.165 | 5/8 | UK210+HS2310 | FL210 | 2.19 |
| UKFL210+HA2310 | 1-11/16 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 1-31/32 | 2-11/32 | 2.165 | 5/8 | UK210+HA2310 | FL210 | 2.19 |
| UKFL210+HE2310 | 1-3/4 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 1-31/32 | 2-11/32 | 2.165 | 5/8 | UK210+HE2310 | FL210 | 2.19 |
| UKFL211+H2311 | 50 | 224 | 184 | 25 | 18 | 43 | 19 | 130 | 54.5 | 63 | 59 | M16 | UK211+H2311 | FL211 | 2.95 |
| UKFL211+HS2311 | 1-7/8 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-9/64 | 2-15/32 | 2.323 | 5/8 | UK211+HS2311 | FL211 | 2.95 |
| UKFL211+HA2311 | 1-15/16 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-9/64 | 2-15/32 | 2.323 | 5/8 | UK211+HA2311 | FL211 | 2.95 |
| UKFL211+HE2311 | 2 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-9/64 | 2-15/32 | 2.323 | 5/8 | UK211+HE2311 | FL211 | 2.95 |
| UKFL212+H2312 | 55 | 250 | 202 | 29 | 18 | 48 | 23 | 140 | 61 | 73.5 | 62 | M20 | UK212+H2312 | FL212 | 3.73 |
| UKFL212+HS2312 | 2-1/8 | 9-27/32 | 7-61/64 | 1-9/64 | 23/32 | 1-7/8 | 29/32 | 5-1/2 | 2-13/32 | 2-57/64 | 2.441 | 3/4 | UK212+HS2312 | FL212 | 3.73 |
| UKFL213+H2313 | 60 | 258 | 210 | 30 | 22 | 50 | 23 | 155 | 64 | 74.5 | 65 | M20 | UK213+H2313 | FL213 | 4.67 |
| UKFL213+HA2313 | 2-3/16 | 10-5/32 | 8-17/64 | 1-3/16 | 7/8 | 1-31/32 | 29/32 | 6-3/32 | 2-33/64 | 2-15/16 | 2.559 | 3/4 | UK213+HA2313 | FL213 | 4.67 |
| UKFL213+HE2313 | 2-1/4 | 10-5/32 | 8-17/64 | 1-3/16 | 7/8 | 1-31/32 | 29/32 | 6-3/32 | 2-33/64 | 2-15/16 | 2.559 | 3/4 | UK213+HE2313 | FL213 | 4.67 |
| UKFL213+HS2313 | 2-3/8 | 10-5/32 | 8-17/64 | 1-3/16 | 7/8 | 1-31/32 | 29/32 | 6-3/32 | 2-33/64 | 2-15/16 | 2.559 | 3/4 | UK213+HS2313 | FL213 | 4.67 |
| UKFL215+H2315 | 65 | 275 | 225 | 34 | 22 | 56 | 23 | 165 | 71 | 83.5 | 73 | M20 | UK215+H2315 | FL215 | 6 |
| UKFL215+HA2315 | 2-7/16 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 2-7/32 | 29/32 | 6-1/2 | 2-51/64 | 3-9/32 | 2.874 | 3/4 | UK215+HA2315 | FL215 | 6 |
| UKFL215+HE2315 | 2002-01-02 00:00:00 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 2-7/32 | 29/32 | 6-1/2 | 2-51/64 | 3-9/32 | 2.874 | 3/4 | UK215+HE2315 | FL215 | 6 |
| UKFL216+H2316 | 70 | 290 | 233 | 34 | 22 | 58 | 25 | 180 | 73.5 | 88.5 | 78 | M22 | UK216+H2316 | FL216 | 7.34 |
| UKFL216+HA2316 | 2-11/16 | 11-13/32 | 9-11/64 | 1-11/32 | 7/8 | 2-9/32 | 63/64 | 7-3/32 | 2-57/64 | 3-31/64 | 3.071 | 7/8 | UK216+HA2316 | FL216 | 7.34 |
| UKFL216+HE2316 | 2-3/4 | 11-13/32 | 9-11/64 | 1-11/32 | 7/8 | 2-9/32 | 63/64 | 7-3/32 | 2-57/64 | 3-31/64 | 3.071 | 7/8 | UK216+HE2316 | FL216 | 7.34 |
| UKFL217+H2317 | 75 | 305 | 248 | 36 | 24 | 63 | 25 | 190 | 77 | 92.6 | 82 | M22 | UK217+H2317 | FL217 | 8.68 |
| UKFL217+HA2317 | 2-15/16 | 12 | 9-49/64 | 1-27/64 | 15/16 | 2-15/32 | 63/64 | 7-15/32 | 3-1/32 | 3-41/64 | 3.228 | 7/8 | UK217+HA2317 | FL217 | 8.68 |
| UKFL217+HE2317 | 3 | 12 | 9-49/64 | 1-27/64 | 15/16 | 2-15/32 | 63/64 | 7-15/32 | 3-1/32 | 3-41/64 | 3.228 | 7/8 | UK217+HE2317 | FL217 | 8.68 |
| UKFL218+H2318 | 80 | 320 | 265 | 40 | 24 | 68 | 25 | 205 | 81.5 | 101.5 | 86 | M22 | UK218+H2318 | FL218 | 10.43 |
| UKFL218+HA2318 | 3-3/16 | 12-19/32 | 10-7/16 | 1-37/64 | 15/16 | 2-11/16 | 63/64 | 8-1/16 | 3-13/64 | 4 | 3.386 | 7/8 | UK218+HA2318 | FL218 | 10.43 |
| Designation | d (mm/in) | a (mm/in) | e (mm/in) | i (mm/in) | g (mm/in) | I (mm/in) | s (mm/in) | b (mm/in) | z (mm/in) | B1 (mm/in) | Bolt Size (mm/in) | Bearing No. | Housing No. | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UKFLX05+H2305 | 20 | 141 | 117 | 18 | 13 | 30 | 12 | 83 | 39 | 35 | M10 | UKX05+H2305 | FLX05 | 0.9 |
| UKFLX05+HE2305 | 3/4 | 5-9/16 | 4-39/64 | 45/64 | 1/2 | 1-3/16 | 15/32 | 3-9/32 | 1-17/32 | 1.378 | 3/8 | UKX05+HE2305 | FLX05 | 0.9 |
| UKFLX06+H2306 | 25 | 156 | 130 | 19 | 15 | 34 | 16 | 95 | 41.5 | 38 | M14 | UKX06+H2306 | FLX06 | 1.3 |
| UKFLX06+HS2306 | 7/8 | 6-5/32 | 5-1/8 | 3/4 | 19/32 | 1-11/32 | 5/8 | 3-3/4 | 1-41/64 | 1.496 | 1/2 | UKX06+HS2306 | FLX06 | 1.3 |
| UKFLX06+HE2306 | 1 | 6-5/32 | 5-1/8 | 3/4 | 19/32 | 1-11/32 | 5/8 | 3-3/4 | 1-41/64 | 1.496 | 1/2 | UKX06+HE2306 | FLX06 | 1.3 |
| UKFLX07+H2307 | 30 | 171 | 144 | 21 | 16 | 38 | 16 | 105 | 45.5 | 43 | M14 | UKX07+H2307 | FLX07 | 1.7 |
| UKFLX07+HS2307 | 1-1/8 | 6-23/32 | 5-43/64 | 0.828125 | 0.625 | 1-1/2 | 0.625 | 4-1/8 | 1-51/64 | 1.693 | 0.5 | UKX07+HS2307 | FLX07 | 1.7 |
| UKFLX08+H2308 | 35 | 179 | 148 | 22 | 16 | 40 | 16 | 111 | 47.5 | 46 | M14 | UKX08+H2308 | FLX08 | 1.98 |
| UKFLX08+HE2308 | 1-1/4 | 7-1/16 | 5-53/64 | 55/64 | 5/8 | 1-9/16 | 5/8 | 4-3/8 | 1-7/8 | 1.811 | 1/2 | UKX08+HE2308 | FLX08 | 1.98 |
| UKFLX08+HS2308 | 1-3/8 | 7-1/16 | 5-53/64 | 55/64 | 5/8 | 1-9/16 | 5/8 | 4-3/8 | 1-7/8 | 1.811 | 1/2 | UKX08+HS2308 | FLX08 | 1.98 |
| UKFLX09+H2309 | 40 | 189 | 157 | 23 | 16 | 40 | 16 | 116 | 50 | 50 | M14 | UKX09+H2309 | FLX09 | 2.15 |
| UKFLX09+HA2309 | 1-7/16 | 7-7/16 | 6-3/16 | 29/32 | 5/8 | 1-37/64 | 5/8 | 4-9/16 | 1-31/32 | 1.969 | 1/2 | UKX09+HA2309 | FLX09 | 2.15 |
| UKFLX09+HE2309 | 1-1/2 | 7-7/16 | 6-3/16 | 29/32 | 5/8 | 1-37/64 | 5/8 | 4-9/16 | 1-31/32 | 1.969 | 1/2 | UKX09+HE2309 | FLX09 | 2.15 |
| UKFLX09+HS2309 | 1-5/8 | 7-7/16 | 6-3/16 | 29/32 | 5/8 | 1-37/64 | 5/8 | 4-9/16 | 1-31/32 | 1.969 | 1/2 | UKX09+HS2309 | FLX09 | 2.15 |
| UKFLX10+H2310 | 45 | 216 | 184 | 26 | 18 | 44 | 19 | 133 | 55.5 | 55 | M16 | UKX10+H2310 | FLX10 | 3.12 |
| UKFLX10+HS2310 | 1-5/8 | 8-1/2 | 7-1/4 | 1-1/32 | 23/32 | 1-23/32 | 3/4 | 5-1/4 | 2-3/16 | 2.165 | 5/8 | UKX10+HS2310 | FLX10 | 3.12 |
| UKFLX10+HA2310 | 1-11/16 | 8-1/2 | 7-1/4 | 1-1/32 | 23/32 | 1-23/32 | 3/4 | 5-1/4 | 2-3/16 | 2.165 | 5/8 | UKX10+HA2310 | FLX10 | 3.12 |
| UKFLX10+HE2310 | 1-3/4 | 8-1/2 | 7-1/4 | 1-1/32 | 23/32 | 1-23/32 | 3/4 | 5-1/4 | 2-3/16 | 2.165 | 5/8 | UKX10+HE2310 | FLX10 | 3.12 |
| Designation | d (mm/in) | a (mm/in) | e (mm/in) | i (mm/in) | g (mm/in) | I (mm/in) | s (mm/in) | b (mm/in) | z (mm/in) | B1 (mm/in) | n (mm/in) | Bolt Size (mm/in) | Bearing No. | Housing No. | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCFT204 | 20 | 112 | 89.5 | 19 | 11 | 29 | 10.5 | 60 | 45.6 | 43.7 | 17.1 | M8 | HC204 | FT204 | 0.5 |
| HCFT204-12 | 3/4 | 4-13/32 | 3-33/64 | 3/4 | 7/16 | 1-9/64 | 27/64 | 2-3/8 | 1-51/64 | 1.72 | 0.673 | 5/16 | HC204-12 | FT204 | 0.5 |
| HCFT205 | 25 | 124 | 99 | 20 | 13 | 31 | 13 | 70 | 46.9 | 44.4 | 17.5 | M10 | HC205 | FT205 | 0.686 |
| HCFT 205-13 | 13/16 | 4-7/8 | 3-57/64 | 25/32 | 1/2 | 1-7/32 | 33/64 | 2-3/4 | 1-27/32 | 1.748 | 0.689 | 3/8 | HC205-13 | FT205 | 0.736 |
| HCFT205-14 | 7/8 | 4-7/8 | 3-57/64 | 25/32 | 1/2 | 1-7/32 | 33/64 | 2-3/4 | 1-27/32 | 1.748 | 0.689 | 3/8 | HC205-14 | FT205 | 0.726 |
| HCFT205-15 | 15/16 | 4-7/8 | 3-57/64 | 25/32 | 1/2 | 1-7/32 | 33/64 | 2-3/4 | 1-27/32 | 1.748 | 0.689 | 3/8 | HC205-15 | FT205 | 0.706 |
| HCFT205-16 | 1 | 4-7/8 | 3-57/64 | 25/32 | 1/2 | 1-7/32 | 33/64 | 2-3/4 | 1-27/32 | 1.748 | 0.689 | 3/8 | HC205-16 | FT205 | 0.686 |
| HCFT206 | 30 | 141 | 116.5 | 21 | 13 | 34 | 13 | 82 | 51.1 | 48.4 | 18.3 | M10 | HC206 | FT206 | 0.96 |
| HCFT206-17 | 1-1/16 | 5-35/64 | 4-37/64 | 53/64 | 1/2 | 1-11/32 | 33/64 | 3-15/64 | 2-1/64 | 1.906 | 0.72 | 3/8 | HC206-17 | FT206 | 1.01 |
| HCFT206-18 | 1-1/8 | 5-35/64 | 4-37/64 | 53/64 | 1/2 | 1-11/32 | 33/64 | 3-15/64 | 2-1/64 | 1.906 | 0.72 | 3/8 | HC206-18 | FT206 | 0.98 |
| HCFT206-19 | 1-3/16 | 5-35/64 | 4-37/64 | 53/64 | 1/2 | 1-11/32 | 33/64 | 3-15/64 | 2-1/64 | 1.906 | 0.72 | 3/8 | HC206-19 | FT206 | 0.96 |
| HCFT206-20 | 1-1/4 | 5-35/64 | 4-37/64 | 53/64 | 1/2 | 1-11/32 | 33/64 | 3-15/64 | 2-1/64 | 1.906 | 0.72 | 3/8 | HC206-20 | FT206 | 0.93 |
| HCFT207 | 35 | 156 | 130 | 21.5 | 14 | 36.5 | 14 | 95 | 53.8 | 51.1 | 18.8 | M12 | HC207 | FT207 | 1.392 |
| HCFT 207-20 | 1-1/4 | 6-9/64 | 5-1/8 | 27/32 | 35/64 | 1-7/16 | 35/64 | 3-47/64 | 2-1/8 | 2.012 | 0.74 | 7/16 | HC207-20 | FT207 | 1.462 |
| HCFT207-21 | 1-5/16 | 6-9/64 | 5-1/8 | 27/32 | 35/64 | 1-7/16 | 35/64 | 3-47/64 | 2-1/8 | 2.012 | 0.74 | 7/16 | HC207-21 | FT207 | 1.422 |
| HCFT207-22 | 1-3/8 | 6-9/64 | 5-1/8 | 27/32 | 35/64 | 1-7/16 | 35/64 | 3-47/64 | 2-1/8 | 2.012 | 0.74 | 7/16 | HC207-22 | FT207 | 1.392 |
| HCFT207-23 | 1-7/16 | 6-9/64 | 5-1/8 | 27/32 | 35/64 | 1-7/16 | 35/64 | 3-47/64 | 2-1/8 | 2.012 | 0.74 | 7/16 | HC207-23 | FT207 | 1.372 |
| HCFT208 | 40 | 171 | 143.5 | 24 | 14 | 39 | 14 | 105 | 58.9 | 56.3 | 21.4 | M12 | HC208 | FT208 | 1.74 |
| HCFT208-24 | 1-1/2 | 6-47/64 | 5-21/32 | 61/64 | 35/64 | 1-17/32 | 35/64 | 4-9/64 | 2-5/16 | 2.217 | 0.843 | 7/16 | HC208-24 | FT208 | 1.79 |
| HCFT208-25 | 1-9/16 | 6-47/64 | 5-21/32 | 61/64 | 35/64 | 1-17/32 | 35/64 | 4-9/64 | 2-5/16 | 2.217 | 0.843 | 7/16 | HC208-25 | FT208 | 1.75 |
| HCFT209 | 45 | 179 | 148.5 | 24 | 14 | 40 | 16 | 111 | 58.9 | 56.3 | 21.4 | M14 | HC209 | FT209 | 1.94 |
| HCFT209-26 | 1-5/8 | 7-3/64 | 5-55/64 | 61/64 | 35/64 | 1-37/64 | 5/8 | 4-3/8 | 2-5//16 | 2.217 | 0.843 | 1/2 | HC209-26 | FT209 | 2.05 |
| HCFT209-27 | 1-11/16 | 7-3/64 | 5-55/64 | 61/64 | 35/64 | 1-37/64 | 5/8 | 4-3/8 | 2-5//16 | 2.217 | 0.843 | 1/2 | HC209-27 | FT209 | 2.05 |
| HCFT209-28 | 1-3/4 | 7-3/64 | 5-55/64 | 61/64 | 35/64 | 1-37/64 | 5/8 | 4-3/8 | 2-5//16 | 2.217 | 0.843 | 1/2 | HC209-28 | FT209 | 1.96 |
| HCFT210 | 50 | 189 | 157 | 28.5 | 14 | 47 | 16 | 116 | 66.6 | 62.7 | 24.6 | M14 | HC210 | FT210 | 2.337 |
| HCFT210-29 | 1-13/16 | 7-7/16 | 6-3/16 | 1-1/8 | 35/64 | 1-27/32 | 5/8 | 4-9/16 | 2-5/8 | 2.469 | 0.969 | 1/2 | HC210-29 | FT210 | 2.487 |
| HCFT210-30 | 1-7/8 | 7-7/16 | 6-3/16 | 1-1/8 | 35/64 | 1-27/32 | 5/8 | 4-9/16 | 2-5/8 | 2.469 | 0.969 | 1/2 | HC210-30 | FT210 | 2.427 |
| HCFT210-31 | 1-15/16 | 7-7/16 | 6-3/16 | 1-1/8 | 35/64 | 1-27/32 | 5/8 | 4-9/16 | 2-5/8 | 2.469 | 0.969 | 1/2 | HC210-31 | FT210 | 2.367 |
| HCFT210-32 | 2 | 7-7/16 | 6-3/16 | 1-1/8 | 35/64 | 1-27/32 | 5/8 | 4-9/16 | 2-5/8 | 2.469 | 0.969 | 1/2 | HC210-32 | FT210 | 2.307 |
| HCFT211 | 55 | 216 | 184 | 32 | 20 | 50 | 18 | 133 | 75.6 | 71.4 | 27.8 | M16 | HC211 | FT211 | 3.467 |
| HCFT211-32 | 2 | 8-1/2 | 7-1/4 | 1-17/64 | 25/32 | 1-31/32 | 45/64 | 5-15/64 | 2-31//32 | 2.811 | 1.094 | 5/8 | HC211-32 | FT211 | 3.767 |
| HCFT211-33 | 2-1/16 | 8-1/2 | 7-1/4 | 1-17/64 | 25/32 | 1-31/32 | 45/64 | 5-15/64 | 2-31//32 | 2.811 | 1.094 | 5/8 | HC211-33 | FT211 | 3.587 |
| HCFT211-34 | 2-1/8 | 8-1/2 | 7-1/4 | 1-17/64 | 25/32 | 1-31/32 | 45/64 | 5-15/64 | 2-31//32 | 2.811 | 1.094 | 5/8 | HC211-34 | FT211 | 3.517 |
| HCFT211-35 | 2-3/16 | 8-1/2 | 7-1/4 | 1-17/64 | 25/32 | 1-31/32 | 45/64 | 5-15/64 | 2-31//32 | 2.811 | 1.094 | 5/8 | HC211-35 | FT211 | 3.437 |
| HCFT212 | 60 | 235 | 202 | 34 | 21 | 53 | 18 | 138 | 80.8 | 77.8 | 31 | M16 | HC212 | FT212 | 4.317 |
| HCFT212-36 | 2-1/4 | 9-1/4 | 7-61/64 | 1-9/64 | 53/64 | 2-3/32 | 45/64 | 5-7/16 | 2-3/16 | 3.063 | 1.22 | 5/8 | HC212-36 | FT212 | 4.333 |
| HCFT212-37 | 2-5/16 | 9-1/4 | 7-61/64 | 1-9/64 | 53/64 | 2-3/32 | 45/64 | 5-7/16 | 2-3/16 | 3.063 | 1.22 | 5/8 | HC212-37 | FT212 | 4.387 |
| HCFT212-38 | 2-3/8 | 9-1/4 | 7-61/64 | 1-9/64 | 53/64 | 2-3/32 | 45/64 | 5-7/16 | 2-3/16 | 3.063 | 1.22 | 5/8 | HC212-38 | FT212 | 4.319 |
| HCFT212-39 | 2-7/16 | 9-1/4 | 7-61/64 | 1-9/64 | 53/64 | 2-3/32 | 45/64 | 5-7/16 | 2-3/16 | 3.063 | 1.22 | 5/8 | HC212-39 | FT212 | 4.306 |
| HCFT213 | 65 | 248 | 210 | 38 | 22 | 56 | 20.5 | 152 | 89.6 | 85.7 | 34.1 | M18 | HC213 | FT213 | 5.257 |
| HCFT213-40 | 2-1/2 | 9-49/64 | 8-17/64 | 1-1/2 | 55/64 | 2-13/64 | 13/16 | 5-63/64 | 3-17/32 | 3.374 | 1.343 | 23/32 | HC213-40 | FT213 | 5.36 |
| HCFT213-41 | 2-9/16 | 9-49/64 | 8-17/64 | 1-1/2 | 55/64 | 2-13/64 | 13/16 | 5-63/64 | 3-17/32 | 3.374 | 1.343 | 23/32 | HC213-41 | FT213 | 5.247 |
| HCFT214 | 70 | 257 | 216 | 38 | 23 | 58 | 23 | 157 | 89.6 | 85.7 | 34.1 | M20 | HC214 | FT214 | 5.684 |
| HCFT214-42 | 2-5/8 | 10-7/16 | 8-1/2 | 1-1/2 | 29/32 | 29/32 | 29/32 | 6-3/16 | 3-17/32 | 3.374 | 1.343 | 3/4 | HC214-42 | FT214 | 5.624 |
| HCFT214-43 | 2-11/16 | 10-7/16 | 8-1/2 | 1-1/2 | 29/32 | 29/32 | 29/32 | 6-3/16 | 3-17/32 | 3.374 | 1.343 | 3/4 | HC214-43 | FT214 | 5.814 |
| HCFT214-44 | 2-3/4 | 10-7/16 | 8-1/2 | 1-1/2 | 29/32 | 29/32 | 29/32 | 6-3/16 | 3-17/32 | 3.374 | 1.343 | 3/4 | HC214-44 | FT214 | 5.694 |
| Designation | Interchange | d (mm/in) | H (mm) | J (mm) | A2 (mm) | A1 (mm) | A (mm) | N (mm) | L (mm) | B1 (mm) | S (mm) | Z (mm) | Bolt Size (mm) | Bearing No. | Interchange | Housing No. | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UEFT204 | NCFT204 | 20 | 112 | 89.7 | 14.3 | 11 | 25 | 10.5 | 60 | 33 | 12.7 | 34.6 | M8 | UE204 | NC204 | FT204 | 0.51 |
| UEFT204-12 | NCFT204-12 | 3/4 | 112 | 89.7 | 14.3 | 11 | 25 | 10.5 | 60 | 33 | 12.7 | 34.6 | M8 | UE204-12 | NC204-12 | FT204 | 0.51 |
| UEFT205 | NCFT205 | 25 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 35.4 | 14.3 | 36.9 | M10 | UE205 | NC205 | FT205 | 0.72 |
| UEFT205-13 | NCFT205-13 | 13/16 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 35.4 | 14.3 | 36.9 | M10 | UE205-13 | NC205-13 | FT205 | 0.72 |
| UEFT205-14 | NCFT205-14 | 7/8 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 35.4 | 14.3 | 36.9 | M10 | UE205-14 | NC205-14 | FT205 | 0.72 |
| UEFT205-15 | NCFT205-15 | 15/16 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 35.4 | 14.3 | 36.9 | M10 | UE205-15 | NC205-15 | FT205 | 0.72 |
| UEFT205-16 | NCFT205-16 | 1 | 124 | 98.8 | 15.9 | 13 | 27 | 12.5 | 70 | 35.4 | 14.3 | 36.9 | M10 | UE205-16 | NC205-16 | FT205 | 0.72 |
| UEFT206 | NCFT206 | 30 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 39.8 | 15.9 | 41.8 | M10 | UE206 | NC206 | FT206 | 1.04 |
| UEFT206-17 | NCFT206-17 | 1-1/16 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 39.8 | 15.9 | 41.8 | M10 | UE206-17 | NC206-17 | FT206 | 1.04 |
| UEFT206-18 | NCFT206-18 | 1-1/8 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 39.8 | 15.9 | 41.8 | M10 | UE206-18 | NC206-18 | FT206 | 1.04 |
| UEFT206-19 | NCFT206-19 | 1-3/16 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 39.8 | 15.9 | 41.8 | M10 | UE206-19 | NC206-19 | FT206 | 1.04 |
| UEFT206-20 | NCFT206-20 | 1-1/4 | 141 | 116.7 | 17.9 | 13 | 30 | 12.5 | 83 | 39.8 | 15.9 | 41.8 | M10 | UE206-20 | NC206-20 | FT206 | 1.04 |
| UEFT207 | NCFT207 | 35 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 43.9 | 17.5 | 45.5 | M12 | UE207 | NC207 | FT207 | 1.48 |
| UEFT207-20 | NCFT207-20 | 1-1/4 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 43.9 | 17.5 | 45.5 | M12 | UE207-20 | NC207-20 | FT207 | 1.48 |
| UEFT207-21 | NCFT207-21 | 1-5/6 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 43.9 | 17.5 | 45.5 | M12 | UE207-21 | NC207-21 | FT207 | 1.48 |
| UEFT207-22 | NCFT207-22 | 1-3/8 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 43.9 | 17.5 | 45.5 | M12 | UE207-22 | NC207-22 | FT207 | 1.48 |
| UEFT207-23 | NCFT207-23 | 1-7/16 | 156 | 130.2 | 19.1 | 14 | 34 | 14 | 95 | 43.9 | 17.5 | 45.5 | M12 | UE207-23 | NC207-23 | FT207 | 1.48 |
| UEFT208 | NCFT208 | 40 | 171 | 143.7 | 21 | 14 | 38 | 14 | 105 | 50.2 | 19 | 52.2 | M12 | UE208 | NC208 | FT208 | 1.86 |
| UEFT208-24 | NCFT208-24 | 1-1/2 | 171 | 143.7 | 21 | 14 | 38 | 14 | 105 | 50.2 | 19 | 52.2 | M12 | UE208-24 | NC208-24 | FT208 | 1.86 |
| UEFT208-25 | NCFT208-25 | 1-9/16 | 171 | 143.7 | 21 | 14 | 38 | 14 | 105 | 50.2 | 19 | 52.2 | M12 | UE208-25 | NC208-25 | FT208 | 1.86 |
| UEFT209 | NCFT209 | 45 | 179 | 148.4 | 21.8 | 14 | 40 | 16 | 111 | 50.2 | 19 | 53 | M14 | UE209 | NC209 | FT209 | 2.14 |
| UEFT209-26 | NCFT209-26 | 1-5/8 | 179 | 148.4 | 21.8 | 14 | 40 | 16 | 111 | 50.2 | 19 | 53 | M14 | UE209-26 | NC209-26 | FT209 | 2.14 |
| UEFT209-27 | NCFT209-27 | 1-11/16 | 179 | 148.4 | 21.8 | 14 | 40 | 16 | 111 | 50.2 | 19 | 53 | M14 | UE209-27 | NC209-27 | FT209 | 2.14 |
| UEFT209-28 | NCFT209-28 | 1-3/4 | 179 | 148.4 | 21.8 | 14 | 40 | 16 | 111 | 50.2 | 19 | 53 | M14 | UE209-28 | NC209-28 | FT209 | 2.14 |
| UEFT210 | NCFT210 | 50 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 52.6 | 19 | 55.8 | M14 | UE210 | NC210 | FT210 | 2.26 |
| UEFT210-29 | NCFT210-29 | 1-13/16 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 52.6 | 19 | 55.8 | M14 | UE210-29 | NC210-29 | FT210 | 2.26 |
| UEFT210-30 | NCFT210-30 | 1-7/8 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 52.6 | 19 | 55.8 | M14 | UE210-30 | NC210-30 | FT210 | 2.26 |
| UEFT210-31 | NCFT210-31 | 1-15/16 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 52.6 | 19 | 55.8 | M14 | UE210-31 | NC210-31 | FT210 | 2.26 |
| UEFT210-32 | NCFT210-32 | 2 | 189 | 157.2 | 22.2 | 14 | 40 | 16 | 116 | 52.6 | 19 | 55.8 | M14 | UE210-32 | NC210-32 | FT210 | 2.26 |
| UEFT211 | NCFT211 | 55 | 216 | 184.2 | 25.4 | 21 | 44 | 18 | 133 | 56.6 | 22.2 | 59.8 | M16 | UE211 | NC211 | FT211 | 3.31 |
| UEFT211-32 | NCFT211-32 | 2 | 1900-08-03 00:00:00 | 184.2 | 25.4 | 21 | 44 | 18 | 133 | 56.6 | 22.2 | 59.8 | M16 | UE211-32 | NC211-32 | FT211 | 3.31 |
| UEFT211-33 | NCFT211-33 | 2-1/16 | 216 | 184.2 | 25.4 | 21 | 44 | 18 | 133 | 56.6 | 22.2 | 59.8 | M16 | UE211-33 | NC211-33 | FT211 | 3.31 |
| UEFT211-34 | NCFT211-34 | 2-1/8 | 216 | 184.2 | 25.4 | 21 | 44 | 18 | 133 | 56.6 | 22.2 | 59.8 | M16 | UE211-34 | NC211-34 | FT211 | 3.31 |
| UEFT211-35 | NCFT211-35 | 2-3/16 | 216 | 184.2 | 25.4 | 21 | 44 | 18 | 133 | 56.6 | 22.2 | 59.8 | M16 | UE211-35 | NC211-35 | FT211 | 3.31 |
| Designation | Interchange | d (mm/in) | d1 (mm/in) | a (mm/in) | e (mm/in) | i (mm/in) | g (mm/in) | I (mm/in) | s (mm/in) | b (mm/in) | z (mm/in) | B1 (mm/in) | n (mm/in) | Bolt Size (mm/in) | Bearing No. | Interchange | Housing No. | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NCFL204 | UEFL204 | 20 | 44.5 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 34.8 | 33.4 | 12.7 | M10 | NC204 | UE204 | FL204 | 0.55 |
| NCFL204-12 | UEFL204-12 | 3/4 | 1-3/4 | 4-7/16 | 3-35/64 | 19/32 | 7/16 | 1 | 15/32 | 2-3/8 | 1-3/8 | 1.315 | 0.500 | 3/8 | NC204-12 | UE204-12 | FL204 | 0.55 |
| NCFL205 | UEFL205 | 25 | 49.2 | 130 | 99 | 16 | 13 | 27 | 16 | 68 | 38.2 | 36.5 | 14.3 | M14 | NC205 | UE205 | FL205 | 0.79 |
| NCFL205-14 | UEFL205-14 | 7/8 | 1-15/16 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-1/2 | 1.437 | 0.563 | 1/2 | NC205-14 | UE205-14 | FL205 | 0.79 |
| NCFL205-15 | UEFL205-15 | 15/16 | 1-15/16 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-1/2 | 1.437 | 0.563 | 1/2 | NC205-15 | UE205-15 | FL205 | 0.79 |
| NCFL205-16 | UEFL205-16 | 1 | 1-15/16 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-1/2 | 1.437 | 0.563 | 1/2 | NC205-16 | UE205-16 | FL205 | 0.79 |
| NCFL206 | UEFL206 | 30 | 55.6 | 148 | 117 | 18 | 13 | 31 | 16 | 80 | 41.8 | 39.7 | 15.9 | M14 | NC206 | UE206 | FL206 | 1.03 |
| NCFL206-18 | UEFL206-18 | 1-1/8 | 2-3/16 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-21/32 | 1.563 | 0.626 | 1/2 | NC206-18 | UE206-18 | FL206 | 1.03 |
| NCFL206-19 | UEFL206-19 | 1-3/16 | 2-3/16 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-21/32 | 1.563 | 0.626 | 1/2 | NC206-19 | UE206-19 | FL206 | 1.03 |
| NCFL206-20 | UEFL206-20 | 1-1/4 | 2-3/16 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-21/32 | 1.563 | 0.626 | 1/2 | NC206-20 | UE206-20 | FL206 | 1.03 |
| NCFL207 | UEFL207 | 35 | 65.1 | 161 | 130 | 19 | 14 | 34 | 16 | 90 | 46 | 44.5 | 17.5 | M14 | NC207 | UE207 | FL207 | 1.45 |
| NCFL207-20 | UEFL207-20 | 1-1/4 | 2-7/16 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 1-13/16 | 1.752 | 0.740 | 1/2 | NC207-20 | UE207-20 | FL207 | 1.45 |
| NCFL207-22 | UEFL207-22 | 1-3/8 | 2-9/16 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 1-13/16 | 1.752 | 0.740 | 1/2 | NC207-22 | UE207-22 | FL207 | 1.45 |
| NCFL207-23 | UEFL207-23 | 1-7/16 | 2-9/16 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 1-13/16 | 1.752 | 0.740 | 1/2 | NC207-23 | UE207-23 | FL207 | 1.45 |
| NCFL208 | UEFL208 | 40 | 68.3 | 175 | 144 | 21 | 14 | 36 | 16 | 100 | 52.8 | 50.8 | 19 | M14 | NC208 | UE208 | FL208 | 1.82 |
| NCFL208-24 | UEFL208-24 | 1-1/2 | 2-11/16 | 6-7/8 | 5-1/8 | 53/64 | 35/64 | 1-13/32 | 5/8 | 3-15/16 | 2-3/32 | 2 | 0.748 | 1/2 | NC208-24 | UE208-24 | FL208 | 1.82 |
| NCFL209 | UEFL209 | 45 | 74.6 | 188 | 148 | 22 | 15 | 38 | 19 | 108 | 53.8 | 50.8 | 19 | M16 | NC209 | UE209 | FL209 | 2.2 |
| NCFL209-26 | UEFL209-26 | 1-5/8 | 2-13/16 | 7-15/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 2-1/8 | 2 | 0.748 | 5/8 | NC209-26 | UE209-26 | FL209 | 2.2 |
| NCFL209-27 | UEFL209-27 | 1-11/16 | 2-15/16 | 7-15/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 2-1/8 | 2 | 0.748 | 5/8 | NC209-27 | UE209-27 | FL209 | 2.2 |
| NCFL209-28 | UEFL209-28 | 1-3/4 | 2-15/16 | 7-15/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 2-1/8 | 2 | 0.748 | 5/8 | NC209-28 | UE209-28 | FL209 | 2.2 |
| NCFL210 | UEFL210 | 50 | 85.7 | 197 | 157 | 22 | 15 | 40 | 19 | 115 | 56.1 | 53.1 | 19 | M16 | NC210 | UE210 | FL210 | 2.67 |
| NCFL210-31 | UEFL210-31 | 1-15/16 | 3-3/8 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 2-7/32 | 2.091 | 0.748 | 5/8 | NC210-31 | UE210-31 | FL210 | 2.67 |
| NCFL210-32 | UEFL210-32 | 2 | 3-3/8 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 2-7/32 | 2.091 | 0.748 | 5/8 | NC210-32 | UE210-32 | FL210 | 2.67 |
| NCFL211 | UEFL211 | 55 | 92.1 | 224 | 184 | 25 | 18 | 43 | 19 | 130 | 59.9 | 57.1 | 22.2 | M16 | NC211 | UE211 | FL211 | 3.3 |
| NCFL211-32 | UEFL211-32 | 2 | 1-1/2 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-11/32 | 2.248 | 0.874 | 5/8 | NC211-32 | UE211-32 | FL211 | 3.3 |
| NCFL211-35 | UEFL211-35 | 2-3/8 | 3-5/8 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-11/32 | 2.248 | 0.874 | 5/8 | NC211-35 | UE211-35 | FL211 | 3.55 |
| NCFL212 | UEFL212 | 60 | 104.8 | 250 | 202 | 29 | 18 | 48 | 23 | 140 | 70.3 | 66.7 | 25.4 | M20 | NC212 | UE212 | FL212 | 4.46 |
| NCFL212-36 | UEFL212-36 | 2-1/4 | 4-1/16 | 9-27/32 | 7-61/64 | 1-9/64 | 23/32 | 1-7/8 | 29/32 | 5-1/2 | 2-25/32 | 2.626 | 1.000 | 3/4 | NC212-36 | UE212-36 | FL212 | 4.46 |
| NCFL212-39 | UEFL212-39 | 2-7/16 | 4-1/8 | 9-27/32 | 7-61/64 | 1-9/64 | 23/32 | 1-7/8 | 29/32 | 5-1/2 | 2-25/32 | 2.626 | 1.000 | 3/4 | NC212-39 | UE212-39 | FL212 | 4.46 |
| Designation | Interchange | d (mm/in) | a (mm/in) | e (mm/in) | i (mm/in) | g (mm/in) | I (mm/in) | s (mm/in) | b (mm/in) | z (mm/in) | B1 (mm/in) | n (mm/in) | Bolt Size (mm/in) | Bearing No. | Interchange | Housing No. | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCFL204 | NAFL204 | 20 | 113 | 90 | 15 | 11 | 25.5 | 12 | 60 | 41.6 | 43.7 | 17.1 | M10 | HC204 | NA204 | FL204 | 0.46 |
| HCFL204-12 | NAFL204-12 | 3/4 | 4-7/16 | 3-35/64 | 19/32 | 7/16 | 1 | 15/32 | 2-3/8 | 1-41/64 | 1.72 | 0.673 | 3/8 | HC204-12 | NA204-12 | FL204 | 0.46 |
| HCFL205 | NAFL205 | 25 | 130 | 99 | 16 | 13 | 27 | 16 | 68 | 42.9 | 44.4 | 17.5 | M14 | HC205 | NA205 | FL205 | 0.63 |
| HCFL205-13 | NAFL205-13 | 13/16 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-11/16 | 1.748 | 0.689 | 1/2 | HC205-13 | NA205-13 | FL205 | 0.68 |
| HCFL205-14 | NAFL205-14 | 7/8 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-11/16 | 1.748 | 0.689 | 1/2 | HC205-14 | NA205-14 | FL205 | 0.67 |
| HCFL205-15 | NAFL205-15 | 15/16 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-11/16 | 1.748 | 0.689 | 1/2 | HC205-15 | NA205-15 | FL205 | 0.65 |
| HCFL205-16 | NAFL205-16 | 1 | 5-1/8 | 3-57/64 | 5/8 | 1/2 | 1-1/16 | 5/8 | 2-11/16 | 1-11/16 | 1.748 | 0.689 | 1/2 | HC205-16 | NA205-16 | FL205 | 0.63 |
| HCFL206 | NAFL206 | 30 | 148 | 117 | 18 | 13 | 31 | 16 | 80 | 48.1 | 48.4 | 18.3 | M14 | HC206 | NA206 | FL206 | 0.9 |
| HCFL206-17 | NAFL206-17 | 1-1/16 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-57/64 | 1.906 | 0.72 | 1/2 | HC206-17 | NA206-17 | FL206 | 0.95 |
| HCFL206-18 | NAFL206-18 | 1-1/8 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-57/64 | 1.906 | 0.72 | 1/2 | HC206-18 | NA206-18 | FL206 | 0.92 |
| HCFL206-19 | NAFL206-19 | 1-3/16 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-57/64 | 1.906 | 0.72 | 1/2 | HC206-19 | NA206-19 | FL206 | 0.9 |
| HCFL206-20 | NAFL206-20 | 1-1/4 | 5-13/16 | 4-39/64 | 45/64 | 1/2 | 1-7/32 | 5/8 | 3-5/32 | 1-57/64 | 1.906 | 0.72 | 1/2 | HC206-20 | NA206-20 | FL206 | 0.87 |
| HCFL207 | NAFL207 | 35 | 161 | 130 | 19 | 14 | 34 | 16 | 90 | 51.3 | 51.1 | 18.8 | M14 | HC207 | NA207 | FL207 | 1.24 |
| HCFL207-20 | NAFL207-20 | 1-1/4 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 2-1/64 | 2.012 | 0.74 | 1/2 | HC207-20 | NA207-20 | FL207 | 1.31 |
| HCFL207-21 | NAFL207-21 | 1-5/16 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 2-1/64 | 2.012 | 0.74 | 1/2 | HC207-21 | NA207-21 | FL207 | 1.27 |
| HCFL207-22 | NAFL207-22 | 1-3/8 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 2-1/64 | 2.012 | 0.74 | 1/2 | HC207-22 | NA207-22 | FL207 | 1.24 |
| HCFL207-23 | NAFL207-23 | 1-7/16 | 6-11/32 | 5-1/8 | 3/4 | 35/64 | 1-11/32 | 5/8 | 3-35/64 | 2-1/64 | 2.012 | 0.74 | 1/2 | HC207-23 | NA207-23 | FL207 | 1.22 |
| HCFL208 | NAFL208 | 40 | 175 | 144 | 21 | 14 | 36 | 16 | 100 | 55.9 | 56.3 | 21.4 | M14 | HC208 | NA208 | FL208 | 1.56 |
| HCFL208-24 | NAFL208-24 | 1-1/2 | 6-7/8 | 5-43/64 | 53/64 | 35/64 | 1-13/32 | 5/8 | 3-15/16 | 2-13/64 | 2.217 | 0.843 | 1/2 | HC208-24 | NA208-24 | FL208 | 1.6 |
| HCFL208-25 | NAFL208-25 | 1-9/16 | 6-7/8 | 5-43/64 | 53/64 | 35/64 | 1-13/32 | 5/8 | 3-15/16 | 2-13/64 | 2.217 | 0.843 | 1/2 | HC208-25 | NA208-25 | FL208 | 1.56 |
| HCFL209 | NAFL209 | 45 | 188 | 148 | 22 | 15 | 38 | 19 | 108 | 56.9 | 56.3 | 21.4 | M16 | HC209 | NA209 | FL209 | 1.88 |
| HCFL209-26 | NAFL209-26 | 1-5/8 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 2-15/64 | 2.217 | 0.843 | 5/8 | HC209-26 | NA209-26 | FL209 | 1.99 |
| HCFL209-27 | NAFL209-27 | 1-11/16 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 2-15/64 | 2.217 | 0.843 | 5/8 | HC209-27 | NA209-27 | FL209 | 1.94 |
| HCFL209-28 | NAFL209-28 | 1-3/4 | 7-13/32 | 5-53/64 | 55/64 | 19/32 | 1-1/2 | 3/4 | 4-1/4 | 2-15/64 | 2.217 | 0.843 | 5/8 | HC209-28 | NA209-28 | FL209 | 1.9 |
| HCFL210 | NAFL210 | 50 | 197 | 157 | 22 | 15 | 40 | 19 | 115 | 60.1 | 62.7 | 24.6 | M16 | HC210 | NA210 | FL210 | 2.21 |
| HCFL210-29 | NAFL210-29 | 1-13/16 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 2-23/64 | 2.469 | 0.969 | 5/8 | HC210-29 | NA210-29 | FL210 | 2.36 |
| HCFL210-30 | NAFL210-30 | 1-7/8 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 2-23/64 | 2.469 | 0.969 | 5/8 | HC210-30 | NA210-30 | FL210 | 2.3 |
| HCFL210-31 | NAFL210-31 | 1-15/16 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 2-23/64 | 2.469 | 0.969 | 5/8 | HC210-31 | NA210-31 | FL210 | 2.24 |
| HCFL210-32 | NAFL210-32 | 2 | 7-3/4 | 6-3/16 | 55/64 | 19/32 | 1-37/64 | 3/4 | 4-17/32 | 2-23/64 | 2.469 | 0.969 | 5/8 | HC210-32 | NA210-32 | FL210 | 2.18 |
| HCFL211 | NAFL211 | 55 | 224 | 184 | 25 | 18 | 43 | 19 | 130 | 68.6 | 71.4 | 27.8 | M16 | HC211 | NA211 | FL211 | 3.06 |
| HCFL211-32 | NAFL211-32 | 2 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-45/64 | 2.811 | 1.094 | 5/8 | HC211-32 | NA211-32 | FL211 | 3.36 |
| HCFL211-33 | NAFL211-33 | 2-1/16 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-45/64 | 2.811 | 1.094 | 5/8 | HC211-33 | NA211-33 | FL211 | 3.18 |
| HCFL211-34 | NAFL211-34 | 2-1/8 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-45/64 | 2.811 | 1.094 | 5/8 | HC211-34 | NA211-34 | FL211 | 3.11 |
| HCFL211-35 | NAFL211-35 | 2-3/16 | 8-13/16 | 7-1/4 | 63/64 | 23/32 | 1-11/16 | 3/4 | 5-1/8 | 2-45/64 | 2.811 | 1.094 | 5/8 | HC211-35 | NA211-35 | FL211 | 3.03 |
| HCFL212 | NAFL212 | 60 | 250 | 202 | 29 | 18 | 48 | 23 | 140 | 75.8 | 77.8 | 31 | M20 | HC212 | NA212 | FL212 | 3.97 |
| HCFL212-36 | NAFL212-36 | 2-1/4 | 9-27/32 | 7-16/64 | 1-9/64 | 23/32 | 1-7/8 | 29/32 | 5-1/2 | 2-63/64 | 3.063 | 1.22 | 3/4 | HC212-36 | NA212-36 | FL212 | 3.99 |
| HCFL212-37 | NAFL212-37 | 2-5/16 | 9-27/32 | 7-16/64 | 1-9/64 | 23/32 | 1-7/8 | 29/32 | 5-1/2 | 2-63/64 | 3.063 | 1.22 | 3/4 | HC212-37 | NA212-37 | FL212 | 4.04 |
| HCFL212-38 | NAFL212-38 | 2-3/8 | 9-27/32 | 7-16/64 | 1-9/64 | 23/32 | 1-7/8 | 29/32 | 5-1/2 | 2-63/64 | 3.063 | 1.22 | 3/4 | HC212-38 | NA212-38 | FL212 | 3.97 |
| HCFL212-39 | NAFL212-39 | 2-7/16 | 9-27/32 | 7-16/64 | 1-9/64 | 23/32 | 1-7/8 | 29/32 | 5-1/2 | 2-63/64 | 3.063 | 1.22 | 3/4 | HC212-39 | NA212-39 | FL212 | 3.96 |
| HCFL213 | NAFL213 | 65 | 258 | 210 | 30 | 22 | 50 | 23 | 155 | 81.6 | 85.7 | 34.1 | M20 | HC213 | NA213 | FL213 | 5.1 |
| HCFL213-40 | NAFL213-40 | 2-1/2 | 10-5/32 | 8-17/64 | 1-3/16 | 7/8 | 1-31/32 | 29/32 | 6-3/32 | 3-7/32 | 3.374 | 1.343 | 3/4 | HC213-40 | NA213-40 | FL213 | 5.2 |
| HCFL213-41 | NAFL213-41 | 2-9/16 | 10-5/32 | 8-17/64 | 1-3/16 | 7/8 | 1-31/32 | 29/32 | 6-3/32 | 3-7/32 | 3.374 | 1.343 | 3/4 | HC213-41 | NA213-41 | FL213 | 5.09 |
| HCFL214 | NAFL214 | 70 | 265 | 216 | 31 | 22 | 54 | 23 | 160 | 82.6 | 85.7 | 34.1 | M20 | HC214 | NA214 | FL214 | 5.53 |
| HCFL214-42 | NAFL214-42 | 2-5/8 | 10-7/16 | 8-1/2 | 1-7/32 | 7/8 | 2-1/8 | 29/32 | 6-5/16 | 3-1/4 | 3.374 | 1.343 | 3/4 | HC214-42 | NA214-42 | FL214 | 5.47 |
| HCFL214-43 | NAFL214-43 | 2-11/16 | 10-7/16 | 8-1/2 | 1-7/32 | 7/8 | 2-1/8 | 29/32 | 6-5/16 | 3-1/4 | 3.374 | 1.343 | 3/4 | HC214-43 | NA214-43 | FL214 | 5.66 |
| HCFL214-44 | NAFL214-44 | 2-3/4 | 10-7/16 | 8-1/2 | 1-7/32 | 7/8 | 2-1/8 | 29/32 | 6-5/16 | 3-1/4 | 3.374 | 1.343 | 3/4 | HC214-44 | NA214-44 | FL214 | 5.54 |
| HCFL215 | NAFL215 | 75 | 275 | 225 | 34 | 22 | 56 | 23 | 165 | 88.8 | 92.1 | 37.3 | M20 | HC215 | NA215 | FL215 | 6.09 |
| HCFL215-45 | NAFL215-45 | 2-13/16 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 2-7/32 | 29/32 | 6-1/2 | 3-1/2 | 3.626 | 1.469 | 3/4 | HC215-45 | NA215-45 | FL215 | 6.39 |
| HCFL215-46 | NAFL215-46 | 2-7/8 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 2-7/32 | 29/32 | 6-1/2 | 3-1/2 | 3.626 | 1.469 | 3/4 | HC215-46 | NA215-46 | FL215 | 6.26 |
| HCFL215-47 | NAFL215-47 | 2-15/16 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 2-7/32 | 29/32 | 6-1/2 | 3-1/2 | 3.626 | 1.469 | 3/4 | HC215-47 | NA215-47 | FL215 | 6.13 |
| HCFL215-48 | NAFL215-48 | 3 | 10-13/16 | 8-55/64 | 1-11/32 | 7/8 | 2-7/32 | 29/32 | 6-1/2 | 3-1/2 | 3.626 | 1.469 | 3/4 | HC215-48 | NA215-48 | FL215 | 5.99 |
| HCFL216 | NAFL216 | 80 | 290 | 233 | 34 | 22 | 58 | 25 | 180 | 91.9 | 95.2 | 37.3 | M22 | HC216 | NA216 | FL216 | 7.58 |
| HCFL216-49 | NAFL216-49 | 3-1/16 | 11-13/32 | 9-11/64 | 1-11/32 | 7/8 | 2-9/32 | 63/64 | 7-3/32 | 3-5/8 | 3.748 | 1.469 | 7/8 | HC216-49 | NA216-49 | FL216 | 7.79 |
| HCFL216-50 | NAFL216-50 | 3-1/8 | 11-13/32 | 9-11/64 | 1-11/32 | 7/8 | 2-9/32 | 63/64 | 7-3/32 | 3-5/8 | 3.748 | 1.469 | 7/8 | HC216-50 | NA216-50 | FL216 | 7.64 |
| HCFL216-51 | NAFL216-51 | 3-3/16 | 11-13/32 | 9-11/64 | 1-11/32 | 7/8 | 2-9/32 | 63/64 | 7-3/32 | 3-5/8 | 3.748 | 1.469 | 7/8 | HC216-51 | NA216-51 | FL216 | 7.49 |
| HCFL217 | NAFL217 | 85 | 305 | 248 | 36 | 24 | 63 | 25 | 190 | 86.4 | 73.8 | 23.4 | M22 | HC217 | NA217 | FL217 | 8.52 |
| HCFL217-52 | NAFL217-52 | 3-1/4 | 9-27/32 | 5-51/64 | 23/32 | 1-25/32 | 7.0866 | 29/32 | 7-15/32 | 3-13/32 | 2.906 | 0.921 | 7/8 | HC217-52 | NA217-52 | FL217 | 8.7 |
| HCFL217-53 | NAFL217-53 | 3-5/16 | 9-27/32 | 5-51/64 | 23/32 | 1-25/32 | 7.0866 | 29/32 | 7-15/32 | 3-13/32 | 2.906 | 0.921 | 7/8 | HC217-53 | NA217-53 | FL217 | 8.58 |
| HCFL217-55 | NAFL217-55 | 3-7/16 | 9-27/32 | 5-51/64 | 23/32 | 1-25/32 | 7.0866 | 29/32 | 7-15/32 | 3-13/32 | 2.906 | 0.921 | 7/8 | HC217-55 | NA217-55 | FL217 | 8.34 |
| HCFL218 | NAFL218 | 90 | 320 | 265 | 40 | 24 | 68 | 25 | 205 | 88.1 | 72.6 | 24.5 | M22 | HC218 | NA218 | FL218 | 9.95 |
| HCFL218-56 | NAFL218-56 | 2003-01-02 00:00:00 | 12-19/32 | 10-7/16 | 1-37/64 | 15/16 | 2-11/16 | 63/64 | 8-1/16 | 8-15/32 | 3.7795 | 1.563 | 7/8 | HC218-56 | NA218-56 | FL218 | 10.04 |
| Designation | Interchange | d (mm/in) | a (mm/in) | e (mm/in) | i (mm/in) | g (mm/in) | I (mm/in) | s (mm/in) | b (mm/in) | z (mm/in) | B1 (mm/in) | n (mm/in) | Bolt Size (mm/in) | Bearing No. | Interchange | Housing No. | Mass (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCFLU204 | NAFLU204 | 20 | 113 | 90 | 19 | 15 | 29.5 | 12 | 60 | 45.6 | 43.7 | 17.1 | M10 | HC204 | NA204 | FLU204 | 0.512 |
| HCFLU204-12 | NAFLU204-12 | 3/4 | 4-7/16 | 3-35/64 | 3/4 | 19/32 | 1-5/32 | 15/32 | 2-3/8 | 1-51/64 | 1.720 | 0.673 | 3/8 | HC204-12 | NA204-12 | FLU204 | 0.512 |
| HCFLU205 | NAFLU205 | 25 | 123 | 99 | 19 | 15 | 30 | 12 | 68 | 45.9 | 44.4 | 17.5 | M10 | HC205 | NA205 | FLU205 | 0.634 |
| HCFLU205-13 | NAFLU205-13 | 13/16 | 4-27/32 | 3-57/64 | 3/4 | 19/32 | 1-11/64 | 15/32 | 2-11/16 | 1-13/16 | 1.748 | 0.689 | 3/8 | HC205-13 | NA205-13 | FLU205 | 0.684 |
| HCFLU205-14 | NAFLU205-14 | 7/8 | 4-27/32 | 3-57/64 | 3/4 | 19/32 | 1-11/64 | 15/32 | 2-11/16 | 1-13/16 | 1.748 | 0.689 | 3/8 | HC205-14 | NA205-14 | FLU205 | 0.674 |
| HCFLU205-15 | NAFLU205-15 | 15/16 | 4-27/32 | 3-57/64 | 3/4 | 19/32 | 1-11/64 | 15/32 | 2-11/16 | 1-13/16 | 1.748 | 0.689 | 3/8 | HC205-15 | NA205-15 | FLU205 | 0.654 |
| HCFLU205-16 | NAFLU205-16 | 1 | 4-27/32 | 3-57/64 | 3/4 | 19/32 | 1-11/64 | 15/32 | 2-11/16 | 1-13/16 | 1.748 | 0.689 | 3/8 | HC205-16 | NA205-16 | FLU205 | 0.634 |
| HCFLU206 | NAFLU206 | 30 | 142 | 116.5 | 20 | 16 | 32.5 | 12 | 80 | 50.1 | 48.4 | 18.3 | M10 | HC206 | NA206 | FLU206 | 0.919 |
| HCFLU206-17 | NAFLU206-17 | 1-1/16 | 5-9/32 | 4-19/32 | 25/32 | 5/8 | 1-9/32 | 15/32 | 3-5/32 | 1-31/32 | 1.906 | 0.720 | 3/8 | HC206-17 | NA206-17 | FLU206 | 0.969 |
| HCFLU206-18 | NAFLU206-18 | 1-1/8 | 5-9/32 | 4-19/32 | 25/32 | 5/8 | 1-9/32 | 15/32 | 3-5/32 | 1-31/32 | 1.906 | 0.720 | 3/8 | HC206-18 | NA206-18 | FLU206 | 0.939 |
| HCFLU206-19 | NAFLU206-19 | 1-3/16 | 5-9/32 | 4-19/32 | 25/32 | 5/8 | 1-9/32 | 15/32 | 3-5/32 | 1-31/32 | 1.906 | 0.720 | 3/8 | HC206-19 | NA206-19 | FLU206 | 0.919 |
| HCFLU206-20 | NAFLU206-20 | 1-1/4 | 5-9/32 | 4-19/32 | 25/32 | 5/8 | 1-9/32 | 15/32 | 3-5/32 | 1-31/32 | 1.906 | 0.720 | 3/8 | HC206-20 | NA206-20 | FLU206 | 0.889 |
| HCFLU207 | NAFLU207 | 35 | 158 | 130 | 21 | 17 | 36 | 14 | 90 | 53.3 | 51.1 | 18.8 | M12 | HC207 | NA207 | FLU207 | 1.263 |
| HCFLU207-20 | NAFLU207-20 | 1-1/4 | 6-7/32 | 5-1/8 | 53/64 | 43/64 | 1-27/64 | 35/64 | 3-35/64 | 2-3/32 | 2.012 | 0.740 | 7/16 | HC207-20 | NA207-20 | FLU207 | 1.333 |
| HCFLU207-21 | NAFLU207-21 | 1-5/16 | 6-7/32 | 5-1/8 | 53/64 | 43/64 | 1-27/64 | 35/64 | 3-35/64 | 2-3/32 | 2.012 | 0.740 | 7/16 | HC207-21 | NA207-21 | FLU207 | 1.293 |
| HCFLU207-22 | NAFLU207-22 | 1-3/8 | 6-7/32 | 5-1/8 | 53/64 | 43/64 | 1-27/64 | 35/64 | 3-35/64 | 2-3/32 | 2.012 | 0.740 | 7/16 | HC207-22 | NA207-22 | FLU207 | 1.263 |
| HCFLU207-23 | NAFLU207-23 | 1-7/16 | 6-7/32 | 5-1/8 | 53/64 | 43/64 | 1-27/64 | 35/64 | 3-35/64 | 2-3/32 | 2.012 | 0.740 | 7/16 | HC207-23 | NA207-23 | FLU207 | 1.243 |
| HCFLU208 | NAFLU208 | 40 | 172 | 143.5 | 24 | 17 | 39 | 14 | 100 | 58.9 | 56.3 | 21.4 | M12 | HC208 | NA208 | FLU208 | 1.61 |
| HCFLU208-24 | NAFLU208-24 | 1-1/2 | 6-49/64 | 5-21/32 | 15/16 | 43/64 | 1-17/32 | 35/64 | 3-15/16 | 2-5/16 | 2.217 | 0.843 | 7/16 | HC208-24 | NA208-24 | FLU208 | 1.66 |
| HCFLU208-25 | NAFLU208-25 | 1-9/16 | 6-49/64 | 5-21/32 | 15/16 | 43/64 | 1-17/32 | 35/64 | 3-15/16 | 2-5/16 | 2.217 | 0.843 | 7/16 | HC208-25 | NA208-25 | FLU208 | 1.62 |
| HCFLU209 | NAFLU209 | 45 | 180 | 148.5 | 24 | 18 | 40 | 16 | 108 | 58.9 | 56.3 | 21.4 | M14 | HC209 | NA209 | FLU209 | 1.877 |
| HCFLU209-26 | NAFLU209-26 | 1-5/8 | 7-3/32 | 5-27/32 | 15/16 | 45/64 | 1-37/64 | 5/8 | 4-1/4 | 2-5/16 | 2.217 | 0.843 | 1/2 | HC209-26 | NA209-26 | FLU209 | 1.987 |
| HCFLU209-27 | NAFLU209-27 | 1-11/16 | 7-3/32 | 5-27/32 | 15/16 | 45/64 | 1-37/64 | 5/8 | 4-1/4 | 2-5/16 | 2.217 | 0.843 | 1/2 | HC209-27 | NA209-27 | FLU209 | 1.937 |
| HCFLU209-28 | NAFLU209-28 | 1-3/4 | 7-3/32 | 5-27/32 | 15/16 | 45/64 | 1-37/64 | 5/8 | 4-1/4 | 2-5/16 | 2.217 | 0.843 | 1/2 | HC209-28 | NA209-28 | FLU209 | 1.897 |
| HCFLU210 | NAFLU210 | 50 | 190 | 157 | 28 | 20 | 45 | 18 | 114 | 66.1 | 62.7 | 24.6 | M16 | HC210 | NA210 | FLU210 | 2.215 |
| HCFLU210-29 | NAFLU210-29 | 1-13/16 | 7-31/64 | 6-3/16 | 1-7/64 | 25/32 | 1-49/64 | 45/64 | 4-31/64 | 2-39/64 | 2.469 | 0.969 | 5/8 | HC210-29 | NA210-29 | FLU210 | 2.365 |
| HCFLU210-30 | NAFLU210-30 | 1-7/8 | 7-31/64 | 6-3/16 | 1-7/64 | 25/32 | 1-49/64 | 45/64 | 4-31/64 | 2-39/64 | 2.469 | 0.969 | 5/8 | HC210-30 | NA210-30 | FLU210 | 2.305 |
| HCFLU210-31 | NAFLU210-31 | 1-15/16 | 7-31/64 | 6-3/16 | 1-7/64 | 25/32 | 1-49/64 | 45/64 | 4-31/64 | 2-39/64 | 2.469 | 0.969 | 5/8 | HC210-31 | NA210-31 | FLU210 | 2.245 |
| HCFLU210-32 | NAFLU210-32 | 2 | 7-31/64 | 6-3/16 | 1-7/64 | 25/32 | 1-49/64 | 45/64 | 4-31/64 | 2-39/64 | 2.469 | 0.969 | 5/8 | HC210-32 | NA210-32 | FLU210 | 2.185 |
| HCFLU211 | NAFLU211 | 55 | 217 | 184 | 31 | 21 | 48 | 18 | 128 | 74.6 | 71.4 | 27.8 | M16 | HC211 | NA211 | FLU211 | 3.056 |
| HCFLU211-32 | NAFLU211-32 | 2 | 8-35/64 | 7-1/4 | 7/32 | 53/64 | 1-57/64 | 45/64 | 5-3/64 | 2-5/16 | 2.811 | 1.094 | 5/8 | HC211-32 | NA211-32 | FLU211 | 3.356 |
| HCFLU211-33 | NAFLU211-33 | 2-1/16 | 8-35/64 | 7-1/4 | 7/32 | 53/64 | 1-57/64 | 45/64 | 5-3/64 | 2-5/16 | 2.811 | 1.094 | 5/8 | HC211-33 | NA211-33 | FLU211 | 3.176 |
| HCFLU211-34 | NAFLU211-34 | 2-1/8 | 8-35/64 | 7-1/4 | 7/32 | 53/64 | 1-57/64 | 45/64 | 5-3/64 | 2-5/16 | 2.811 | 1.094 | 5/8 | HC211-34 | NA211-34 | FLU211 | 3.106 |
| HCFLU211-35 | NAFLU211-35 | 2-3/16 | 8-35/64 | 7-1/4 | 7/32 | 53/64 | 1-57/64 | 45/64 | 5-3/64 | 2-5/16 | 2.811 | 1.094 | 5/8 | HC211-35 | NA211-35 | FLU211 | 3.026 |
| HCFLU212 | NAFLU212 | 60 | 237 | 202 | 34 | 21 | 53 | 18 | 138 | 80.8 | 77.8 | 31 | M16 | HC212 | NA212 | FLU212 | 3.869 |
| HCFLU212-36 | NAFLU212-36 | 2-1/4 | 9-21/32 | 7-61/64 | 1-11/32 | 53/64 | 2-3/32 | 45/64 | 5-7/16 | 3-3/16 | 3.063 | 1.220 | 5/8 | HC212-36 | NA212-36 | FLU212 | 3.885 |
| HCFLU212-37 | NAFLU212-37 | 2-5/16 | 9-21/32 | 7-61/64 | 1-11/32 | 53/64 | 2-3/32 | 45/64 | 5-7/16 | 3-3/16 | 3.063 | 1.220 | 5/8 | HC212-37 | NA212-37 | FLU212 | 3.939 |
| HCFLU212-38 | NAFLU212-38 | 2-3/8 | 9-21/32 | 7-61/64 | 1-11/32 | 53/64 | 2-3/32 | 45/64 | 5-7/16 | 3-3/16 | 3.063 | 1.220 | 5/8 | HC212-38 | NA212-38 | FLU212 | 3.871 |
| HCFLU212-39 | NAFLU212-39 | 2-7/16 | 9-21/32 | 7-61/64 | 1-11/32 | 53/64 | 2-3/32 | 45/64 | 5-7/16 | 3-3/16 | 3.063 | 1.220 | 5/8 | HC212-39 | NA212-39 | FLU212 | 3.858 |
| HCFLU213 | NAFLU213 | 65 | 256 | 210 | 38 | 22 | 57 | 21 | 152 | 89.6 | 85.7 | 34.1 | M18 | HC213 | NA213 | FLU213 | 5.097 |
| HCFLU213-40 | NAFLU213-40 | 2-1/2 | 10-1/16 | 8-17/64 | 1-1/2 | 55/64 | 2-1/4 | 53/64 | 5-63/64 | 3-17/32 | 3.374 | 1.343 | 23/32 | HC213-40 | NA213-40 | FLU213 | 5.2 |
| HCFLU213-41 | NAFLU213-41 | 2-9/16 | 10-1/16 | 8-17/64 | 1-1/2 | 55/64 | 2-1/4 | 53/64 | 5-63/64 | 3-17/32 | 3.374 | 1.343 | 23/32 | HC213-41 | NA213-41 | FLU213 | 5.087 |
| HCFLU214 | NAFLU214 | 70 | 264 | 216 | 38 | 23 | 58 | 21 | 157 | 89.6 | 85.7 | 34.1 | M18 | HC214 | NA214 | FLU214 | 5.454 |
| HCFLU214-42 | NAFLU214-42 | 2-5/8 | 10-25/64 | 8-1/2 | 1-1/2 | 29/32 | 2-9/32 | 53/64 | 6-3/16 | 3-17/32 | 3.374 | 1.343 | 23/32 | HC214-42 | NA214-42 | FLU214 | 5.394 |
| HCFLU214-43 | NAFLU214-43 | 2-11/16 | 10-25/64 | 8-1/2 | 1-1/2 | 29/32 | 2-9/32 | 53/64 | 6-3/16 | 3-17/32 | 3.374 | 1.343 | 23/32 | HC214-43 | NA214-43 | FLU214 | 5.584 |
| HCFLU214-44 | NAFLU214-44 | 2-3/4 | 10-25/64 | 8-1/2 | 1-1/2 | 29/32 | 2-9/32 | 53/64 | 6-3/16 | 3-17/32 | 3.374 | 1.343 | 23/32 | HC214-44 | NA214-44 | FLU214 | 5.464 |
| HCFLU215 | NAFLU215 | 75 | 275 | 225 | 41 | 24 | 62 | 21 | 164 | 95.8 | 92.1 | 37.3 | M18 | HC215 | NA215 | FLU215 | 6.302 |
| HCFLU215-45 | NAFLU215-45 | 2-13/16 | 10-53/64 | 8-55/64 | 1-39/64 | 15/16 | 2-7/16 | 53/64 | 6-29/64 | 3-49/64 | 3.626 | 1.469 | 23/32 | HC215-45 | NA215-45 | FLU215 | 6.602 |
| HCFLU215-46 | NAFLU215-46 | 2-7/8 | 10-53/64 | 8-55/64 | 1-39/64 | 15/16 | 2-7/16 | 53/64 | 6-29/64 | 3-49/64 | 3.626 | 1.469 | 23/32 | HC215-46 | NA215-46 | FLU215 | 6.472 |
| HCFLU215-47 | NAFLU215-47 | 2-15/16 | 10-53/64 | 8-55/64 | 1-39/64 | 15/16 | 2-7/16 | 53/64 | 6-29/64 | 3-49/64 | 3.626 | 1.469 | 23/32 | HC215-47 | NA215-47 | FLU215 | 6.342 |
| HCFLU215-48 | NAFLU215-48 | 3 | 10-53/64 | 8-55/64 | 1-39/64 | 15/16 | 2-7/16 | 53/64 | 6-29/64 | 3-49/64 | 3.626 | 1.469 | 23/32 | HC215-48 | NA215-48 | FLU215 | 6.202 |
Commited to provide premium industrial bearings for heavy industries.
Your inquiry will be replied within 8 hours!
